Specifications Model: W1209S
Dimensions: 48 * 40mm
Temperature control mode: ON / OFF
Temperature range :-50-120
Control accuracy: 0.1
Hysteresis accuracy: 0.1
Refresh rate: 0.5S
High temperature protection 0-110
Supply voltage: for DC 12V
Static current: ≤ 35MA, attract current ≤ 65MA
Output voltage: for DC 12V
Output power: 20A relay
Measurement input: NTC (10K 0.5%) Waterproof Sensor
Environmental requirements: -10 ~ 60 Humidity 20% -85%
Parameters:
| Code | explain | Setting Range | Factory Setting |
| P0 | Heating/Cooling | H/C | C |
| P1 | Return Difference | 0.1-30 | 2.0 |
| P2 | Set Limit Max. | +120 | 120 |
| P3 | Set Limit to the Min. | -50 | -50 |
| P4 | Temperature Correction | -10~10 | 0 |
| P5 | Delay Start | 0-10 | 0 |
| P6 | High Temperature Alarm | 120 | OFF |
| P7 | Data Lock | ON-OFF | OFF |
| P8 | Factory Reset | ON-OFF | OFF
|
Package included:

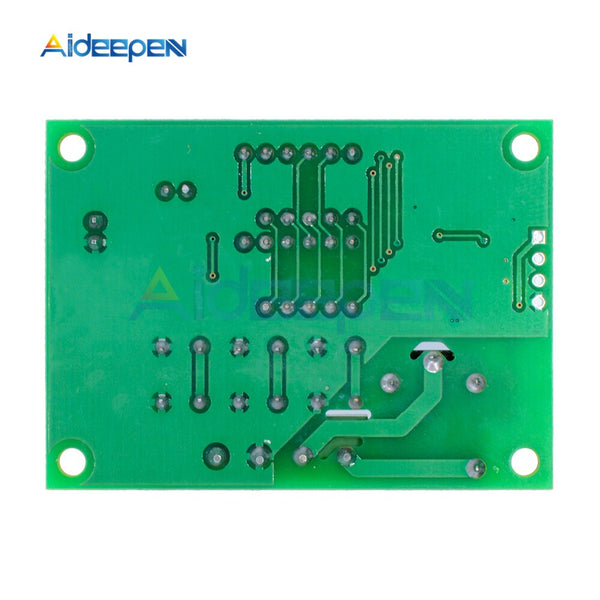

1 x DC12V Relay Module Dual LED Display Cycle Relay Module
