Description:

power supply :DC 12V

Temperature measurement range:-40~120°

Humidity range:0~100%RH

Control precision:0.1° 0.1%RH

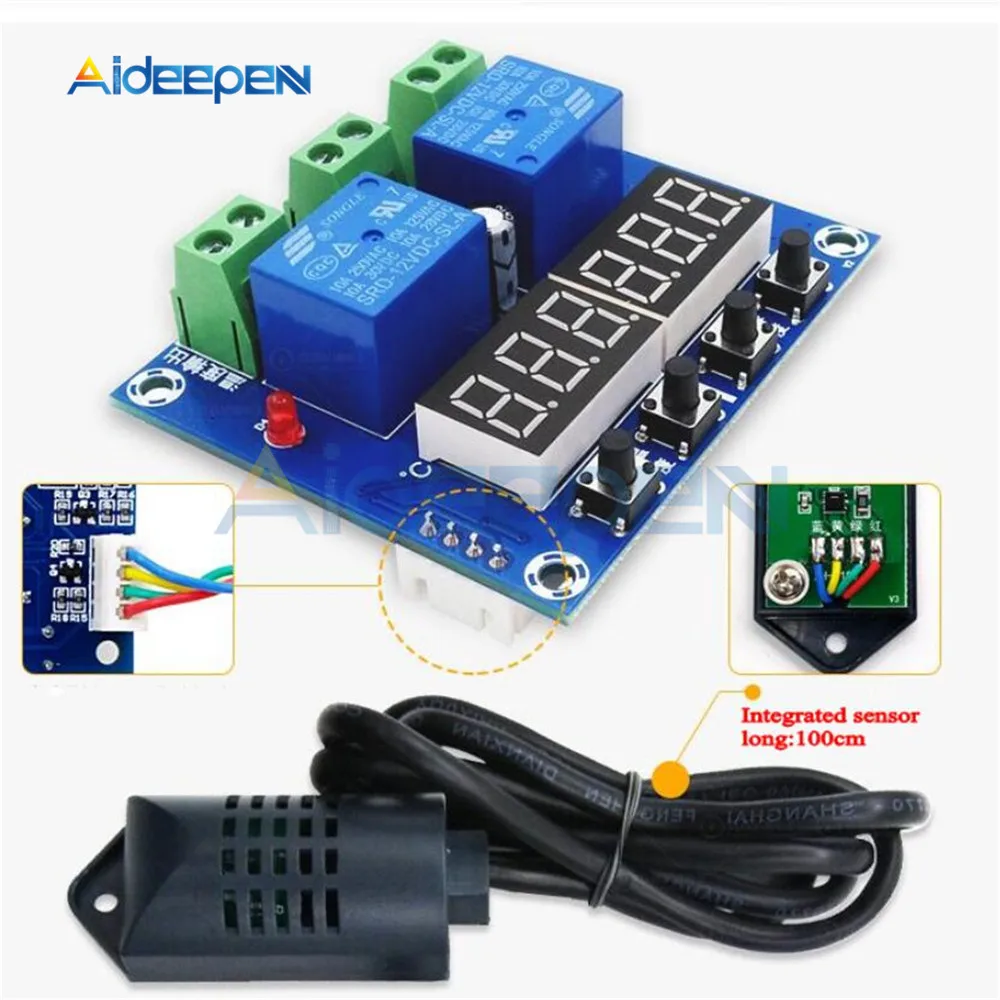

Test probe:Integrated sensor

output:10A delay

Size:65*55*28mm

Temperature control:

1. Set the temperature + :Normal display mode, long press the + key for 3 seconds, start temperature numerical flashing, press the + / - key setting values, wrong operation after 5 seconds, automatically return to detect temperature display

2. Set the temperature - :Normal display mode, long press - button for 3 seconds, stop numerical flashing temperature, press the + / - key set value

3. Restore the factory Settings :At the same time long press temperature, and humidity + key for 3 seconds, digital display, 888, 888

Set the start temperature:Long press the + key, start the flashing temperature, set start temperature by + / - key

set Stop temperature: long press - button, stop flashing temperature, set stop temperature by + / - key

Humidity Settings

Set to start humidity: long press the + key, start the humidity value flashing, set by + / - key launch humidity value

Set stop humidity: long press - to stop humidity value, set by + / - key to stop the humidity value

Fault code: display LLL mean the sensor fault

display HHH mean Test temperature exceed the range of measurement
