Description:
Chip on board :XC9572XL
On board JTAG interface(10pin)
Active crystal on board :50MHZ
With 4 programmable LED
With a 5V to 3.3V chip: AMS1117-3.3
DC-5 V power supply with switch
All the I/O port lead out for further application
Board size: 61 (mm) x48 (mm)
Package Included:

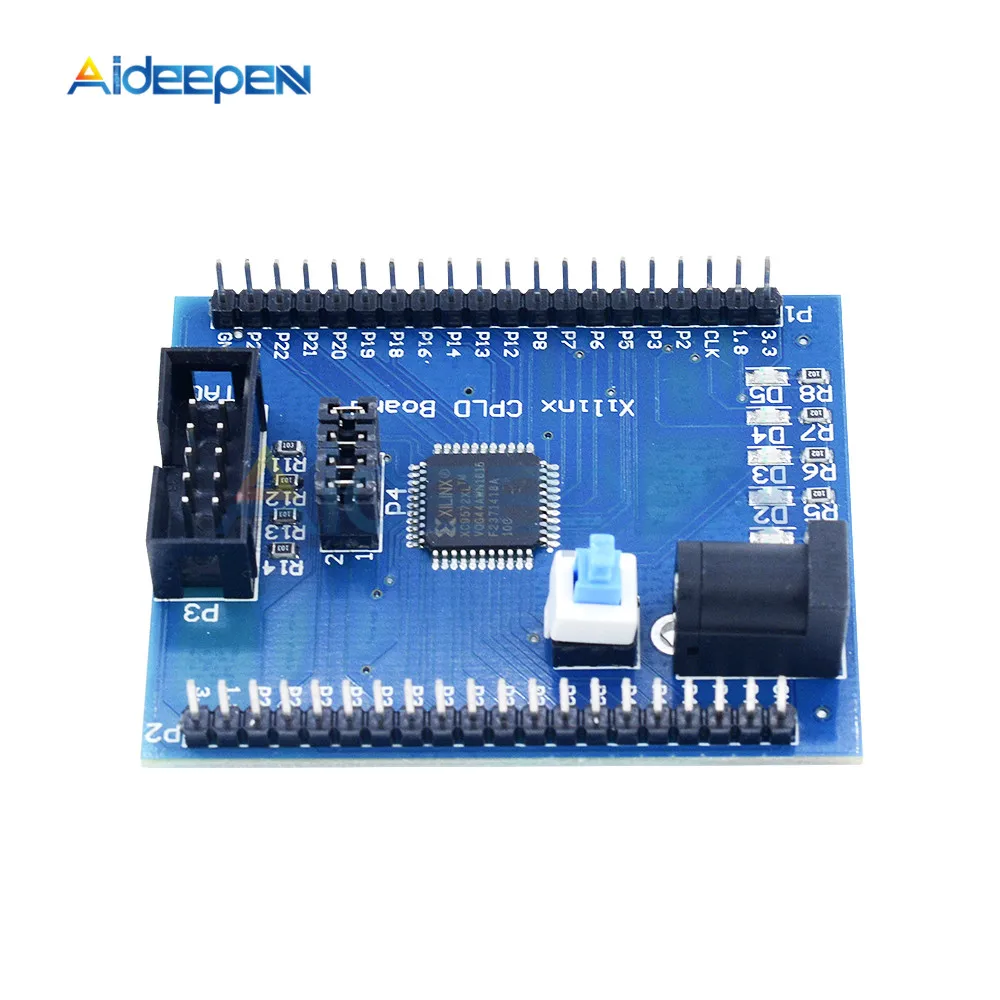

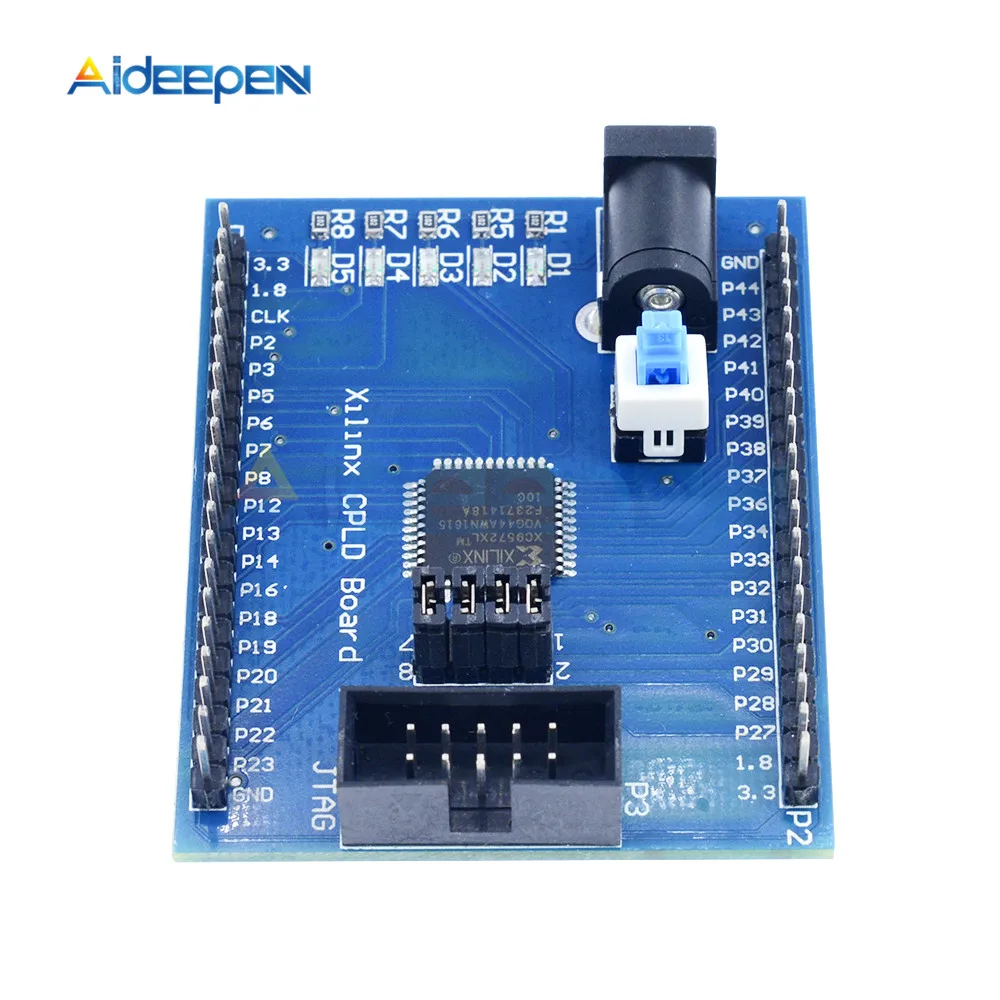

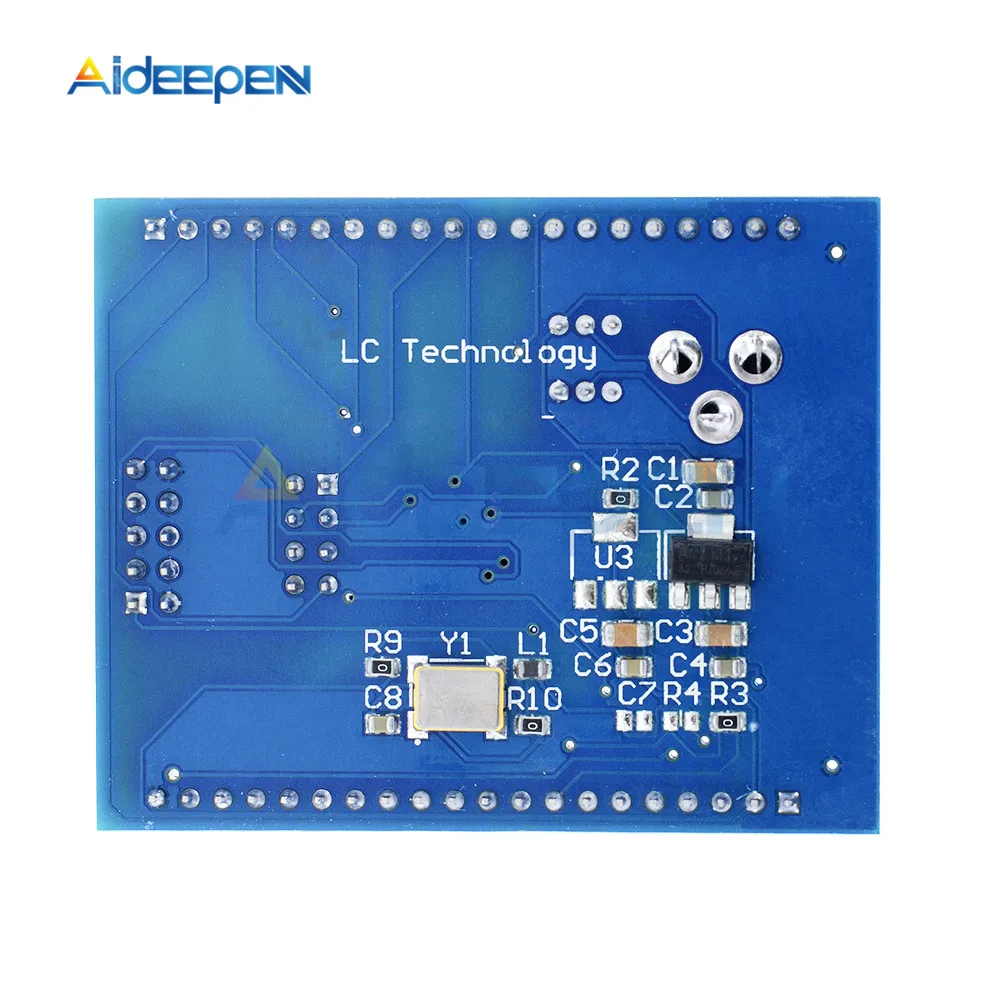

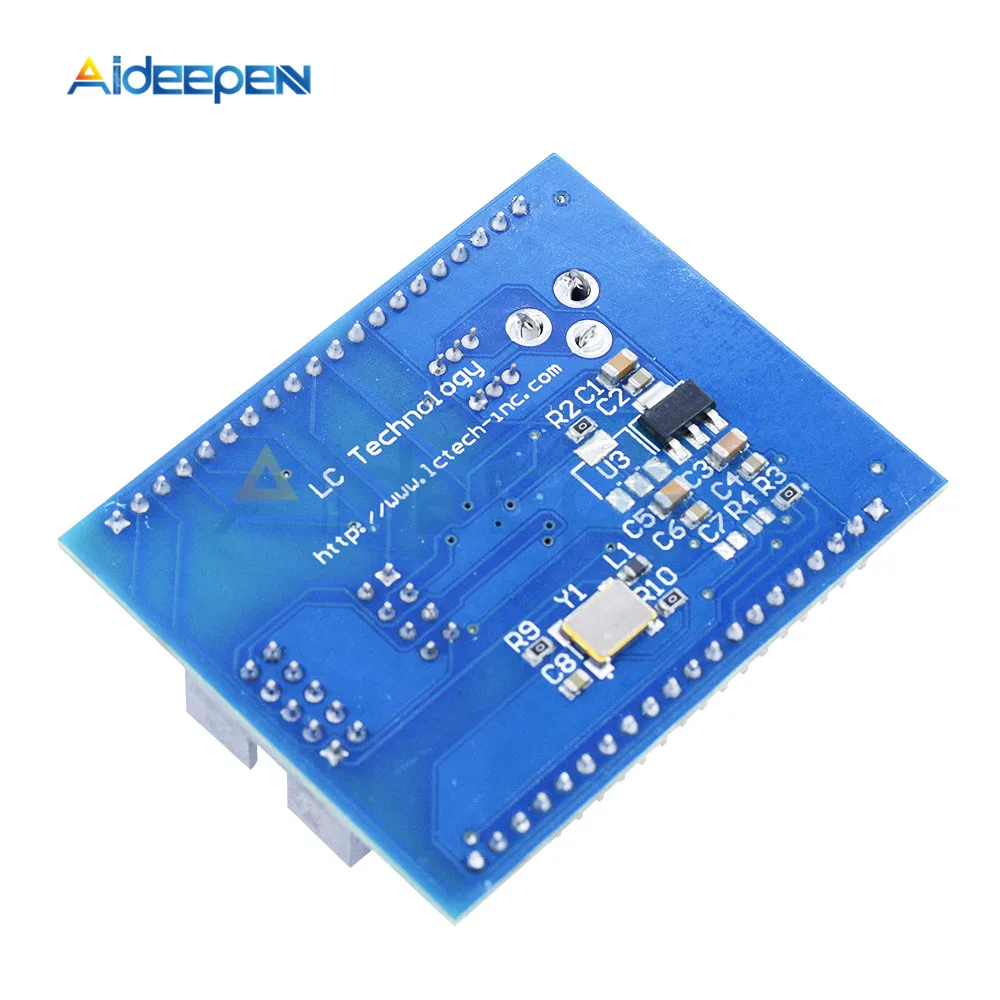

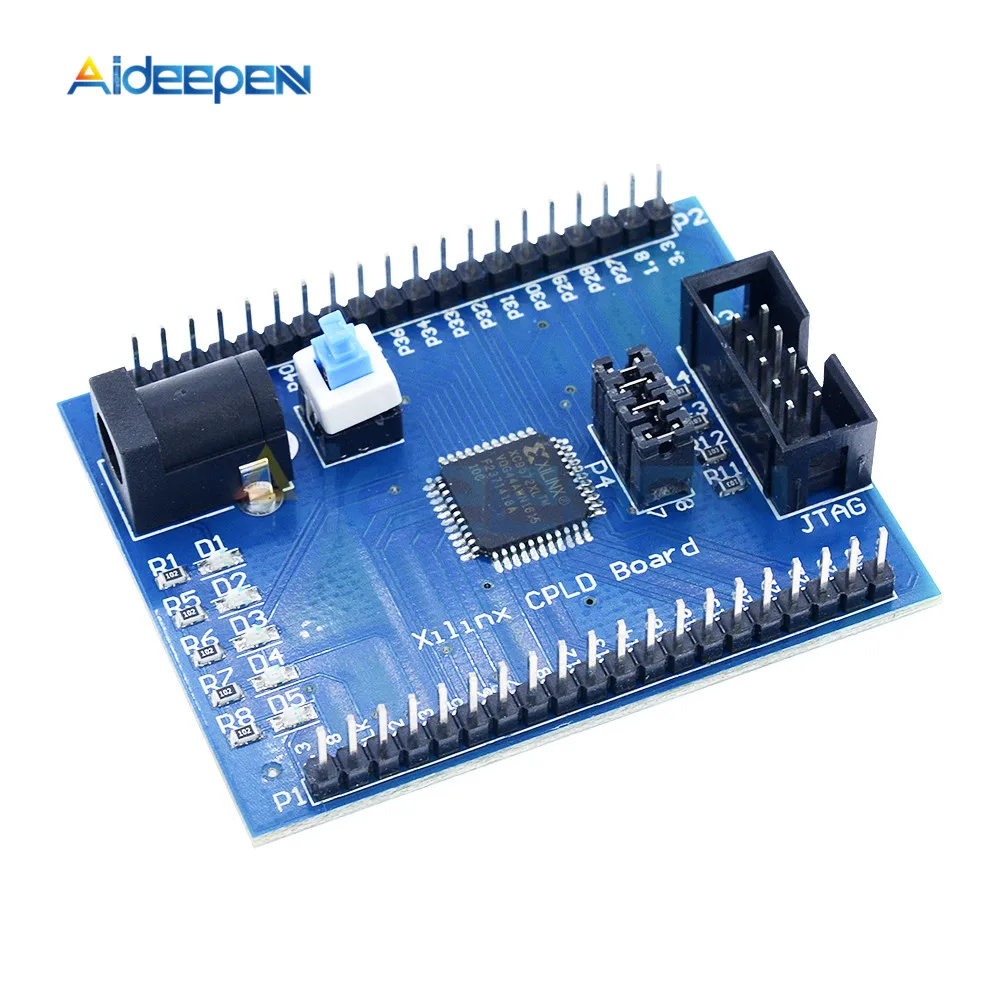

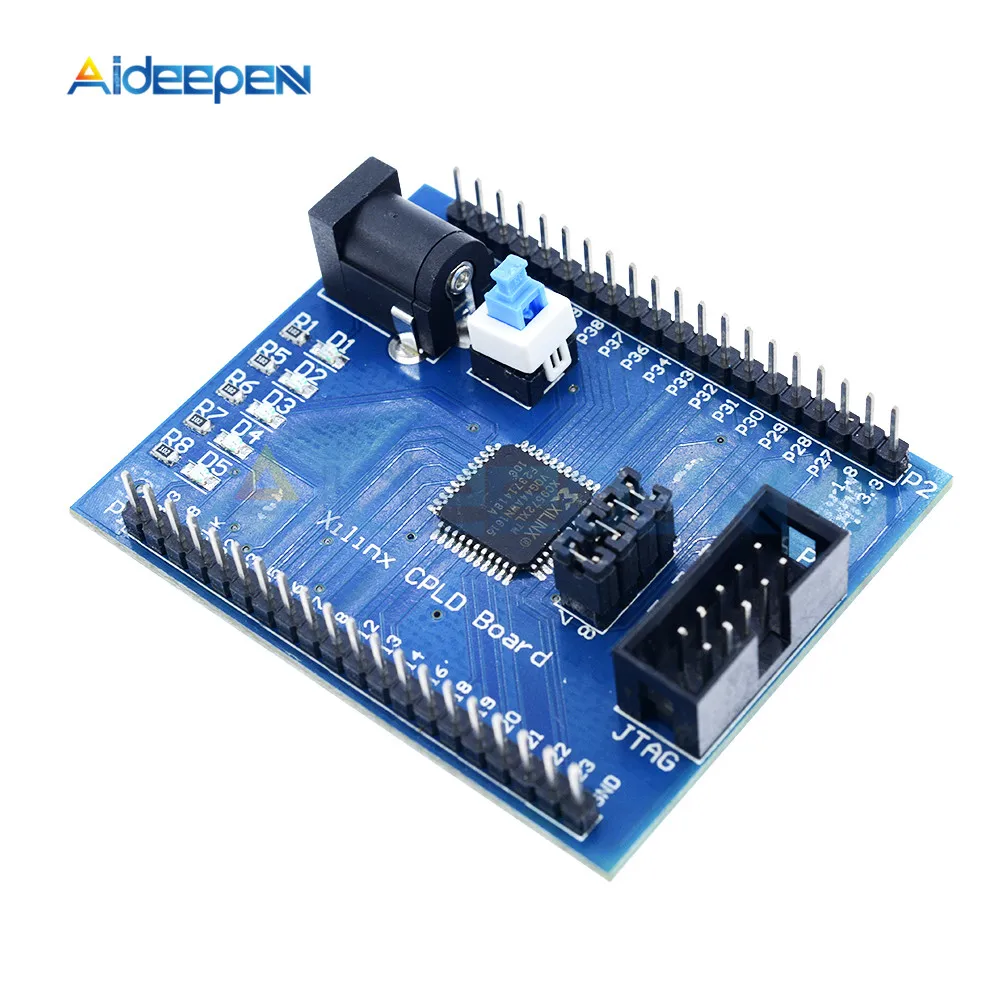

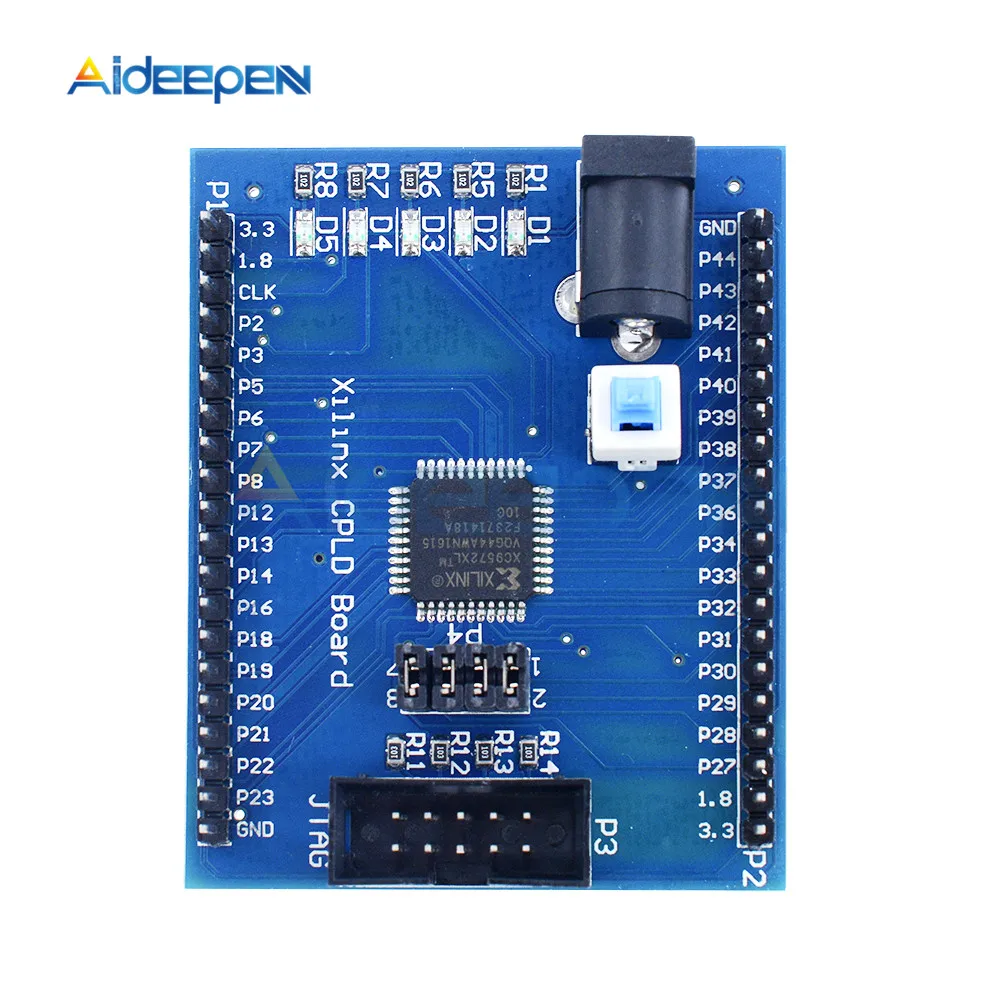

1x XC9572XL CPLD Development Board Learning Board Breadboard
