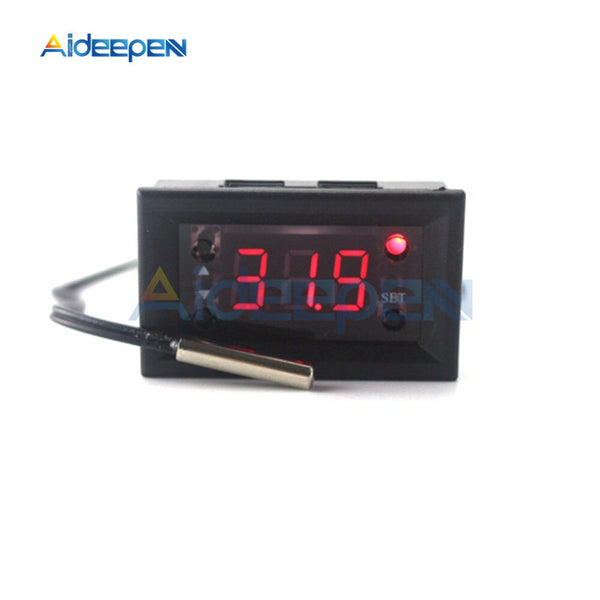

W1218 DC 12V LED Digital Thermostat Temperature Controller Regulator Thermometer Monitor Red Display for Incubator

Sale price $2.99 Regular price $4.49

Tax included.


Control range: -20 ~ 100°C
Input Power: DC 12V
Resolution: -9.9-99.9 0.1 , other temperature ranges 1
Measuring inputs: NTC (10K 0.5%) Waterproof sensor 32CM
Measurement accuracy: 0.1°C
Output range: 1 way 10A /250V AC 20A/14V DC Relay
Control accuracy: 0.1°C
Environmental requirements: -10-60°C
Size: 47 x29 x33 mm
Refresh rate: 0.5S
Power consumption: Static current: <= 35MA,attract current:<= 65MA

​How to use?

1. Connect the power supply and the load, you can supply to the controller,Is displayed as a measured temperature,Press the SET button, the display flashes the temperature,Press + - to set the desired temperature,After setting press SET to confirm return,The controller automatically performs the relay by setting off!

2. Lights, LED status descriptions:Indicator: Off The relay is switched off, Always indicate the relay is closed.LED: Shows LL is the sensor open, showing HH is out of range, the thermostat will be forced to close the relay, the display --- as high temperature protection.

3. Parameter Function:Long press SET 5 seconds to enter the main menu settings, press the + - toggle P0 ... P8 long press SET or 10 seconds of no key activity confirmed their return to the controller

Package Included:

1 x W1218 Digital Thermostat
