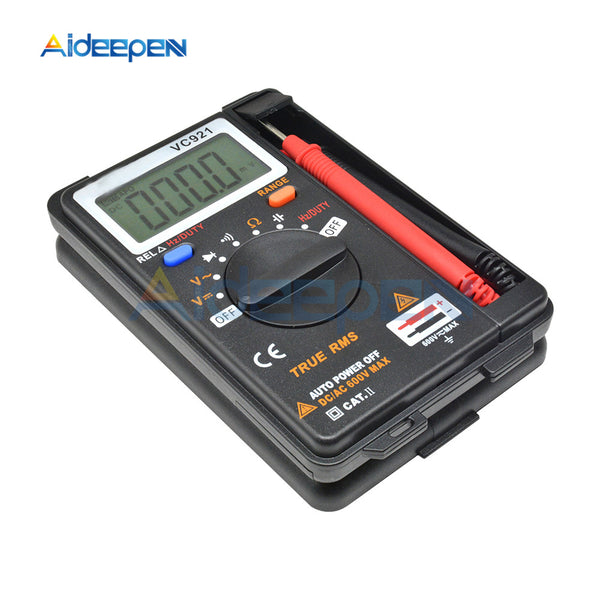

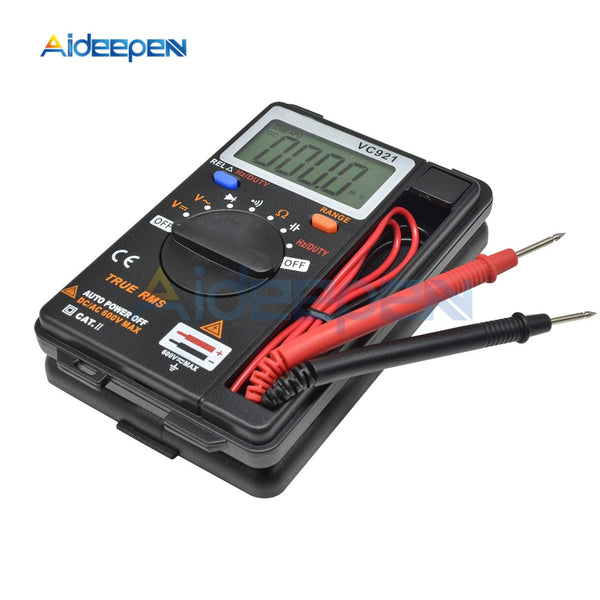

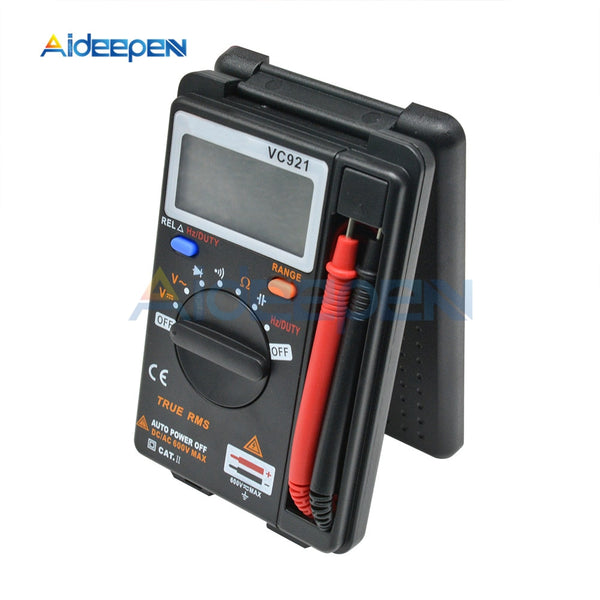

VC921 Digital Multimeter 3 3/4 Personal Handheld Pocket Mini Digital Multimeter Capacitance Resistance Frequency Tester

Description:

Auto ranges

550V protection in Resistance,Capacitance and Frequency ranges
MAX display 4000 counts
Sample rate: 3 times per second
Data hold
Relative measurement
Polarity identification
Low voltage indication
Auto power of
Main measurements:AC/DC Voltage, Resistance,Capacitance, Diode and Continuity Testing,Frequency and duty cycle.
Frequency:1Hz to 10MHz
Capacitance :10pF to 4000uF
AC volts: 0.1mV to 750V
DC volts:0.1mV to 1000V
Resistance :0.1Ω to 40MΩ
Duty cycle:1% to 99%
Specifications:
(1)Capacitance :4nF(±5.0%+4),40nF(±2.5%+4),400nF/4.000uF/40.00uF/400.0uF/1000uF /4000uF(±3.5%+4)
(2)DC volts:400mV/4V/40V(±0.5%+4),400V/600V(±0.8%+4)
(3)AC volts: 400mV(±1.5%+4), 4V/40V/400V(±1.2%+4),600V(±1.5%+4)
(4)Resistance:400Ω/4K/40K/400K/4M(±0.8%+4),40MΩ(±2.0%+4)
(5)Frequency:99.5/999.5/9.999k/99.99k/999.9k/9.999MHz (±0.08%+2)
(6)Duty cycle:0.1% to 99.9%(±0.08%+2)
(7) Measurement mode: △Σ mode
(8)Over range indication: OL
(9) Working environment: 0~40°, relative humidity < 80%
(10) Supply power: 3V (Not included 1.5V AAA batteries * 2 Pcs)
(11) Dimension: 80*120*19mm
(12) Weight: 126g
(13) Accessories: User's manual,a pair of test leads
Package included: (doesn't have the batteries)
1 x Digital Multimeter
