Description:
Microcontroller:ATmega2560
Operating Voltage:5V
Input Voltage (recommended):6-9V
Input Voltage (limit):12V
Digital I/O Pins:54 (of which 15 provide PWM output)
Analog Input Pins:16
DC Current for 5V Pin :800 mA
DC Current for 3.3V Pin:800 mA
Flash Memory:256 KB of which 8 KB used by bootloader
SRAM:8 KB
EEPROM:4 KB
Clock Speed:16 MHz
LED_BUILTIN:13
Size:38 mmx55 mm
Description:
1.When you work in the frequency 12MHz, giving a stable result of data exchange (need install drivers to computer).

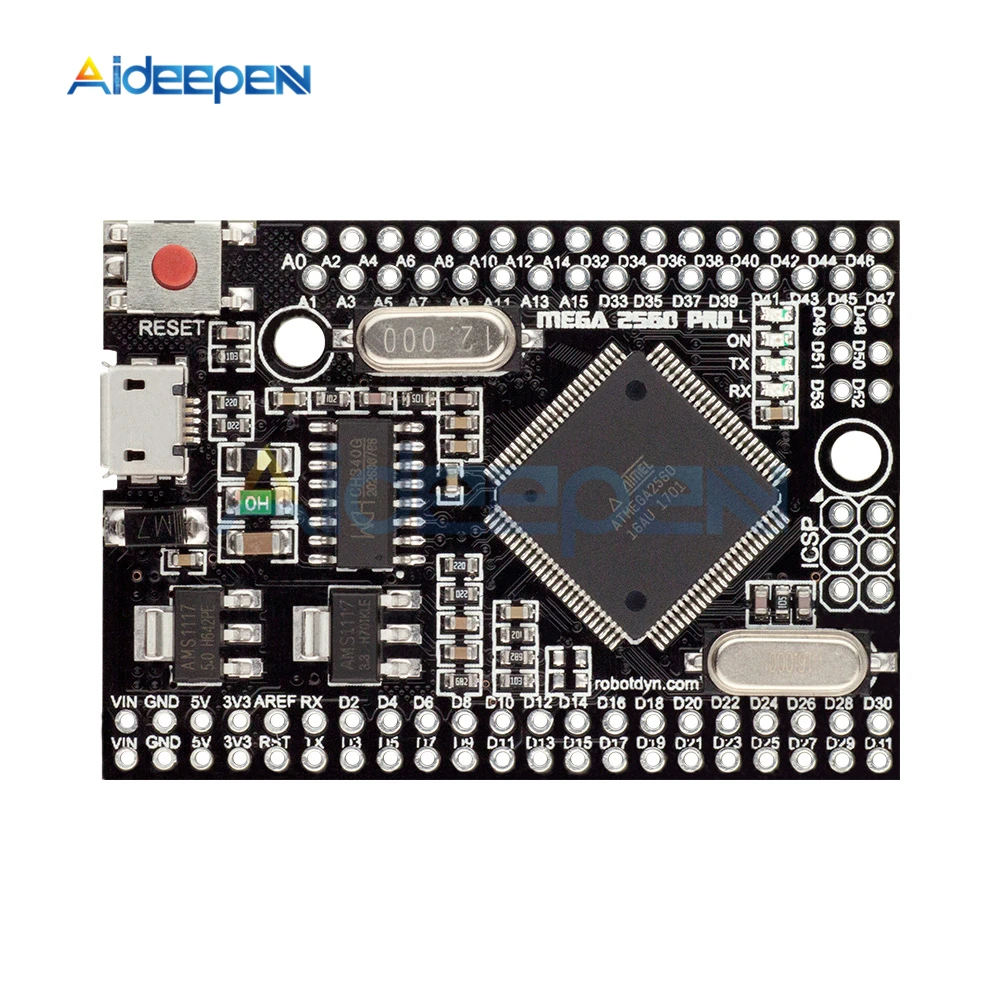

2.Mega PRO (Embed) 2560 CH340G / ATmega2560 - connects to the computer via micro USB cable (used for almost all Android smartphones).
3.You can supply power to board through the MicroUSB connector or to power pinheaders.
4.The voltage regulator (LDO) can deal with incoming voltage from 6V to 9V (peack 12V) DC.
5.Output current for 5V - about 800mA, for 3.3V - about 800mA (Please note that the higher the input voltage the lower the outgoing current).
6.That will provide a reliable power most of your initial projects.
Package Include:

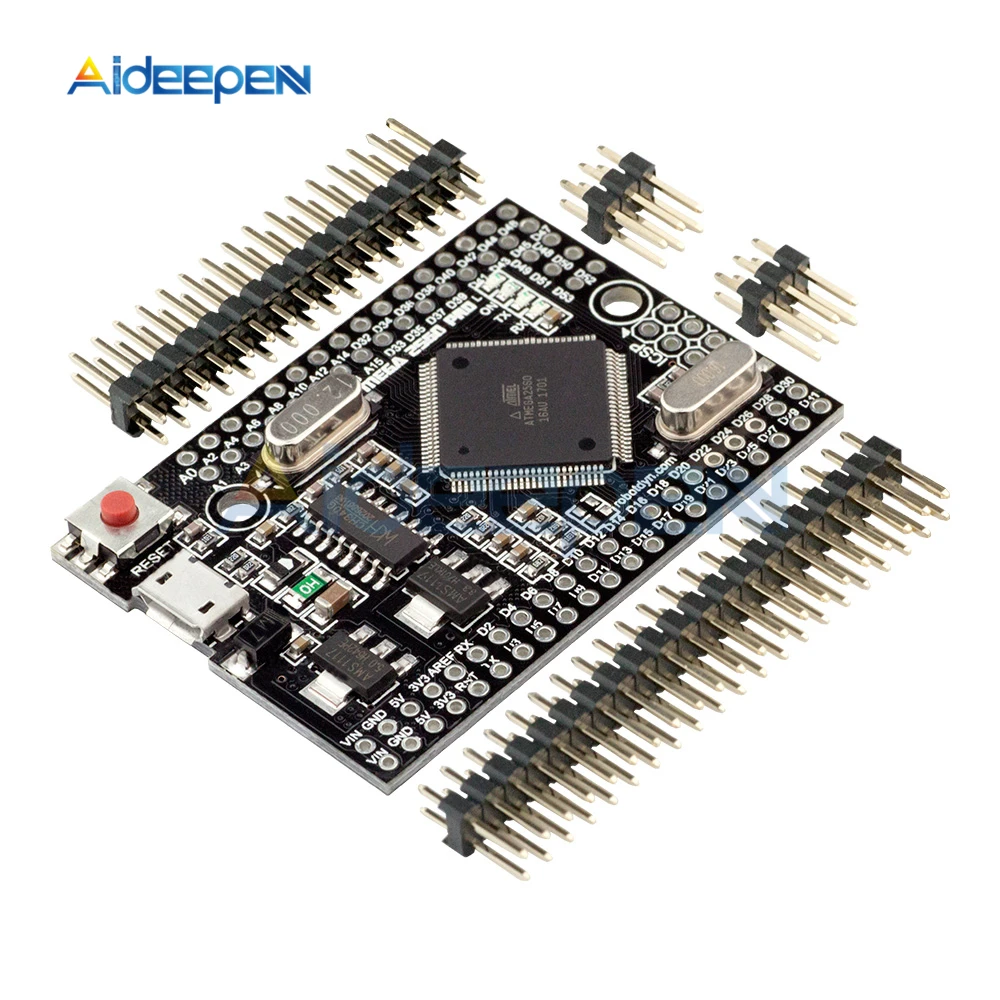

1 x Mega2560 PRO ATmega2560 USB CH340G
