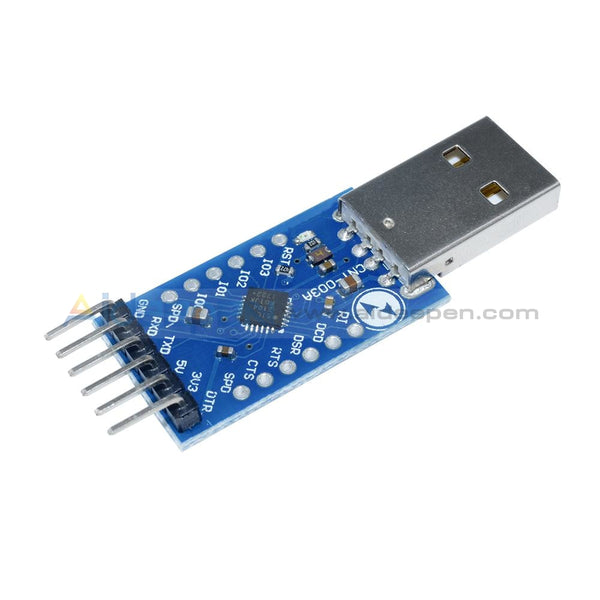

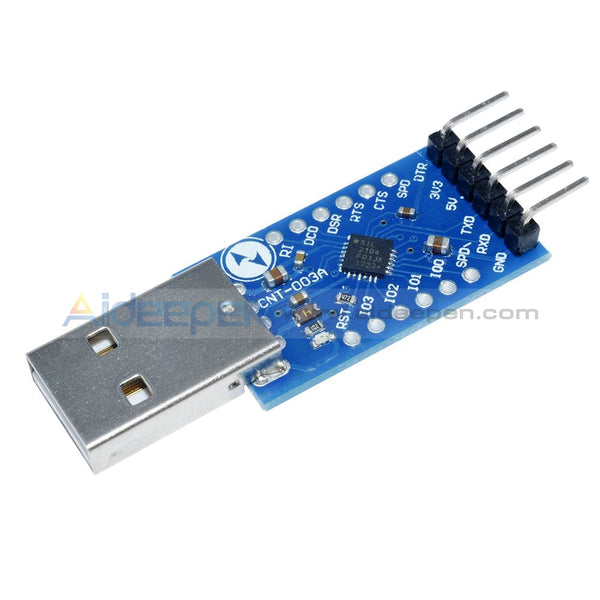

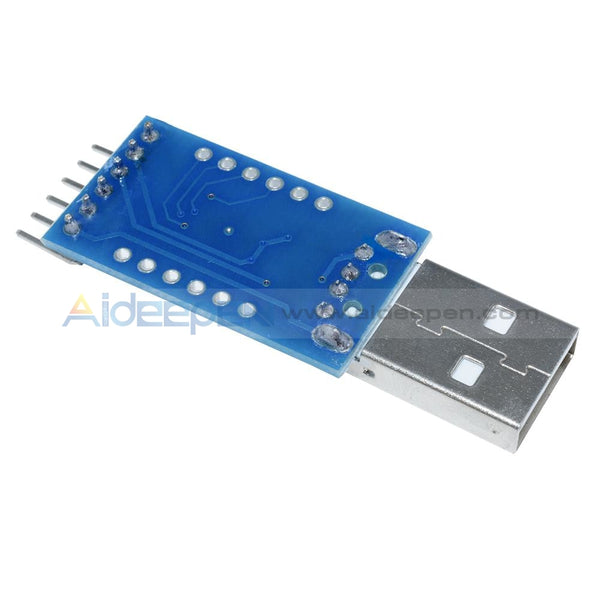

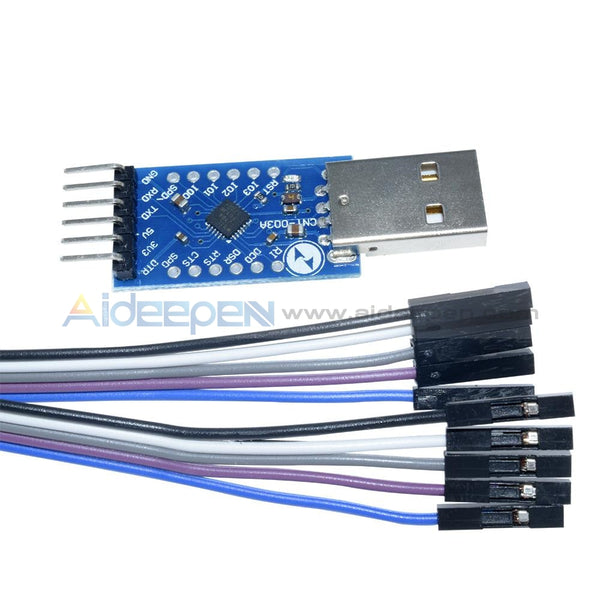

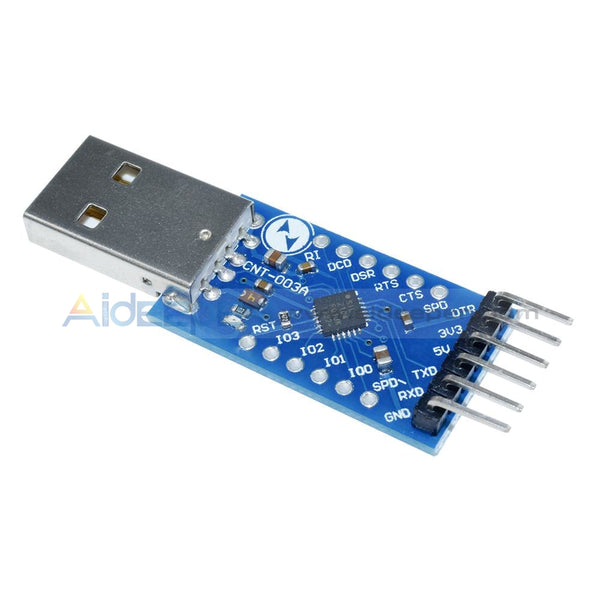

USB 2.0 to TTL UART 6PIN Module Serial Converter CP2104 with Cable


Regular price $5.99

Tax included.
  • 100% brand new and high quality
  • This is a USB 2.0 to TTL UART 6PIN CP2104 Module Serial Converter
  • Designed to be used for USB to TTL electronic projects
  • TTL interface output, Connect MCU easily to your computer
  • Built-in USB to RS232 Transfer chip
  • USB specification 2.0 compliant with full-speed 12Mbps
  • Standard USB type A male and TTL 6pin connector. 6pins for 3.3V, RST, TXD, RXD, GND & +5V
  • Event character support Line break transmission
  • USB suspend states supported via SUSPEND pins
  • Temperature Range: -40? to +85?
  • Supports Windows 98SE, 2000, XP, Vista, Window7, Mac OS 9, Mac OS X & Linux 2.40
  • Dimension: 52 mm x 17 mm (LxW)
  • use the same driver as CP2102 module


 1 * USB 2.0 to TTL UART 6PIN Module
