Features:
The voltage, current,capacity,energy,power,equivalent,impedance,temperature and other indicators are clear at a glance.
Wide appliance: Laptop,Mobile,Power bank,,Charger,Car charger,Data cable,electronic load.
Power off storage-data guaranteed,when the power bank is off,the capacity and the data can be stored,which is convenient for subsequent inspection,and convenient for capacity and energy measurement and of the power bank.
The voltage, current,capacity,energy,power,equivalent,impedance,temperature and other indicators are clear at a glance.
Wide appliance: Laptop,Mobile,Power bank,,Charger,Car charger,Data cable,electronic load.
Power off storage-data guaranteed,when the power bank is off,the capacity and the data can be stored,which is convenient for subsequent inspection,and convenient for capacity and energy measurement and of the power bank.
Specifications:

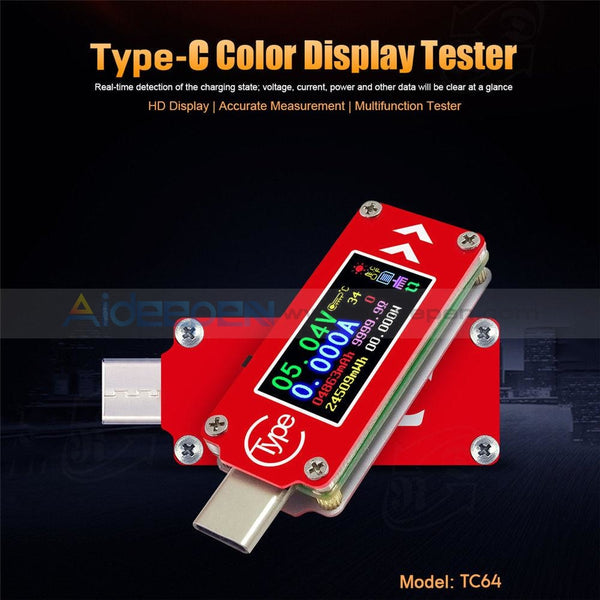

Product Model:TC64
Display screen:0.96 Inch color LCD display
Voltage measurement range:3.70-30.00V
Voltage measurement resolution:0.01V
Current measurement range:0-4.000A
Current measurement resolution:0.001A
Capacity accumulation rannge:0-99999mAh
Voltage measurement accuracy:±(0.8%+4digits at 25℃)
Energy sccumulation range:0-99999mWh 999.99Wh
Current measurement accuracy: ±(1%+4 digits, at 25℃)
Load impedance range: 1Ω-9999.9Ω
Power measurement range:0-120W
Temperature range:-0℃~80℃/32℉~176℉
Temperature measurement error:±3℃/±6℉
Working temperature range: 0~45℃/32℉~113℉
Product size:50mmx19mmx9mm
Refresh rate:2Hz
Product weight:7g( With packaging 14g)
Quick charge recognition mode:QC2.0、QC3.0、APPLE 2.4A/2.1A/ 1A/0.5A、Android DCP、SAMSUNG (This quick charge agreement recognition model is for reference only, because cell phone updated quickly, it can't be absolutely accurate identification )
Product Model:TC64
Display screen:0.96 Inch color LCD display
Voltage measurement range:3.70-30.00V
Voltage measurement resolution:0.01V
Current measurement range:0-4.000A
Current measurement resolution:0.001A
Capacity accumulation rannge:0-99999mAh
Voltage measurement accuracy:±(0.8%+4digits at 25℃)
Energy sccumulation range:0-99999mWh 999.99Wh
Current measurement accuracy: ±(1%+4 digits, at 25℃)
Load impedance range: 1Ω-9999.9Ω
Power measurement range:0-120W
Temperature range:-0℃~80℃/32℉~176℉
Temperature measurement error:±3℃/±6℉
Working temperature range: 0~45℃/32℉~113℉
Product size:50mmx19mmx9mm
Refresh rate:2Hz
Product weight:7g( With packaging 14g)
Quick charge recognition mode:QC2.0、QC3.0、APPLE 2.4A/2.1A/ 1A/0.5A、Android DCP、SAMSUNG (This quick charge agreement recognition model is for reference only, because cell phone updated quickly, it can't be absolutely accurate identification )
Notes:
1, The product current only flow from male connector to female connector (one-way current), the reverse is still energized but the current is shown to be 0. Pay attention when using.
2, if you use our TC64 meter to connect phone, you must have PD charger , or have many converter cable ..
2, Type-C port is full function port , support Type-C fast charge and most all type-c device , but not Type-c identity resistance (no type-c trigger)
3, Application: PD charger measurement; PD car charger measurement; Type-C U flash measurement, and etc.
1, The product current only flow from male connector to female connector (one-way current), the reverse is still energized but the current is shown to be 0. Pay attention when using.
2, if you use our TC64 meter to connect phone, you must have PD charger , or have many converter cable ..
2, Type-C port is full function port , support Type-C fast charge and most all type-c device , but not Type-c identity resistance (no type-c trigger)
3, Application: PD charger measurement; PD car charger measurement; Type-C U flash measurement, and etc.
Package included :
1 x Type-C Full-Color LCD Display Tester
