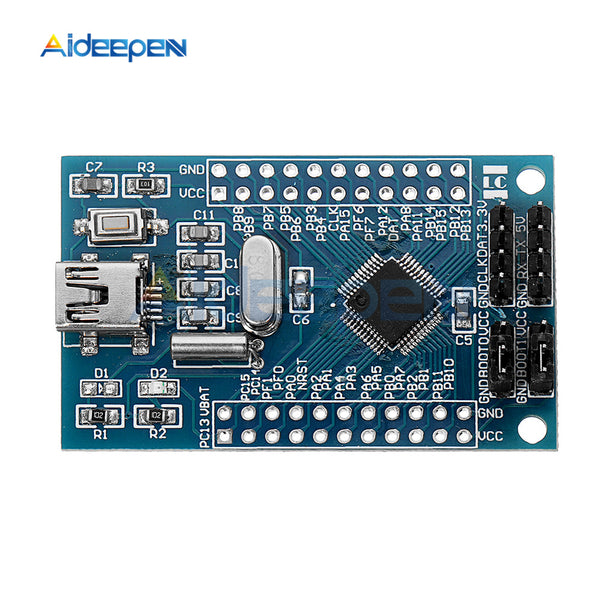

STM32F051C8 core board carry a STM32F051C8 chip. The most basic circuit board MCU, including power supply module, reset circuit, download circuit, etc. Lead to all the I/O port resources. Row needle spacing of 2.54 mm, small size, suitable for access to the user's system.
Kernel: Cortex- M0 32-bit
Storage Resource: 64K Flash, 8KB SRAM
Circumscribed Crystal Oscillator: 8MHz
Debugging Download Interface: SWD
Power supply of board: Mini-USB DC-5V.
Board size: 33mm*53mm
(1) The SWD interface, download and debug support.
(2) The UART interface, download and communications support.
(3) The on-board ASM1117-3.3 V voltage regulator chip;
(4) The MCU pin interface, which leads to the VCC, GND and all I/O, convenient connection with various modules.
(5)The power indicator light (red LED).
(6)The green LED to light up the low level I/O (PC13), can be used for testing;
(7) Reset button
This development carry a STM32F051C8T6 chip, all the pins of chip leads to convenient for the user to expand other modules. USB mini port and reset button. A SWD interface convenient for the user to download and simulation.
