STC 3008 Dual Digital Temperature Controller Two Relay Output Thermostat with Sensor DC12V 24V AC110 220V Home Fridge Cool Heat

Switch the modes between cool and heat;

Control temperature by setting the temperature setting value and the difference value;

Temperature calibration;

Refrigerating control output delay protection;

Alarm when temperature exceeds temperature limit or when sensor error.

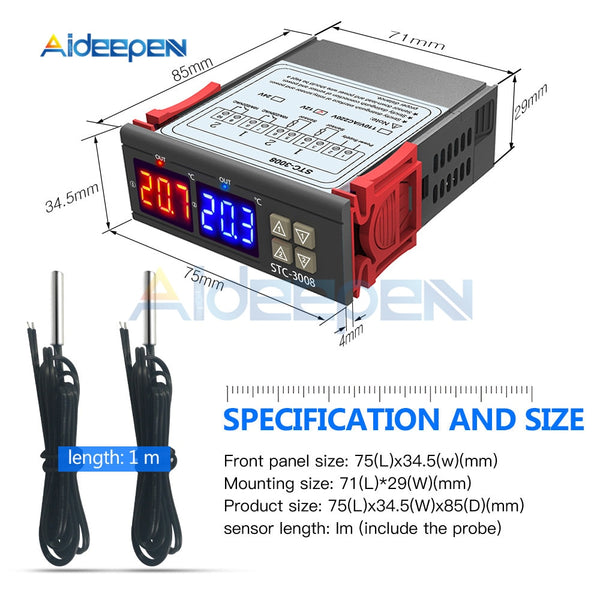

Specification:

Front panel size: 75x34.5(mm)

Mounting size: 71x29(mm)

Product size: 75x34.5x85(mm)

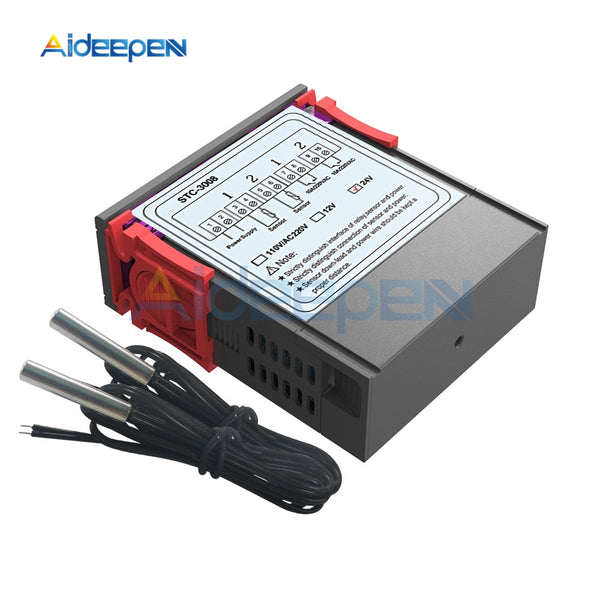

Sensor length: 1 meter (include the probe)

Technical Parameters:

Temperature measuring range: -55-120 Celsius

Accuracy: 0.1 Celsius

Sensor error delay: 1 minute

Power supply: DC 12V DC 24V AC 110-220V

Power consumption: <3w

Sensor: NTC sensor

Relay contact capacity: Cool (10A/240VAC); Heat (10A/240VAC)

Ambient temperature: 0-60 Celsius

Storage temperature: -30-75 Celsius
