Switch the modes between cool and heat;
Control temperature by setting the temperature setting value and the difference value;
Temperature calibration;
Refrigerating control output delay protection;
Alarm when temperature exceeds temperature limit or when sensor error.

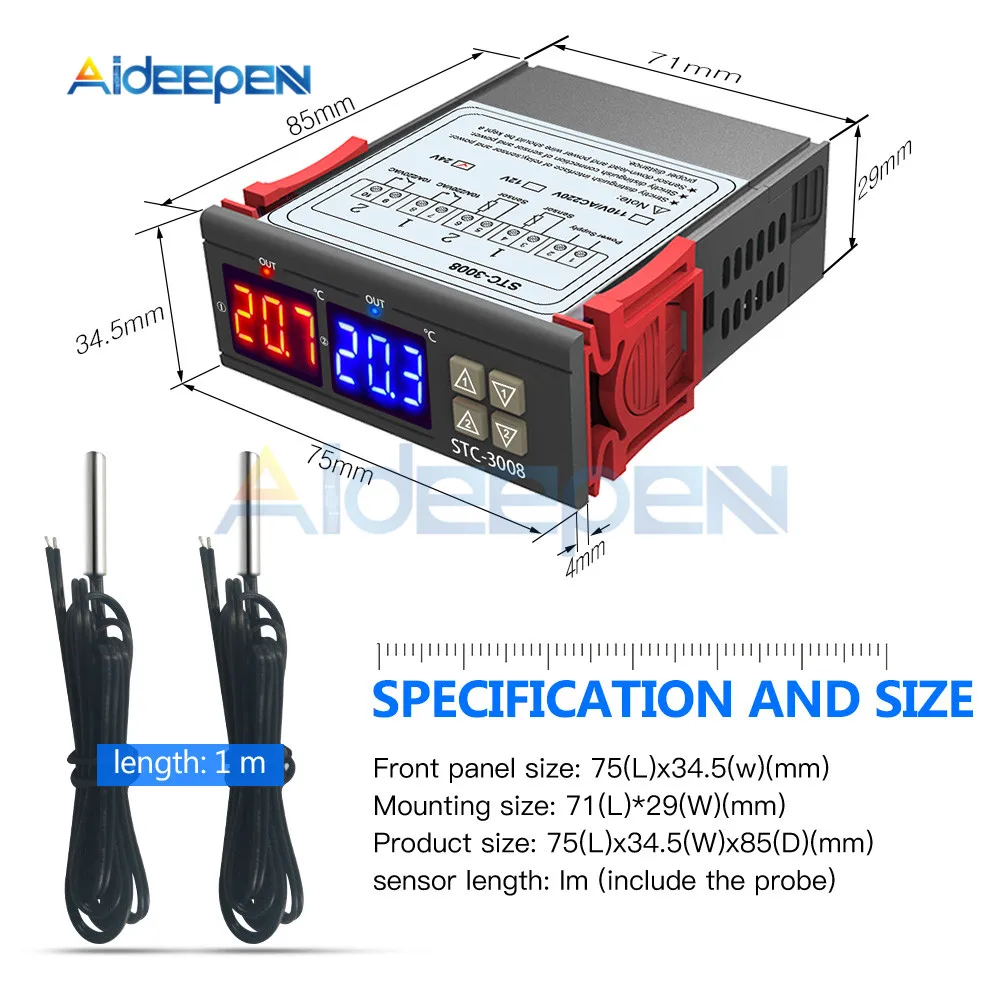

Specification:
Front panel size: 75x34.5(mm)
Mounting size: 71x29(mm)
Product size: 75x34.5x85(mm)

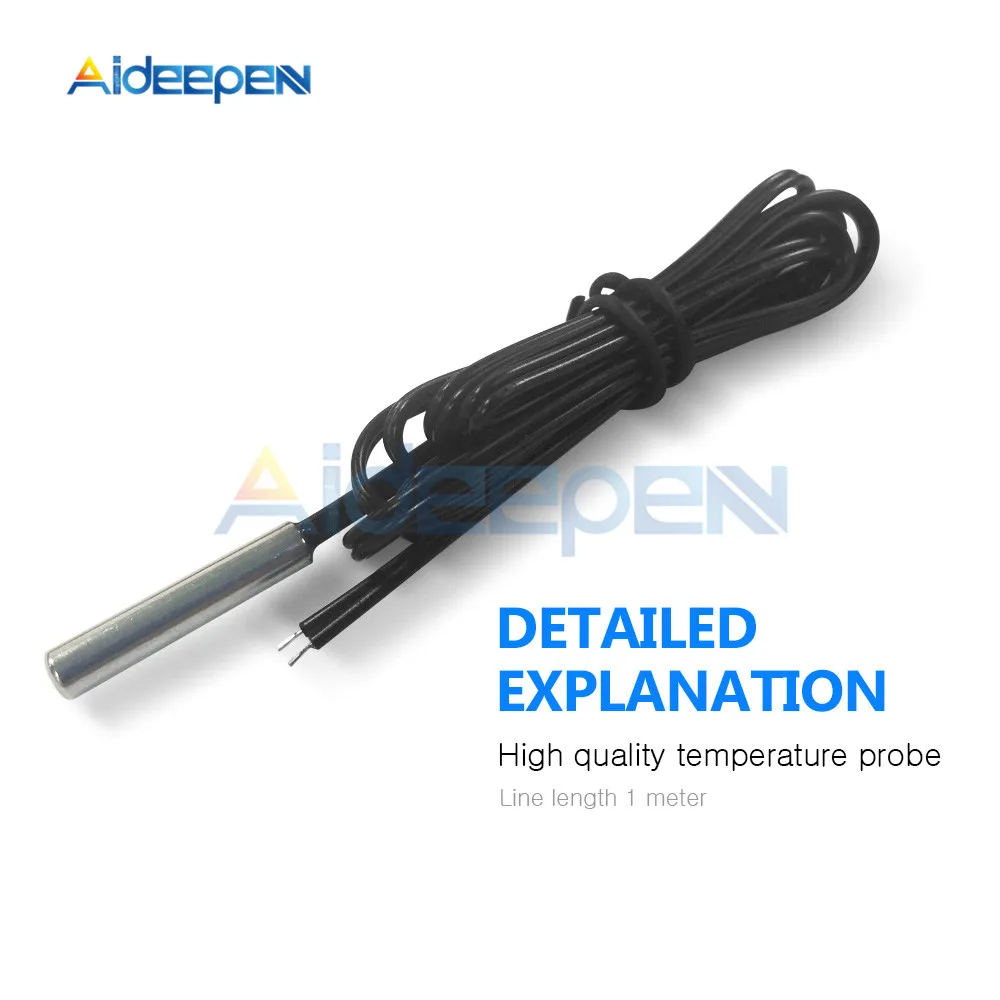

Sensor length: 1 meter (include the probe)
Technical Parameters:
Temperature measuring range: -55-120 Celsius
Accuracy: 0.1 Celsius
Sensor error delay: 1 minute
Power supply: DC 12V DC 24V AC 110-220V
Power consumption: <3w
Sensor: NTC sensor
Relay contact capacity: Cool (10A/240VAC); Heat (10A/240VAC)
Ambient temperature: 0-60 Celsius
Storage temperature: -30-75 Celsius

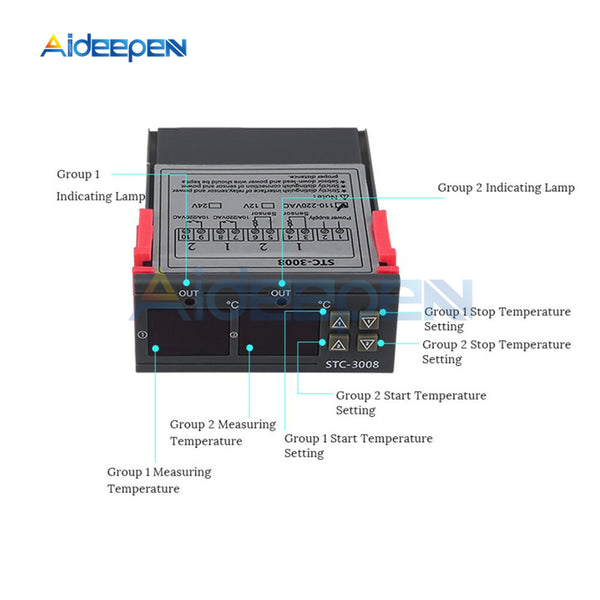

| Press "Up 1" Button & "Up 2"Button at the same time to setting mode
How to restore factory Settings Press the "Down 1" and "Down 2" button at the same time, the factory setting is restored | ||||||||||||||||||||||
| |
