Description:

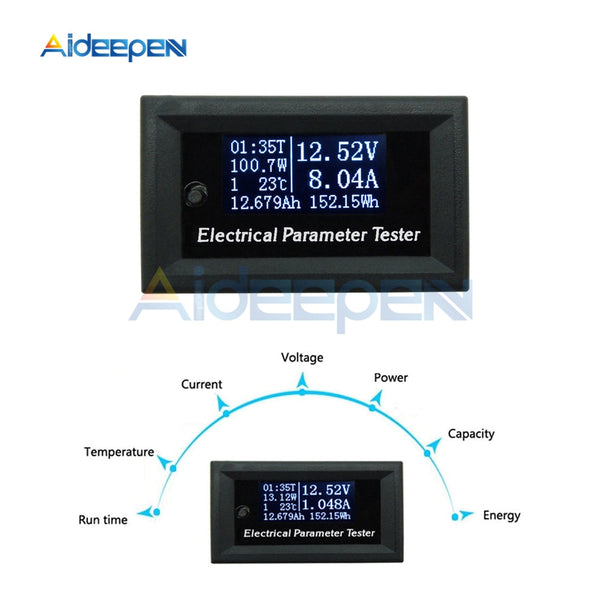

100v/10A Multifunction Tester Voltage Current Time Temperature Capacity Voltmeter Ammeter Electrical Meter
Technical Parameters:
Voltage measurement range: DC00.0-99.9V
Current measurement range: DC0.00-9.99A
Time measurement range: 0-99h59min
Power measurement range: 0-99.99W-999.9W
Temperature measurement range: -15 °c ~60°c
Capacity accumulation range: 00.000-99.999Ah
Energy accumulation range: 0-9999.9Wh
Voltage measurement accuracy:± (0.3% + 2digits)
Current measurement accuracy:± (0.8% + 3 digits)
Font color: Blue White
Product weight: 18.5g
Product size: 48mm*29mm*22mm (L*W*H)
Button Function Instruction:
Technical Parameters:
Voltage measurement range: DC00.0-99.9V
Current measurement range: DC0.00-9.99A
Time measurement range: 0-99h59min
Power measurement range: 0-99.99W-999.9W
Temperature measurement range: -15 °c ~60°c
Capacity accumulation range: 00.000-99.999Ah
Energy accumulation range: 0-9999.9Wh
Voltage measurement accuracy:± (0.3% + 2digits)
Current measurement accuracy:± (0.8% + 3 digits)
Font color: Blue White
Product weight: 18.5g
Product size: 48mm*29mm*22mm (L*W*H)
Button Function Instruction:
In the display interface, click the button to switch data set; keep pressing button to clear the accumulated data to zero.
The component aging and temperature variation after long-term use may appear tiny error when it measures small current. To avoid this error, you can unplug the current wire socket and keep pressing the button to connect power supply, until the screen display ''AAA'', then loose button.
Using Isolated Power Supply
The two power supplies must be isolated and don't connect any load. The highest voltage of isolated power supply is 20V
Using DC-DC converter to power supply
The black thin wire connects nothing and you should use insulator wrap it to avoid short circuit. The DC-DC converter must be common cathode structure.
Using system to power supply
The black thin wire connects nothing and you should use insulator wrap it to avoid short circuit.
In the display interface, click the button to switch data set; keep pressing button to clear the accumulated data to zero.
The component aging and temperature variation after long-term use may appear tiny error when it measures small current. To avoid this error, you can unplug the current wire socket and keep pressing the button to connect power supply, until the screen display ''AAA'', then loose button.
Using Isolated Power Supply
The two power supplies must be isolated and don't connect any load. The highest voltage of isolated power supply is 20V
Using DC-DC converter to power supply
The black thin wire connects nothing and you should use insulator wrap it to avoid short circuit. The DC-DC converter must be common cathode structure.
Using system to power supply
The black thin wire connects nothing and you should use insulator wrap it to avoid short circuit.
Package Included:
1 x OLED 100V/10A DC Voltmeter Display Monitor Tester Current Meters Charger Voltage Ammeter Battery Power Supply Capacity Detection
