Description:
CH340G replaces FT232RL
8 analog input ports: A0~A7
14 digital input / output ports: TX, RX, D2 ~ D13
6 PWM ports: D3, D5, D6, D9, D10, D11
1 pair TTL level serial transceiver port RX / TX
Use Atmel Atmega328P-AU MCU
Inside is equipped with bootloader
Support USB download and power
Support external 5V~12V DC power supply
Support 9V battery power supply
Support ISP download
Package Included(You can choose what you want):

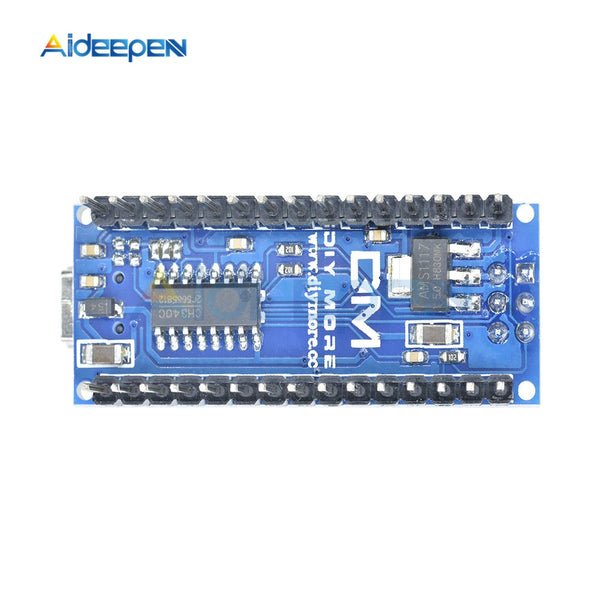

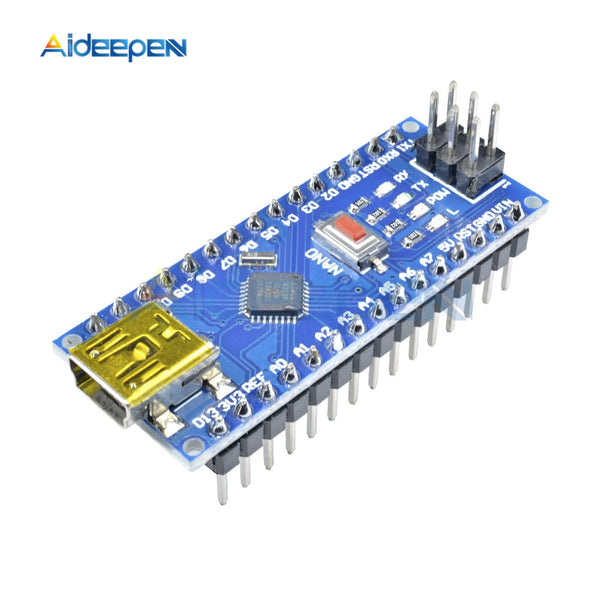

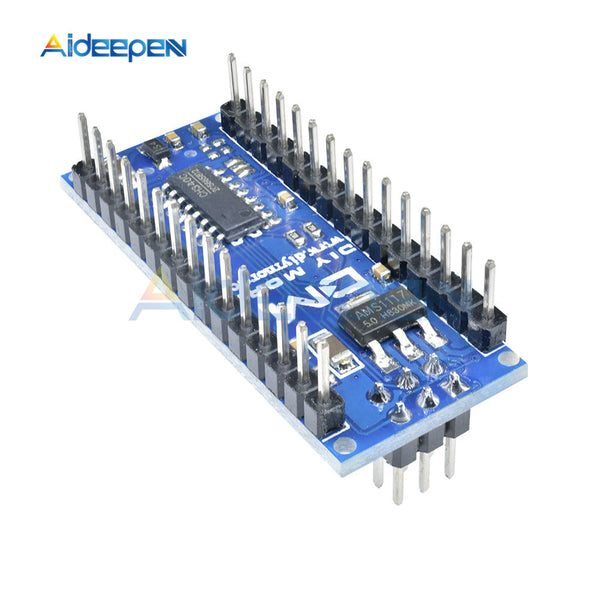

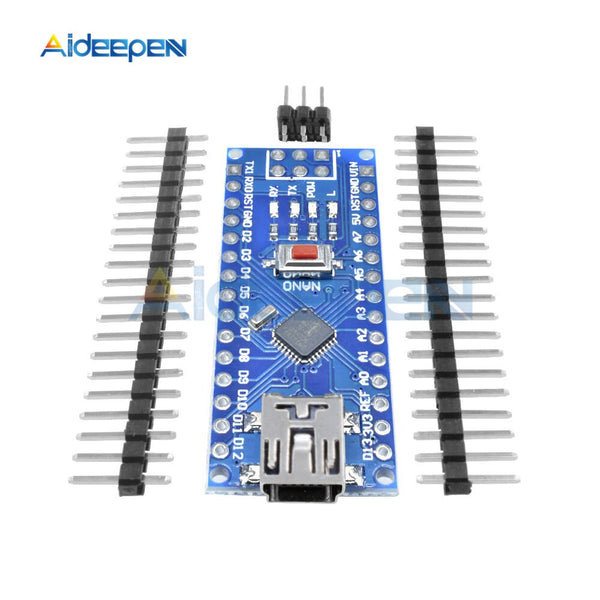

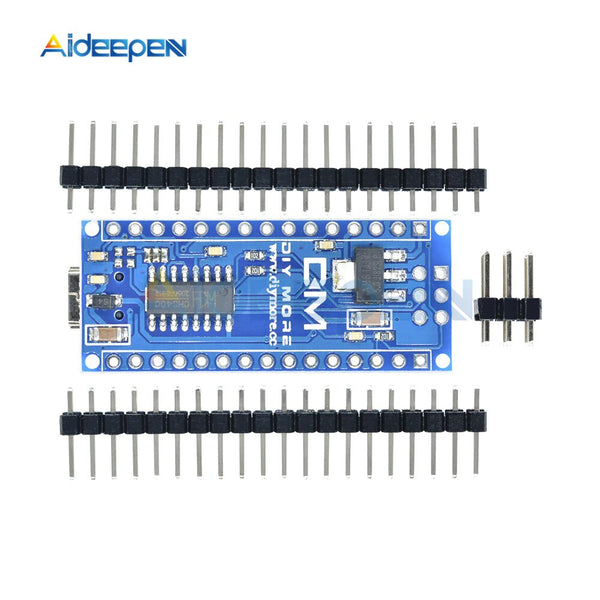

1 x Nano V3.0 with ATMEGA328P CH340G Module
1 x Usb cale
1 x Nano V3.0 with ATMEGA328P CH340G Module with cable
