Description:
1.Timing Range:0-999s,0-999min,0-999h
2.Appearance Size:display board 48mm*29mm;installation 45.5mm*26mm
3.Function Setting:18 kinds combination function
4.Relay:20A power <1800W
5.System Power:12V
Features:

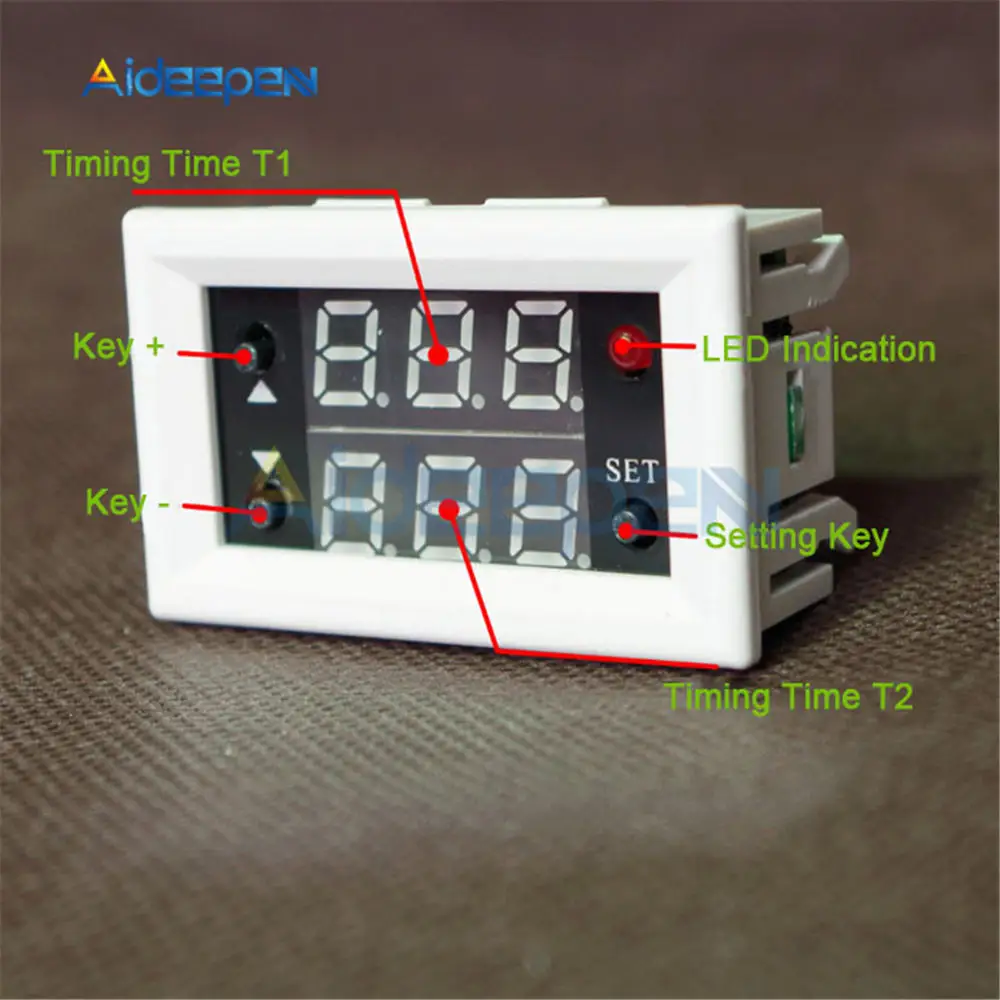

1.Double LED Display:can set two sets timing time.Timing time T1,timing time T2
2.Three Timing Time Chosen:0-999s,0-999min,0-999h
3.Six Operating Mode Setting
0 mode:after delay T1 time,relay will operate(T1 timing)
1 mode:after delay T1 time,relay will not operate(T1 timing)
2 mode:after delay T1 time,relay will operate(T1 timing);after delay T2 time,relay will not operate(T2 timing),end
3 mode:after delay T1 time,relay will not operate(T1 timing);after delay T2 time,relay wil operate(T2 timing),end
4 mode:after delay T1 time,relay will operate(T1 timing);after delay T2 time,relay wil not operate(T2 timing),repeat cycling
5 mode:after delay T1 time,relay will not operate(T1 timing);after delay T2 time,relay wil operate(T2 timing),repeat cycling
Package include:
1 x Mini 12V 20A Digital LED Dual Display Timer Relay Module Timing Delay Cycle
