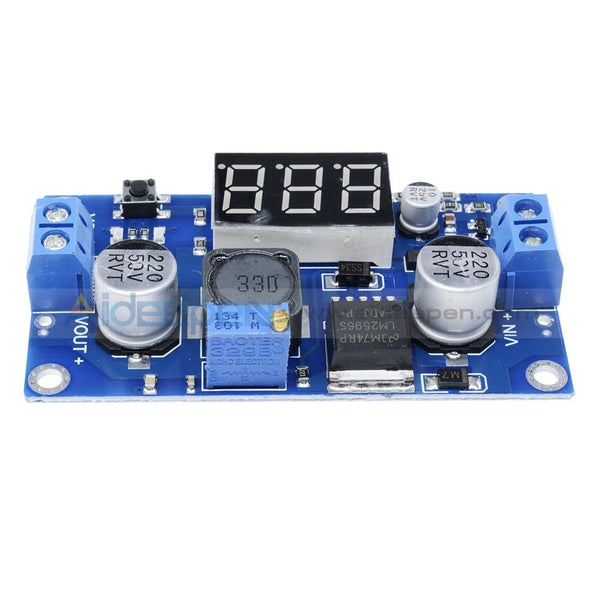

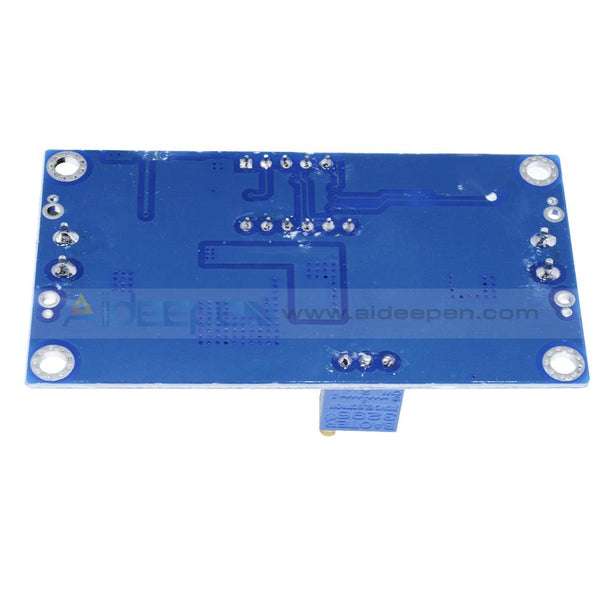

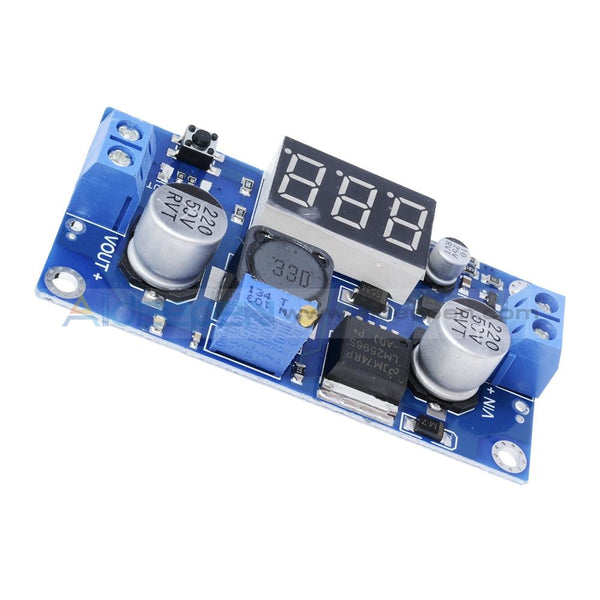

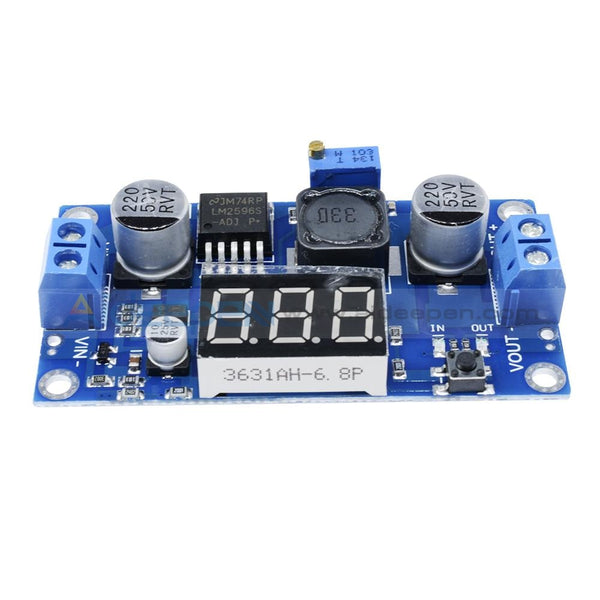

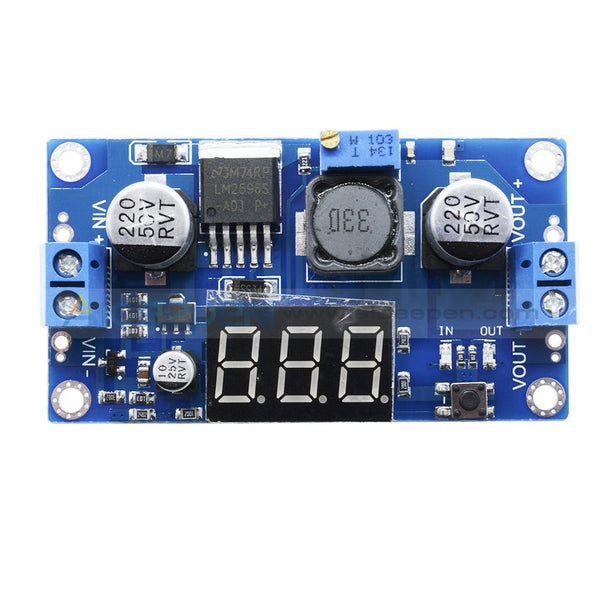

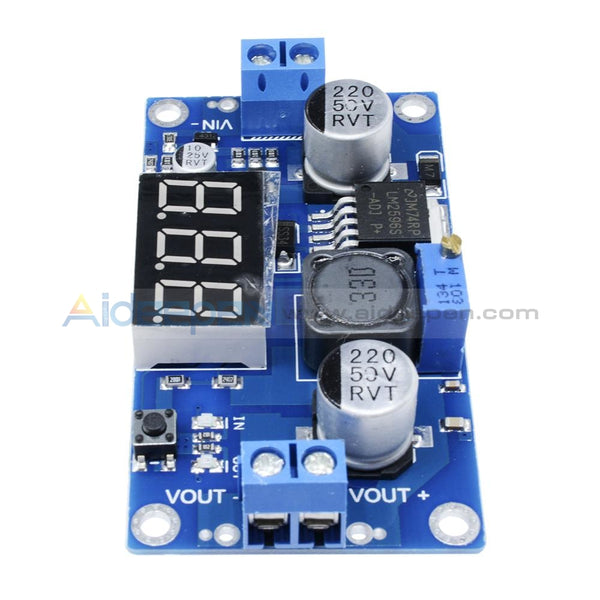

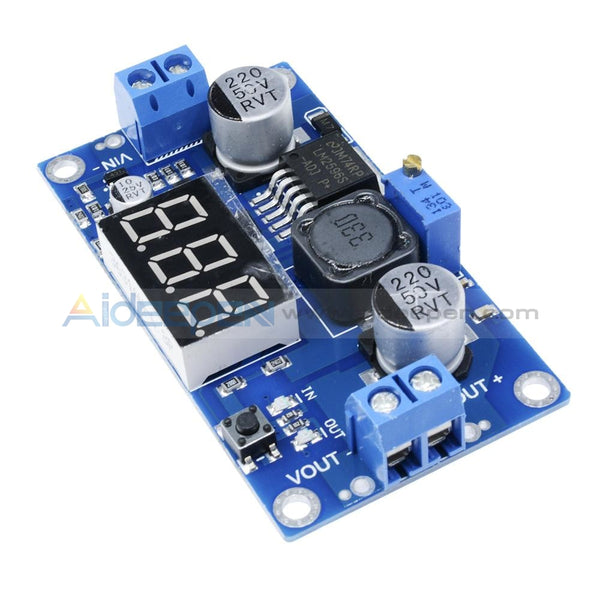

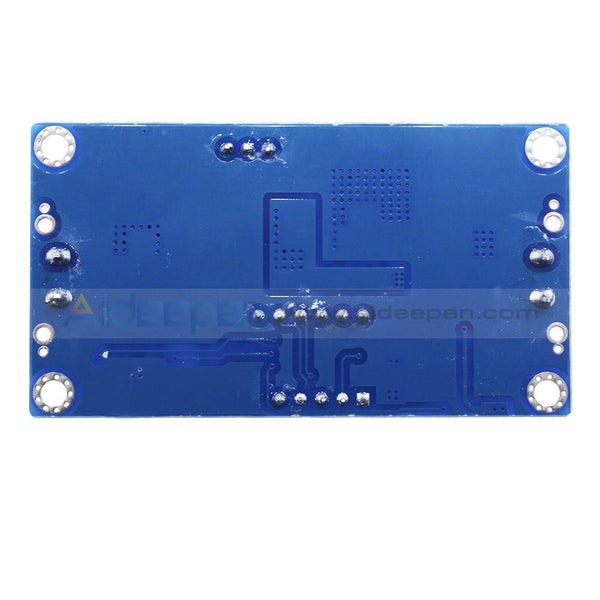

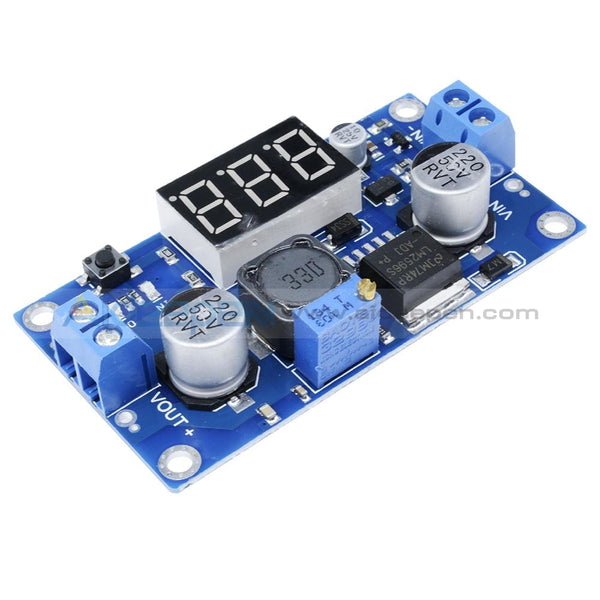

LM2596 DC to DC Buck Step Down Converter Module 4.2-40V to 1.25-37V


Regular price $6.99

Tax included.
Weight:24 g
Color: as picture show
Type: DC-DC Step Down Converter
Input voltage range: 4V-40 V
Output voltage range: 1.25V - 37V
Output current: 2A (Continuous)
Output power: 15W (Max)
Size:65mmx35mm/2.56"x1.38"(inch) (approx)

*.With voltage meter display,voltage meter error of±0.1V, the range of 0~40V. (note: to ensure that the voltage meter accuracy, please make sure that the input voltage is 4V or more).

*.Low light touch button switch measurement input or output voltage, and a light show is voltage measurement which road, and keep the last set, even if the power switch on again.

*.Voltmeter fine-tuning: hold down the button about 1-2S into fine-tuning mode, can remove button on the calibration at this time. (please do not use standby function, usually).

*.Long press to touch the button for 3 seconds can shut down LED display, touch again, key can open the LED display.

*.Input voltage:4V~40V(input voltage must be higher than to the output voltage of more than 1V).

*.Output voltage adjustable range1.25V~37V adjustable (input voltage must be higher than the output voltage is about 1.5V).

*.Maximum output current can be as high as 3A,normal and stableworking current in 2A.

*.Low the internal oscillation frequency, 150KHZ belong to the second generation of switch voltage regulator, low consumption, high efficiency.

    At present, the switching lights are red.
    IN+: Input Positive
    IN-: Input Negative
    OUT+: Output Positive
    OUT-: Output Negative

Package Included:
1*DC 4V-40V To 1V-37V LM2596 Step Down Power Converter
