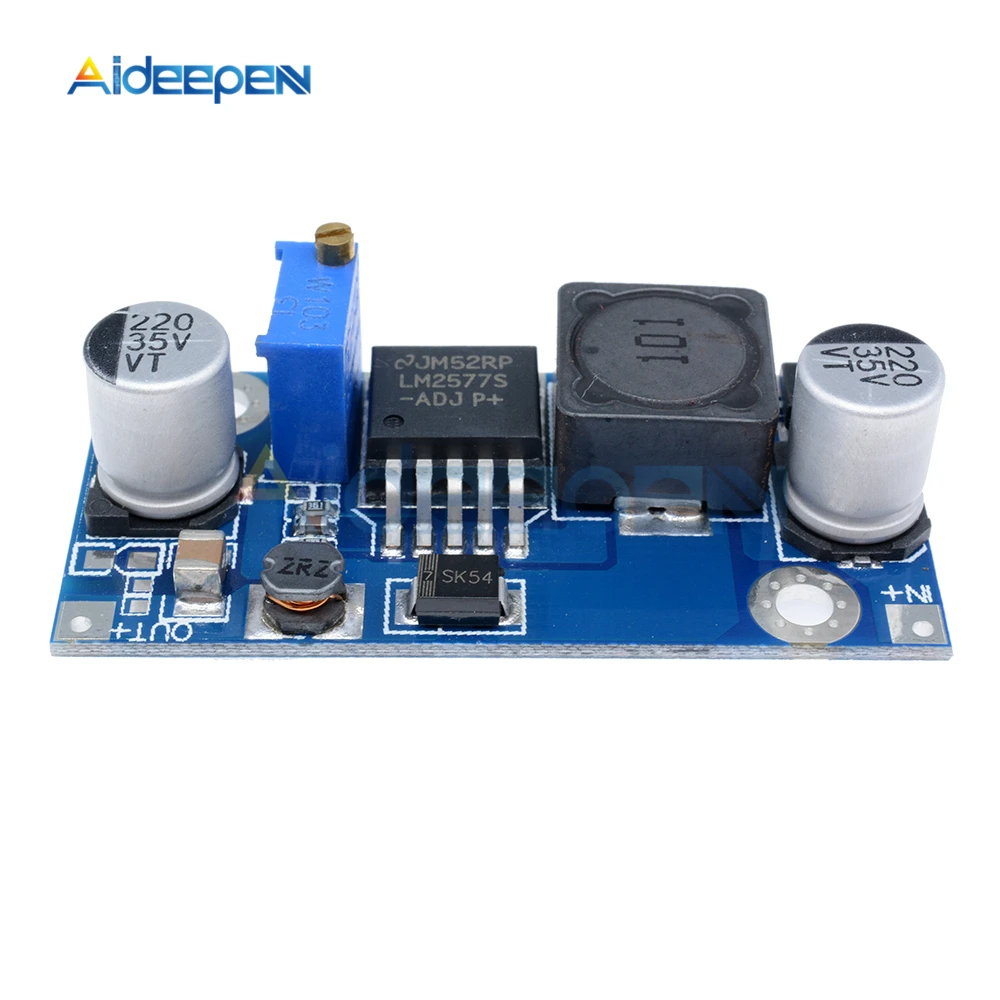

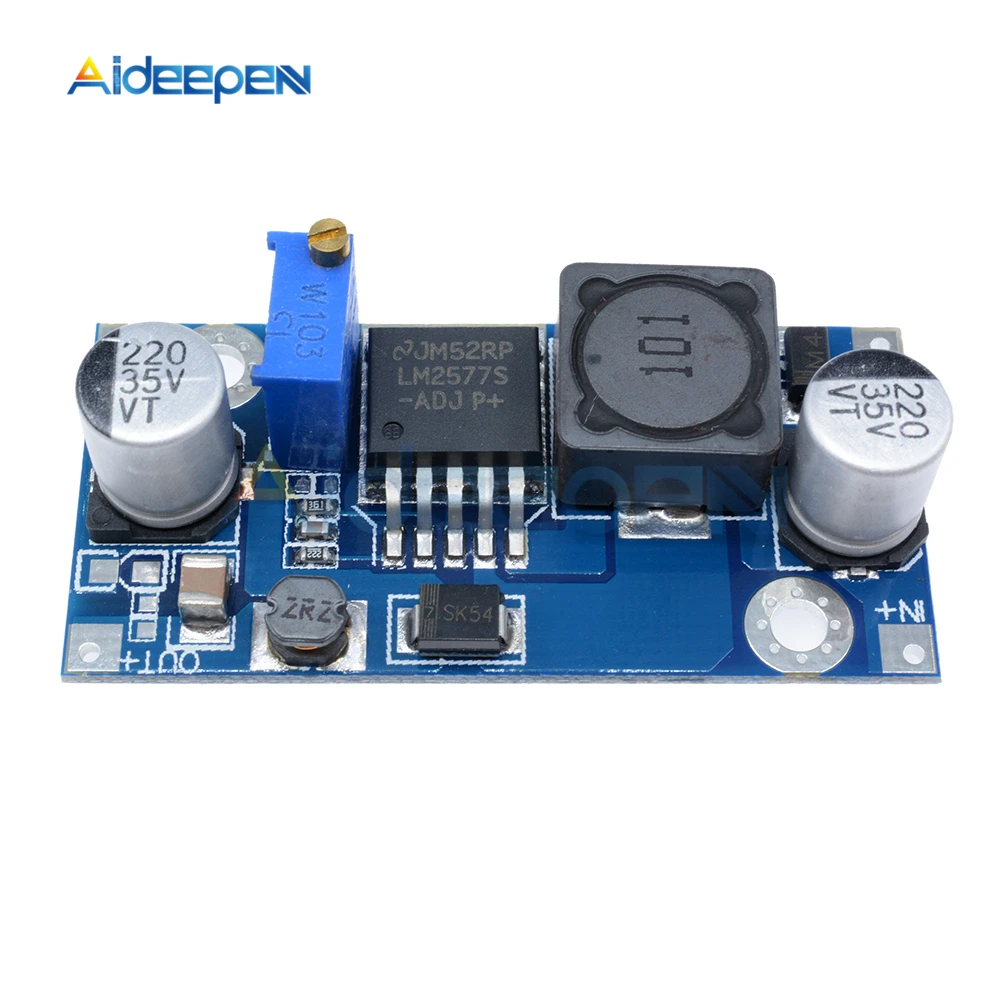

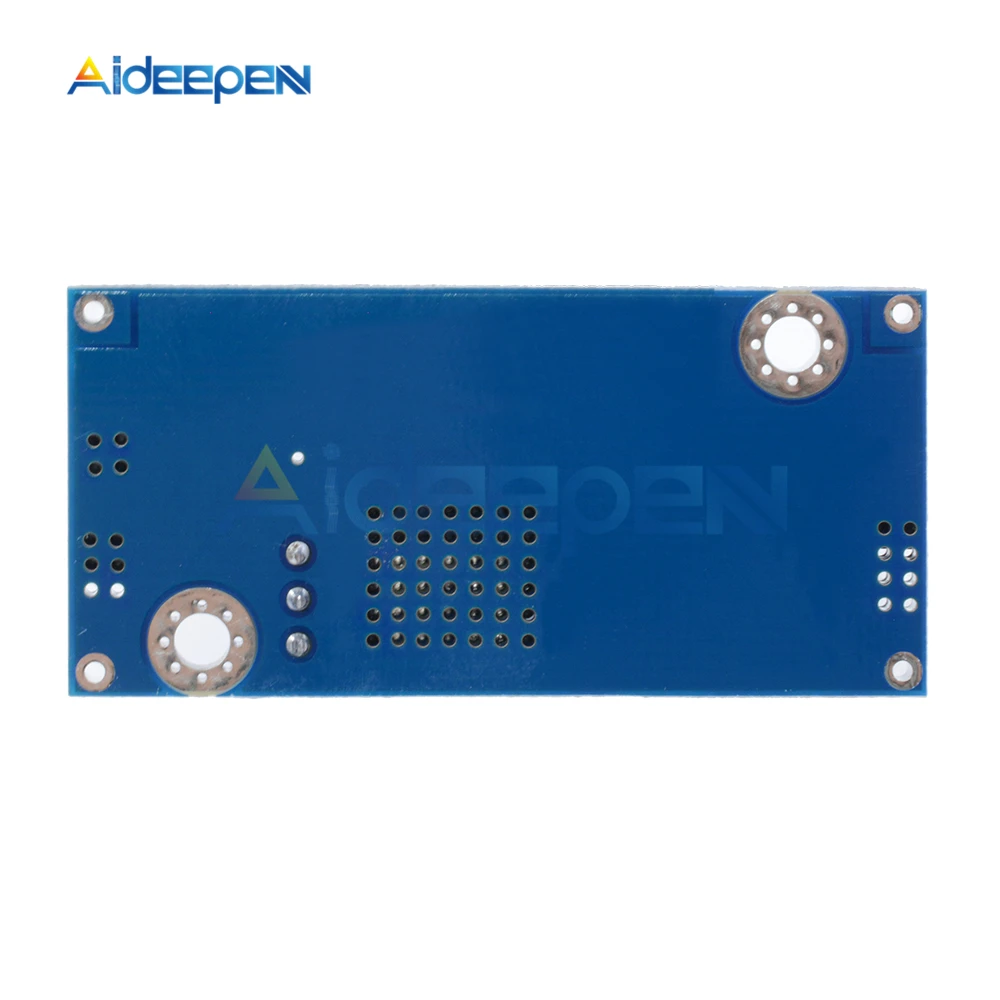

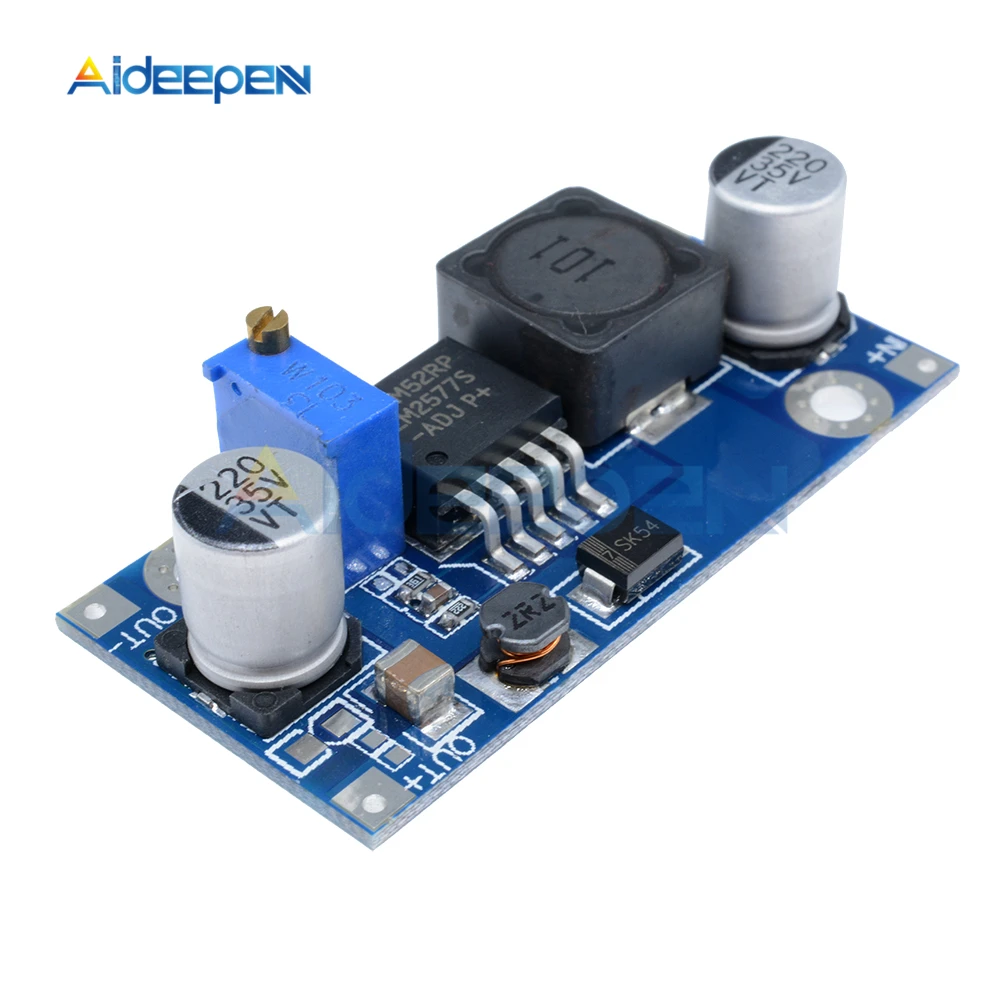

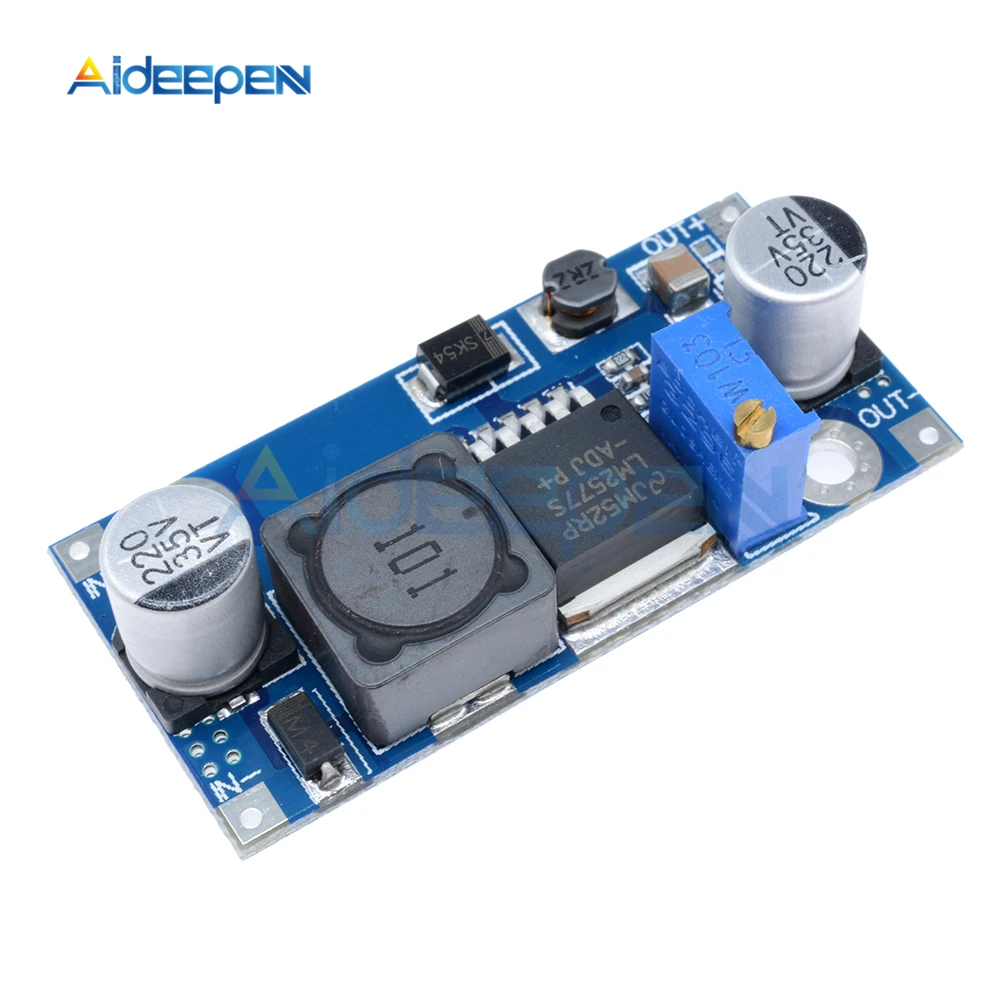

LM2577 Step Up Boost Voltage Converter Module DC DC 3.5V 35V to 4 35V Power Supply Module

Sale price $2.99 Regular price $4.49

Tax included.


1.Wide Input voltage: 3.5V-35V
2.Output Voltage: 4-35V (Adjustable)
3.Output current: rated current 3A MAX ( Heat-sink Needed)
4.If you need its output power greater than 15W, please add with heat-sink
5.Conversion efficiency: Up to 92% (output voltage higher, the higher the efficiency)
6.Switching Frequency: 50KHz
7.Rectifier: Non-Synchronous Rectification
8.Short circuit protection: current limiting, since the recovery
9.Operating temperature: Industrial grade (-40 ° to +85 °) (output power 10W or less)
10.Full load temperature rise: 40 °
11.Load regulation: ± 0.5%
12.Voltage regulation: ± 0.5%

Package Included:
1PCS * LM2577 Step Up Boost Voltage Converter Module DC-DC 3.5V-35V to 4-35V Power Supply Module
