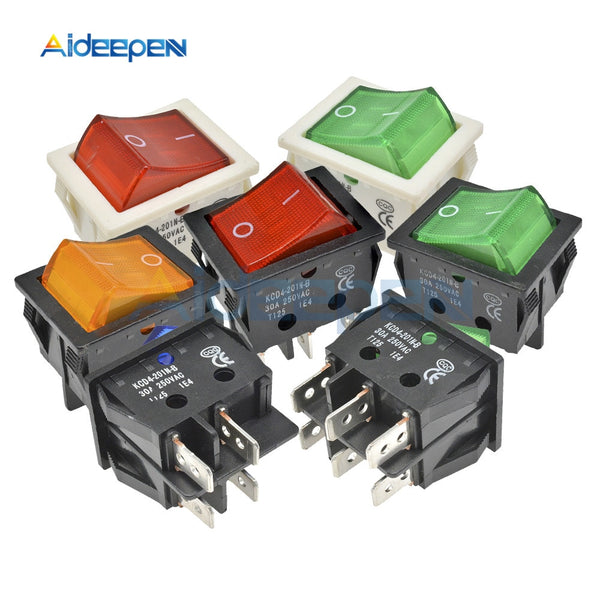

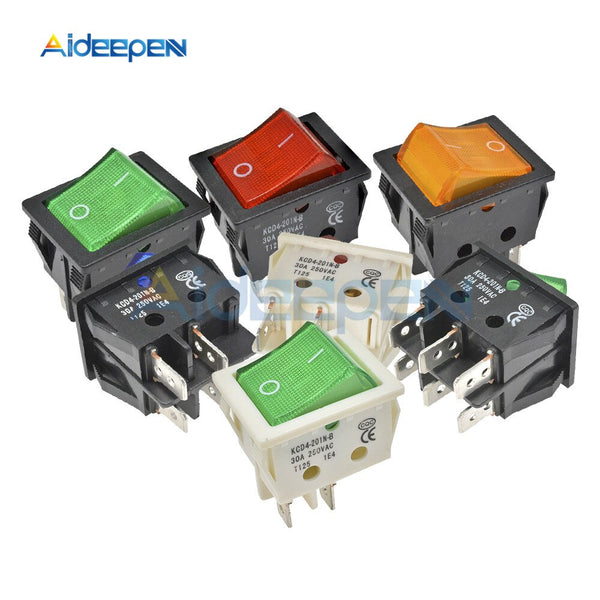

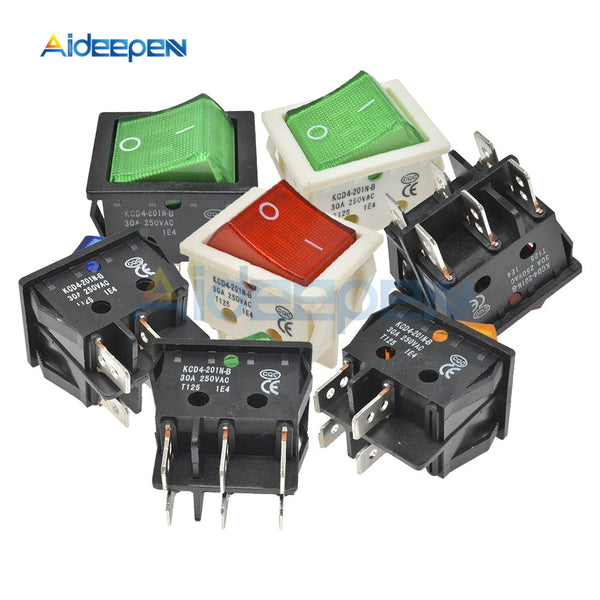

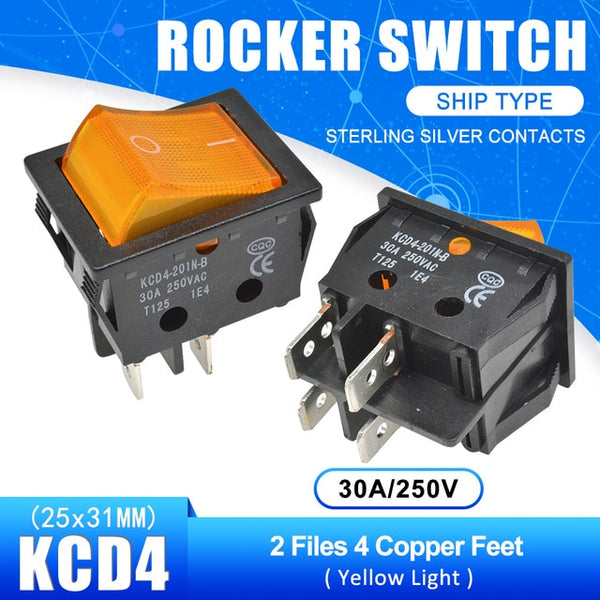

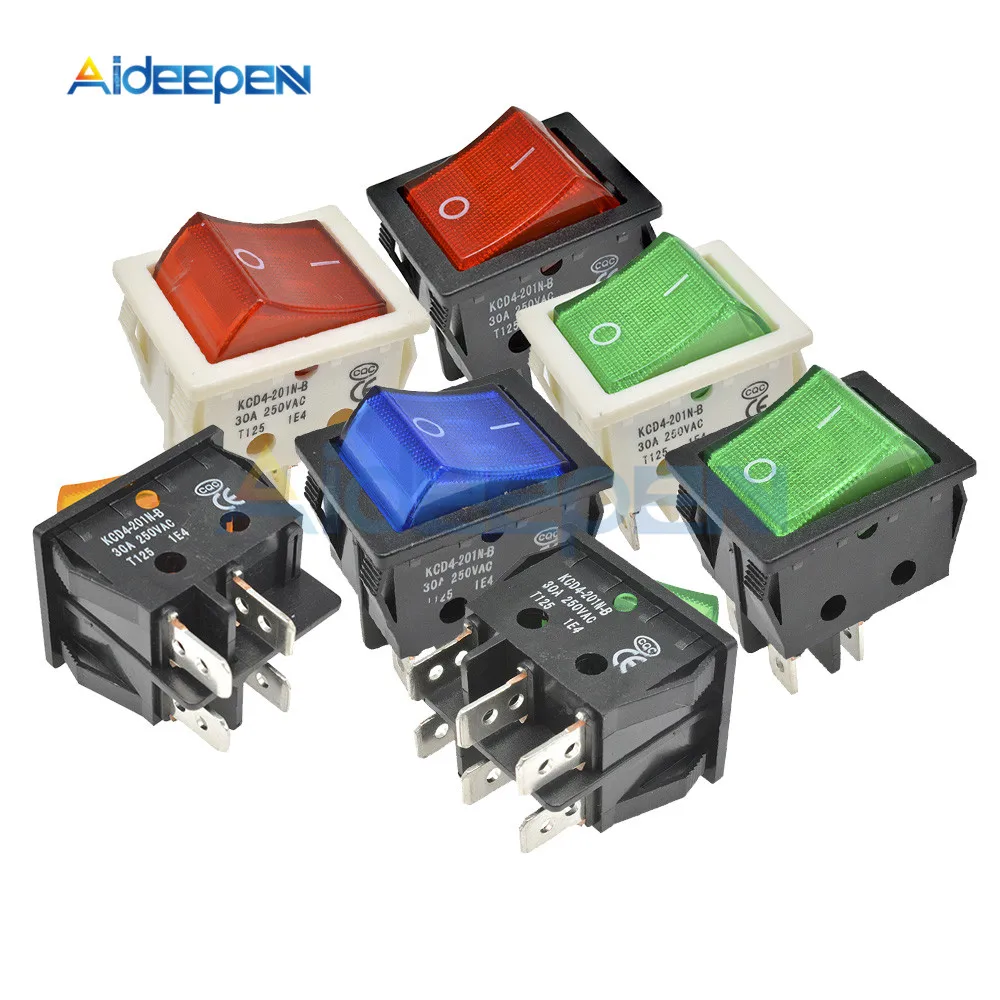

KCD4 High Current Rocker Switch Power Switch 2 position ON-OFF 4 Pins 6 Pins Electrical Equipment With Light Switch 30A 250V
Description:

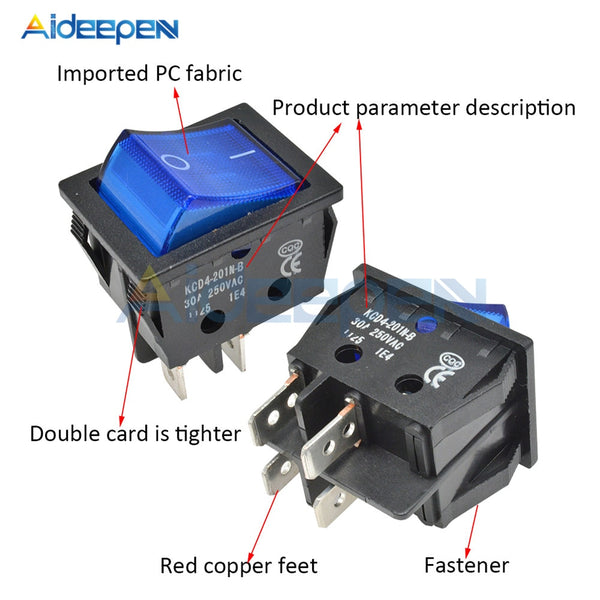

The appearance is free of burrs, the button R side handles round and round, high-end abrasive craft! High strength, reliable and stable performance, strong shock resistance and faster frequency response. High quality and long life.
The large-diameter inner view hole allows visual inspection of the internal silver contact points.
Products have strict CE certification, CQC certification, quality assurance!
Flame retardant material, high temperature resistance, corrosion resistance and durability.
Feature:
Product use: Suitable for all kinds of lamps, electrical appliances, transformers, etc. that carry power line control
Product specialties: plastic parts are made of high-quality engineering plastics, hardware is made of high-quality copper, ensuring that the switch is safe, reliable and durable. At the same time, the product structure is simple and suitable for home use and large-scale use of the company.
Product safety: CQC certification, CE certification
Applicable power cord: H03VVH2-F 2*0.5mm2, H03VVH2-F 2*0.75mm2,
SPT-1/18AWG*2C, SPT-2/18AWG*2C, 2468/24AWG, etc.
Assembly method: plug-in / welded
Application:
Applicable to drinking fountains, treadmills, electric cars, motorcycles, massage chairs, toy cars, home appliances, etc.
More fully qualified for welding machines, electric ovens, heaters, high voltage and high current product switches

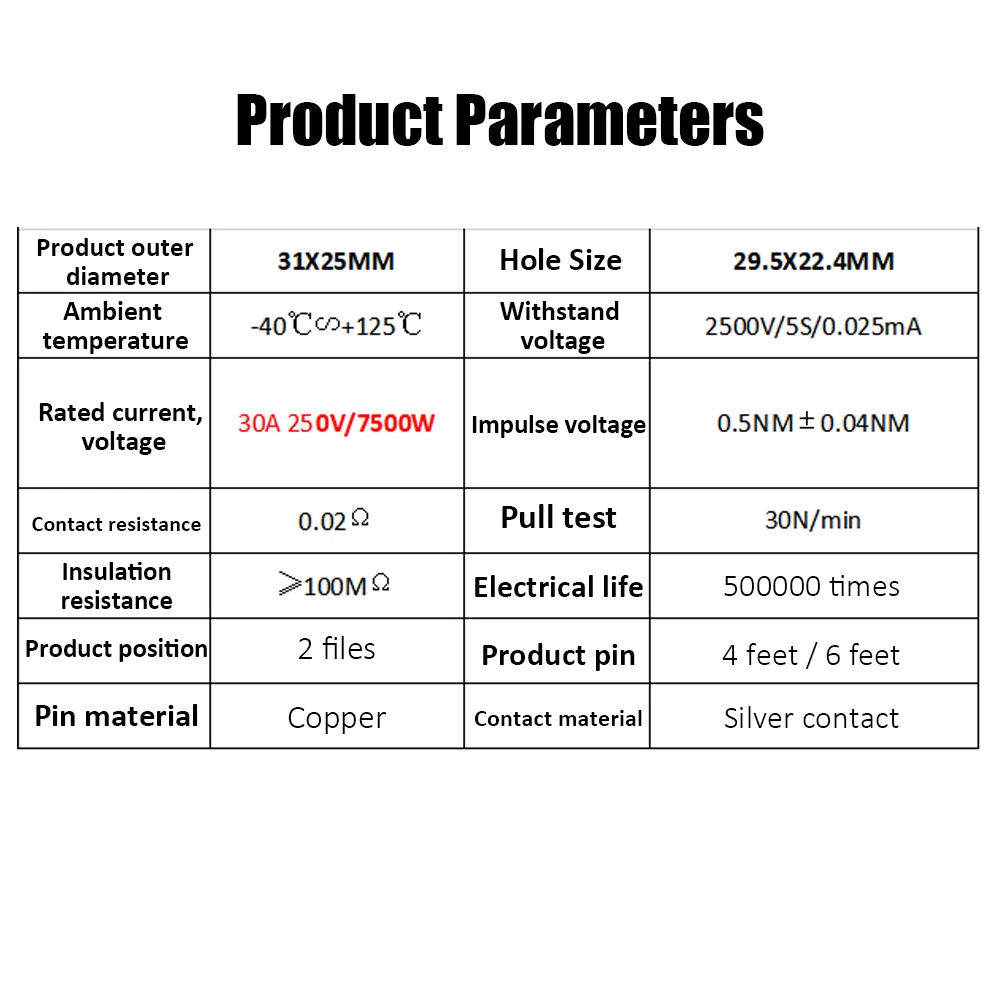

Specification:

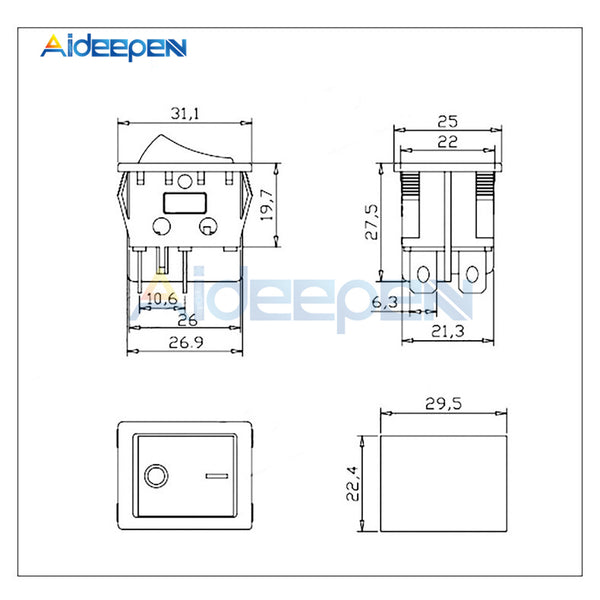

Product outer diameter: 31X25MM
Opening size: 29.5X22.4MM
Ambient temperature: -40°C∽+125°C
Withstand voltage: 2500V/5S/0.025mA
Rated current and voltage: 30A 250V/7500W
Impact voltage: 0.5NM ± 0.04NM
Contact resistance: 0.02Ω
Pull test: 30N/min
Insulation resistance: ≥100MΩ
Electrical life: 500,000 times
Product position: 2 files
Product pin: 4 feet / 6 feet
Pin material: copper
Contact material: silver contact

Package Included:

1 x KCD4 Rocker Switch
