Description:

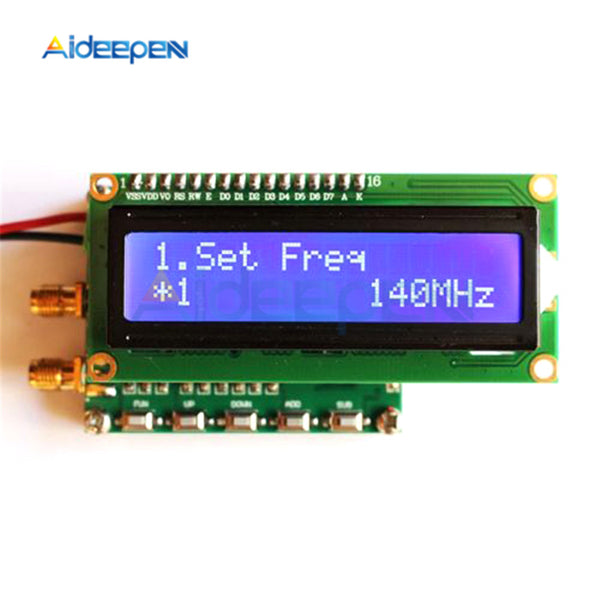

HP831 is a small RF signal generator
The module is simple to use, input frequency data by button operation, and immediately update the output frequency.
Applications: Signal generator, Instrument calibration
Signal amplitude: -10~0 DBm
Sweep time range 10ms~10000ms ms milliseconds
Technical Data Sheet:
No. Item Parameter Unit Remarks
1. Signal range 140~4400 MHz pulse signal duty cycle
2. Signal amplitude -10~0 DBm
3. Sweep time range 10ms~10000ms ms milliseconds
4. Working voltage 7 ~ 9 VDC
5. Working current <50 mA
6. Size 57*45*20 mm Length X Width X Height
Interface description and related operations
P1 interface (power supply)
VDD: positive power supply (7~12V)
GND: negative power supply
P5 interface signal output 1 (RP SMA KE KHD external screw hole)
P6 interface signal output 2 (RP SMA KE KHD external screw hole)
Package Included:
1 x HP831 RF Signal Generator 140MHz~4.4GHz Radio Frequency Signal Generator with Sweep Function
