G3MB 202P 1 Channel Solid State Relay Board Module PCB SSR 5V DC For Arduino High Level Fuse

Sale price $1.99 Regular price $2.98

Tax included.
不锈钢计时器
2

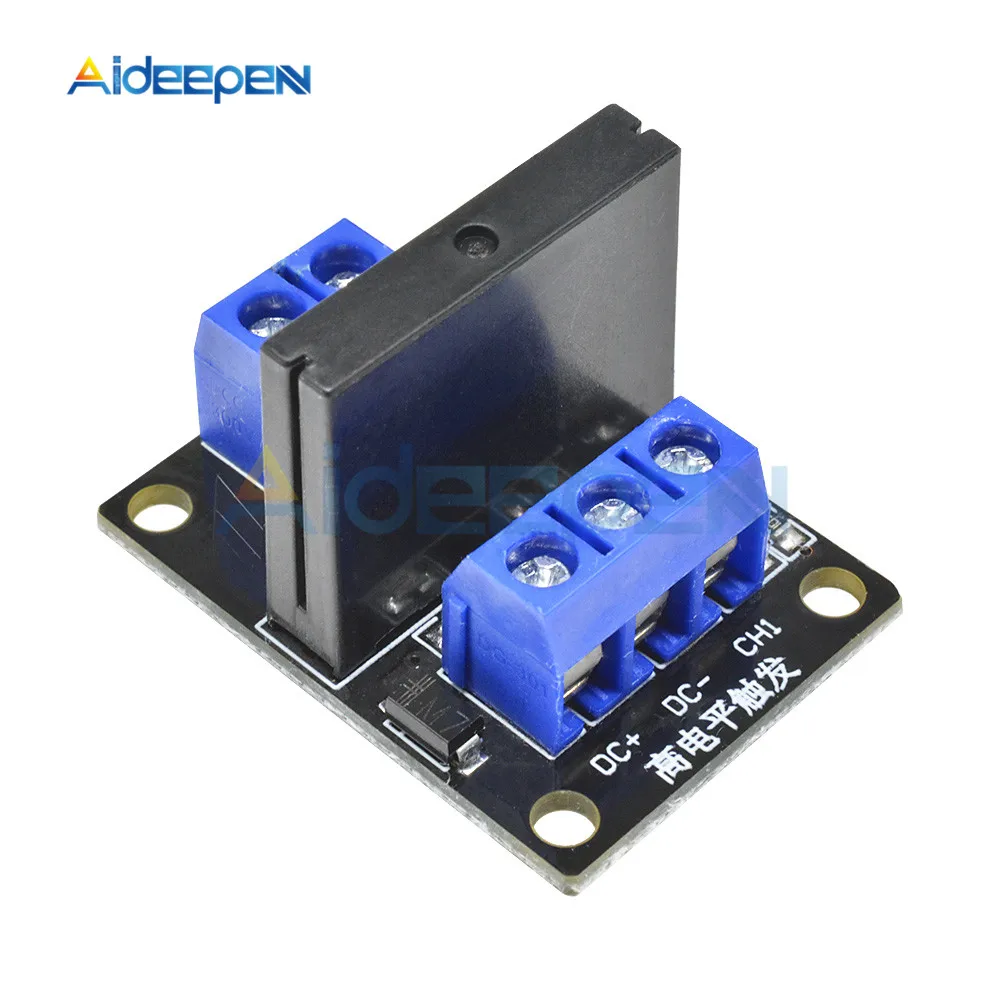

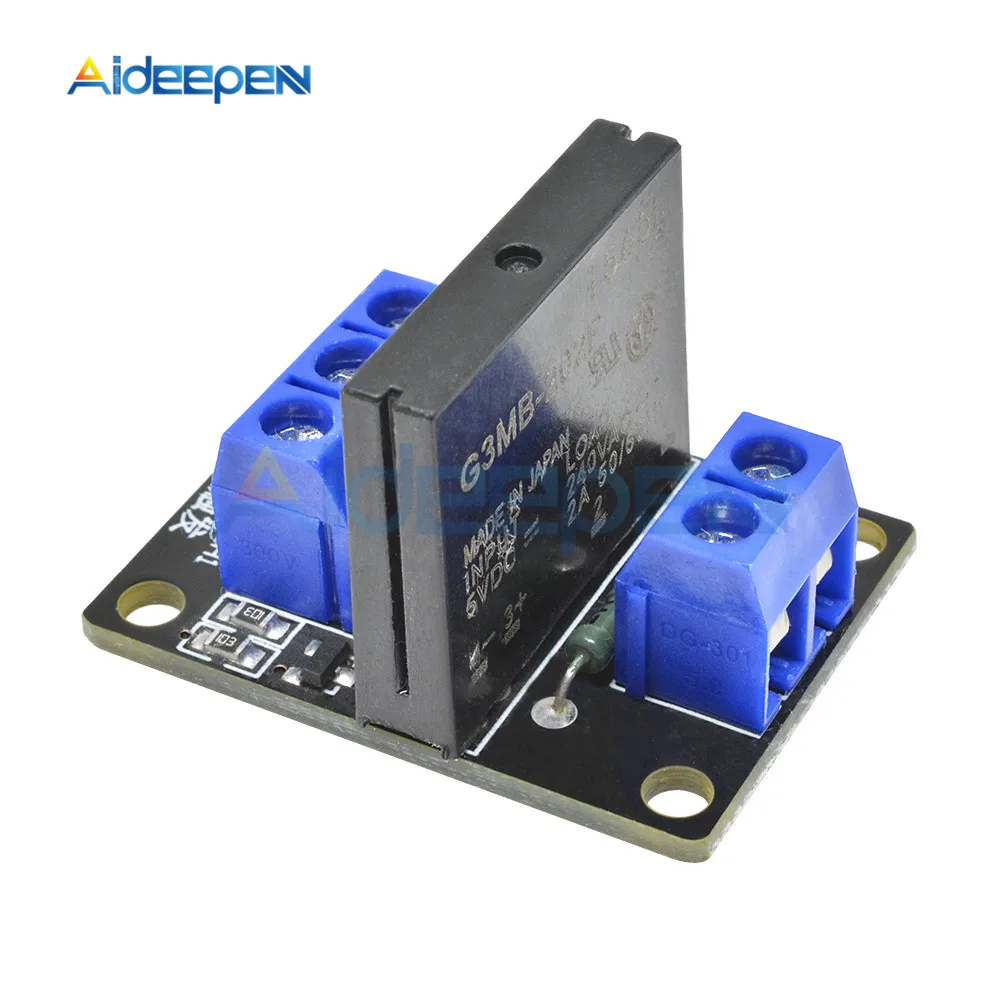

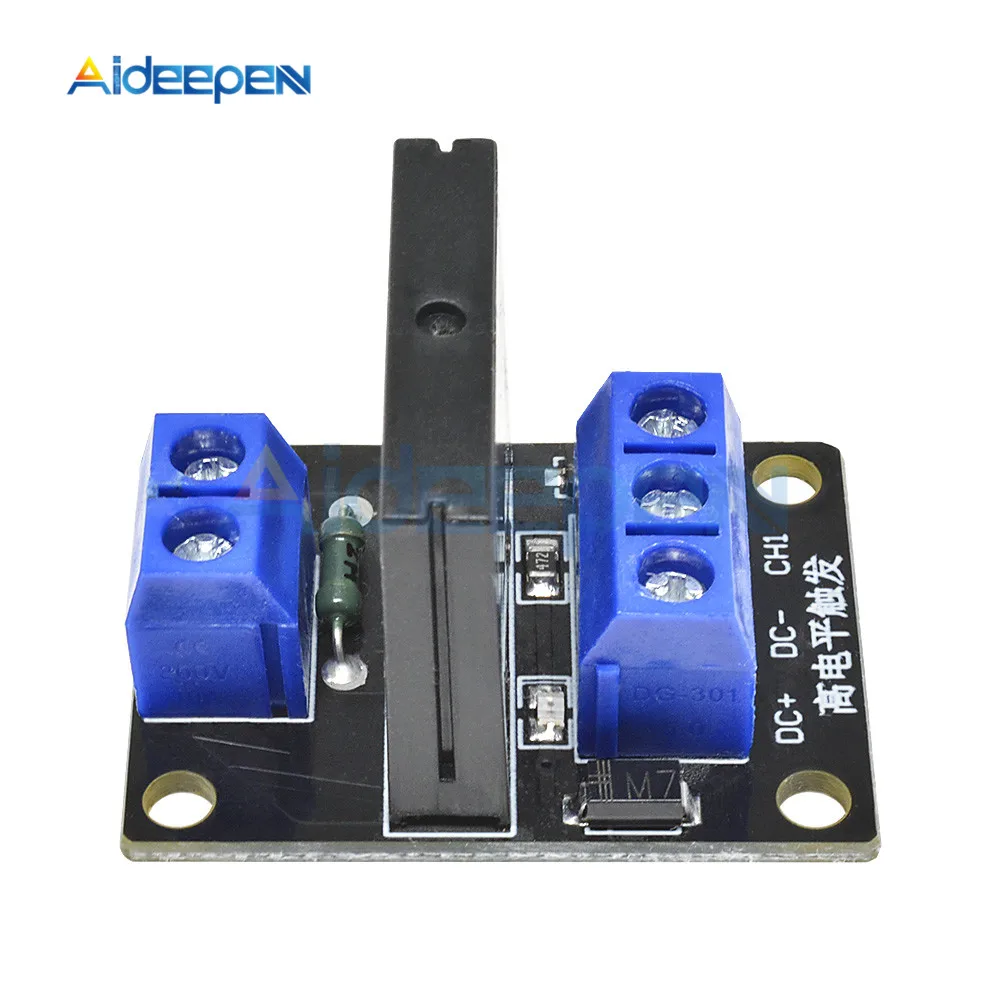

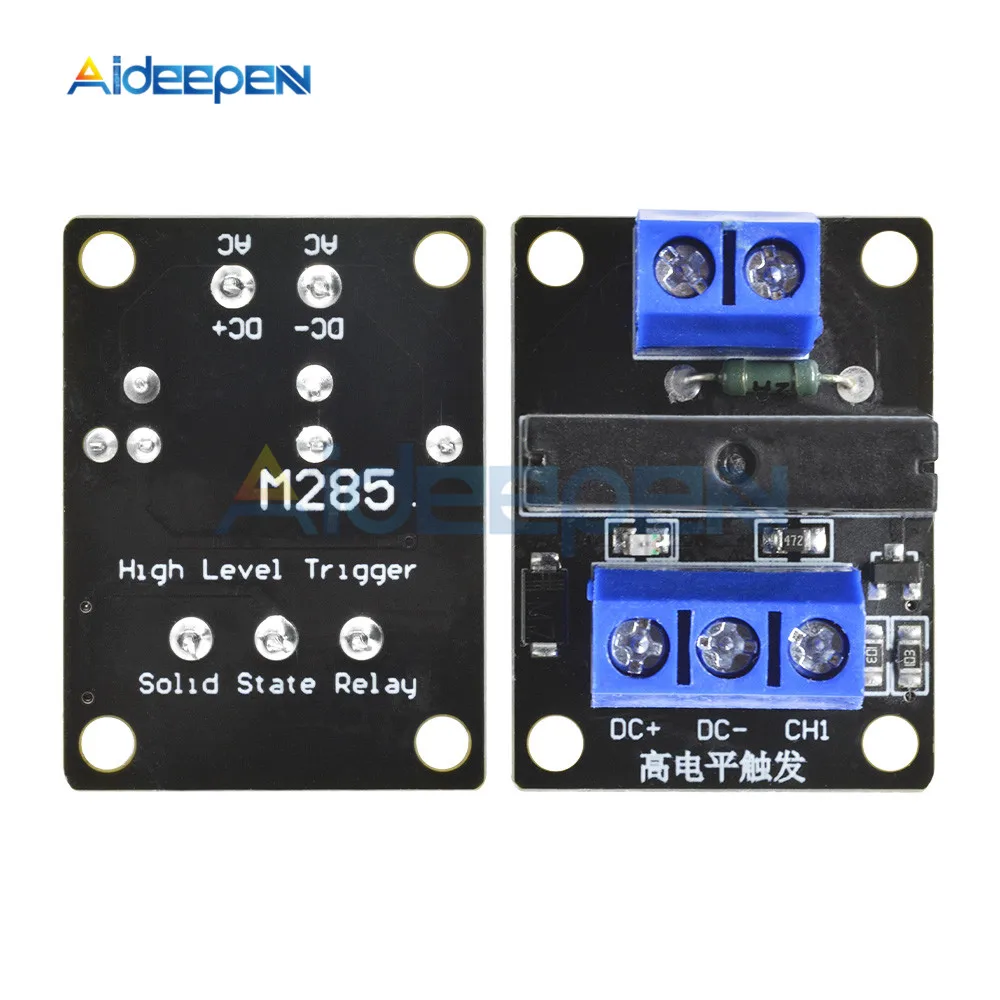

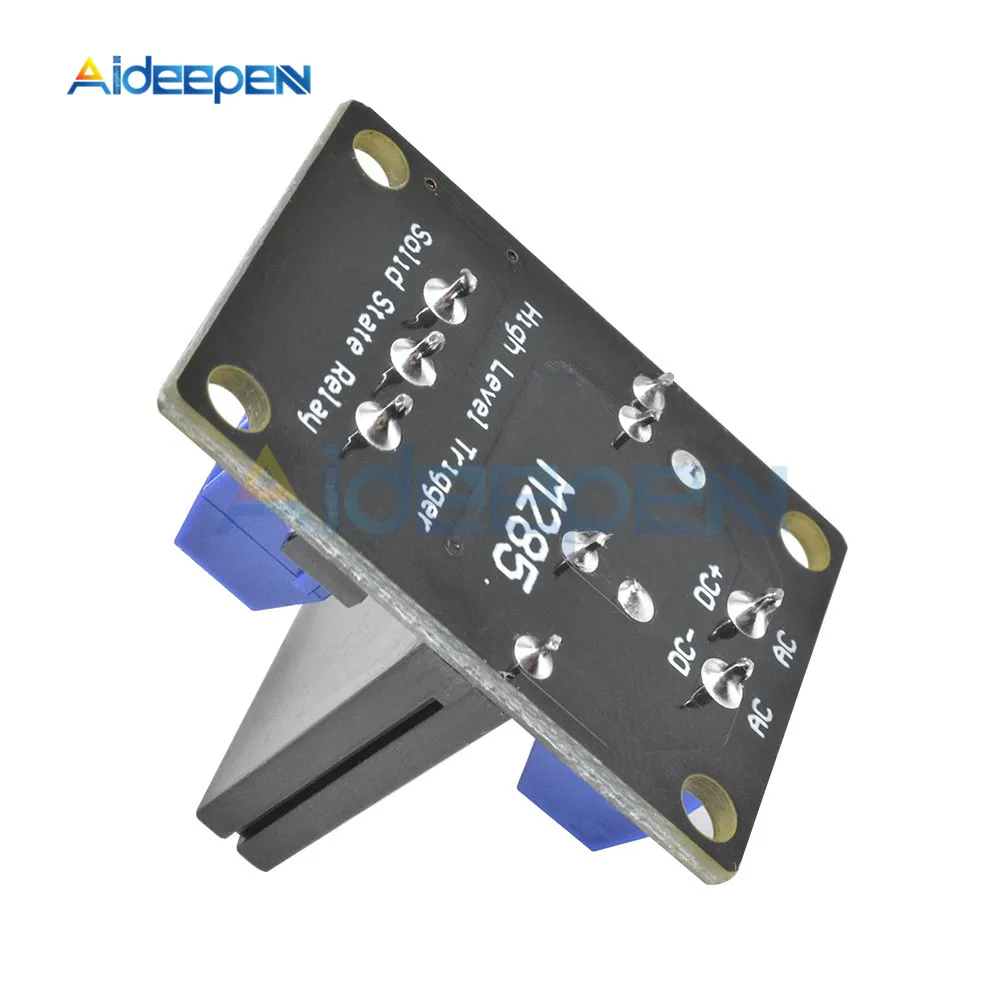

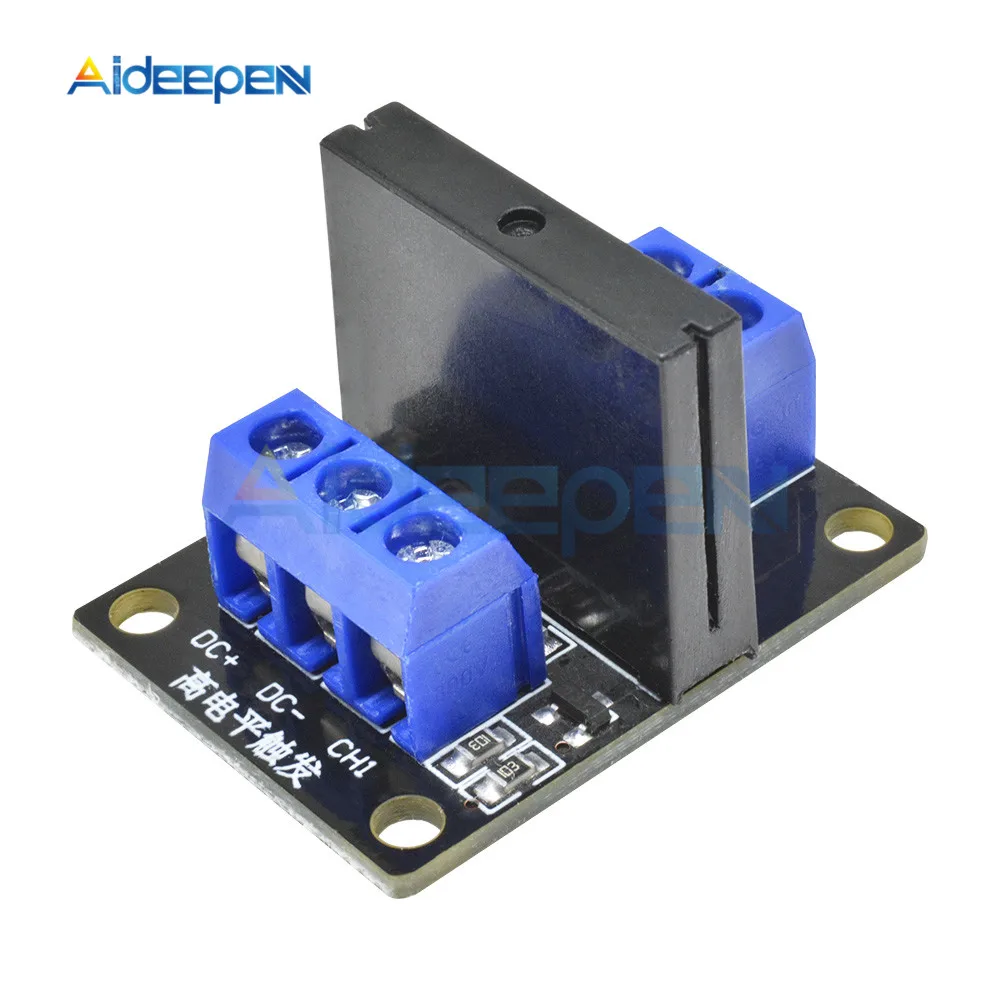

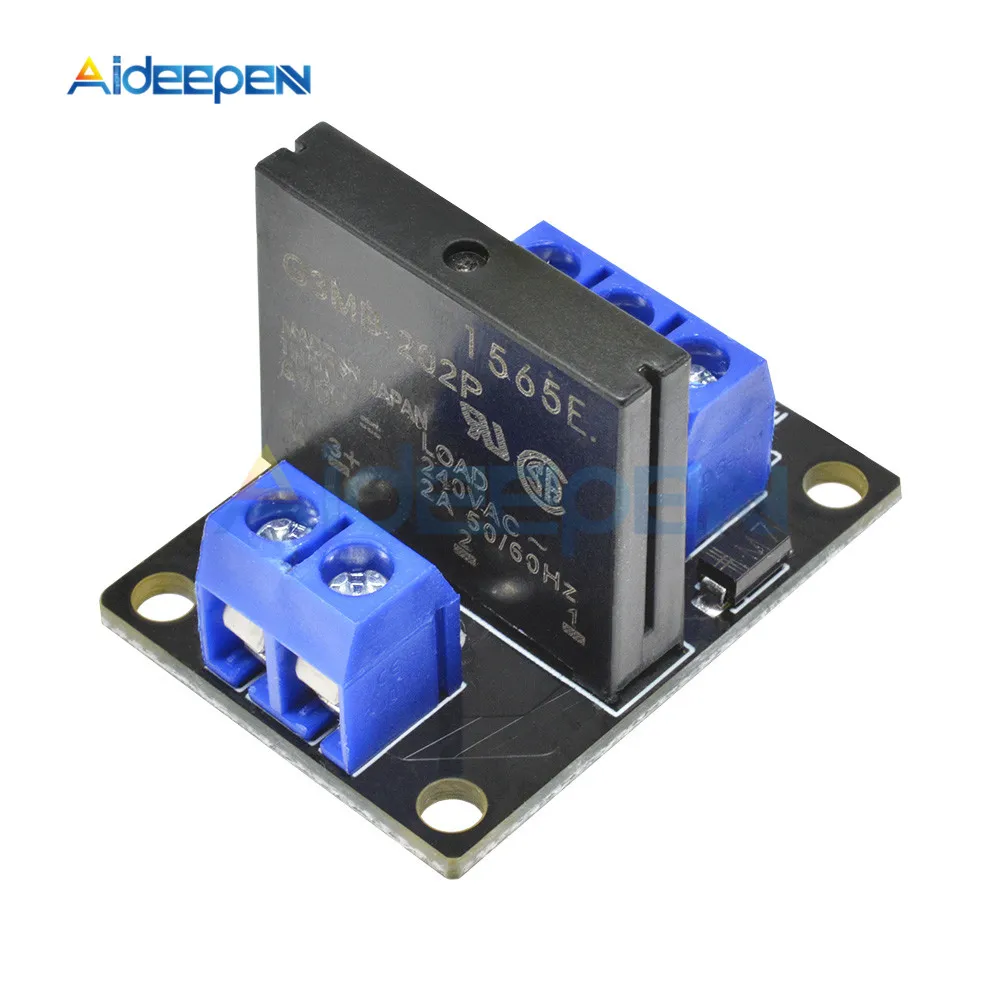

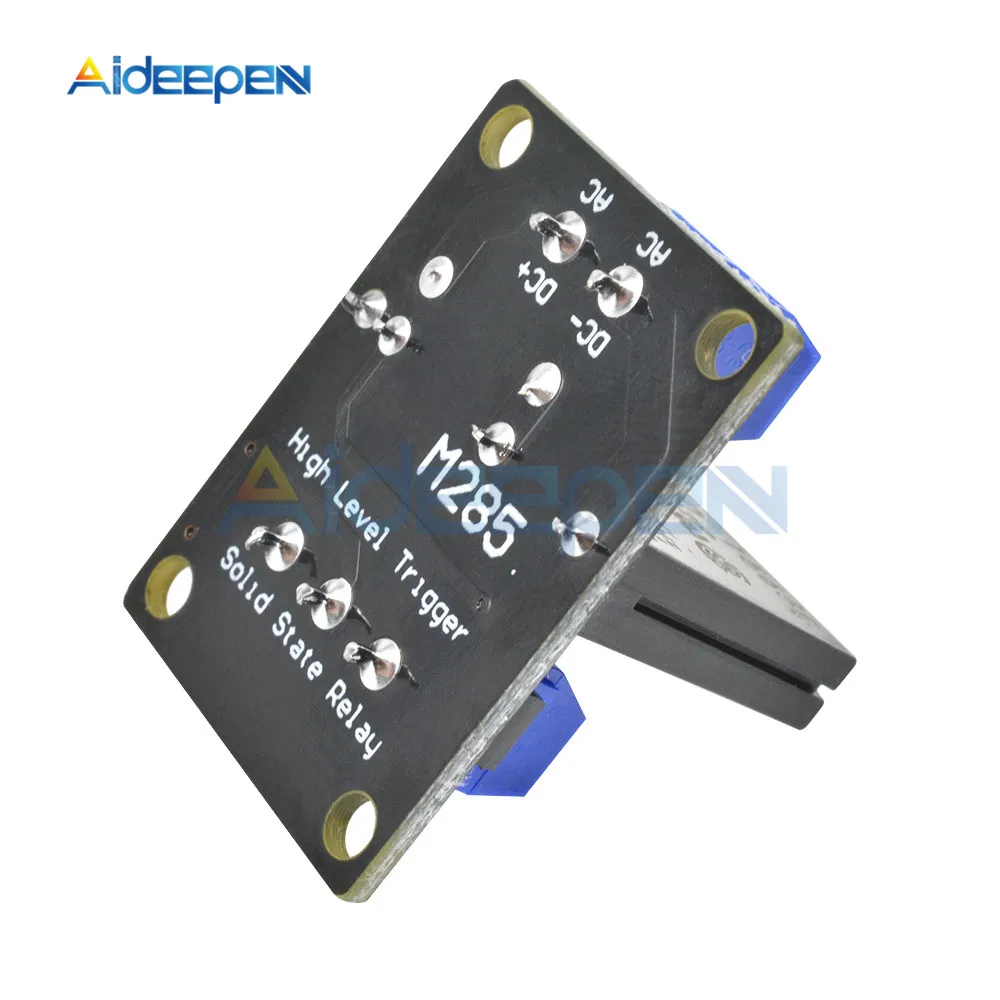

G3MB-202P 1 Channel Solid State Relay Board Module PCB SSR 5V DC For Arduino High Level Fuse

Description:

Size: 24*32*21mm/0.94*1.25*0.82”
Input Power: 5V DC (160mA)
Input control signal voltage:
(0-2.5V state low relay OFF)
(3-5V state high relay ON)
Module interface:
Input section:
DC+: positive power supply (by relay voltage power supply)
DC-: connect power negative
CH: relay module signal to trigger the end (high level trigger effective)
Voltage version 5V
Static current 0mA
Working current 12.5mA
Trigger voltage 3.3-5V
Trigger current 2mA
Package Included:
1 x 5V DC 1 Channel Solid-State Relay Board module High Level fuse for Arduino
