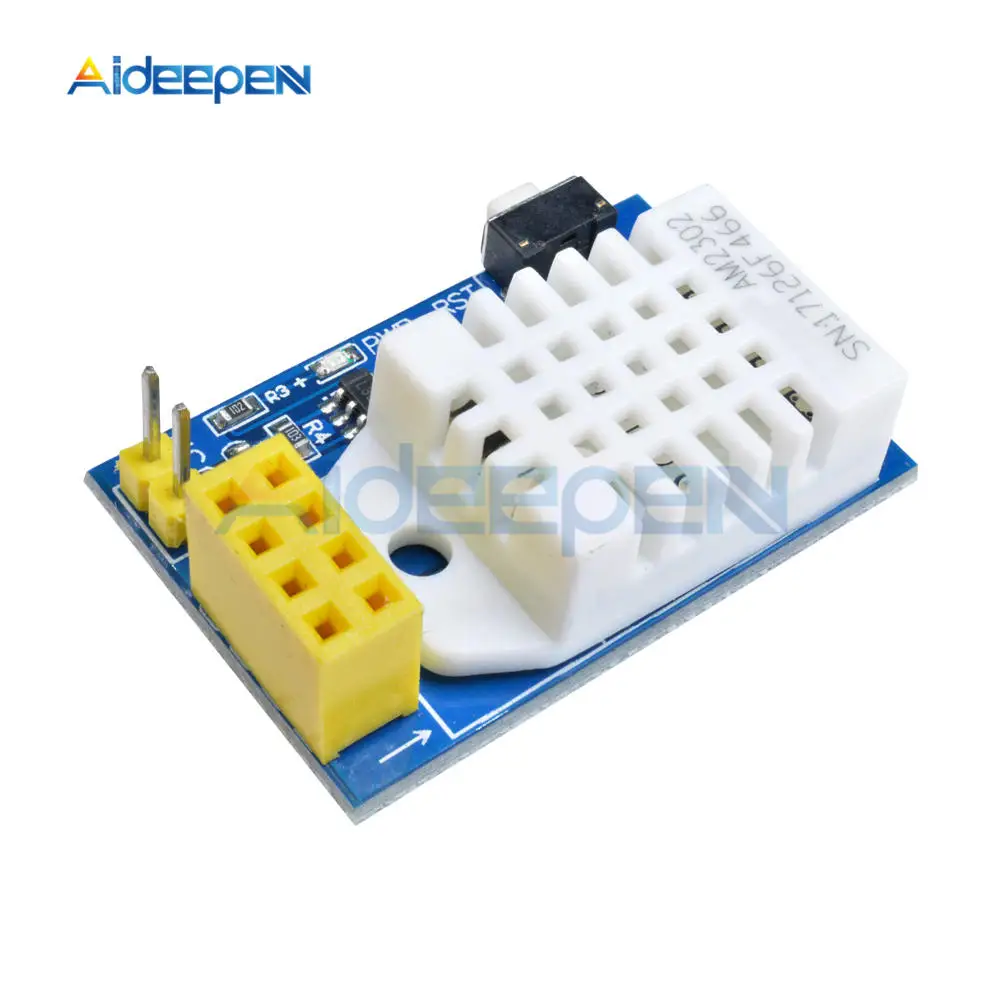

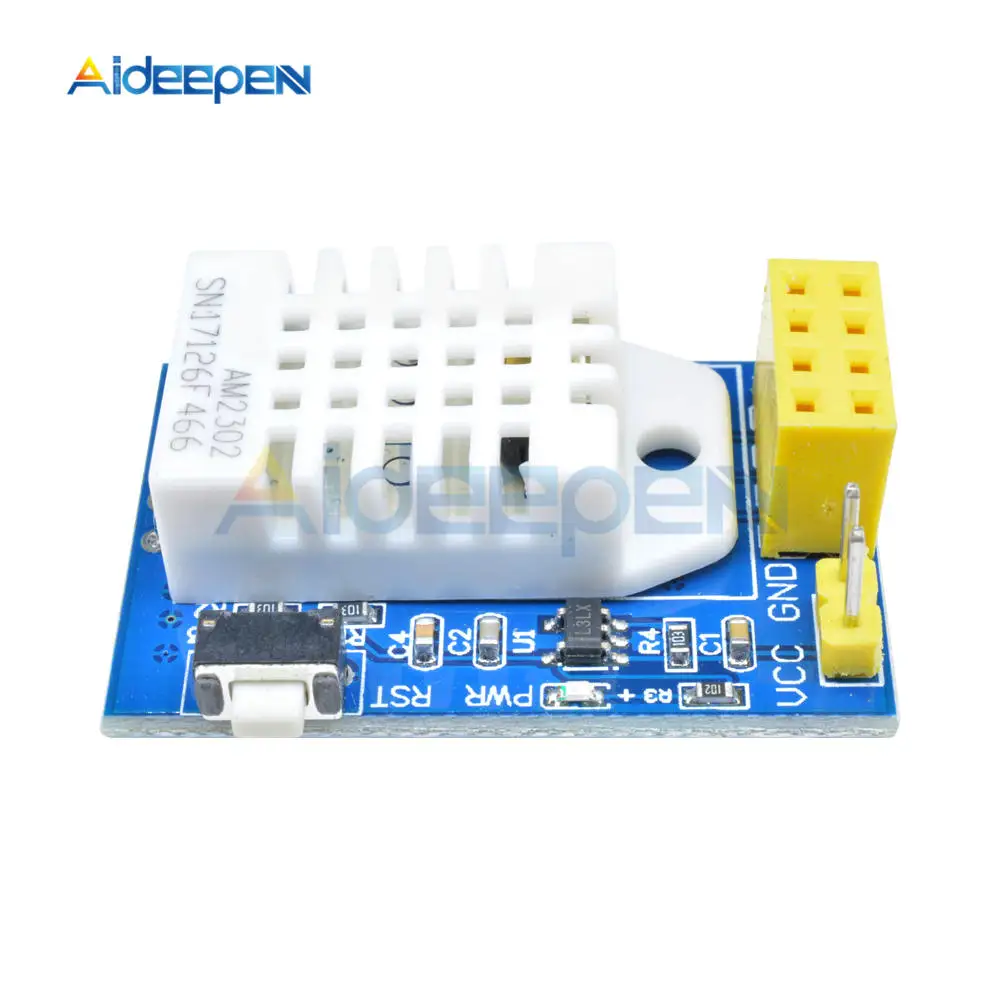

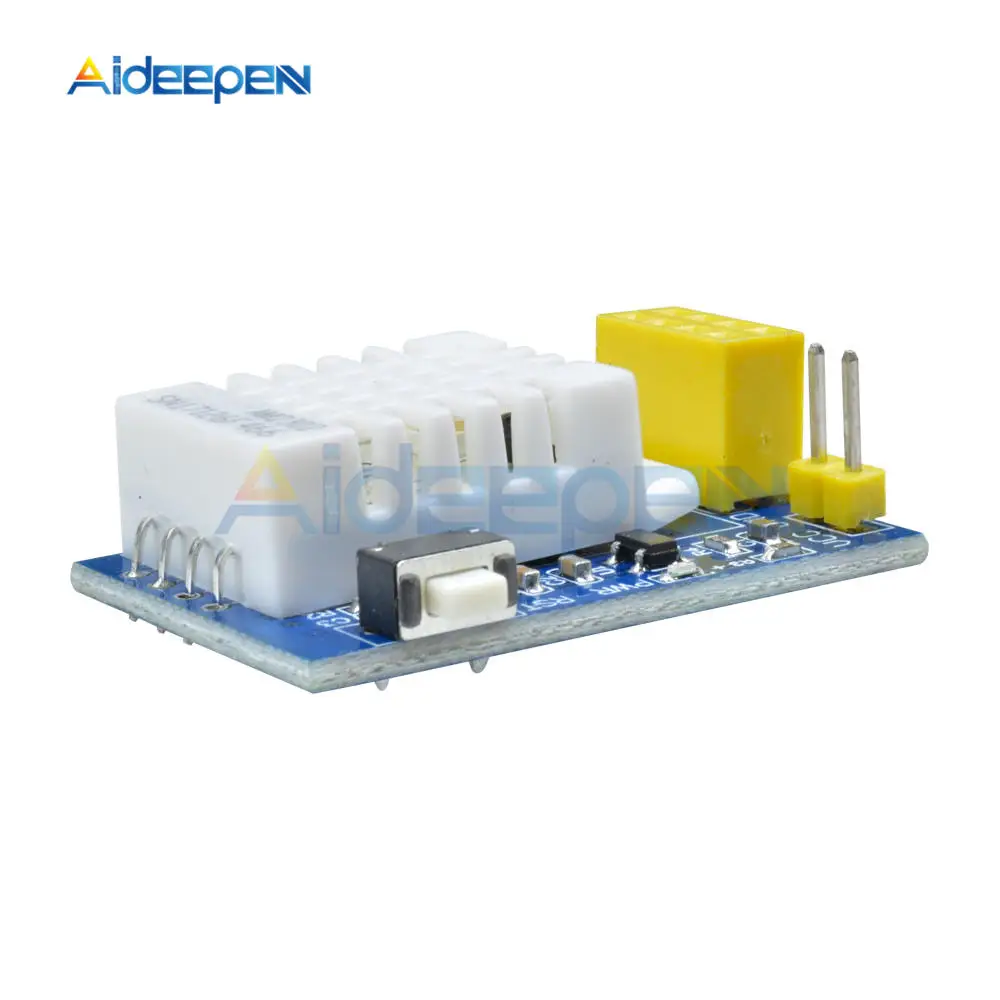

This is a calibrated digital temperature and humidity sensor for detecting ambient temperature and humidity, using DHT22 (AM2302), standard single bus interface.
To Compare with DHT11, it has higher precision and larger range.
It can be used with the ESP-01/ESP-01S WIFI module and can replace the SHT11 SHT15.
Resolution: 0.1 ° C
Accuracy: ±0.5 °C
Detection range: -40 ° C ~ 80 ° C
Resolution: 0.1% RH
Accuracy: ±2%RH (25°C)
Detection range: 0%RH ~ 99.9%RH
Working voltage: 3.3V ~ 5.5 V
Recommended storage environment:
Temperature: 10 ° C ~ 40 ° C
Humidity: 60% RH or less
Weather stations, humidity regulators, test and inspection equipment, etc.
