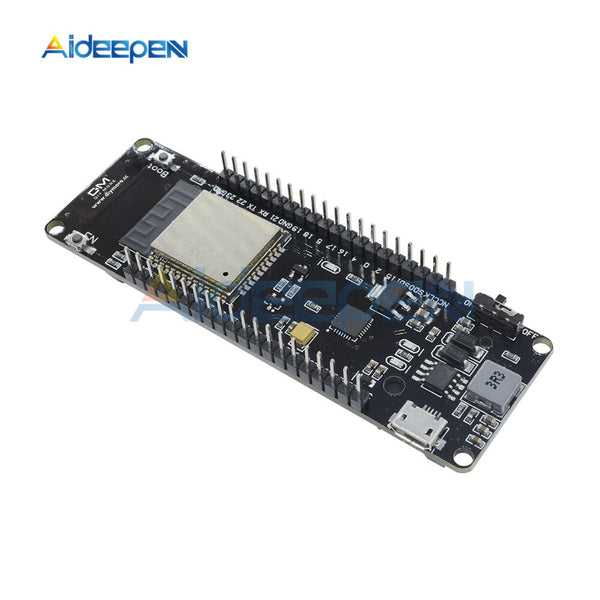

ESP32 is already integrated antenna and RF balun, power amplifier, low-noise amplifiers, filters, and power management module. The entire solution takes up the least amount of printed circuit board area. This board is used with 2.4 GHz dual-mode Wi-Fi and Bluetooth chips by TSMC 40nm low power technology, power and RF properties best, which is safe, reliable, and scalable to a variety of applications.
When you do some ESP32projects you must add a power bank to provide the power. This tiny board could solve such problems. A LG 3000mAH 18650 battery (NOT include) could make ESP32 run 17 hours or more.

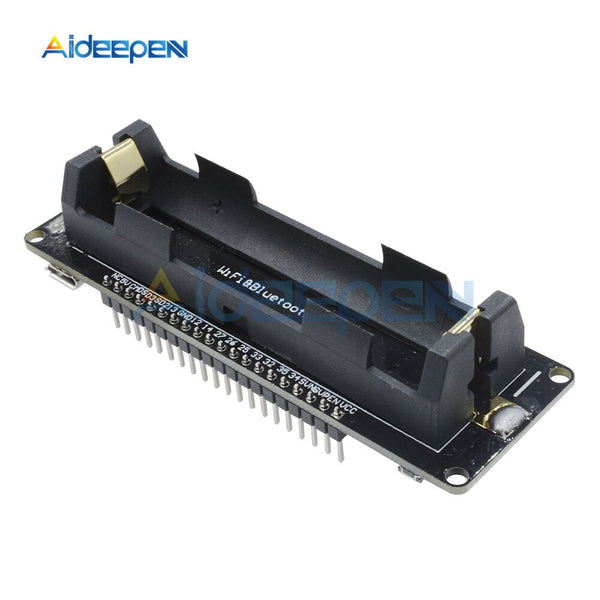

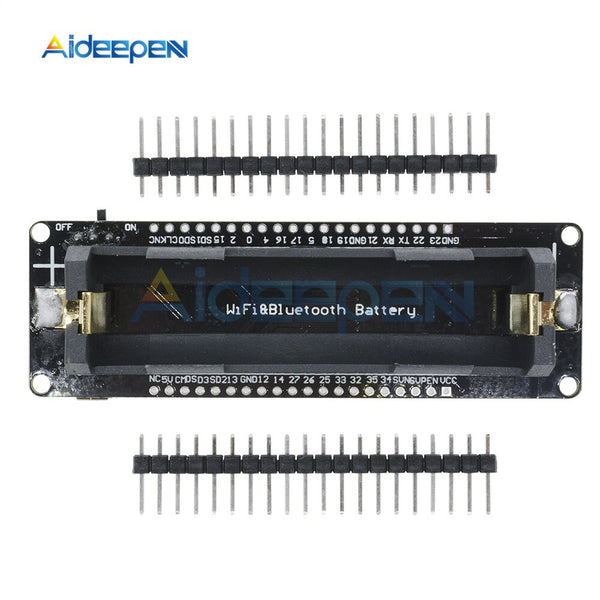

18650 charging system integrated.
indicate LED inside(Green means full& Red means charging)
Charging and working could be at the same time.
1 Switch could control the power.
1 extra LED could be programmed(Connected with GPIO16[D0])
0.5A charging current
Over charge protection
Over discharge protection

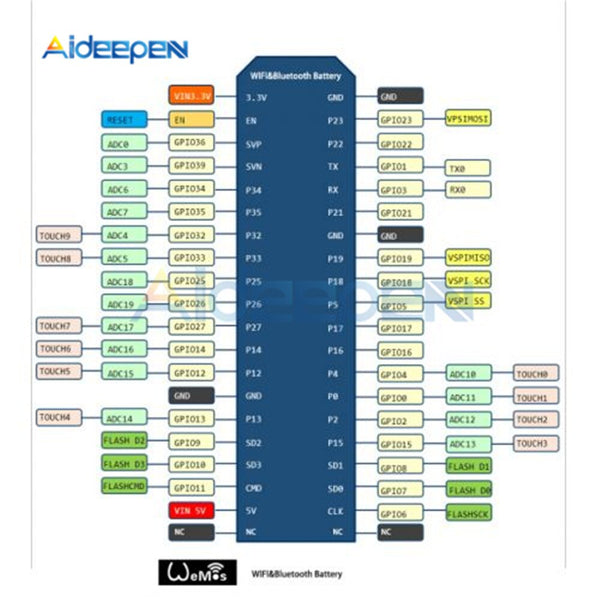

Full ESP32 pins break out
High performance-price ratio
Small volume, easily embeded to other products
Strong function with support LWIP protocol, Freertos
Supporting three modes: AP, STA, and AP+STA
Supporting Lua program, easily to develop
Note: This product does not include 18650 battery

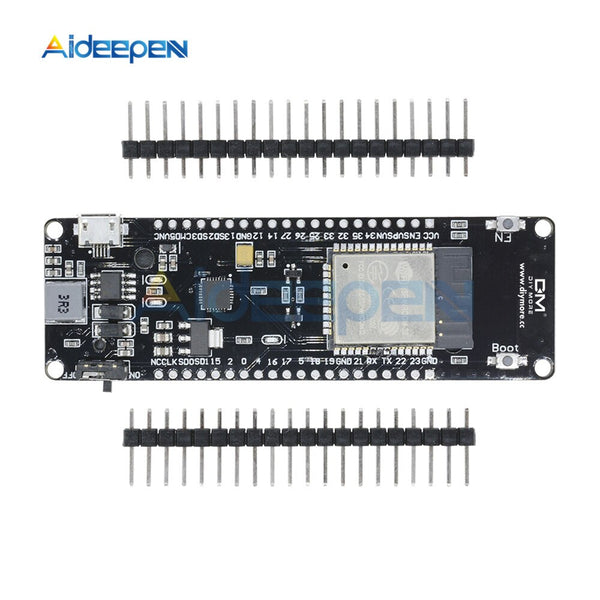

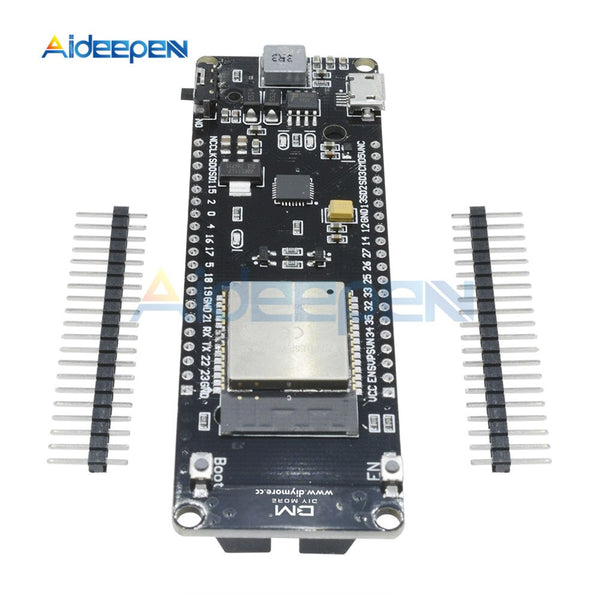

1 x ESP32 ESP-32S For WeMos WiFi Wireless Bluetooth Development Board CP2102 CP2104 Module With 18650 lithium Battery Shield ESP8266
