Descriptions:

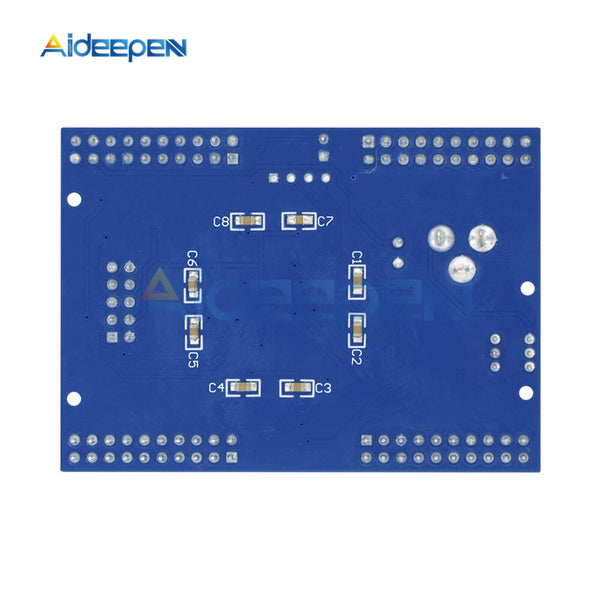

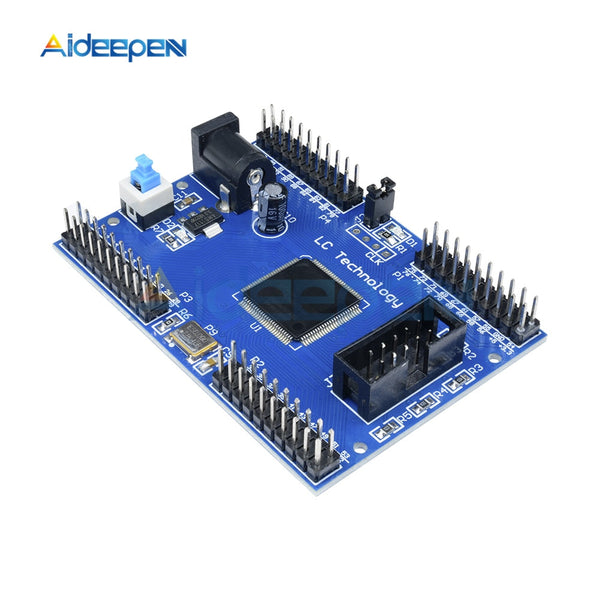

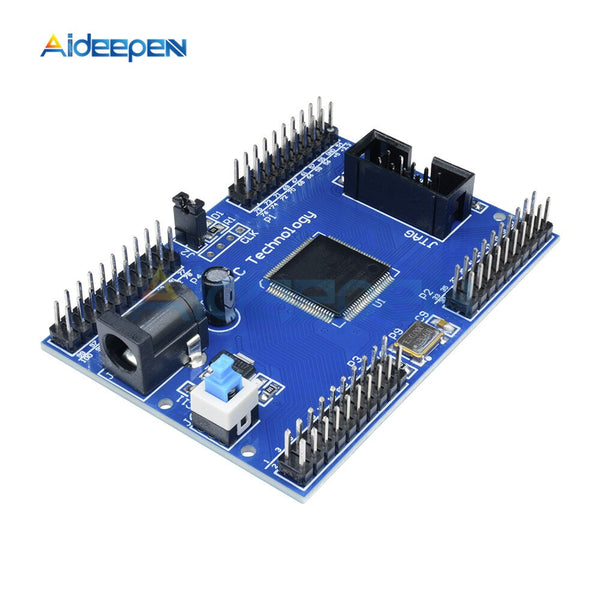

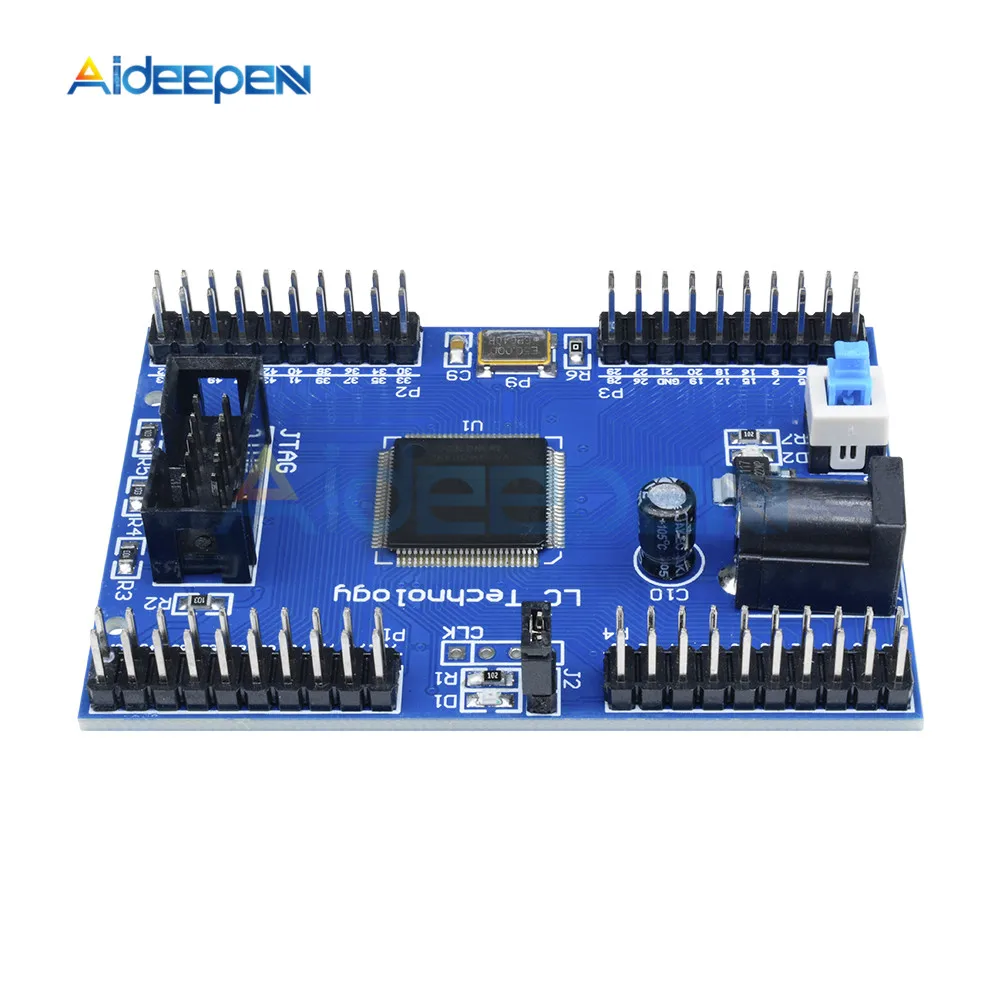

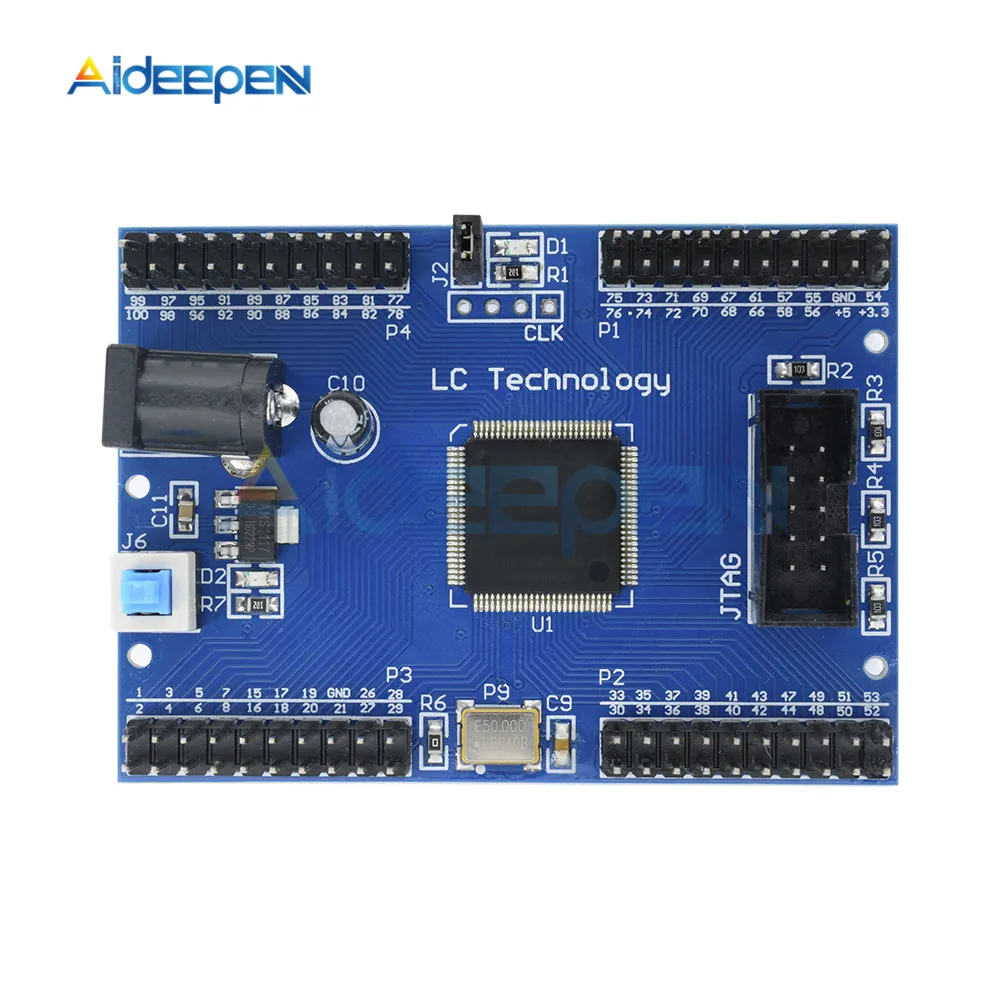

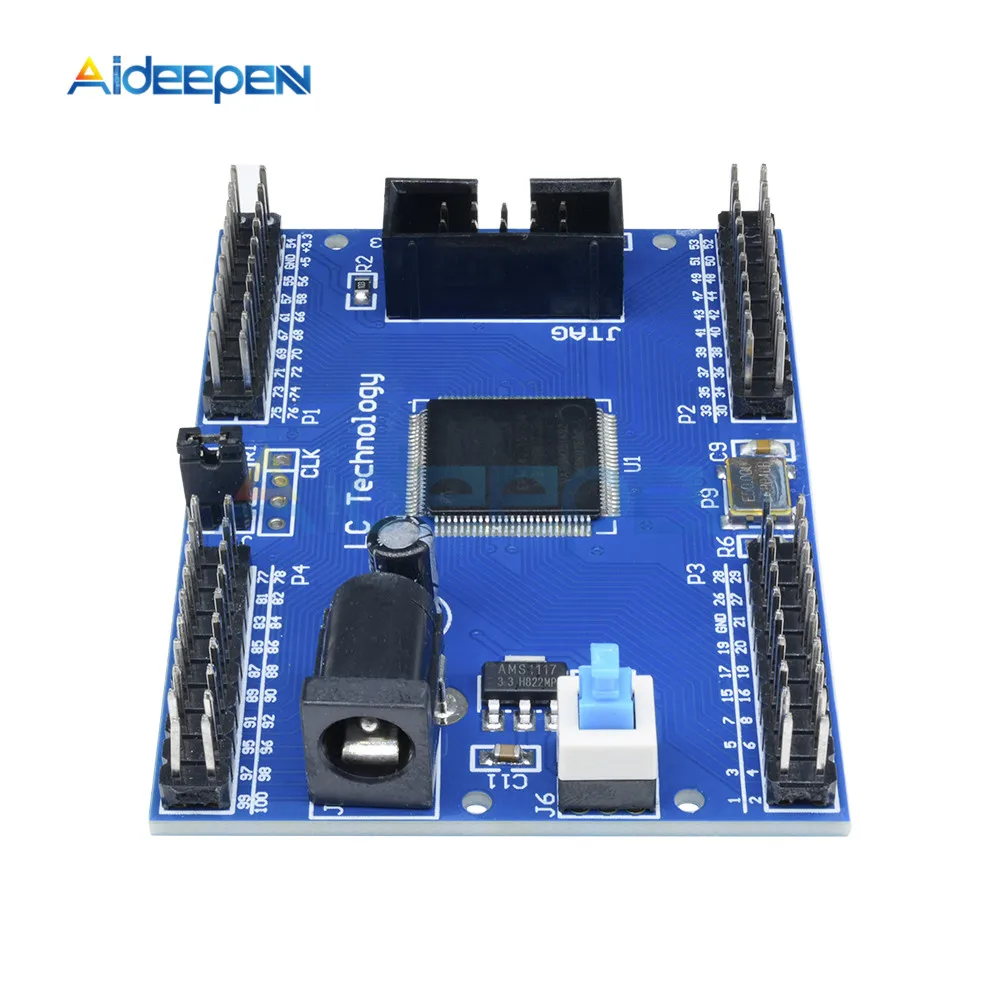

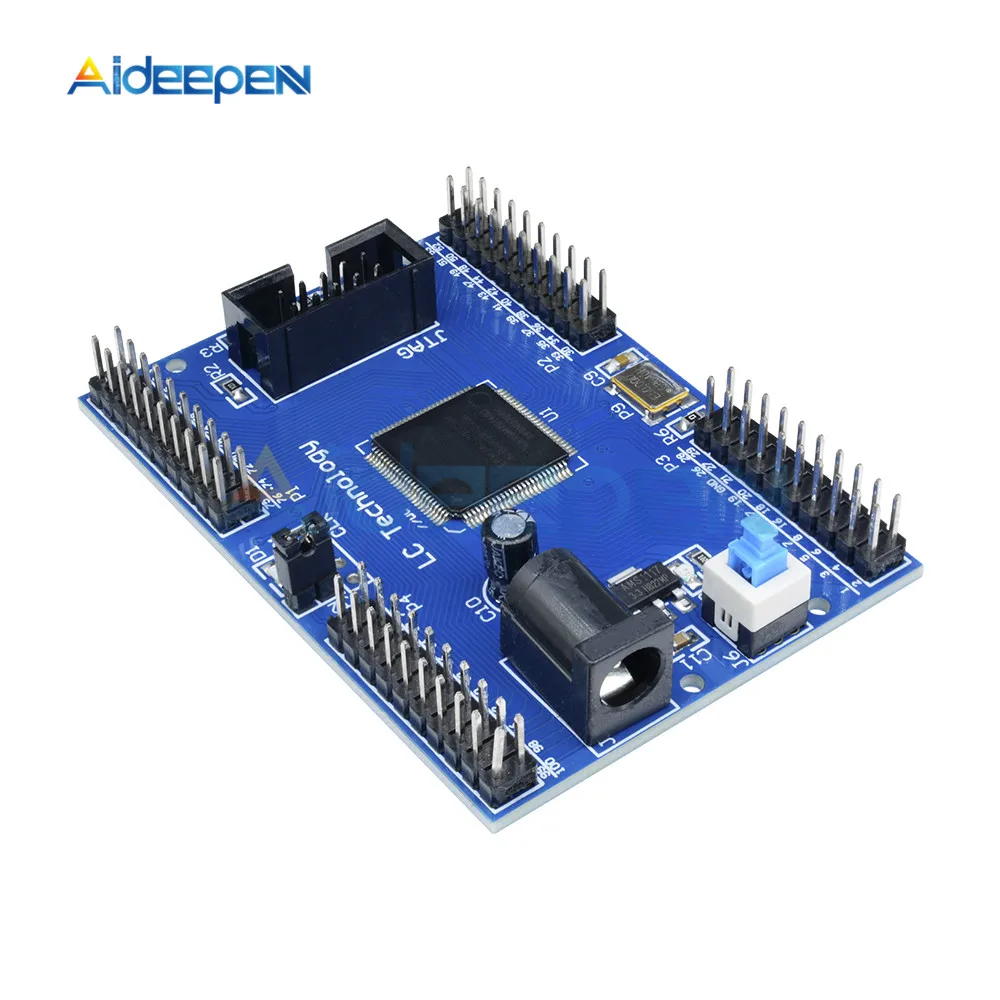

The product is minimum system board, together with a Byte-Blaster and USB-Blaster Download for product validation and development.
Power supply interface board has been set aside, and leads to all the pins, simply connect the 5V power supply can work extremely convenient to use. The CPLD chip for the entry of low-cost CPLD / FPGA is very appropriate, the user according to the IO port of the core plate leads to expansion of the external circuitry such as: LED lights, digital tube, LCD liquid crystal, serial communications.
Facilitate the users to develop their own products to maximize the learning development cost savings for the user.
Chip board EPM240T100C5
Board JTAG interface,
Active board 50MHZ crystal
With a programmable LED
With a 5V chip, 3.3V AMS1117-3.3 switch
5V power supply with switch
All the leads all the IO
The board size 5CM * 7CM
The product is minimum system board, together with a Byte-Blaster and USB-Blaster Download for product validation and development.
Power supply interface board has been set aside, and leads to all the pins, simply connect the 5V power supply can work extremely convenient to use. The CPLD chip for the entry of low-cost CPLD / FPGA is very appropriate, the user according to the IO port of the core plate leads to expansion of the external circuitry such as: LED lights, digital tube, LCD liquid crystal, serial communications.
Facilitate the users to develop their own products to maximize the learning development cost savings for the user.
Chip board EPM240T100C5
Board JTAG interface,
Active board 50MHZ crystal
With a programmable LED
With a 5V chip, 3.3V AMS1117-3.3 switch
5V power supply with switch
All the leads all the IO
The board size 5CM * 7CM
Package Included:
1 x EPM240 Development Board Learning Board Breadboard Develop Diy Kit Electronic PCB Board Module
