DST1020 Dual Display Digital Thermostat Temperature Controller AC 110-220V DS18B20 Sensor Waterproof Heating Cooling
Description:
Product Name: Temperature Controller
Product model: DST1020
Supply voltage: AC 110-220V
Temperature range: -50~ + 120°C
Temperature measurement accuracy: ±0.5 °C (in the range of -10~ + 85 °C)

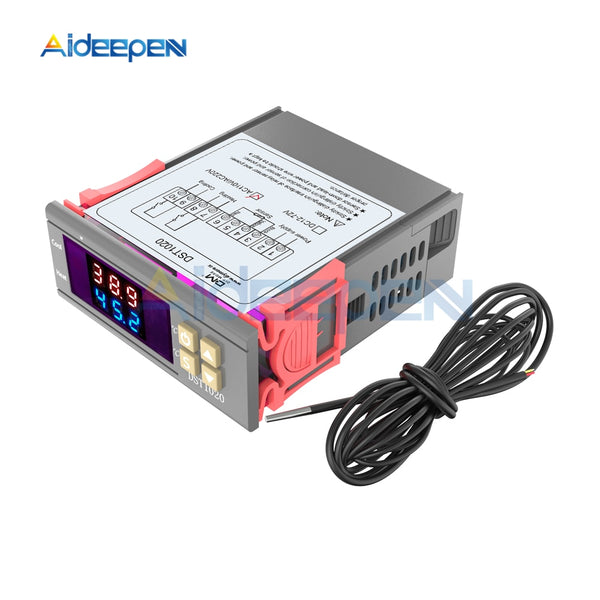

Line length: 1 meter
Size: 75mm * 85mm * 35mm
Applicable scene: various sensor control boxes, water heaters, freezer cabinets, fans
(not limited to these devices)
Temperature Setting:
Heating and cooling mode settings
Setting (starting temperature):
Press and hold the ▲ button for 3 seconds to start the temperature flashing, use the ▲▼ button to set the starting temperature value.
Set (stop temperature):
Press and hold the ▼ button for 3 seconds to stop the temperature flashing, use the ▲▼ button to set the stop temperature value.
Case 01 control water heater
Heated to 65 ° C to stop, the temperature dropped back to 50 ° C and heated again
Step 1: Heating mode, starting temperature <stop temperature.
Step 2: Press and hold the ▲ button for 3 seconds to start flashing the temperature value. Use ▲▼ to set the starting temperature to 50 °C.
Step 3: Hold down the ▼ button for 3 seconds to stop the temperature value flashing. Use ▲▼ to set the stop temperature to 65°C and the setup is complete.
The button does not run for 5 seconds and automatically returns to the normal display state.
Case 02 controls the farm fan
The fan is vented to 26 ° C and the temperature is raised to 30 ° C. Ventilation begins again.
Step 1: Cooling mode, start temperature > stop temperature.
Step 2: Press and hold the ▲ button for 3 seconds to start flashing the temperature value. Use ▲▼ to set the starting temperature to 30 °C.
Step 3: Hold down the ▼ button for 3 seconds to stop the temperature value flashing. Use ▲▼ to set the stop temperature to 26°C and the setup is complete.
The button does not run for 5 seconds and automatically returns to the normal display state.
Package included:
1 x DST1020 AC110-220V Dual Display Digital Temperature Controller Control Thermostat DS18B20 Sensor Waterproof
