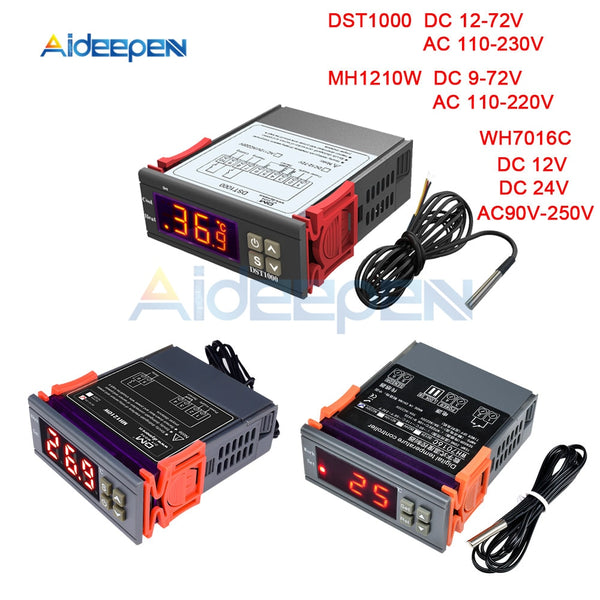

DST1000 MH1210W WH7016C DC 12V 24V 36V AC 110V 220V Digital Temperature Controller Incubation Thermostat Regulator Sensor Probe

X13071

$6.99 $10.48

Tax included.

不锈钢计时器

2
Description:

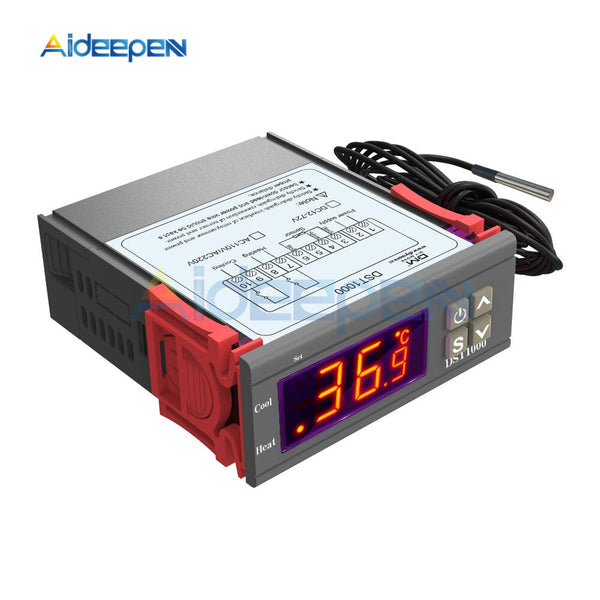

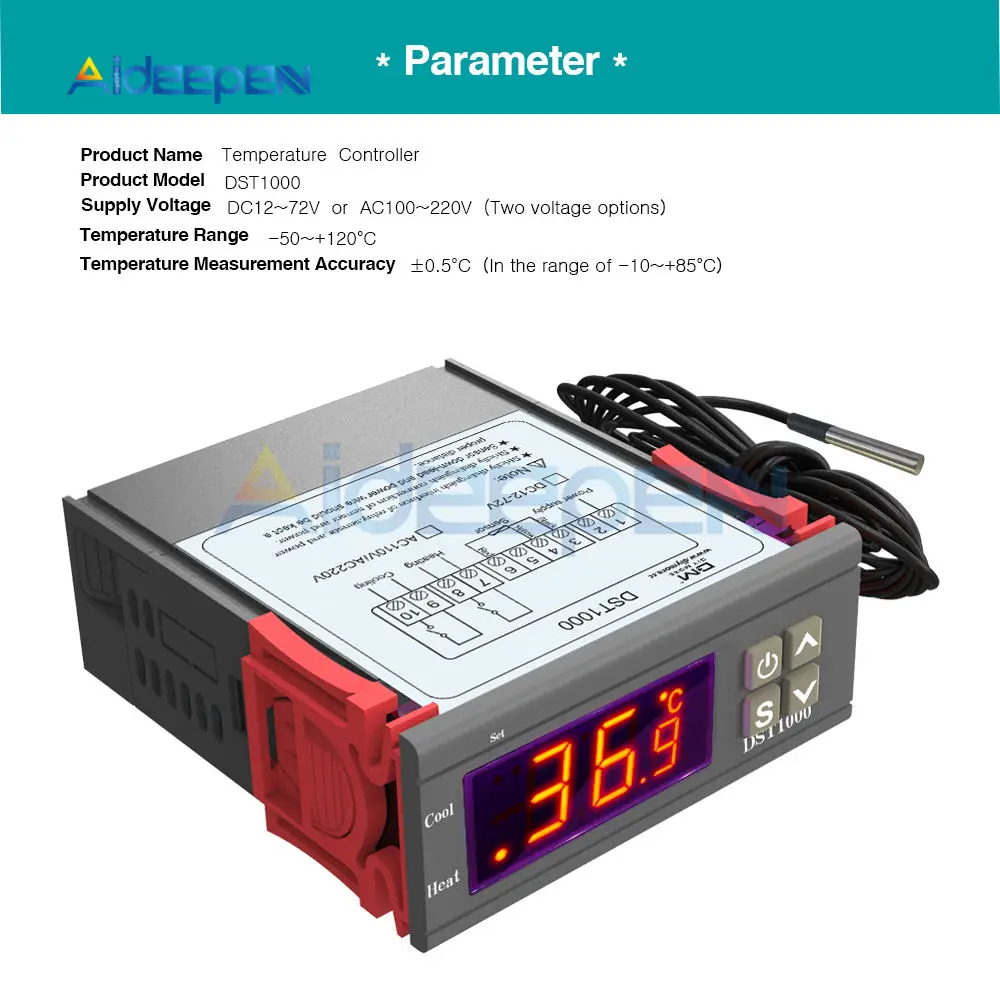

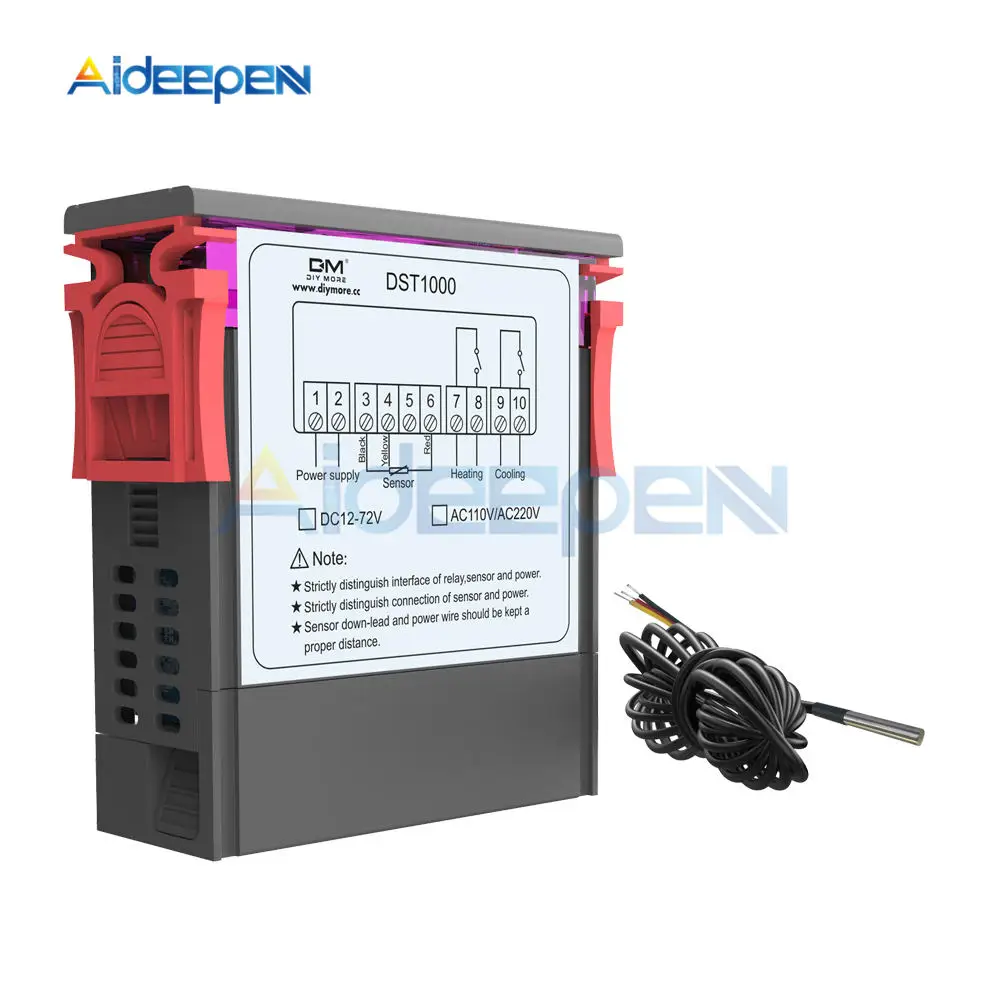

DST1000
Product Name: Temperature Controller
Product Model: DST1000
Supply Voltage: DC12~72V or AC100~220V (Two voltage options)
Temperature Range: -50~+120°C
Temperature Measurement Accuracy: ±0.5°C(In the range of -10~+85°C)

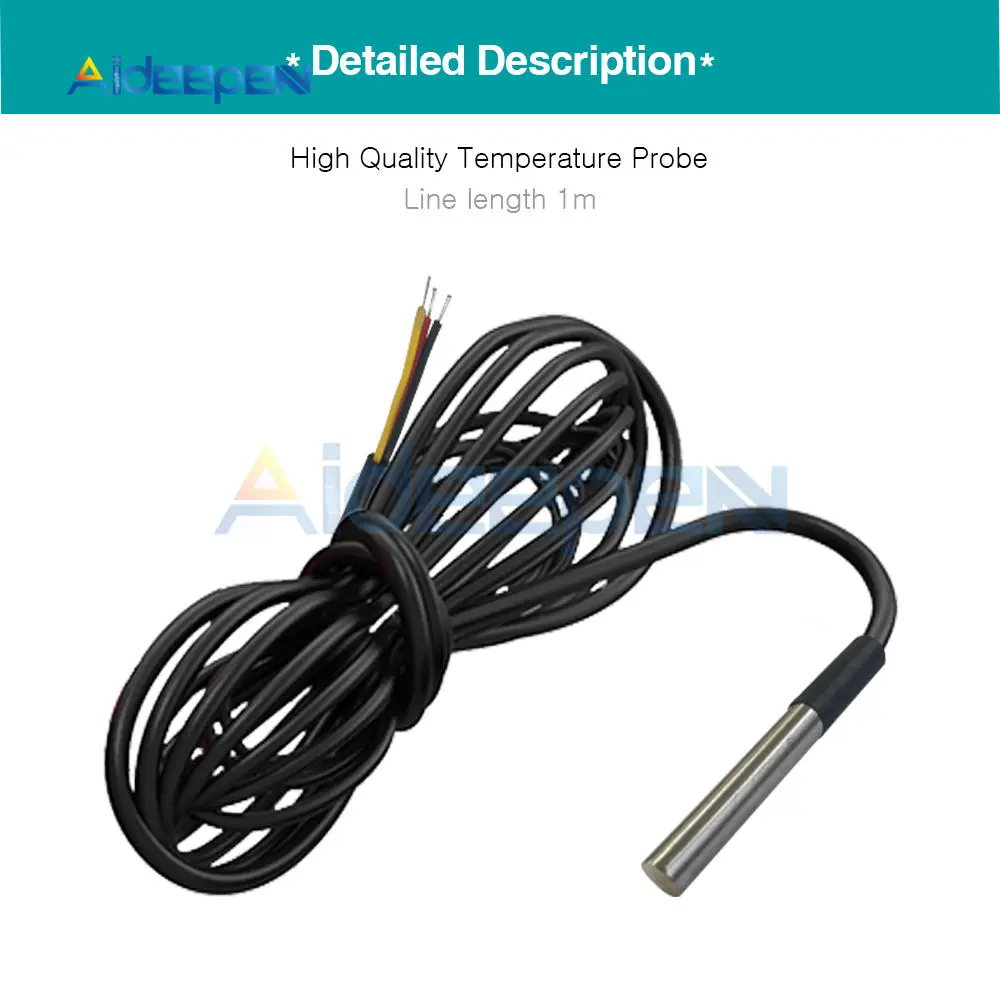

Line length: 1m
Size: 75mm*85mm*35mm

Applicable Scene: Various Sensor Control Boxes,Water Heater,Freezer,Fan
(Not limited to the devices)

Temperature Setting:

Heating and Cooling Mode Setting
Setting(Starting Temperature):
Press and hold the▲button 3 seconds to Start Temperature flashing,Use▲▼button to set Start Temperature value
Setting(Stop Temperature):
Press and hold the▼button 3 seconds to Stop Temperature flashing,Use▲▼button to set Stop Temperature value

Cases 01 Control Water Heater:

Heating to 65° to stop, the temperature drops back to 50° and heating again
Step1:Heating mode,Starting Temperature＜Stop Temperature.
Step2:Press and hold the▲button 3 seconds to Start Temperature value flashing. Use▲▼ to set the Starting Temperature to 50°.
Step3:Press and hold the▼button 3 seconds to Stop Temperature value flashing. Use▲▼ to set the Stop Temperature to 65° and the setting is completed.
The button does not operate for 5 seconds and automatically returns to the normal display state.

Cases 02 Control Farm Fan:

The fan is ventilated to 26° to stop, the temperature is raised to 30° and the ventilation is started again.
Step1:Cooling mode,Starting Temperature＞Stop Temperature.
Step2:Press and hold the▲button 3 seconds to Start Temperature value flashing. Use▲▼ to set the Starting Temperature to 30°.
Step3:Press and hold the▼button 3 seconds to Stop Temperature value flashing. Use▲▼ to set the Stop Temperature to 26° and the setting is completed.
The button does not operate for 5 seconds and automatically returns to the normal display state.

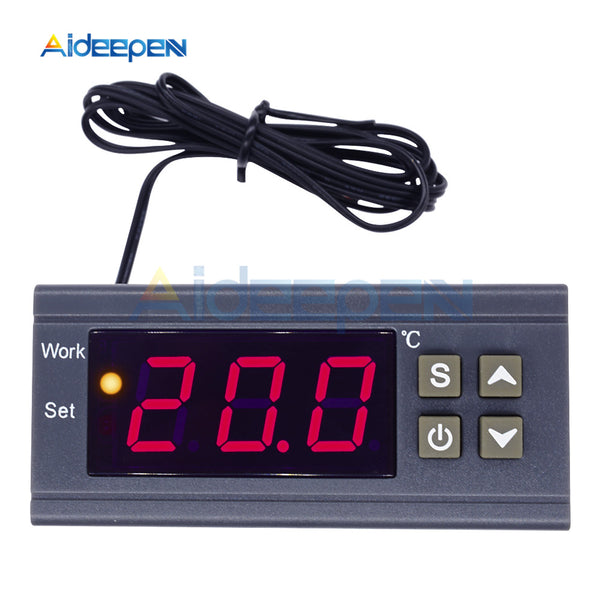

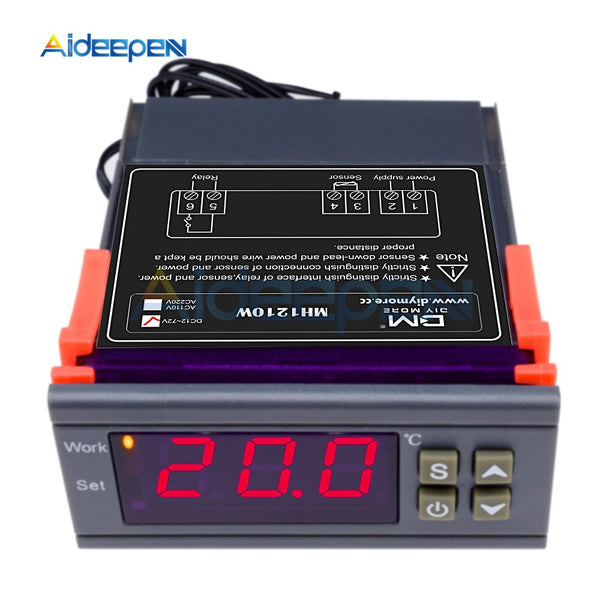

MH1210W

Features:
A mini temperature controller.
Large and clear LED display for better readability
Wide temperature measuring range
Heating and cooling control
Temperature calibration
Delay protection function
All parameters reset to default settings after short circuit
Can be used for domestic freezer, water tanks, refrigerators, industrial chillers, boilers, steamers, industrial equipments and other temperature-controlled systems.
Specifications:
Working voltage: DC 9V-72V; AC 90-250V +-10%, 50/60 HZ
Rated current: 10 A
Power consumption: ≤3 W
Measurement range: -50-110 degree Celsius
Measurement precision: 0.1 degree Celsius
Measurement error: +-0.3 degree Celsius
Control precision: 0.1 degree Celsius
Working temperature:-20-70 degree Celsius, Humidity: 90% none moisture condensation
Temperature sensor: NTC 25 C =10K B3435 (1m, no positive or negative)
Output load: Normally open 10 A / AC 220 V
Dimensions: 8.5 x 7.5 x 3.5 cm / 3.4 x 3 x 1.4 inches

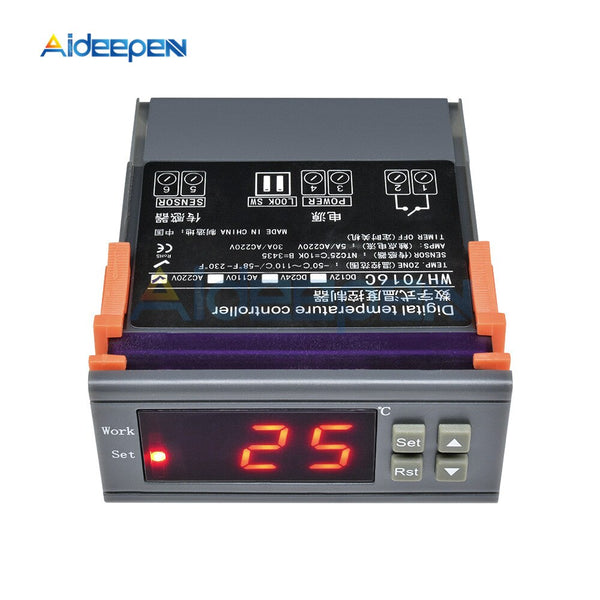

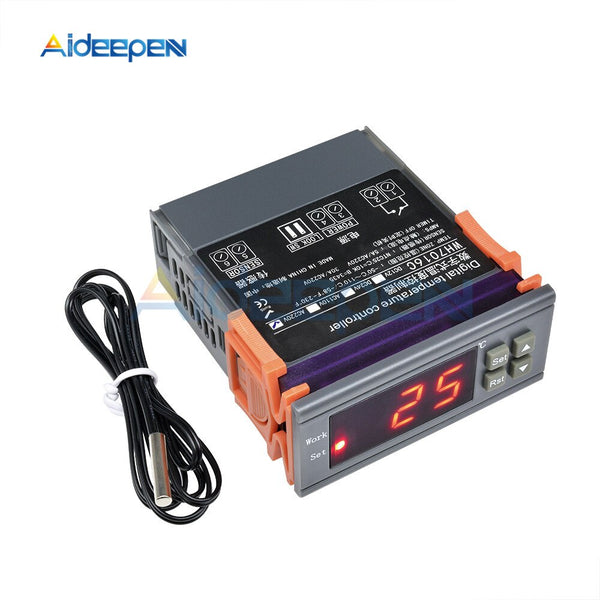

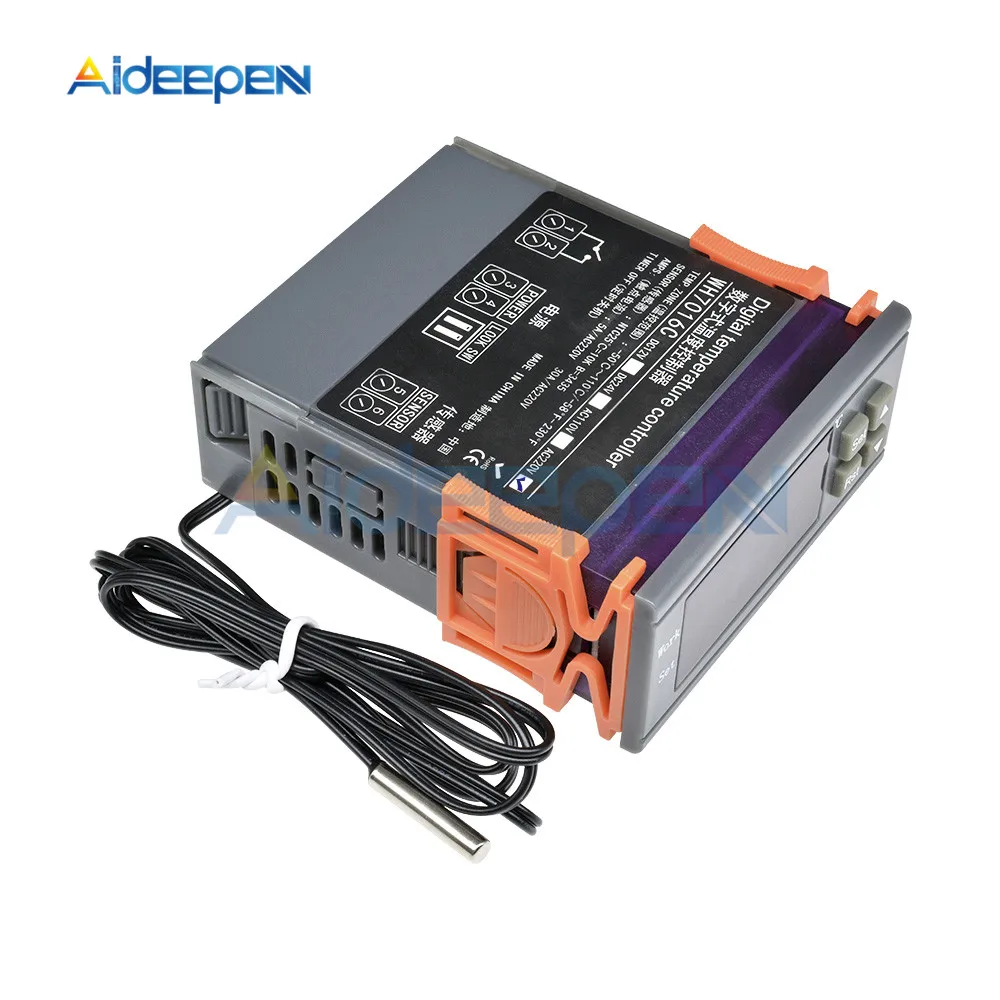

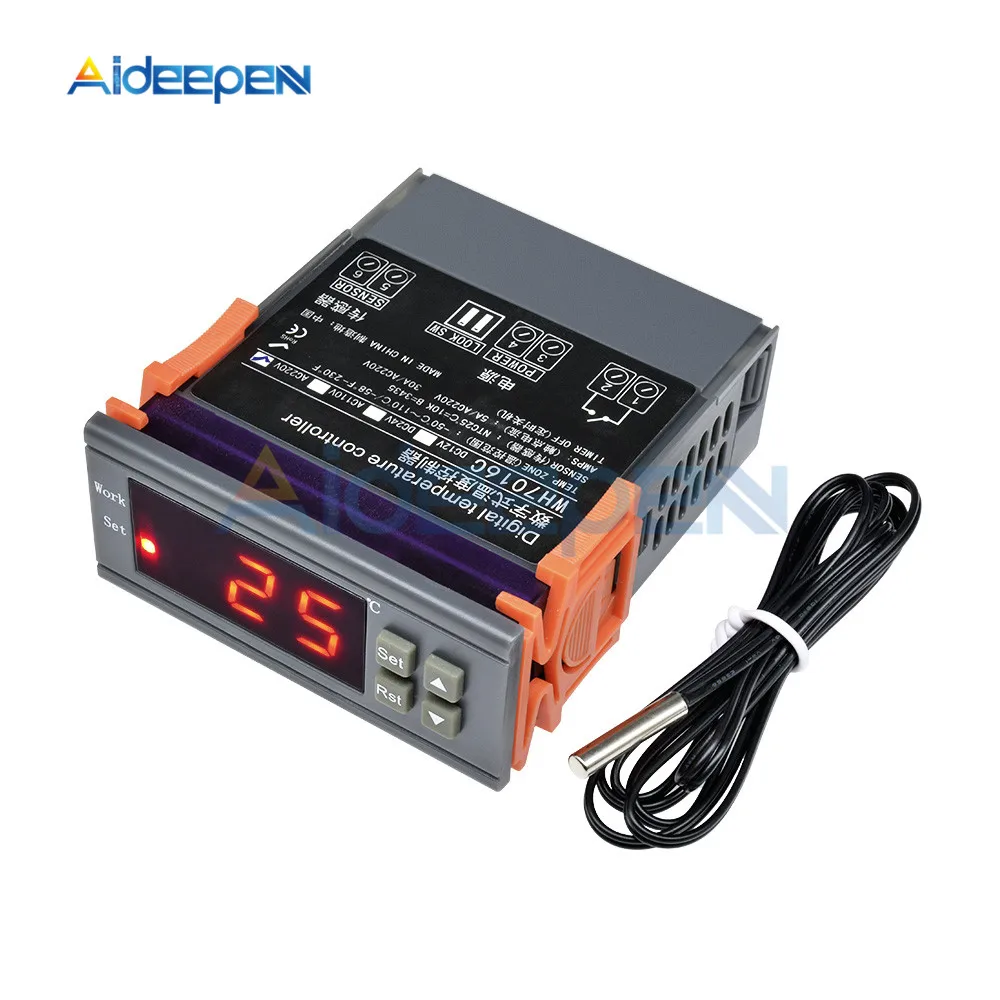

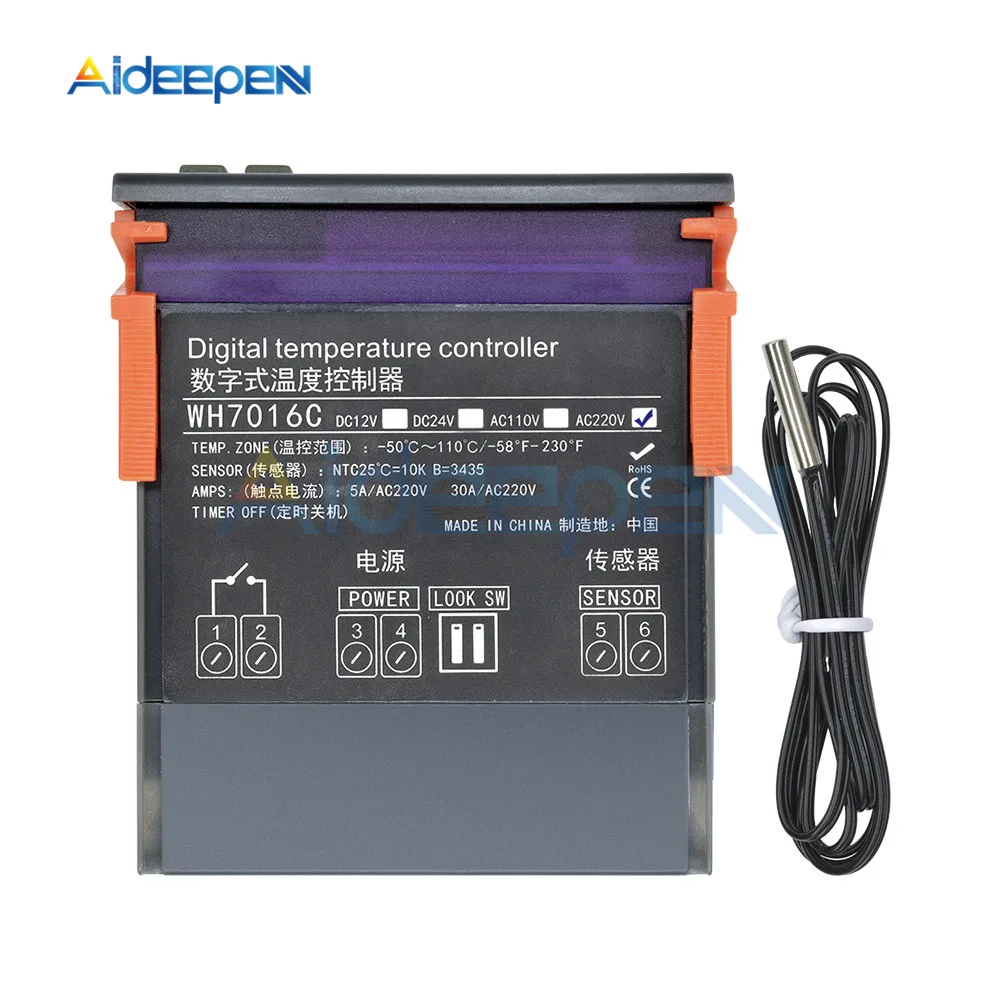

WH7016C
A mini temperature controller
With large and clear LCD display for better readability
Wide temperature measuring range
High performance and durable housing
Heating and cooling can not be taken simultaneously
Temperature calibration function
Delay protection function
Ex-factory parameters locking function after short circuit
Upper and lower limits of temperature can be set
Can be used for domestic freezer, water tanks, refrigerator, industrial chiller, bolier, steamer, industrial equipments and other temperature-controlled systems
Comes with temperature sensor probe
Specifications:
Model:WH7016C
Temperature Measuring Range: -50°C ~ 110°C
Control temperature range: -50 ~ 110°C
Temperature measuring difference: ±0.5°C
Resolution: 0.1°C
Accuracy: ± 1 deg C (-50 - 70 °C )
Sensor Type: NTC (10K/3435)
Power Suppler : DC12V; DC 24V; AC 220V
Power consumption: < 2W
Relay contact Current: Rated 5A
Data retention: Yes
Working temperature: 0- 50°C
Storage temperature: -10 - 60°C
Size: 78 x 71 x 29 mm ( L*W*H ) ,Probe cable length: 1m; Probe Size: φ4mm*20mm
Color: Show as pictures
Display Font: Red
PLS NOTE that due to lighting effects, monitor's brightness / contrast settings etc, there could be some slight differences in the color tone of the pictures and the actual item!
Package included:
1 x Temperature controller
1 x Temperature sensor
