DMT01 DC 24V 20A 240W Incubator Temperature Controller Thermometer Cooling Heating Temp Regulator Digital Dual Display with NTC on AliExpress

030048

Sale price $4.99 Regular price $7.49

Tax included.

不锈钢计时器

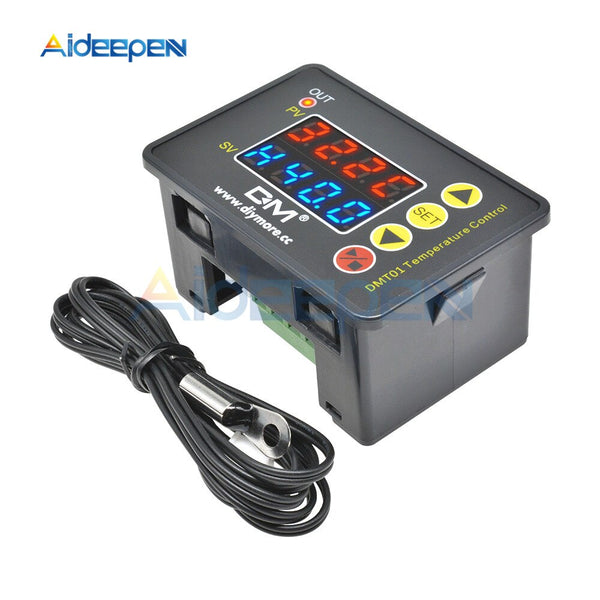

DMT01 DC 12V 20A 240W Incubator Temperature Controller Thermometer Cooling Heating Temp Regulator Digital Dual Display with NTC with Buzzer Alarm Replace W3001 W3002 W3230 W3231



Description:



Temp-range:-55℃~120℃/-67℉~248℉
Precision: 0.1℃/0.1℉

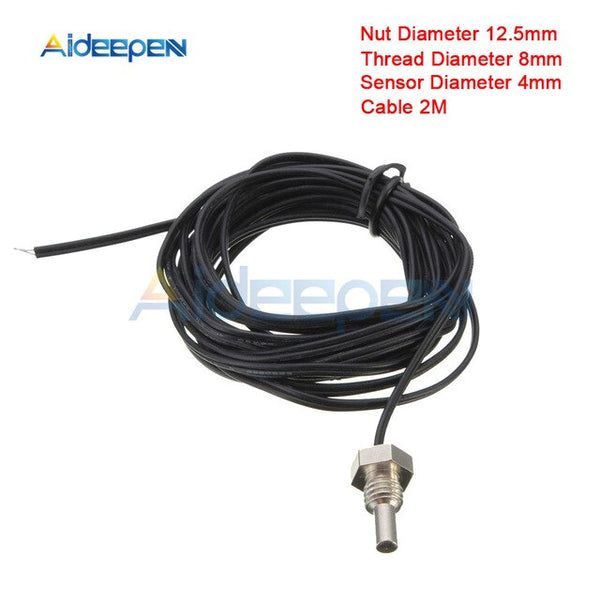

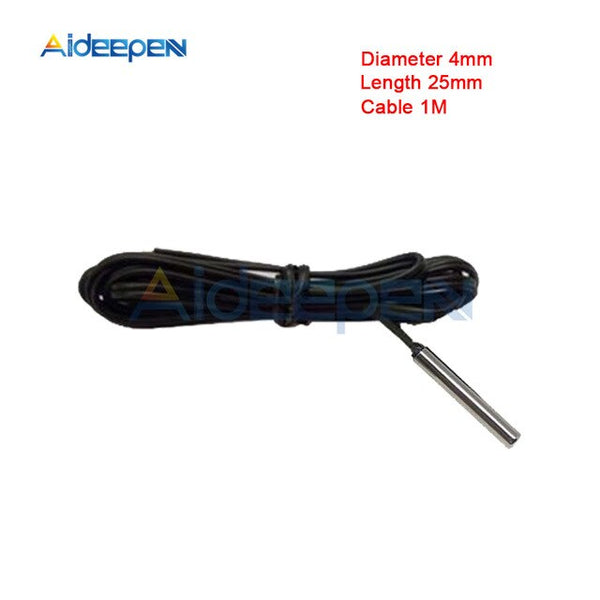

Sensor:NTC 10K
Output type: Direct output
Power:DC12V/20A/240W(Max)
Size:67×45×34mm
Mounting hole size:63×42mm
Weight:65g(DC12V/24V)



Note:This product is a direct output controller.Please connect the load before turning on the power Avoid accidents!





What's the difference between DMT01 and W3001 W3002 W3230







NT01/DMT01

W3230

W3002

W3001

Unit

℃/℉

PV SV is displayed simultaneously





Temperature calibration





Delayed start



Buzzer alarm







High temperature warning





Low temperature warning







Data lock





Power supply direct output



NTC sensor with fixing holes







Paper instruction manual





AC max output power

2200W

1500W

1500W

1500W

Working mode indication







Emergency stop function









Features:

1. The buzzer alarms and cuts off the load supply.

小喇叭

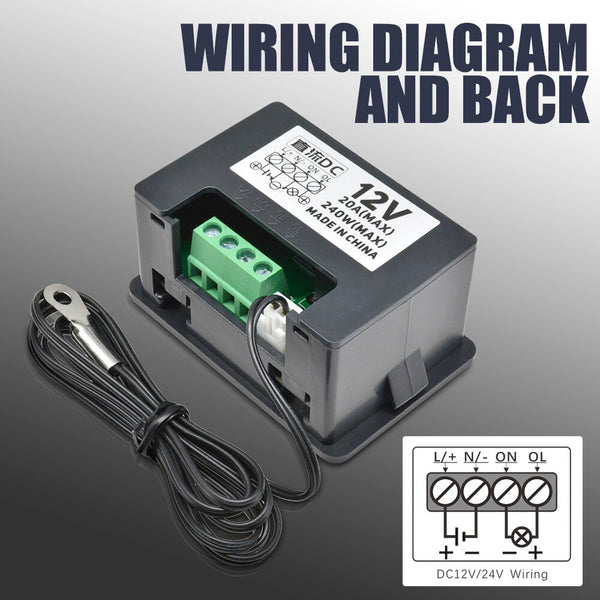

2. The power supply is directly output, convenient wiring

交流接线直流接线

3. Temperature over limit alarm, protection is more comprehensive



12



TE-P HIGH High temperature warning TE-P LOW Low temperature warning



4. Emergency stop function, double-click emergency stop, easy to operate and avoid accidental touch

TIM截图20191023183957

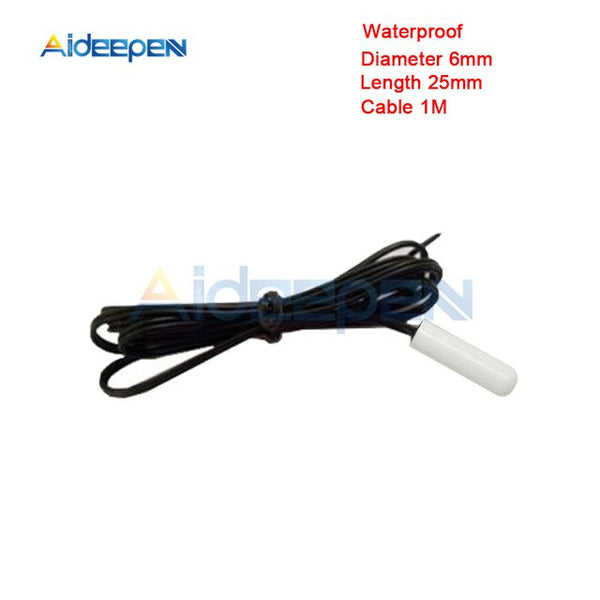

5. Waterproof sensor with fixing holes, easy to use



3



6. Working mode, status direct indication



45



(Blue)H40.0 H=heat Blue(C40.0)C=cool



7. Celsius degrees Fahrenheit can be used



67



Red 32.2C C means ℃ Red 90.0F F means ℉



8. Interval temperature control, no return difference setting, easier to operate



8



(Red)b35.0 Start Temperature (Code P0Set)

(Blue)E40.0 Stop Temperature (Code P1Set)

Heating= Start temperature<Stop temperature

Cooling=Start temperature>Stop temperature





Package Include:

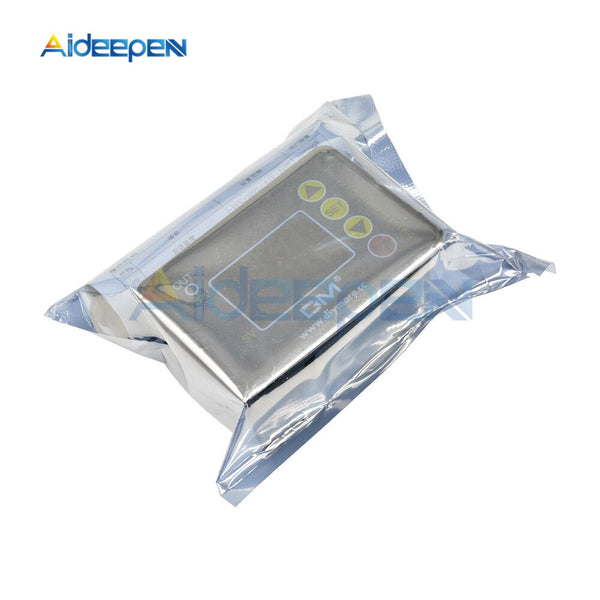

1 x Incubator Temperature Controller Thermometer Cool/Heat Digital Dual Display
