Description:
Note:This product is a direct output controller.Please connect the load before turning on the power Avoid accidents!
What's the difference between DMT01 and W3001 W3002 W3230
|
| NT01/DMT01 | W3230 | W3002 | W3001 |
| Unit | ℃/℉ | ℃ | ℃ | ℃ |
| PV SV is displayed simultaneously | √ | √ |
|
|
| Temperature calibration | √ | √ |
|
|
| Delayed start | √ | √ | √ |
|
| Buzzer alarm | √ |
|
|
|
| High temperature warning | √ | √ |
|
|
| Low temperature warning | √ |
|
|
|
| Data lock | √ | √ |
|
|
| Power supply direct output | √ |
| √ | √ |
| NTC sensor with fixing holes | √ |
|
|
|
| Paper instruction manual | √ | √ |
|
|
| AC max output power | 2200W | 1500W | 1500W | 1500W |
| Working mode indication | √ |
|
|
|
| Emergency stop function | √ |
|
|
|
1. The buzzer alarms and cuts off the load supply.
2. The power supply is directly output, convenient wiring
3. Temperature over limit alarm, protection is more comprehensive

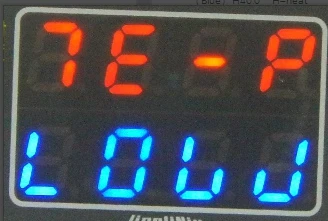

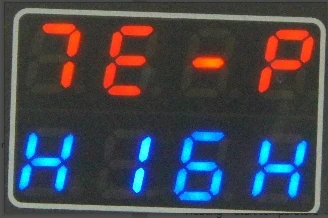

TE-P HIGH High temperature warning TE-P LOW Low temperature warning
4. Emergency stop function, double-click emergency stop, easy to operate and avoid accidental touch
5. Waterproof sensor with fixing holes, easy to use
6. Working mode, status direct indication

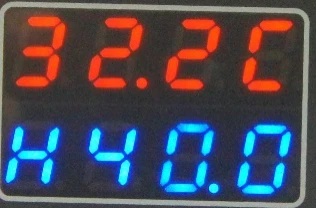

（Blue）H40.0 H=heat Blue（C40.0）C=cool
7. Celsius degrees Fahrenheit can be used

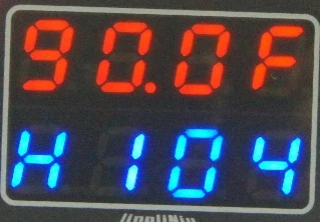

Red 32.2C C means ℃ Red 90.0F F means ℉
8. Interval temperature control, no return difference setting, easier to operate
（Red）b35.0 Start Temperature （Code P0Set）
（Blue）E40.0 Stop Temperature （Code P1Set）
Heating= Start temperature＜Stop temperature
Cooling=Start temperature＞Stop temperature
Package Include:

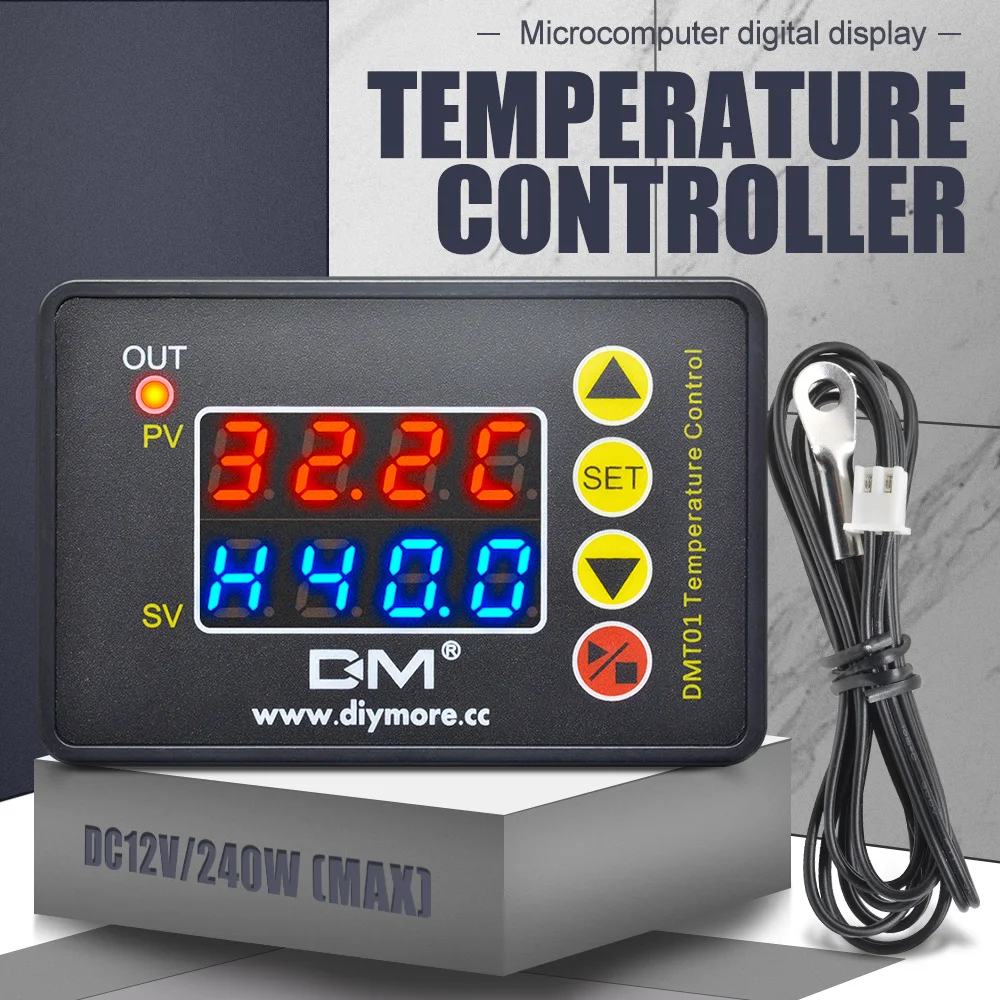

1 x Incubator Temperature Controller Thermometer Cool/Heat Digital Dual Display
