Description:
• Operating voltage: DC 7-9V
• DDS frequency range: 1Hz-65534Hz.
• High-speed frequency (HS) output up to 8MHz;
• DDS signal amplitude of the offset amount can be adjusted separately by two potentiometers;
• DDS signals: sine wave, square wave, sawtooth, reverse sawtooth, triangle wave, the ECG wave and noise wave.
• 1602 LCD menu;
• Intuitive keyboard.
• Section into the value: 1,10,100,1000,10000 Hz;
• The power automatically restore the last used configuration.
• Offset: 0.5pp-5Vpp
• Amplitude amount: 0.5Vpp-14Vpp
• DDS frequency range: 1Hz-65534Hz.
• High-speed frequency (HS) output up to 8MHz;
• DDS signal amplitude of the offset amount can be adjusted separately by two potentiometers;
• DDS signals: sine wave, square wave, sawtooth, reverse sawtooth, triangle wave, the ECG wave and noise wave.
• 1602 LCD menu;
• Intuitive keyboard.
• Section into the value: 1,10,100,1000,10000 Hz;
• The power automatically restore the last used configuration.
• Offset: 0.5pp-5Vpp
• Amplitude amount: 0.5Vpp-14Vpp
KEY FUNCTIONS:
The UP output waveform select
The DOWN output waveform select
LEFT output frequency -
RIGHT output frequency +
STOP / RUN the output stop / start
"UP" key waveforms order:

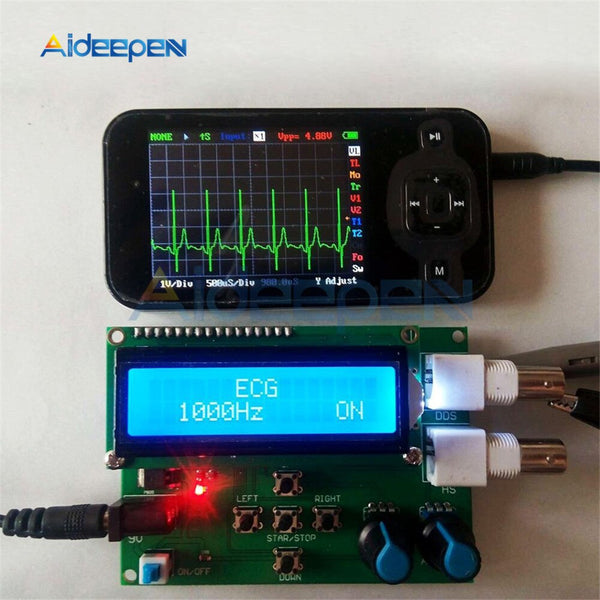

ECG = electrocardiogram wave (in the OFF state, the "left "and "right" keys to set the output frequency. Middle button start, all of the following waveform set)

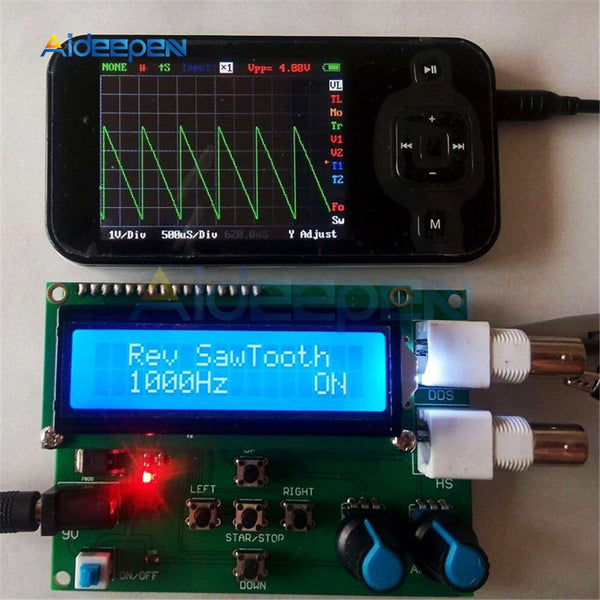

Rev Sawtooth = reverse sawtooth

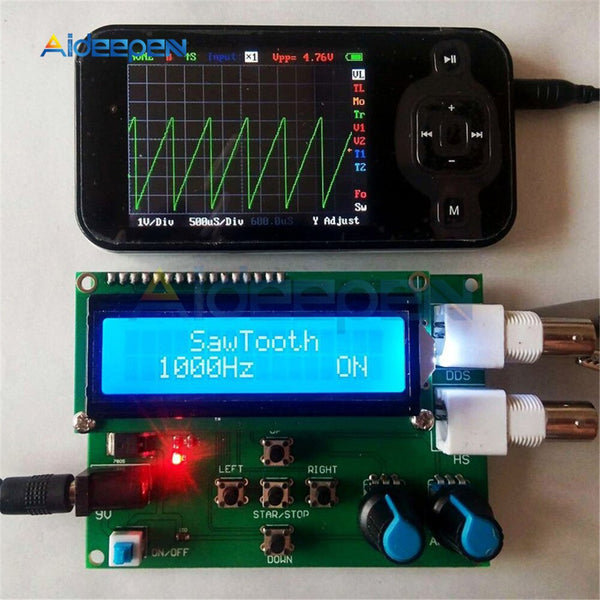

SawTooth = sawtooth

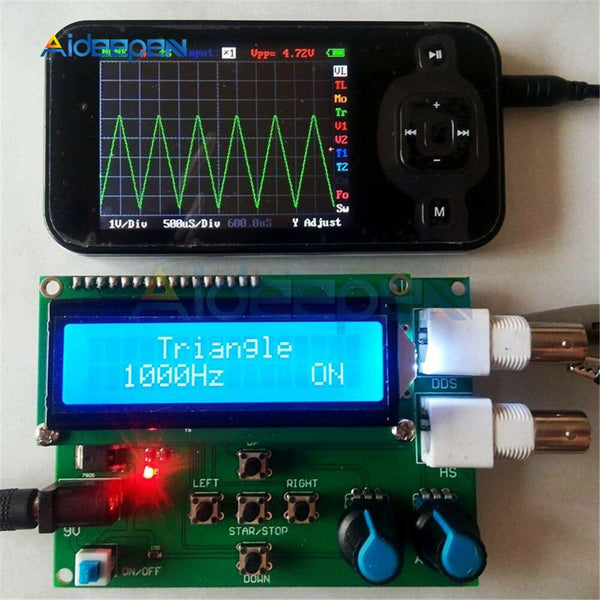

Triangle = triangle wave

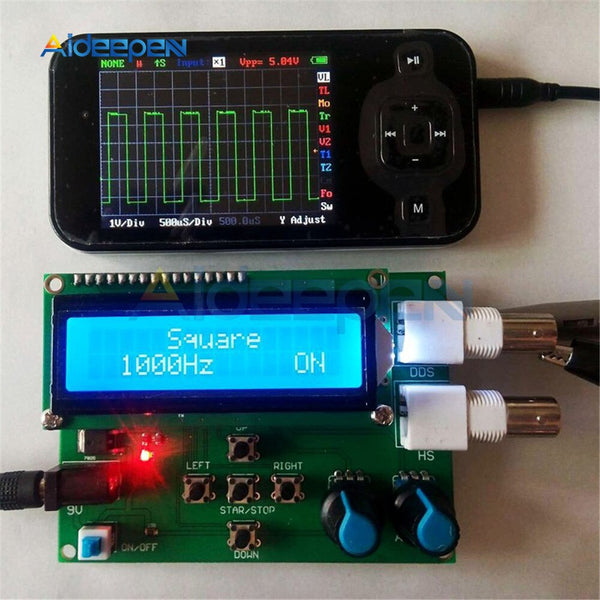

Square = square wave
Package Included:
1 x DDS Function Signal Generator DIY Kit Module Sine Square Sawtooth Triangle Wave Function Generator 1602 Digital LCD Display
