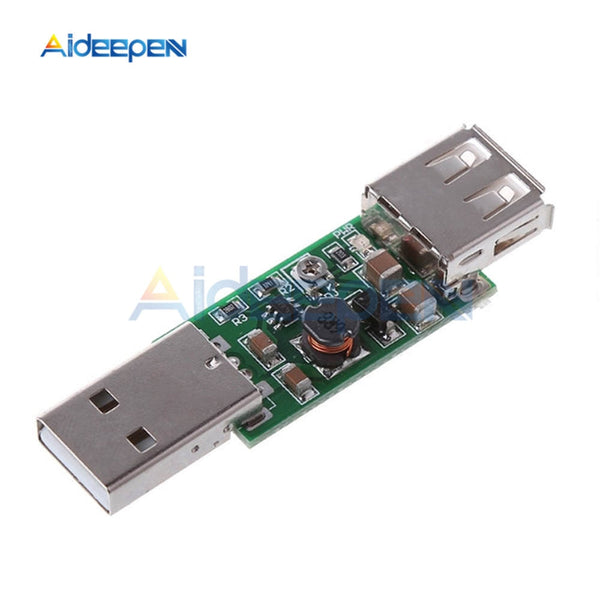

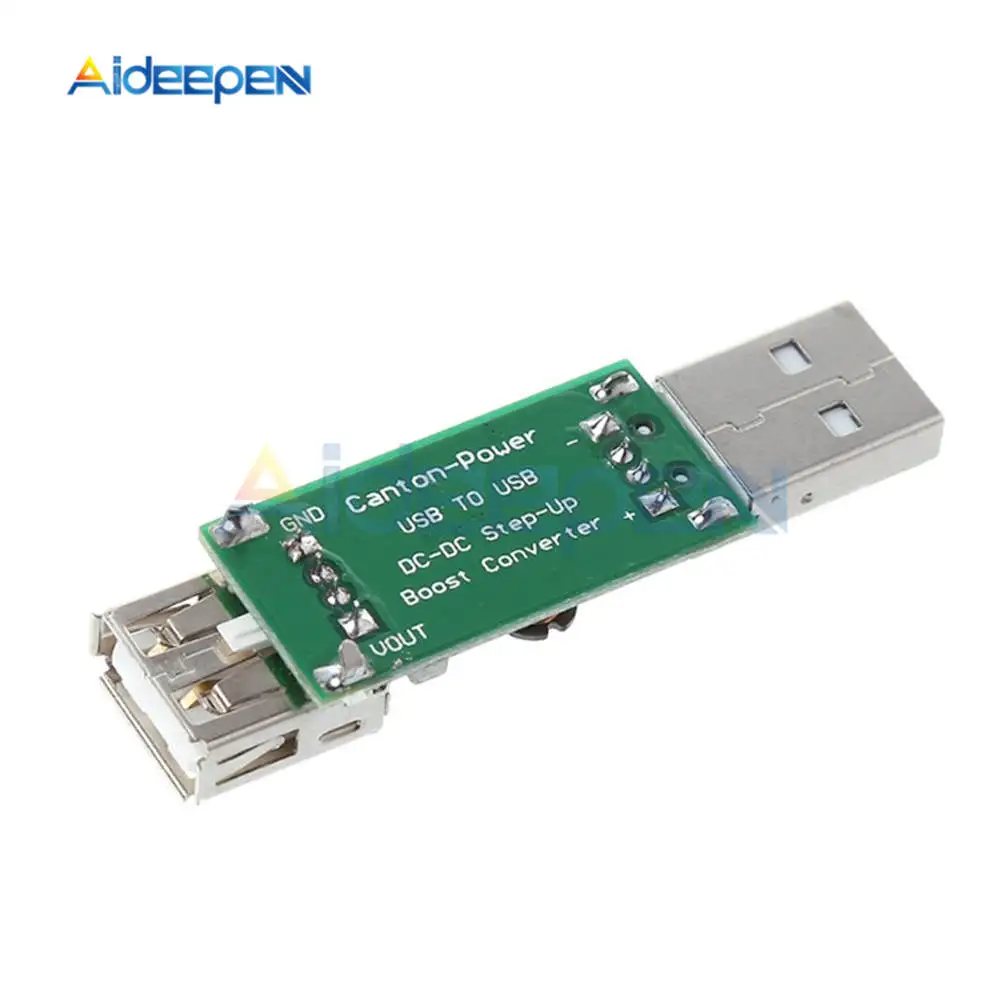

DC DC USB 5V to 6 15V Step Up Boost Converter Voltage inverters Module Adjustable Output DC 6V 7V 8V 9V 12V Board

Sale price $1.99 Regular price $2.98

Tax included.
Description:
This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself
Specifications:
Input voltage 3~6V, output 6-15.5V
Maximum input current : 1.4A
Long-term work Current : 1A
Conversion efficiency : 79-90%
Input: USB Male Interface, DC 3-6V
Ouput: USB Female Interface, DC 6-15.5V
If input DC 5V, output 6-15.5V Adjustable
Power : Maximum 7W
DC-DC Boost module working frequency 1.0MHZ
Operating ambient temperature : -40~+85°
Size: 5.5x1.6cm/2.17x0.63"
Quantity: 1 Pc

Package Include:

1 x DC-DC USB 5V to 6-15V Step-Up Boost Converter Voltage inverters Module Adjustable Output DC 6V 7V 8V 9V 12V Board
