DC DC Step Down Buck Converter Power Supply Module XL4016 PWM Adjustable 4 40V To 1.25 36V Step Down Board Max 8A 200W

Sale price $4.99 Regular price $7.49

Tax included.

Product name: DC step-down module Converter
Voltage regulating mode: PWM modulation
Input voltage: DC4-40V
Output voltage: DC1.25-36V
Max output current: 8A (more than 5A for long time use,need Fan if over 5A)
Max power: 200W
Conversion efficiency: 94%
Switching frequency: 180KHZ
Dimensions: 61*41*27mm
Chip: switching regulator Regulating chip XL4016 with Over current protection, Over temperature protection,Short circuit protection
When reach maximum output current 8A, need to add fan. Long term work recommended about 5A
Panel Mounting:
1. Drill holes in the Panel 7mm
2. Extended potentiometer handle
3. Lock screw sleeve upper knob

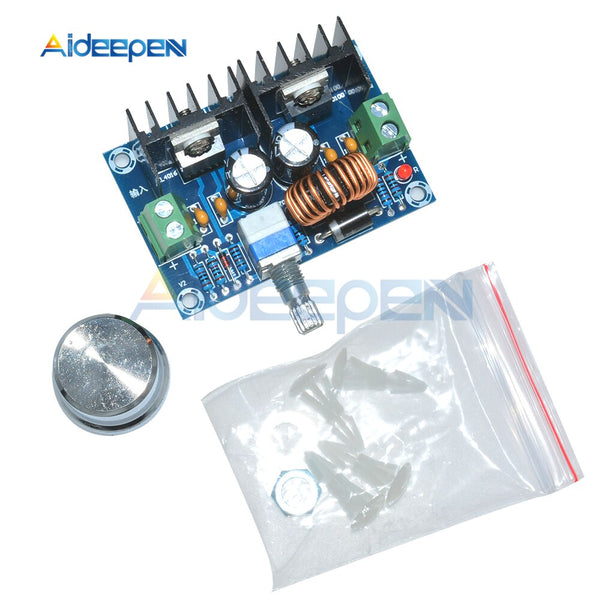

Package Included:
1 x DC step down voltage power module
