DC DC Boost Step Up Converter Module Adjustable Static Power Supply Voltage Regulator Laptop Voltage Charge Board 150W

010166

Sale price $5.99 Regular price $6.99

Tax included.

30830

Description:
Input voltage :10-32V
Output voltage: 12-35V (adjustable)
Output Current: 10A (MAX)
Input Current: 16A (MAX) (Please enhance heat dissipation if more than 10A)
Output power: natural cooling 100W (MAX), enhance heat dissipation 150W (MAX)
Easy to drive 65W 90W dual-core notebook.
Use a 12V battery drive 19V 3.42A notebook, the module temperature about 45 degree Celsius
Conversion efficiency: 94% (measured at Input 16V, output 19V 2.5A)
Output Ripple: 2% (MAX) 20M-bandwidth
Operating Temperature: Industrial (-40 degree Celsius to +85 degree Celsius) (ambient temperature exceeds 40 degree Celsius, lower power use, or to enhance heat dissipation)
Full load temperature rise: 45 degree Celsius
No-load current: 25mA typical
Voltage regulation: +- 0.5%
Dynamic response speed: 5% 200uS
Short circuit protection: None (Please Install fuses and protection circuits at Input port.)
Input Reverse Polarity Protection: None (Please Series diode at the input port.)
Some Applications:
DIY an output adjustable vehicle power supply, connect the 12V input, and output could be 14-35V(adjustable freely), However, the output voltage can not be less than the input voltage.
Car laptop power supply: connected to 12V power supply, output voltage regulation as your notebook need.
Boost charger. You can use the 12V power supply to charge battery more than 12V, for example, 24V battery
Package Included:
1 x 150W DC-DC Boost Converter 10-32V to 12-35V Step Up Power Supply Module

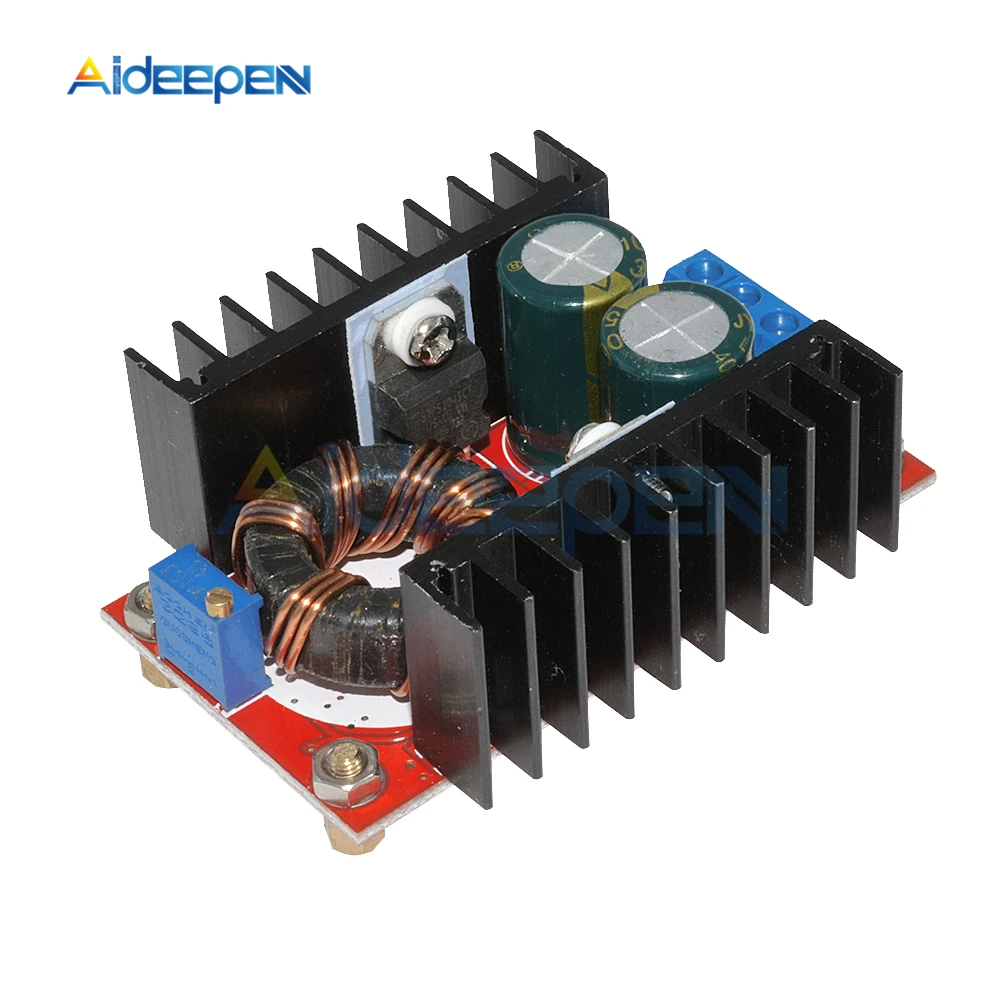

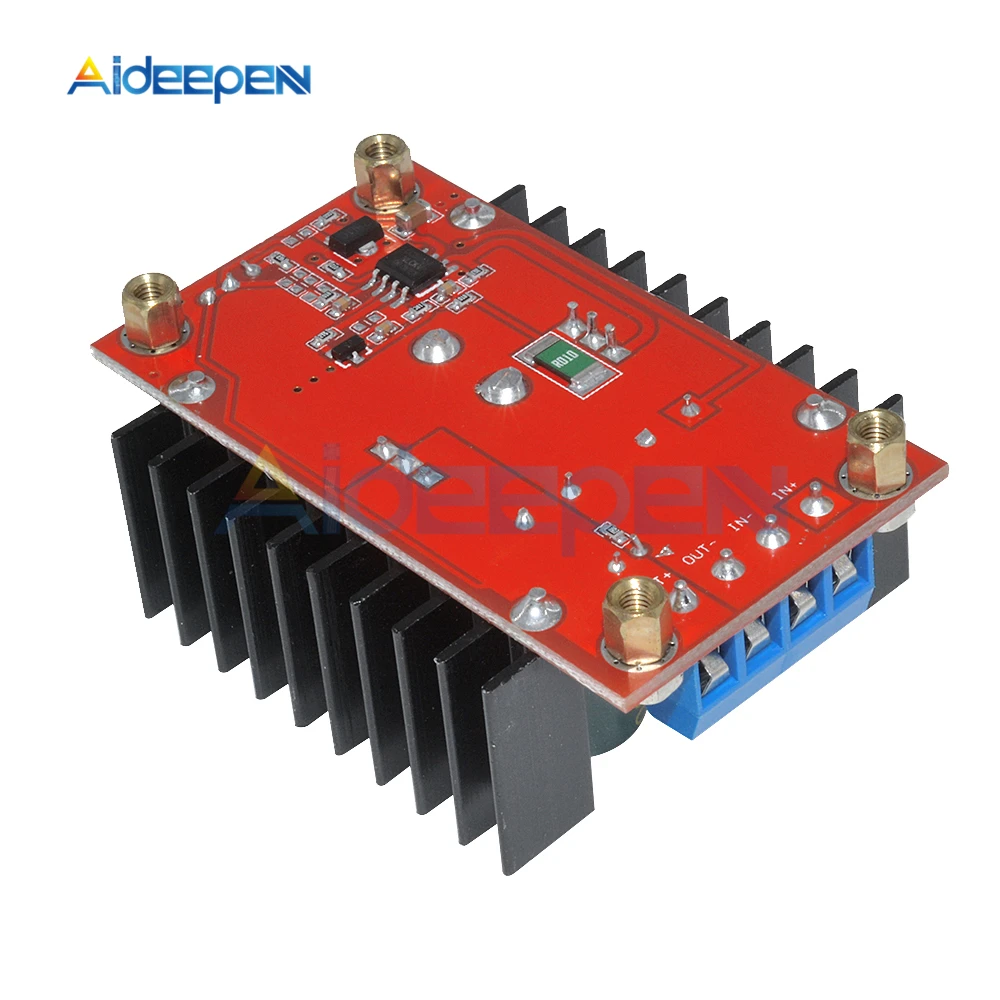

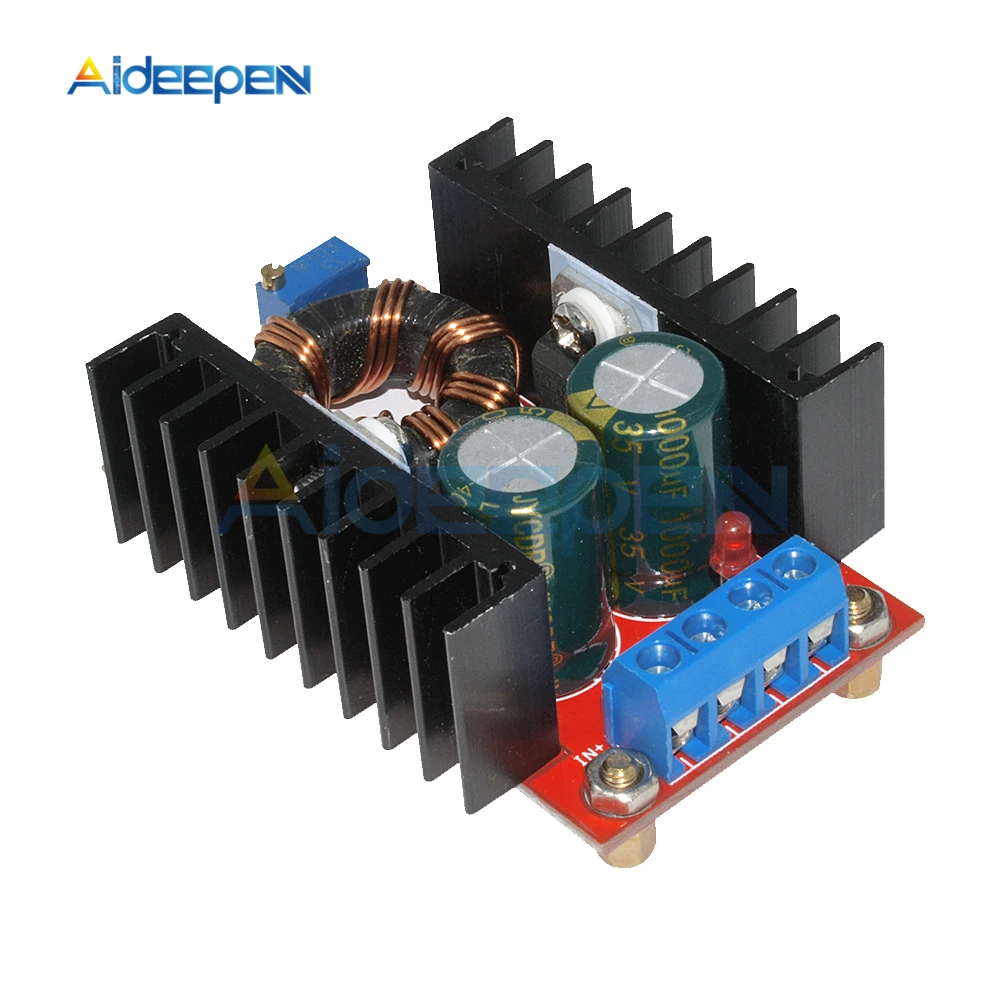

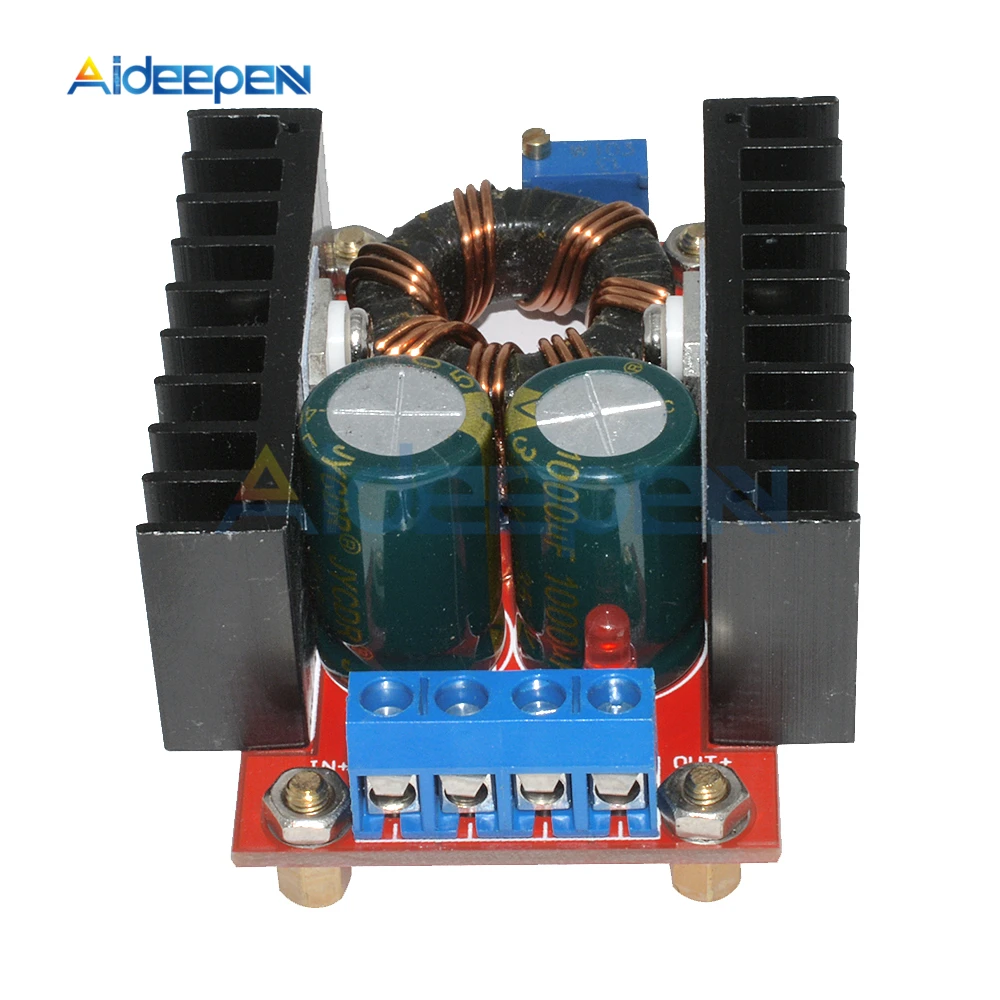

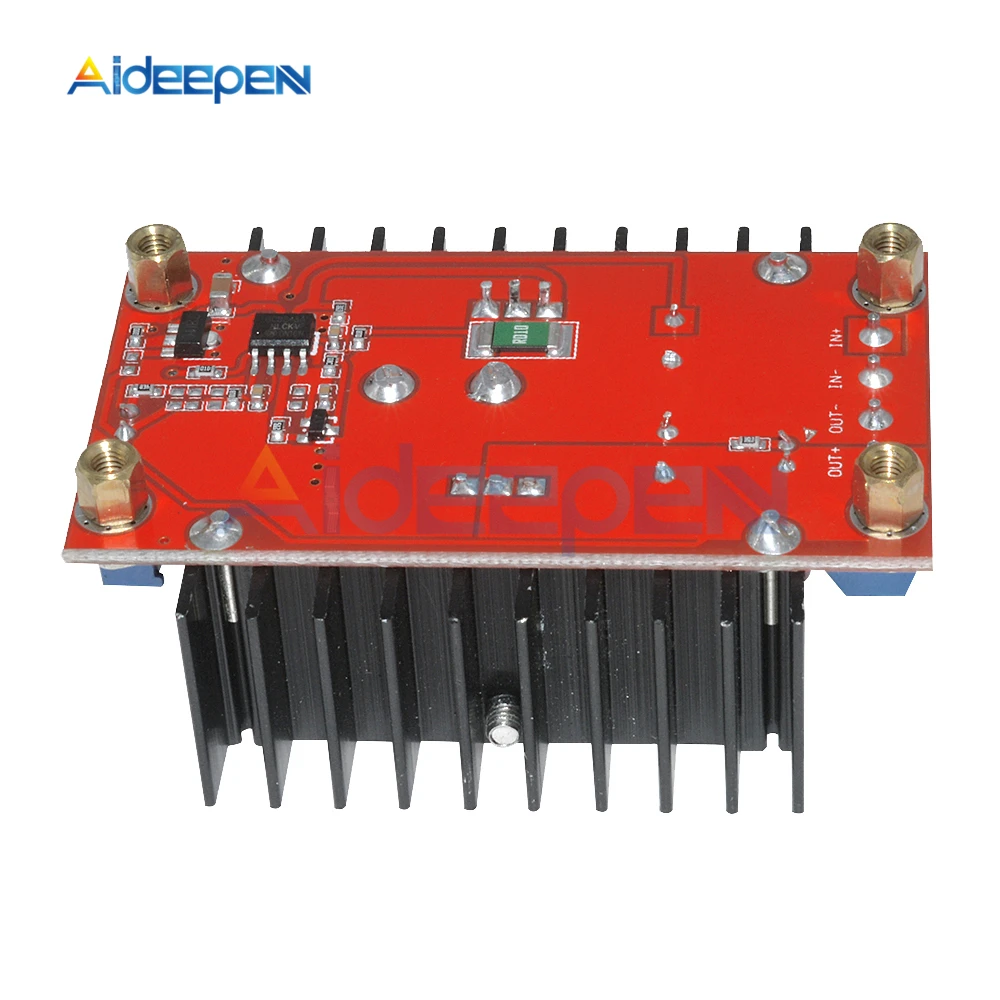

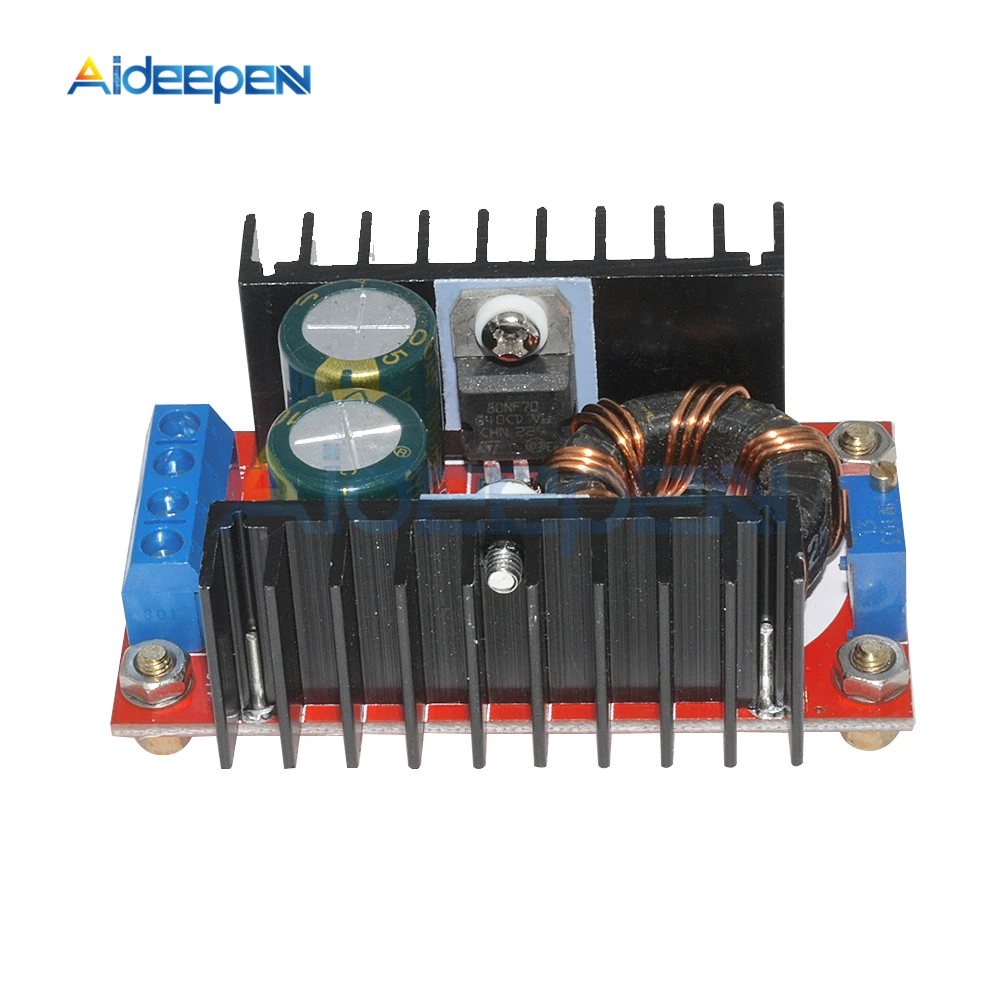

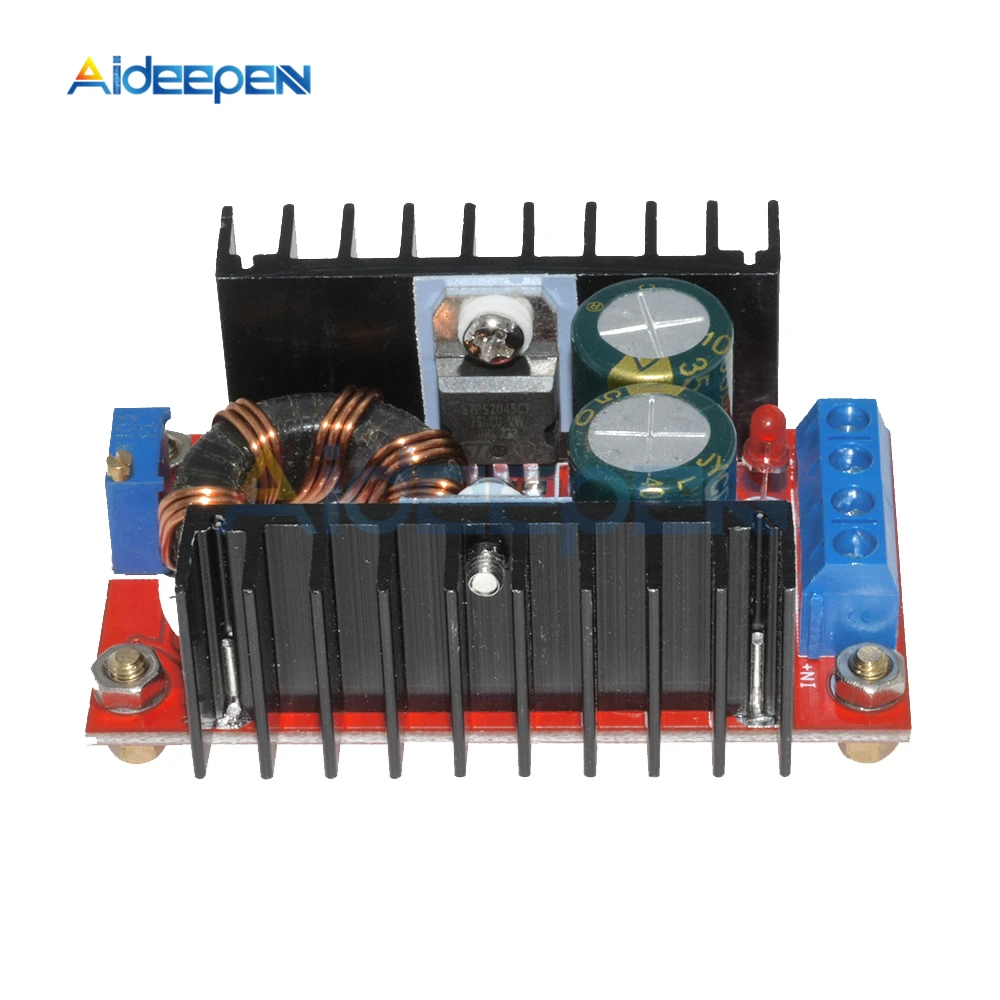

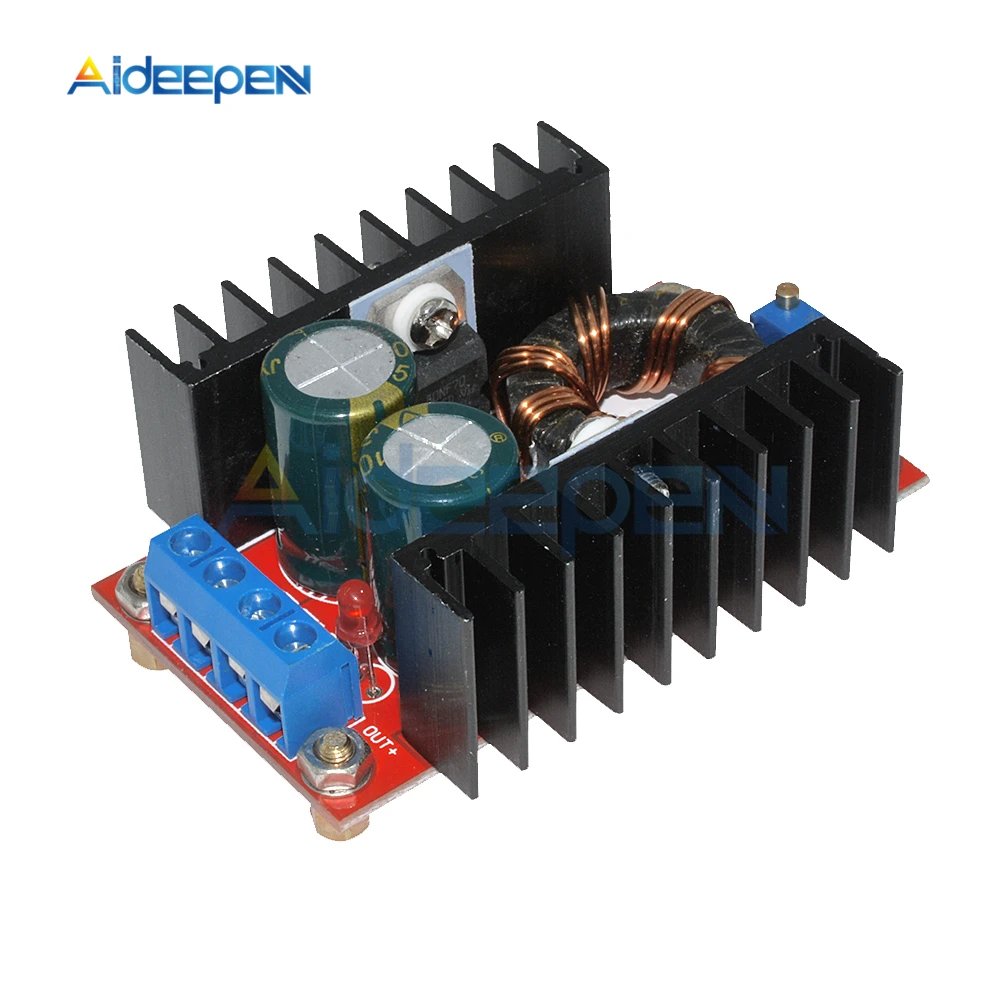

010166 (1)010166 (2)010166 (3)010166 (4)010166 (5)010166 (6)010166 (8)010166 (9)
