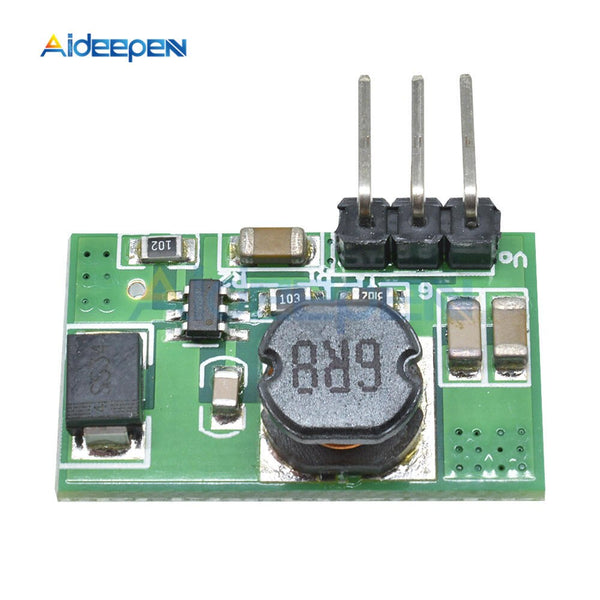

DC DC 5 23V to 3.3V 5V 2A Step Down Buck Converter Power Supply Module Board for ESP8266 WiFi Input 5 23V Output 3.3V 5V 5V

14:350850

Sale price $1.99 Regular price $2.98

Tax included.
Description:
Input voltage 4.75~23V,output 3.3V
Long time maximum output current 1.3A(5V to 3.3V)
Short time maximum output current 2A(5V to 3.3V)
DC-DC Step-Down Converter module working frequency 1.4MHz. efficiency is 78-91% .
2.54mm pin pitch, Arduino Breadboard MCU Development Board friendly
Excluding Pin Size 22.5mm x 13.5mm x 6.5mm(small)
Weight : about 2.2g(Very light)
Applications:
MCU Development Board,FPGA/CPLD UNO MEGA2560 DUE 8051 AVR C8051 etc
3.3V LED Lighting
3.3V Motor
WIFI esp8266 Module
Wireless Module:Nrf24l01 CC1101 CC2500 CC2530 Zigbee
Smart home / home automation
315M 433M Wireless remote controller
Distributed Power Systems
Battery Charger
Pre-Regulator for Linear Regulators
DSL Modems
Attention:

This is a DC-DC voltage converter module,Must be noted when using:

1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself
