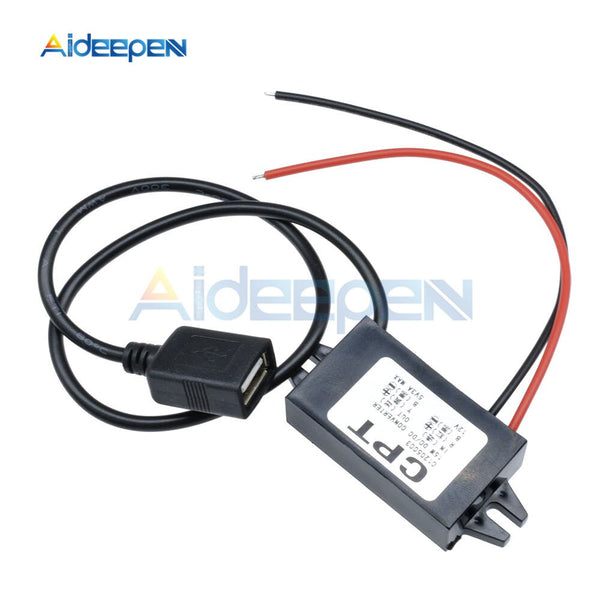

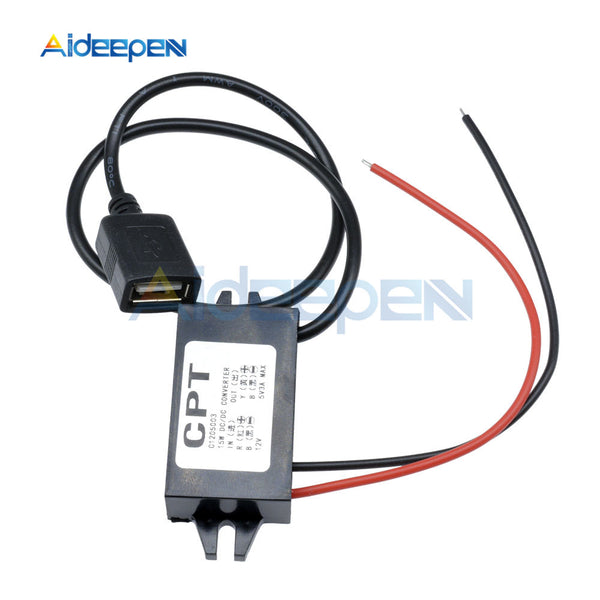

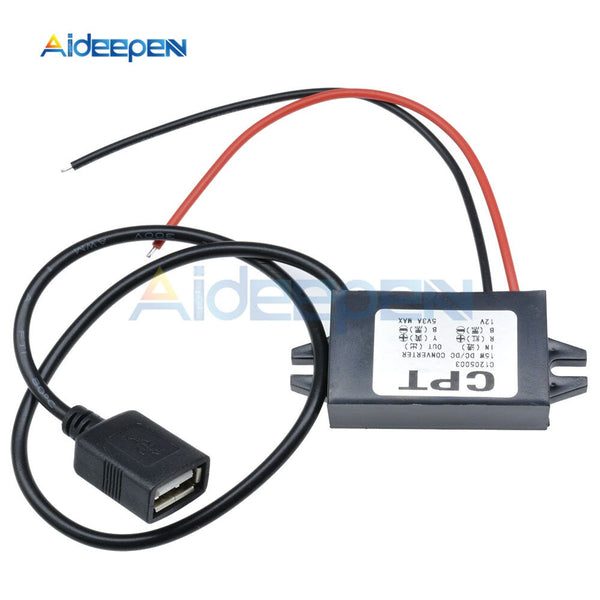

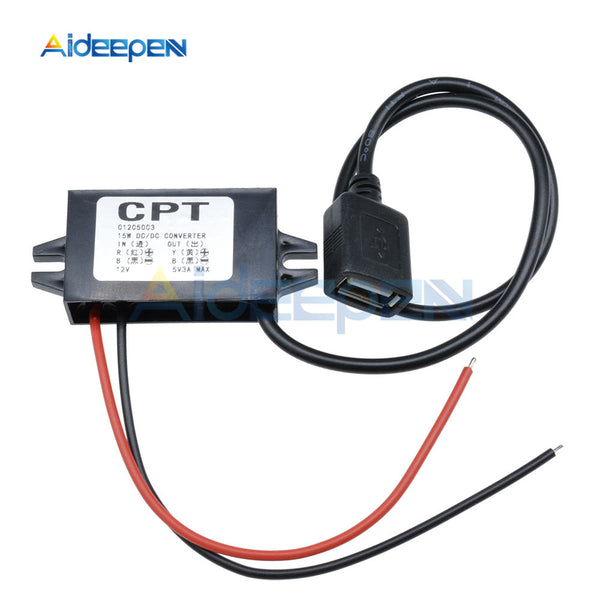

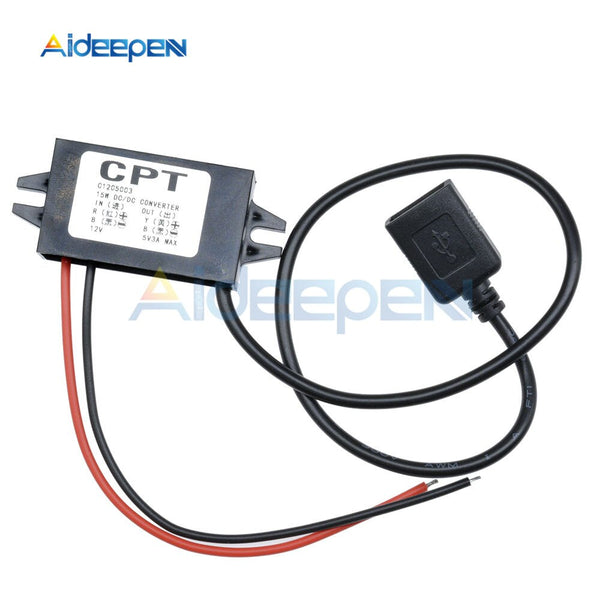

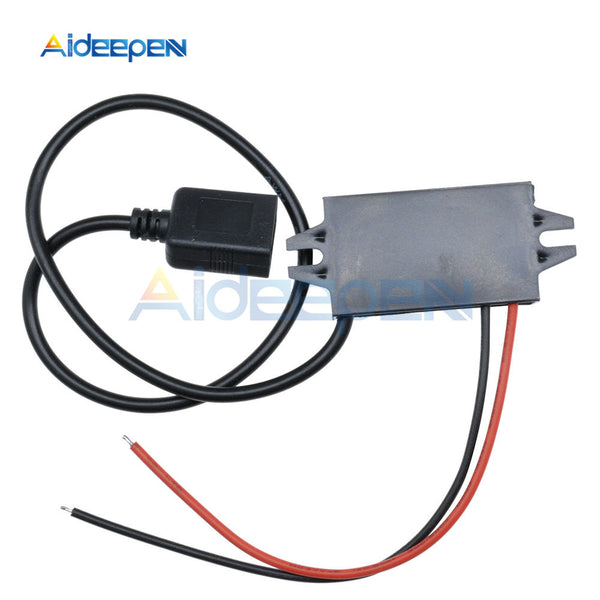

DC DC 12V to 5V Step Down Power Supply Module DC DC Buck Converter USB Female Port Converter Potting Waterproof Power Module

Sale price $3.99 Regular price $5.99

Tax included.

Description:

Made of imported and integrated switching regulator modules, the quality is stable and reliable.
Synchronous rectification, the conversion rate is above 96%, and the heat generation is extremely low.
Over current, over temperature, short circuit, reverse polarity, it can be automatic protection and can be restored when working under normal conditions.
Operating temperature: industrial grade (-40 ° C to + 85 ° C) (ambient temperature over 40 degrees, lower power consumption, or enhanced heat dissipation)
Epoxy resin potting, anti-vibration, waterproof, moisture-proof, dust-proof, long-term stability, reliable quality.
Ultra-thin, small size, high efficiency, easy to install and use.
Works with most mobile phones, iphone 4 4 S, iPad, iPad 2, Samsung Galaxy.

Product specifications:


Input voltage: 8-22V
Output voltage: 5V
Output interface: USB female port
Output current: 3A
Output power: 15W
Conversion efficiency: up to 96%
Static power consumption: about 10-12mA
Cable length: 30 cm
Adapter size: 46 * 27 * 14 mm
Note: red line ---- positive (+); black line --- negative (-)

Package included:
1 x DC-DC 12V to 5V Step-Down Power Supply Module DC-DC Buck Converter USB Female Port Converter Potting Waterproof Power Module
