Description:
Application:
Vehicle equipment-delay to prevent car ignition, prevention of high sudden current to burn components and devices.

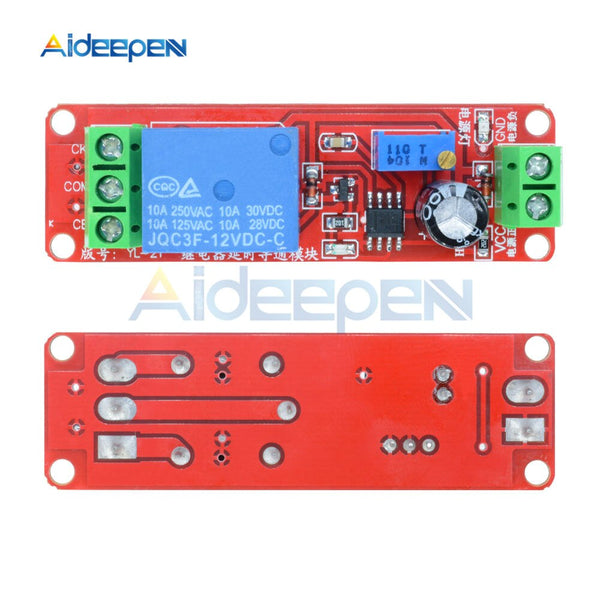

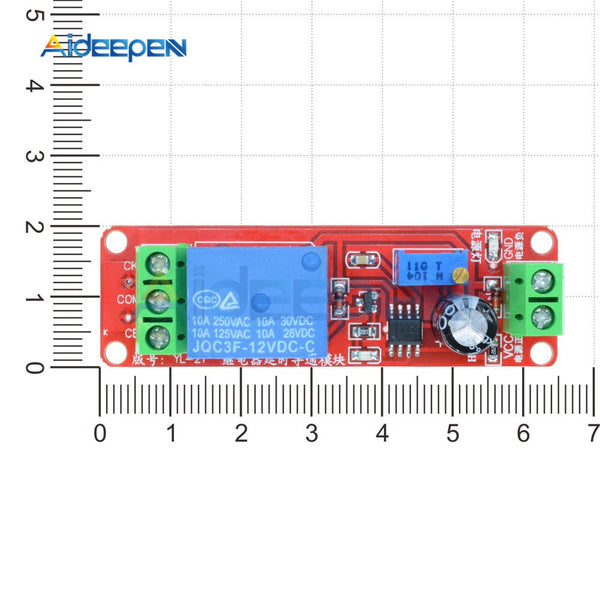

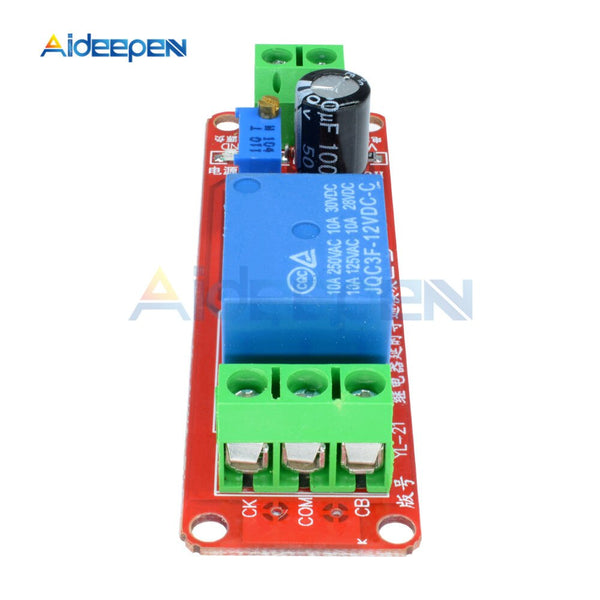

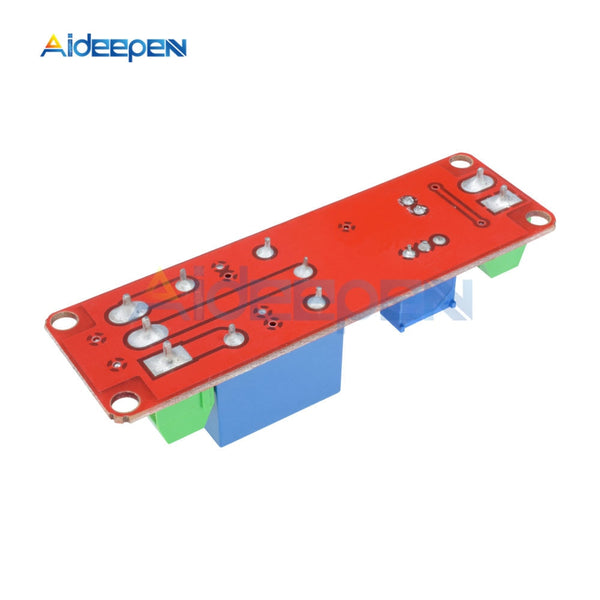

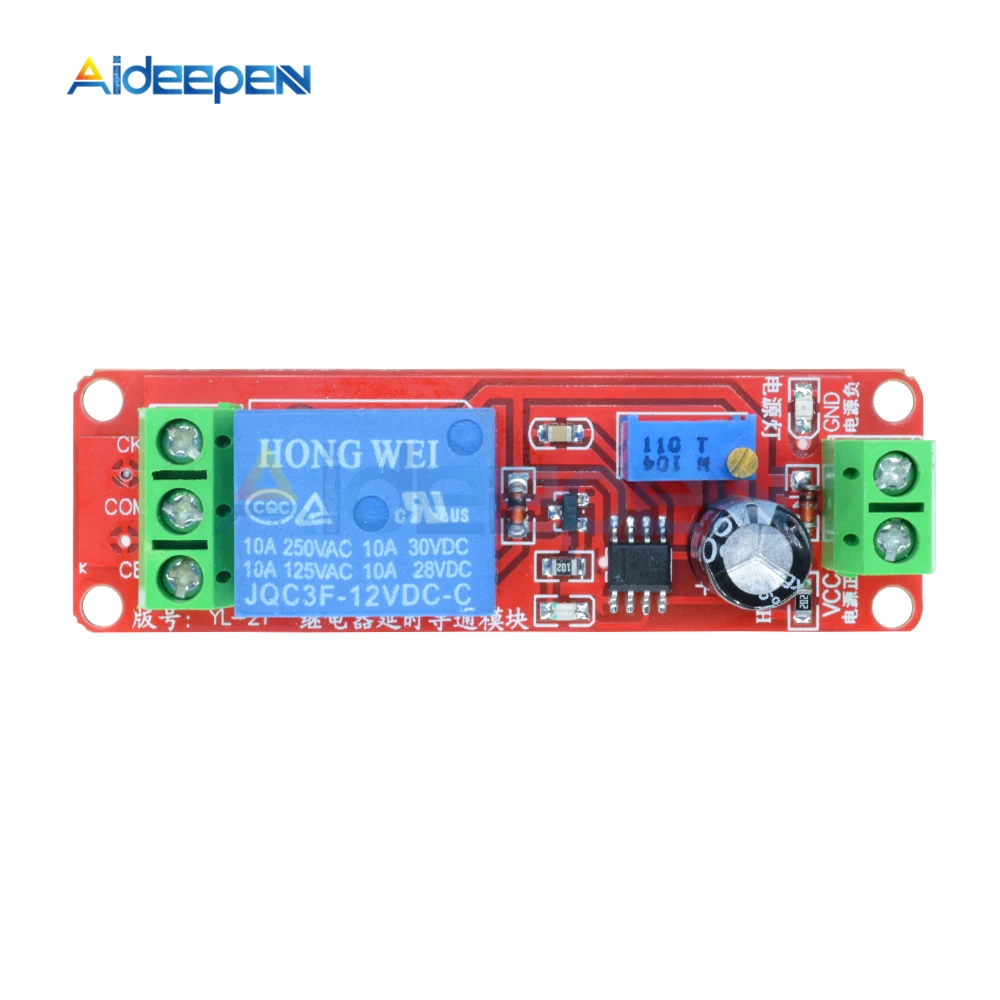

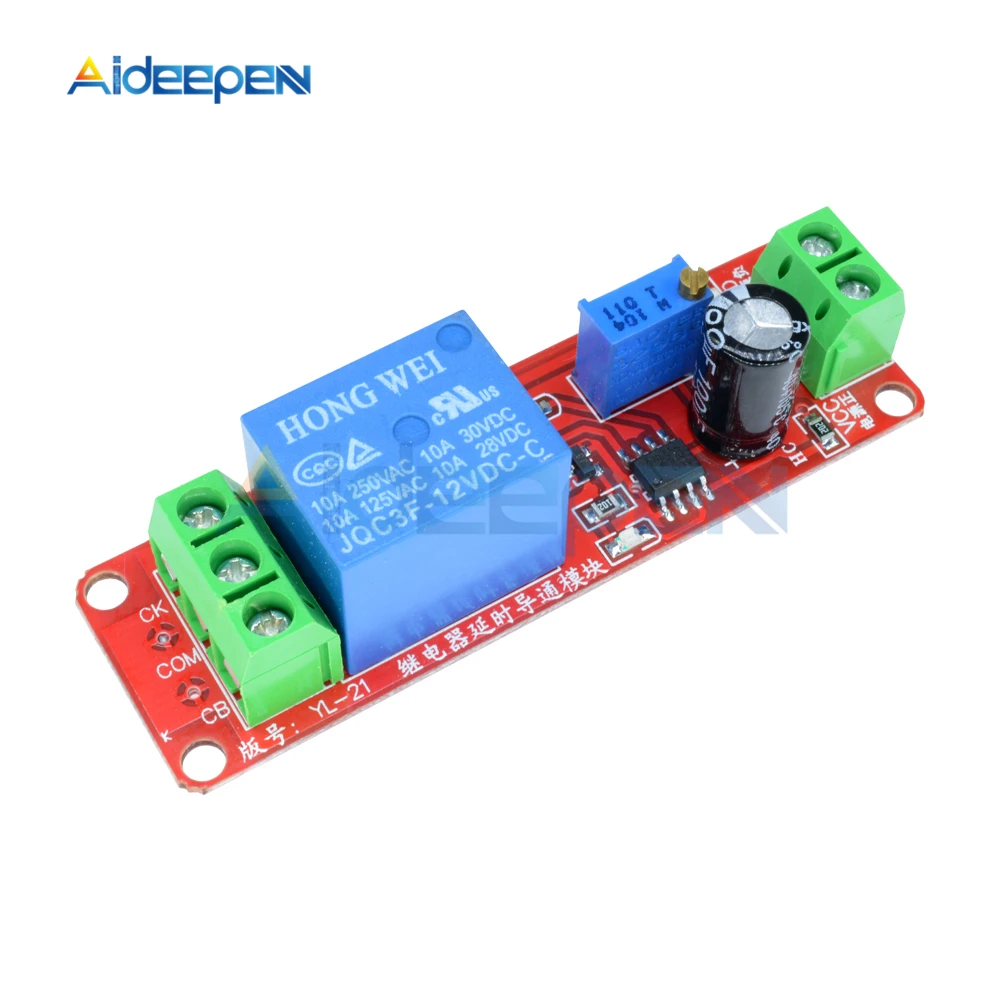

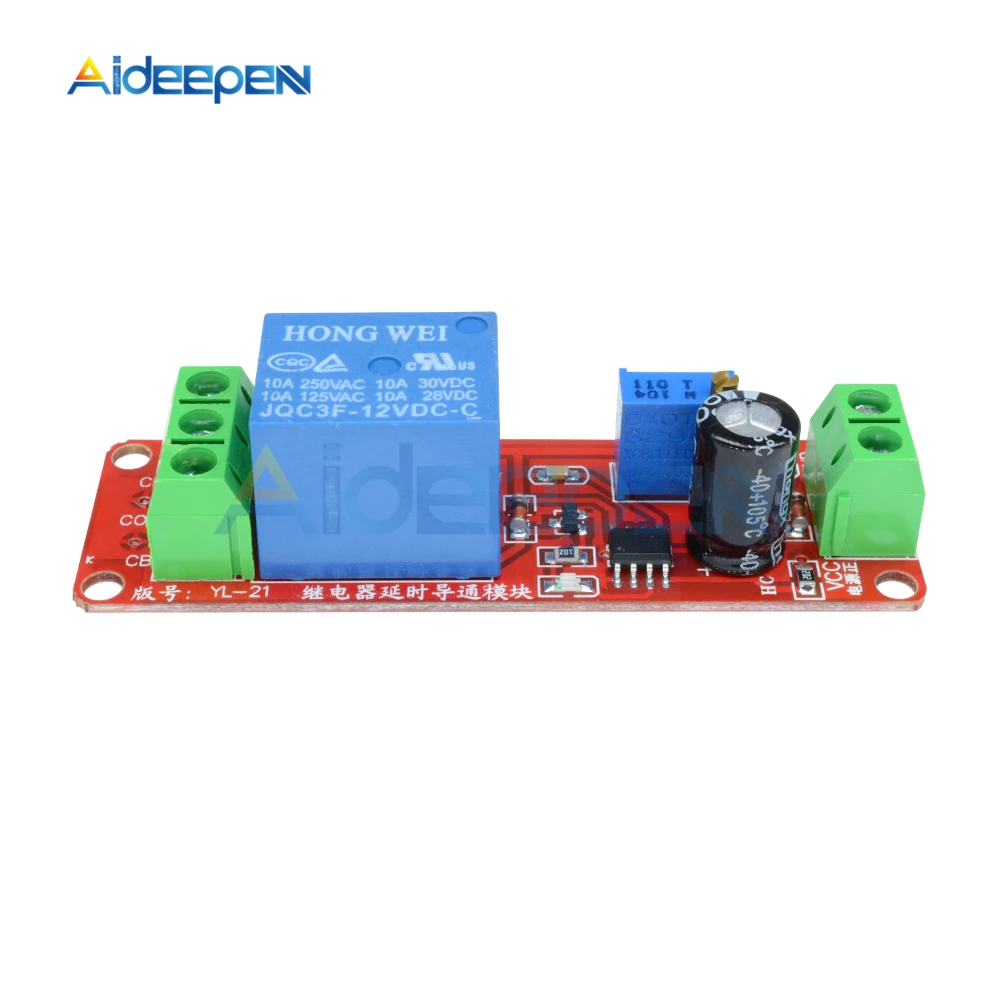

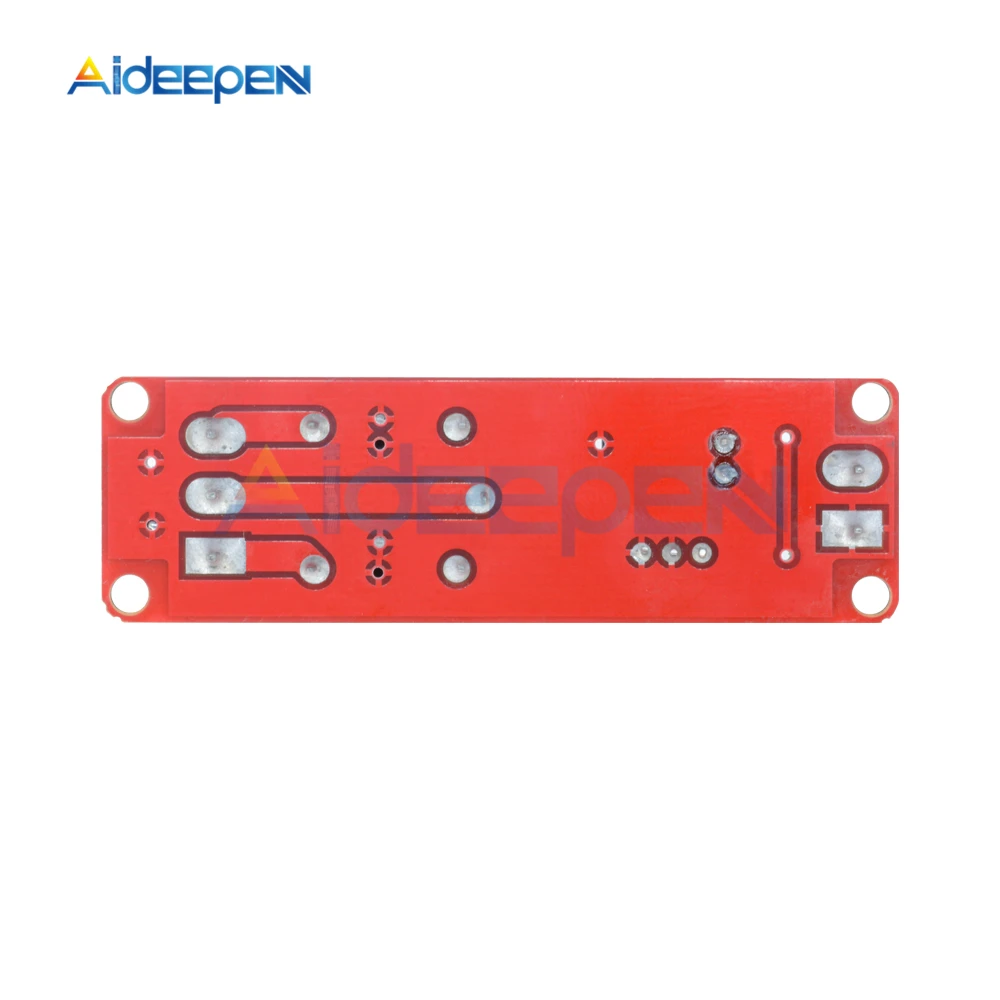

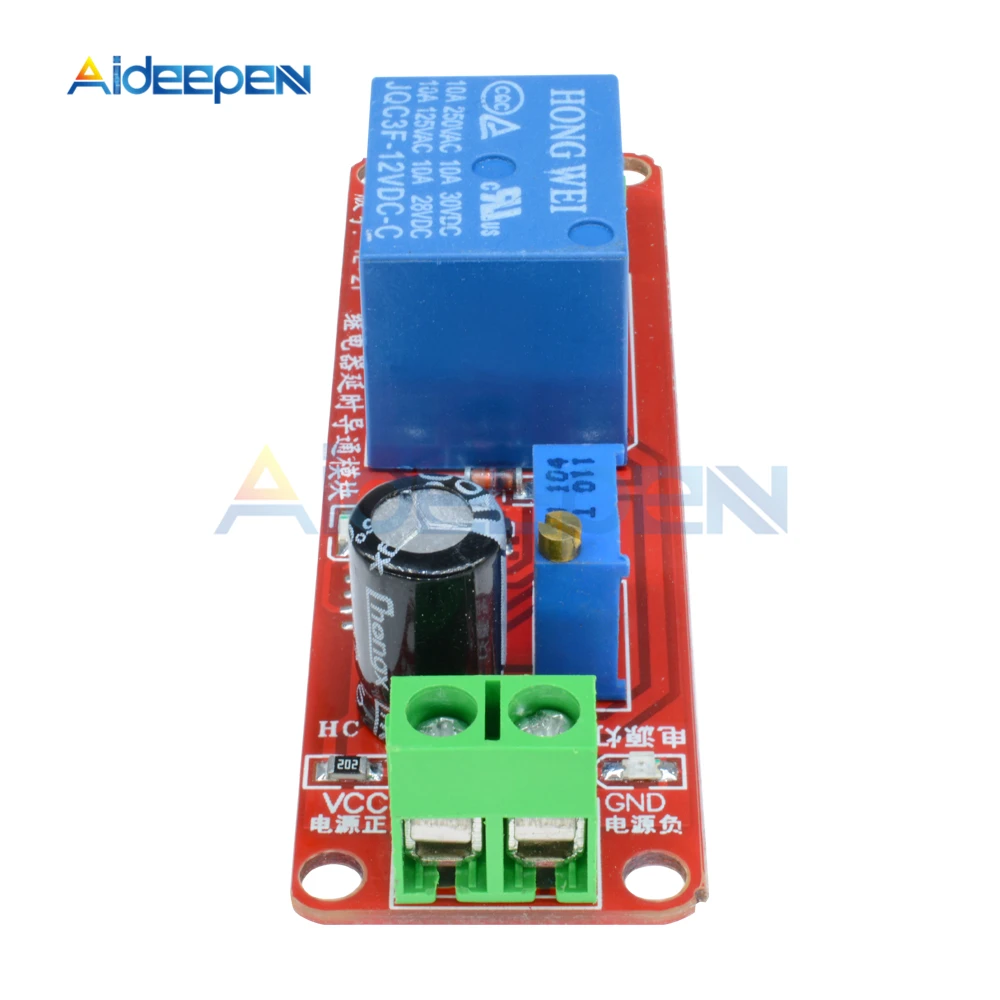

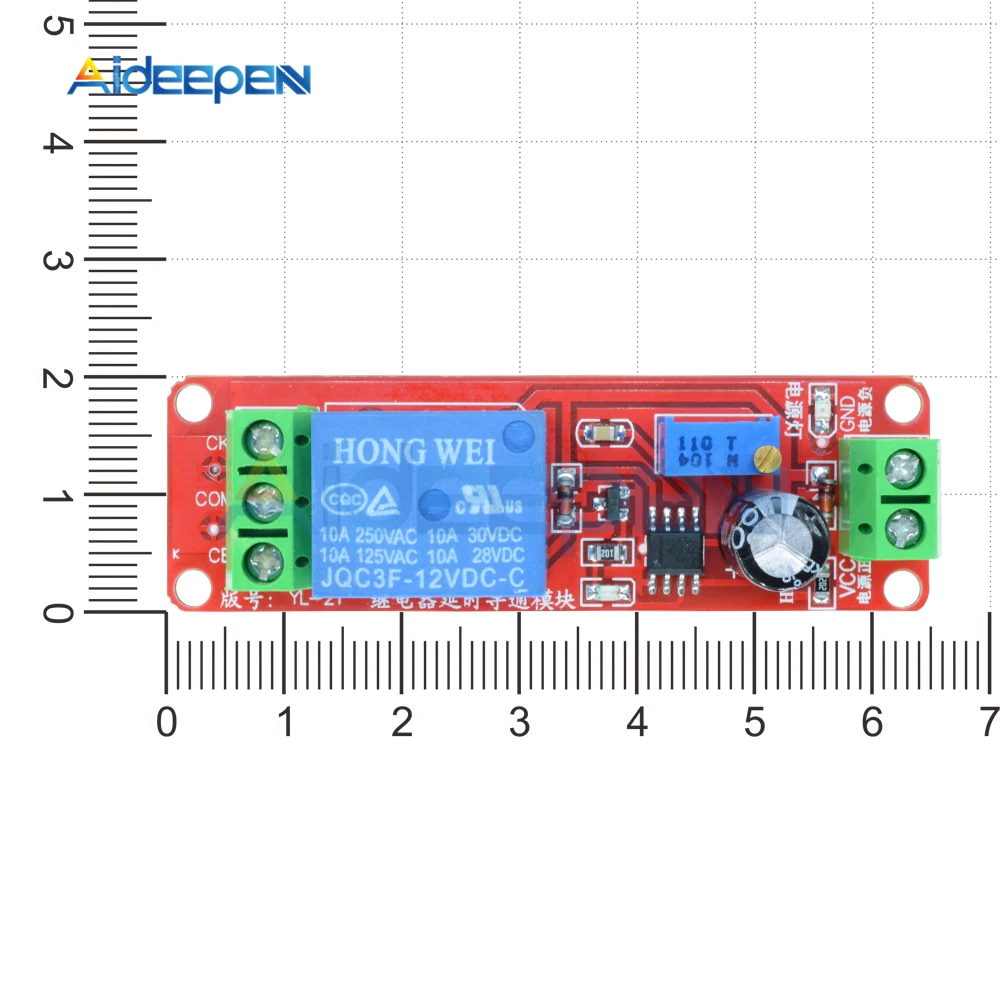

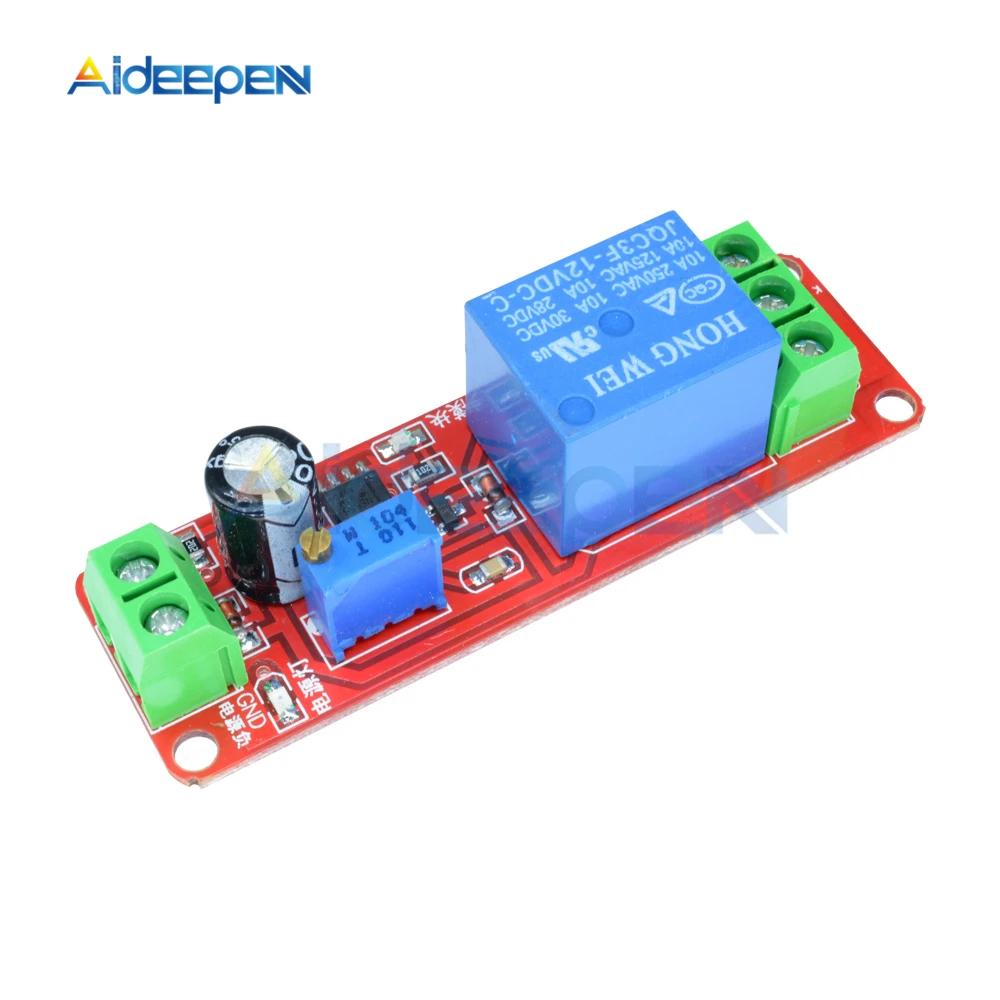

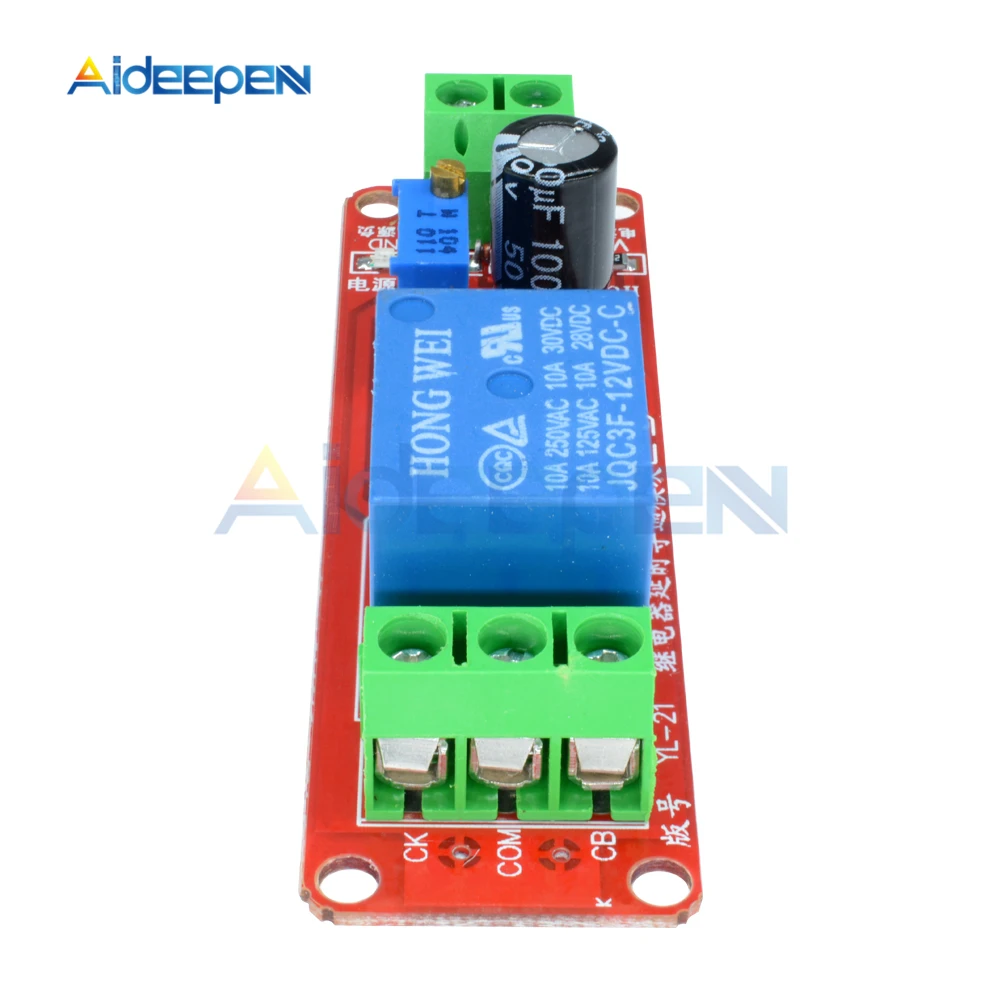

This is a 5V / 12V Conduction delay relay module ,This is a brand new and high quality delay turn-on module. the use of high-performance timing CPU design. the power indicator LED and switch trigger timing indication LEDs;The output can be connected to AC 250V 10A DC 30V 10A load;
There is the chronopotentiometry regulation time, adjustable from 0 to 10 seconds by default, or by changing the capacitance adjustment time longer.
Specification:
1.Module based on: NE555 chip.
2.Delay modue:delay connect module
3.Input voltage: DC 5V / 12V
4.Control voltage: AC 0-250V / max. 10A, DC 0-30V / max. 10A the operating voltage: 12 volts DC; (otherwise 5V optional)
5.Max. load: 2200W
Main Chip (NE555) Characteristics:
1.Timing from microseconds to long hours
2.Simple circuit design
3.Precision Pulse Generation / Timing,
4.Adjustable Duty Cycle
Package Included:
1 x Timer Delay Relay Module
