DC 5V 1 2 4 Channel Solid State Relay Board Module High Level Trigger for Arduino Board on AliExpress

5:200004763

Sale price $5.99 Regular price $8.98

Tax included.
不锈钢计时器
2

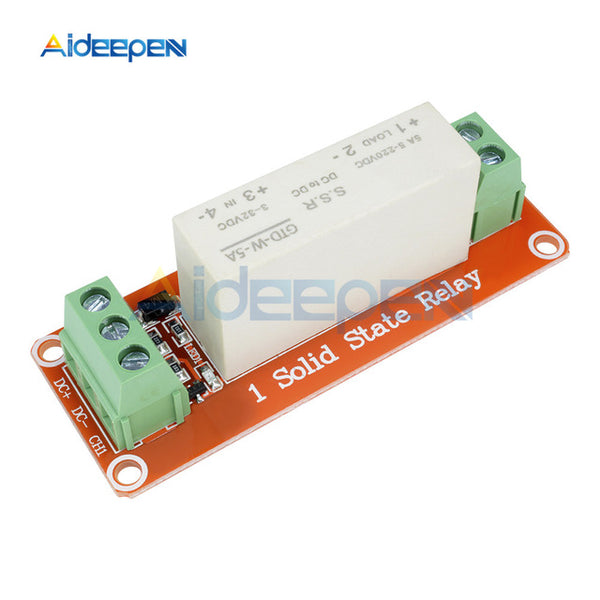

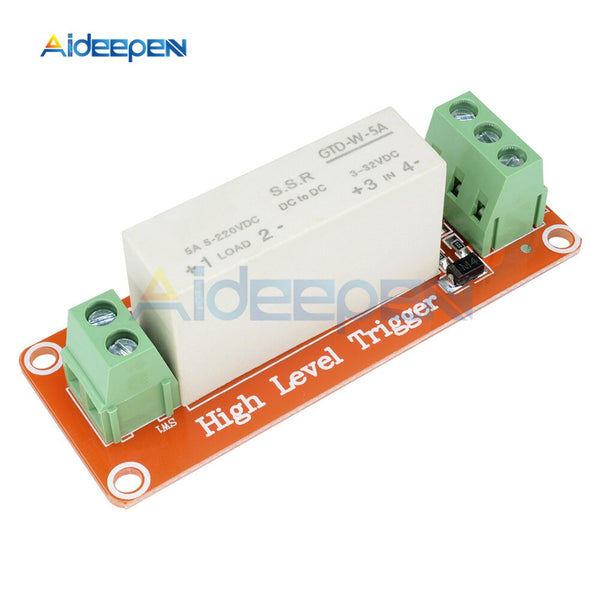

DC 5V 1 2 4 Channel Solid State Relay Board Module High Level Trigger for Arduino Board

Description:

100% brand new, high quality
Use FR-4 double-sided circuit board;
Use high quality solid state relay 5A;
The input and output use KF128-3.81 terminal block, which makes wiring more convenient;
For the switching transistor, the SS8050 1.5A high current transistor is used, and the quality is more stable;
The motherboard has four screw holes.
Dimensions: (L * W * H) 6.89 7.10 * * 2.28 cm / 2.71 "* 2.80" 0.90"
Quantity: 1Pc
Performance parameters:
Power supply: 3-32VDC (wide voltage power supply)
Trigger: High level trigger, 3-32VDC relay on (ON), 0-0.5V relay off (OFF) 0.5-2.5 volt unknown state
Load current: 5-220VDC 5A (DC only)

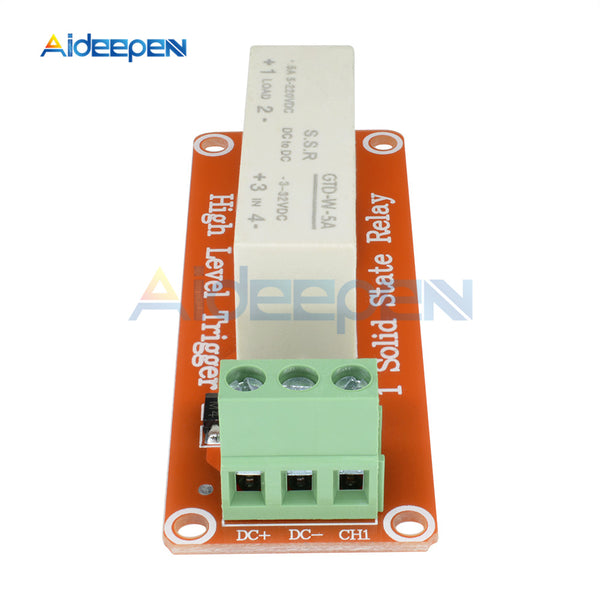

Wiring port description:
DC +: positive power supply (3-32VDC)
DC-: negative
CH1: Trigger terminal (3-32VDC high level trigger is valid)
Package Included:
1 x 5V DC Solid-State Relay Board module High Level
1
mtxx02mtxx04mtxx05mtxx06mtxx07

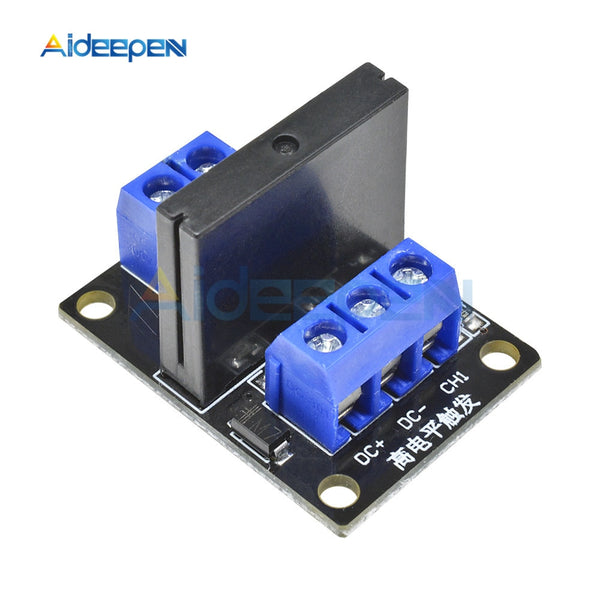

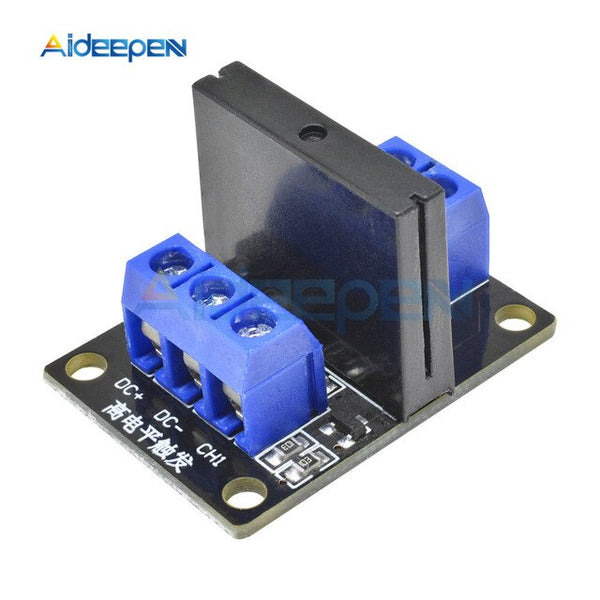

Description:
Size: 24*32*21mm/0.94*1.25*0.82”
Input Power: 5V DC (160mA)
Input control signal voltage:
(0-2.5V state low relay OFF)
(3-5V state high relay ON)
Module interface:
Input section:
DC+: positive power supply (by relay voltage power supply)
DC-: connect power negative
CH: relay module signal to trigger the end (high level trigger effective)
Voltage version 5V
Static current 0mA
Working current 12.5mA
Trigger voltage 3.3-5V
Trigger current 2mA
mtxx01mtxx02mtxx03mtxx04mtxx05mtxx08mtxx06mtxx07

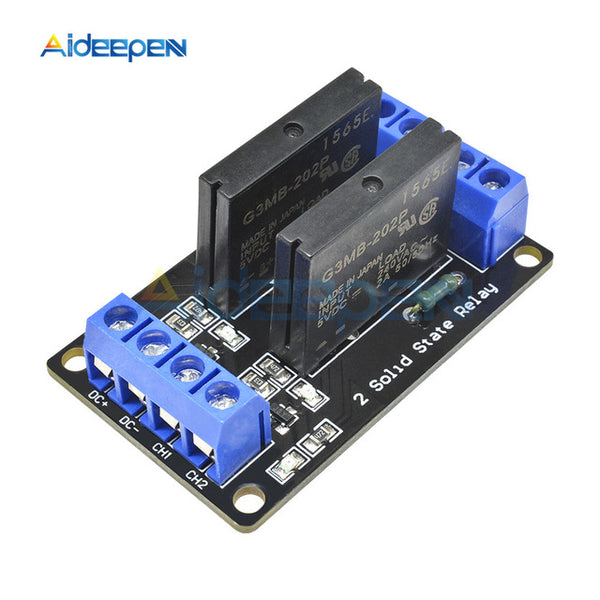

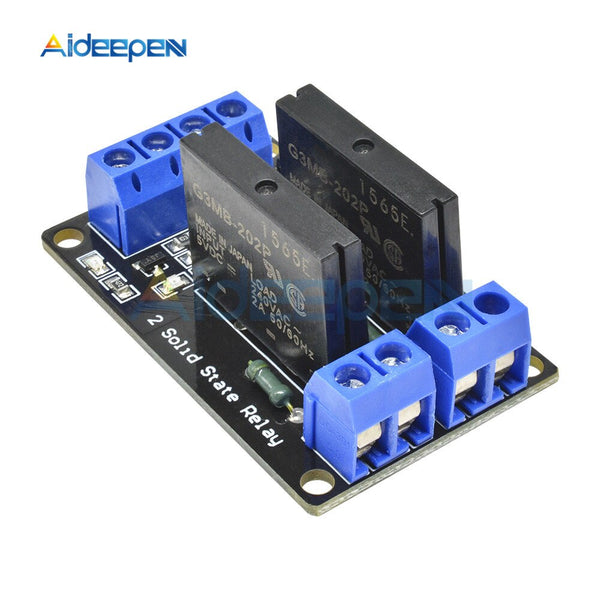

Description:


Size: 53*32*23mm/2.08*1.31*0.9"
Input Power: 5V DC (160mA)
Input control signal voltage:
(0-2.5V state low relay OFF)
(3.3-5V state high relay ON)

Module interface:

Input section:
DC +: positive power supply (by relay voltage power supply)
DC-: connect power negative
CH: relay module signal to trigger the end (high level trigger effective)

Voltage version static current working current trigger voltage trigger current
1 road 5V 0mA 12.5mA 3.3-5V 2mA
2 road 5V 0mA 2.5mA 3.3-5V 2mA

mtxx02mtxx03mtxx04mtxx06mtxx07

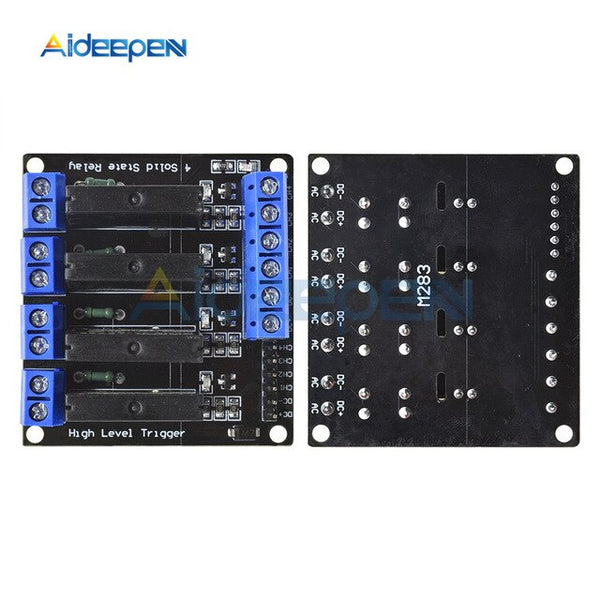

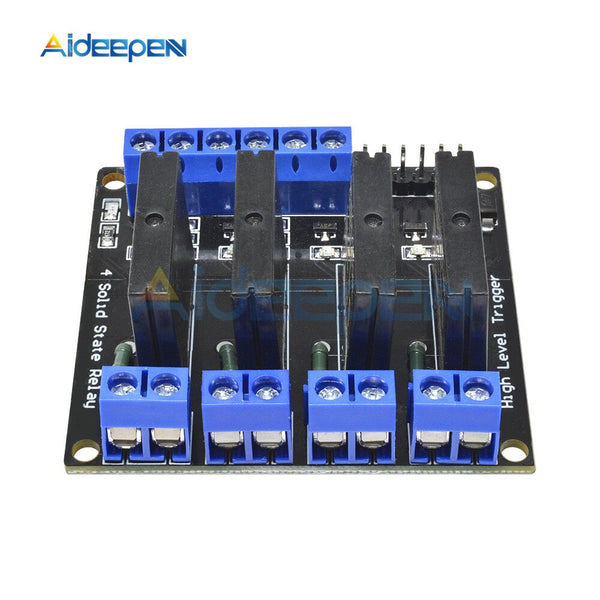

Description:


1. 5V 240V solid state relay 2A, output with resistance type fuse 240V 2A.
2. size: 57*55*25 (length * width * height) net weight: 40g
3. the input power supply: 5V DC (160MA)
4. the input control signal voltage:
(0-2.5V the state of low level relay OFF)
(3.3-5V high level relay ON)

5. the 2.54CM pin and blue KF301 terminal is connected to the line of control more convenient.


Module interface:


Input part:
DC+: connect the power supply positive (press the relay voltage power supply)
DC-: the cathode of a power supply
CH1: 1 relay module signal trigger end (high level trigger effective)
CH2: 2 relay module signal trigger end (high level trigger effective)
CH3: 3 relay module signal trigger end (high level trigger effective)

CH4: 4 relay module signal trigger end (high level trigger effective)


High level and low level of meaning:


High level trigger refers to the signal trigger end (IN) had a positive voltage and the negative pole of the power supply is usually between, and the triggering end of a trigger connected with the positive pole of a power supply, when the trigger end has a positive voltage or reached the trigger voltage, the relay is attracted.

Low level trigger refers to the signal triggering voltage between the end and the negative electrode of the power supply is OV, or trigger terminal voltage lower voltage than the positive power supply voltage, low to can trigger, make the relay, is usually the cathode of the power supply and the triggering end of a trigger mode connection, so that the relay is attracted.


Electrical parameters:


The static current voltage version of the working current of trigger voltage, trigger current
1 way 5V 0mA 13.8mA 3.3-5V 2mA
2 way 5V 0mA 26.8mA 3.3-5V 2mA
3 way 5V 0mA 37mA 3.3-5V 2mA
4 way 5V 0mA 48mA 3.3-5V 2mA

Usage:

Module power supply: the power supply must be consistent with the DC voltage, the voltage relay
