Feature:

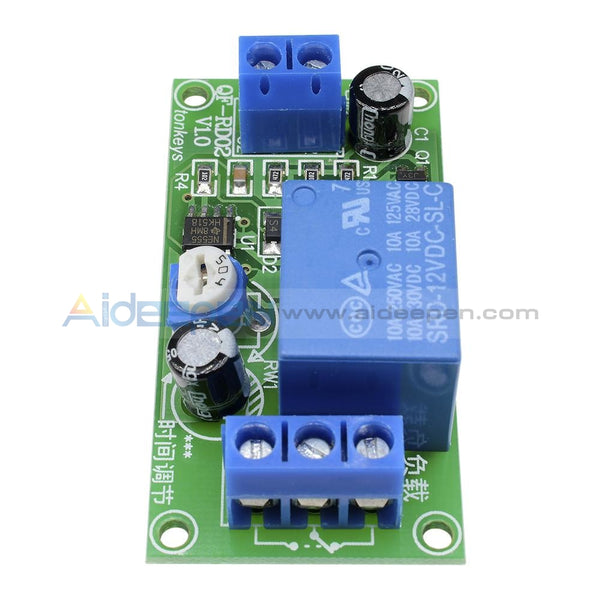

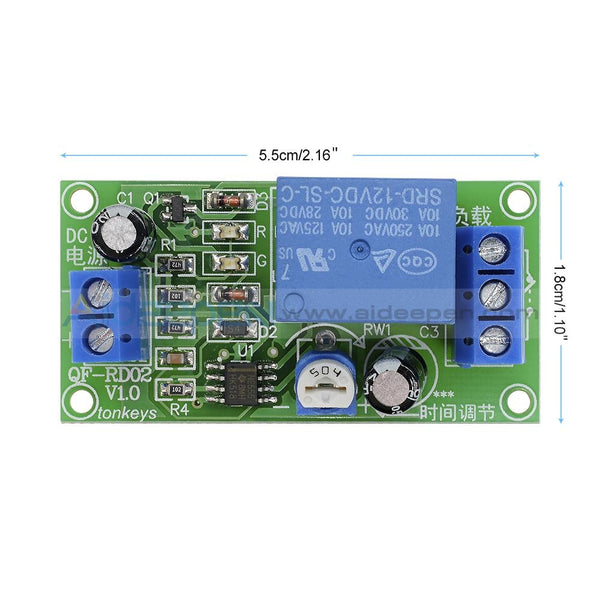

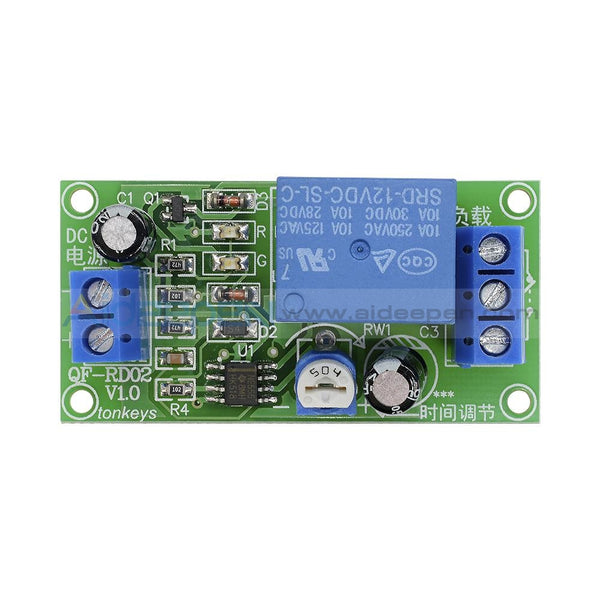

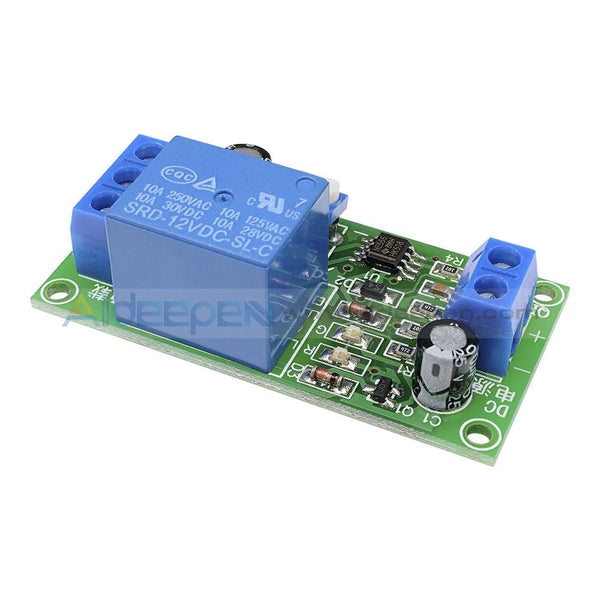

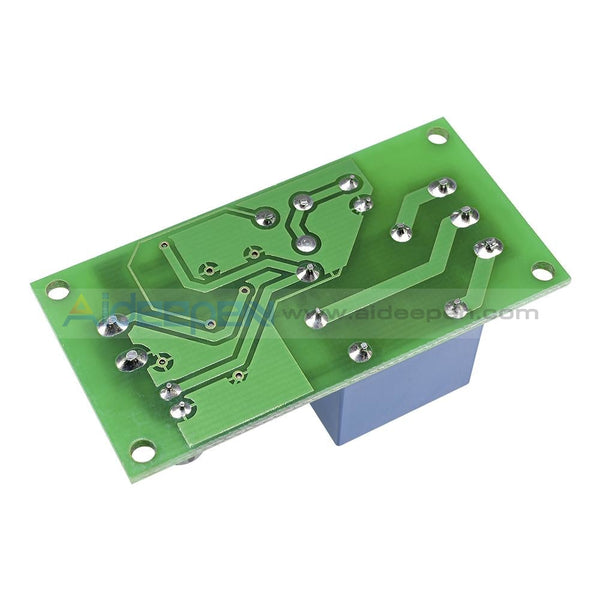

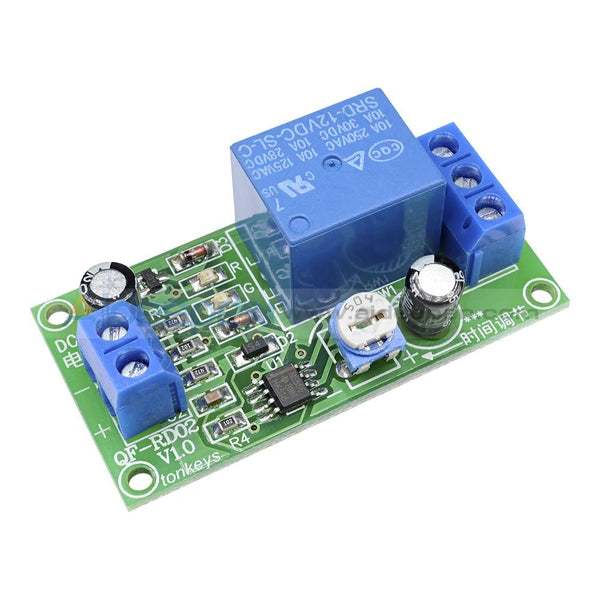

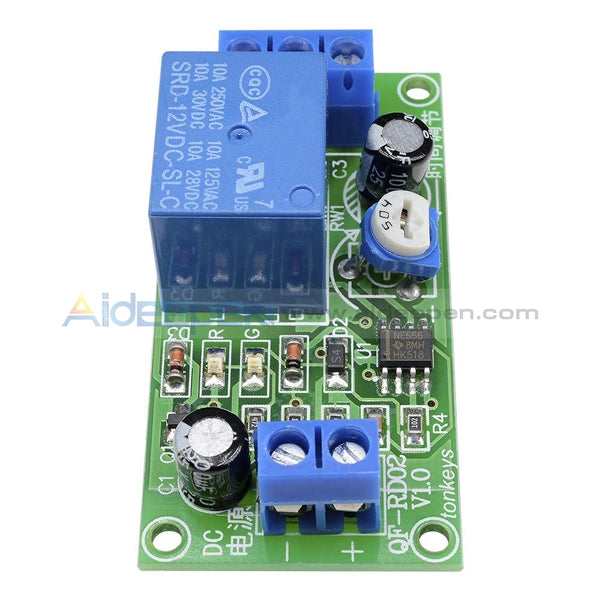

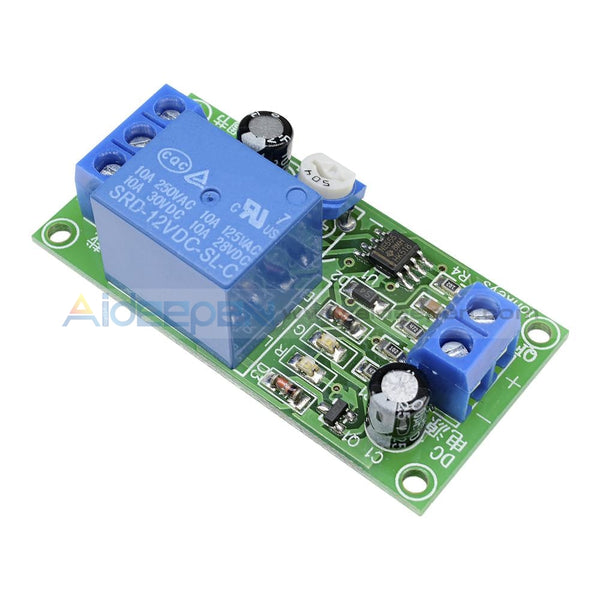

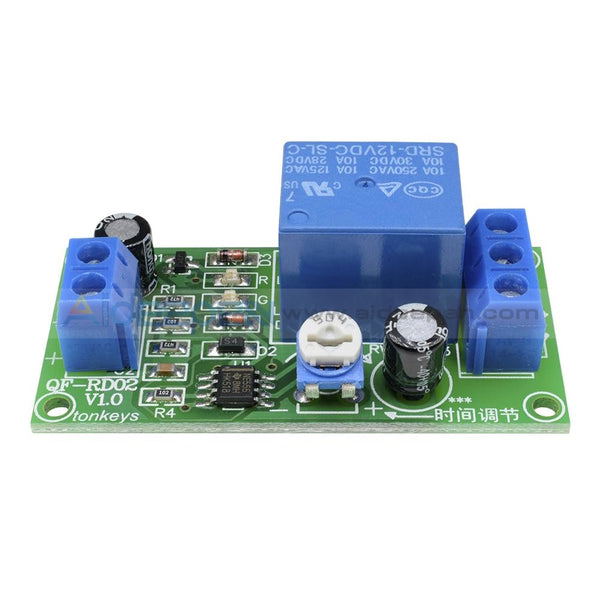

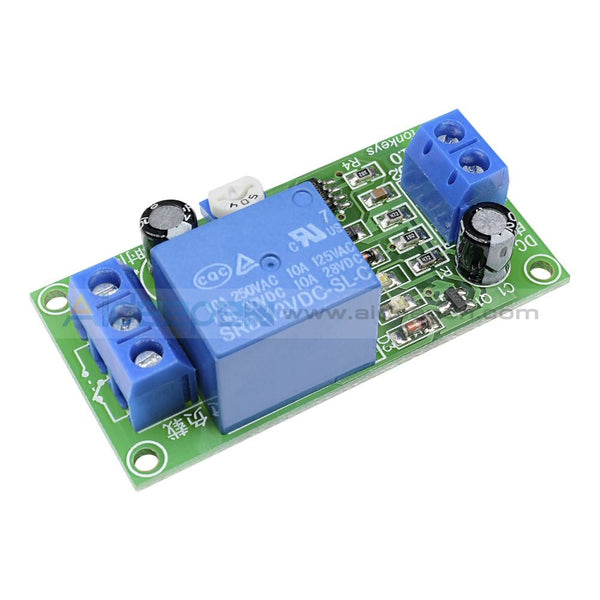

This is a 12V Conduction delay relay module
- This is a brand new and high quality delay turn-on / Turn off module.
the use of high-performance timing CPU design.
- the power indicator LED and switch trigger timing indication
LEDs;
- The output can be connected to AC 250V 10A or DC 30V 10A
load;
- There is the chronopotentiometry regulation time, adjustable
from 0 to 60 seconds by default, or by changing the
capacitance adjustment time longer
Standby current: 5mA Action: 45mA
For applications of：
Vehicle equipment-delay to prevent car ignition, prevention of
high sudden current to burn components and devices.
Parameter:
1.Module based on: NE555 chip.
2.Delay module: delay connect module
3.Input voltage: DC12V (DC 10v ~ 14.5v is okay.)
4.Control voltage: AC 0~250V / max. 10A, DC 0~30V / max. 10A the operating voltage: 12 volts DC; (otherwise 12V optional)
5.Max. load: 2200W
Main Chip (NE555) Characteristics:
1.Timing from microseconds to long hours
2.Simple circuit design
3.Precision Pulse Generation / Timing,
4.Adjustable Duty Cycle
5.Countless Application and Information Sources
Package Include:
1 x DC 12V NE555 0~60 Seconds Delay Timer Time Switch Adjustable Time Relay Module
