Description:
SCM control, intelligentize, easy operation, low power consumption
Outage setting, automatic memory
Control accuracy 0.1 °
Size: Approx. 67 x 42 x 18mm / 2.64 x 1.65 x 0.71 inch
Patch Cord Length: Approx. 1M / 39.37 inch, 2 pin port
Technical parameters:
Temperature Control Range: -20-100°
Resolution Ratio: -9.9~99.9: 0.1°, other temperature is 1°
Temperature Measurement Accuracy: 0.1 °
Control Accuracy: 0.1 °
Return Difference Accuracy: 0.1 °
Refresh Rate: 0.5 S
Input Power Supply: DC 12V
Measuring Inputs: NTC(10K 0.5%)waterproof sensor
Output: 1 channel relay output, capacity =20A 125VAC,20A 14VDC
Environmental Requirement: -10~60°, humidity: 20%-85%
Size: Approx. 48.5 x 40mm / 1.9 x 1.5 inch
Overall Power Consumption: Quiescent current: ≤10MA, operating current ≤65MA
Indicator Light Direction: Flash shows start-up delay of refrigeration or heating, keep lighting shows the relay has closed
Nixie Tube: LL state shows open for sensor; please connect the sensor base on instruction,
HH state shows exceed measurement range, temperature controller would peremptory turn off the relay,
--- state shows high temperature alarm
Instructions:
Connect the power supply and equipment to supply power to the controller. At this time, it is displayed as measuring temperature. Press SET once, the display temperature will flash, press +- to set the desired temperature (press +- to quickly raise and lower) After finishing, press SET to confirm the return. At this time, the controller automatically performs relay on/off according to the setting! The output of the thermostat is a 10A relay, which satisfies various high-power loads, and connects the control circuit to supply power to the thermostat. At this time, the display shows the ambient temperature.
Indicator light: Blinking indicates cooling or heating start delay, always on indicates that the relay is closed
Digital tube: Display LL is the sensor open circuit, please follow the instructions to connect the sensor; display HH is out of the measurement range, the thermostat will force the relay to be disconnected; display --- for high temperature alarm
Package included:

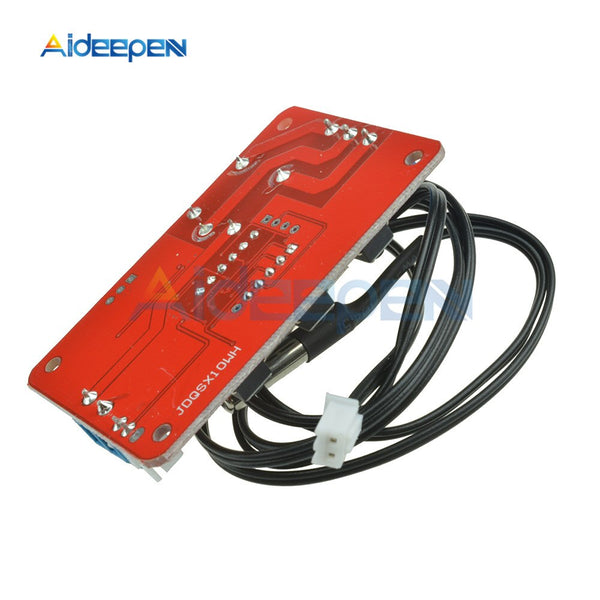

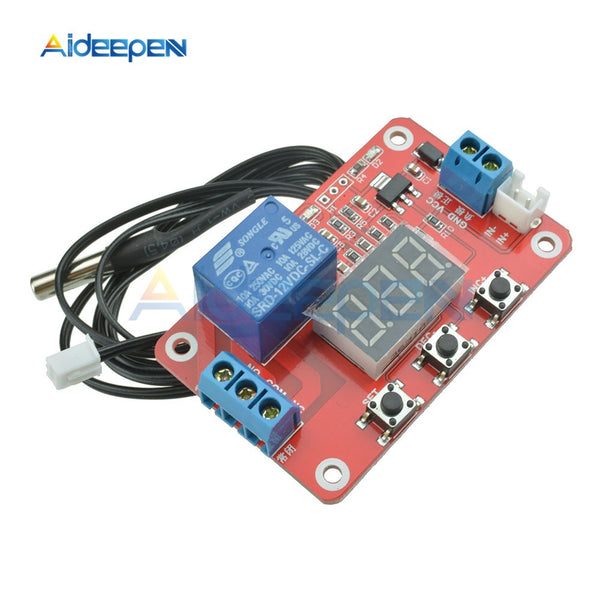

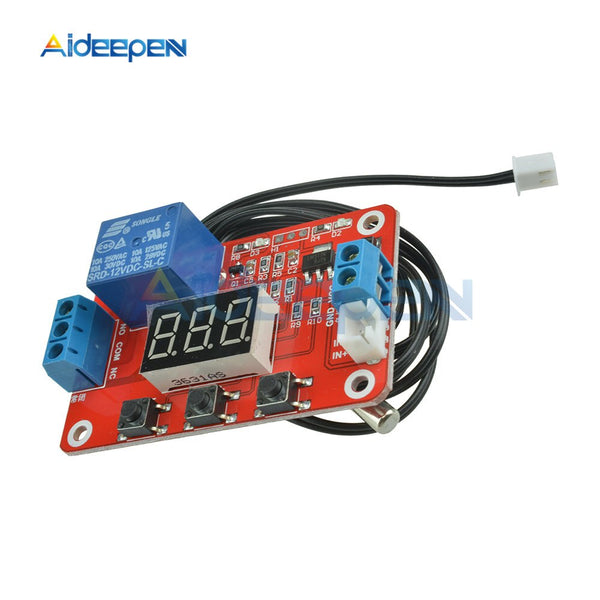

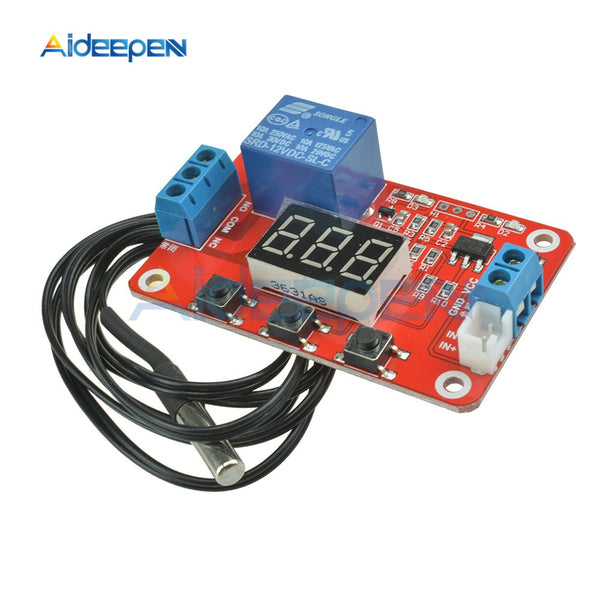

1 PCS x DC 12V Relay Switch Control Digital -20 to100° Temperature Display Module Sensor
