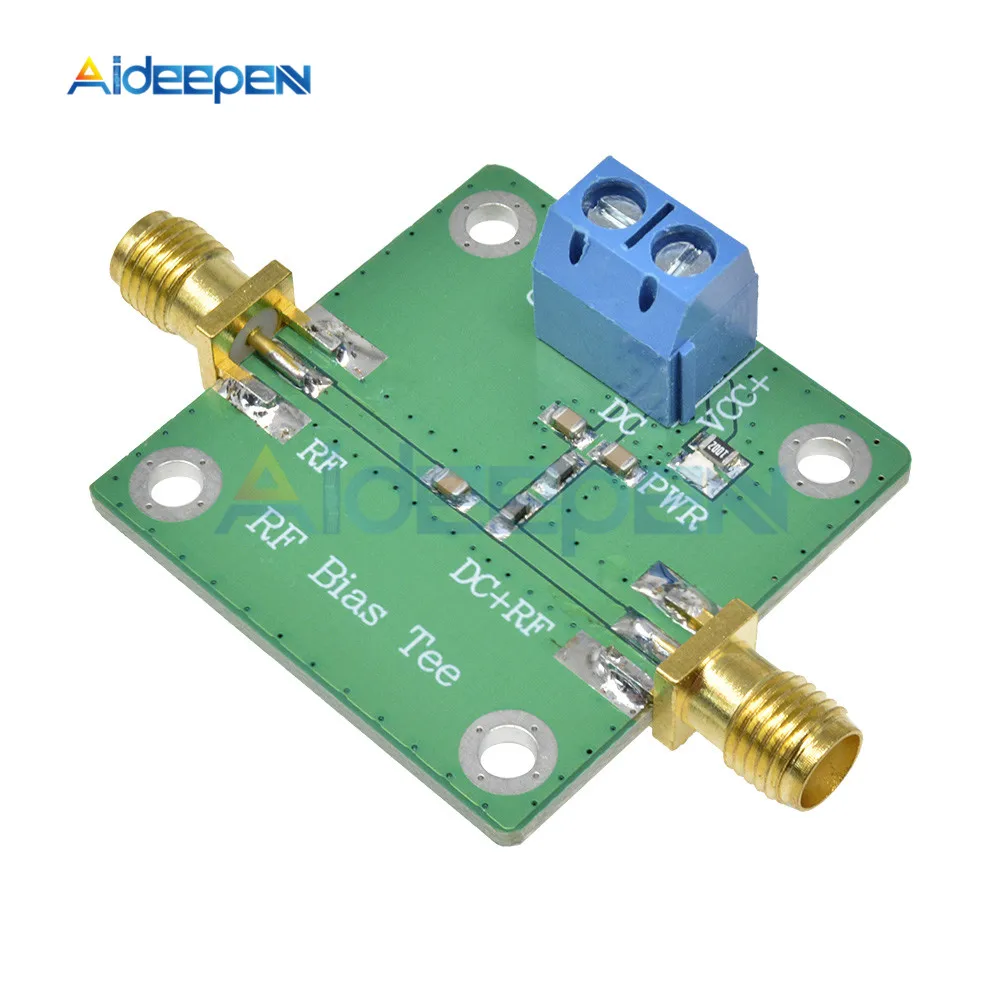

Bias Tee Broadband 10-6000MHz 6GHz RF Microwave DC bias DC Blocker for HAM Radio Amplifier Board RTL SDR LNA Low Noise
Description:
RF power supply of active antenna
The output of the broadband amplifier is straight
3 communication data injected through the RF side
Working Parameters:
Frequency range: 10 - 6000MHz
Insertion loss: 0.3dB@512MHz 0.45dB@1575MHz
Maximum voltage: 50V
Maximum current: 500mA
RF connector: SMA-K (outer screw bore)
System impedance: 50 ohms
Dimensions: 33mmx33mm without connector
Connection Mode:
DC: external DC power supply
RF: RF signal port (this port can only transmit RF signals)
RF+DC: RF dc bias (this port can transmit RF and dc bias)
GND-: DC powered common ground
VCC+: DC power supply
Package Included:
1 x Bias Tee Wideband 10-6000 MHz 6GHz for HAM radio RTL SDR LNA Low Noise Amplifier
