This is a very small systemboard that includes power by USB, clock, reset circuit, and all pins of the ATMega128 chip are layed out to a pin header. You can use it as a ATtiny13 development platform for your AVR project.
1. microcontroller chip: ATmega128A/ATmega128/ATmega128L;
2. AD conversion reference voltage plus the filter inductance, capacitance;
3. jumper selectable by an external crystal at different frequencies;
4. all the IO ports are leads and marked;
5. ISP and JTAG interfaces are leads and marked;
6. reliable reset circuit;
7. PA1, PA0 leads to a simple test for the two LED;
8. Block or pin 5V power supply;
9. PCB board Size: 52.3MMx80MM
Package Included:

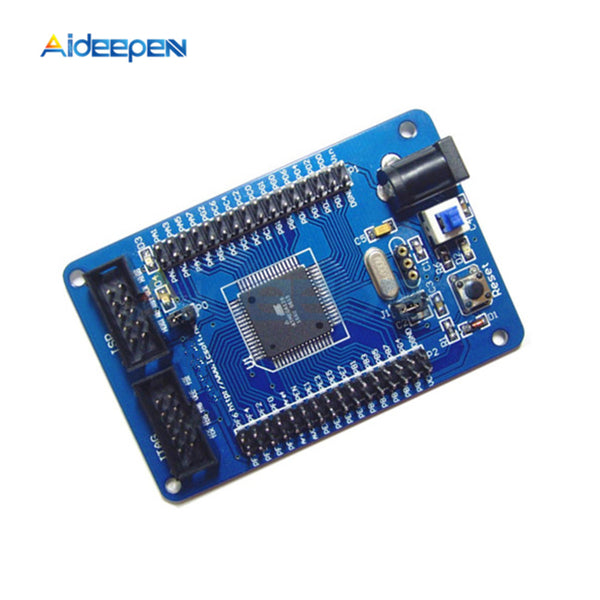

1 x ATMega128 M128 AVR Minimum Core Development system board Module
