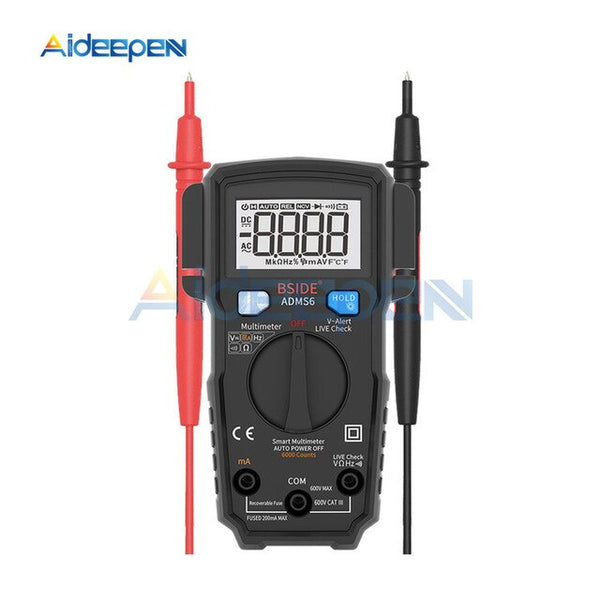

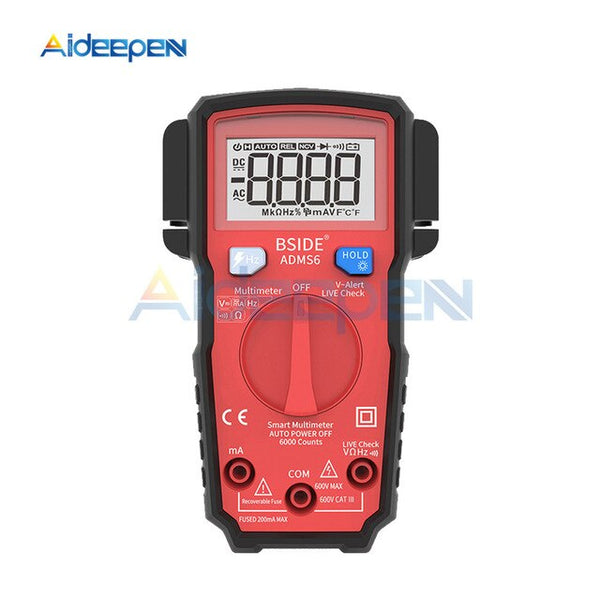

ADMS6 Mini Smart NCV Digital Multimeter Intelligent Auto Range 6000 Counts DMM AC/DC Voltage Current Tester ohm Multi Meter
Description:
- Button is Illuminable: The "Hz" button can emit red or green light, indicating the strength of non-contact detected AC voltage, checking live wire check or testing continuity.
- No Need to Switch Design: Without switching, the multimeter can automatically detect AC/DC voltage, AC/DC current, Hz, continuity, resistance, or V-Alert (non-contact voltage detection) and live wire check.
- Dual Side Probe Holder Design: The probe can be fixed in holder for easy single-hand measurement; or the probe is hidden in the holder to prevent being hurt, safe to carry.
- Recoverable Fuses: Recoverable fuses can save your repair time and cost.
- Protective Case: It features a protective case for protection against shocks, friction and bumps. This case is detachable and easy to replace.
-
- Specifications:
-
Display: 6000 counts
DC Current: 200mA ±(1.2%+3)
AC Current: 200mA ±(1.5%+5)
DC Voltage: 600V ±(0.8%+3)
AC Voltage: 600V ±(1.2%+5)
Resistance: 6000Ω ±(1.2%+3)
Frequency: 1000Hz ±(1.0%+5)
V-Alert(non-contact voltage detection): beep alarm sounds and "Hz" button flashes
Live Check: alarm beep sounds, LCD screen display "LIVE", "Hz" button lights red
Continuity: If the resistance is less than 30Ω, the beeper sounds
Power: 1.5V (AAA) * 2 (not included)
Size: 139*83*36mm
Weight: 160g
Package Includes:
1 x Digital Multimeter
1 x Test Leads
1 x User Manual
