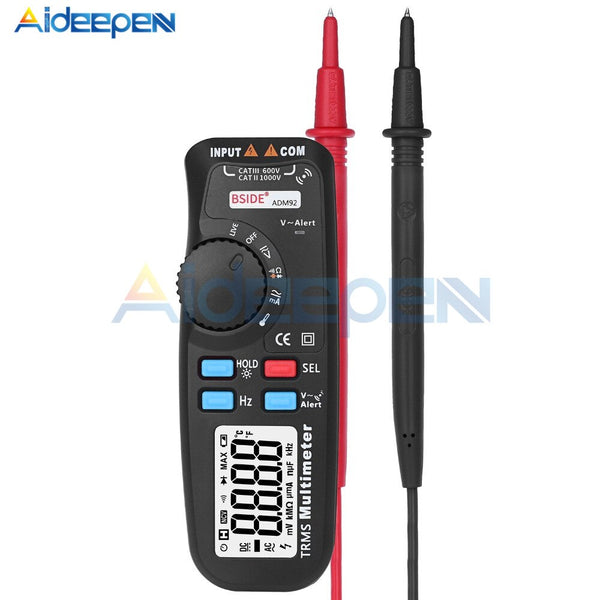

ADM92 Handheld Backlight Display Pen Type Digital Multimeter Auto Range 6000 Counts DC/AC Voltage Meter Resistance Diode Tester
Description:
Convenient single-hand side slot design, the test lead can be fixed different direction for various use, such as test lead up-side fixed type for detection, down-side for maintenance, etc.
Live wire check fuction can detective the live wire conveniently and quickly: just put the red test lead into power socket, there will light flash and alert beeper sounds if it is live wire.
V-alert measurement: There is no need to contact tested device directly to prevent any possible danger, just put the multimeter near close to it, it will light flash and alert beeper sounds if indentify AC voltage existence.
Mini size for easy to carry, in your palm or pocket; back clip design make it portable.
Transform measurement between AC voltage/current and frequency by pressing "Hz" button.
Measures AC/DC voltage and current, reistance, diode, continuity
Frequency measurement by terminals (AC voltage/current)
Auto range, Auto power off, data hold, backlight, low battery indication
Specifications:
Display: 6000 counts
AC current: 60mA/200mA ±(1.0%+3)
DC current: 60mA/200mA ±(0.8%+3)
DC voltage: 6V/60V/600V/1000V ±(0.5%+3)
AC voltage: 6V/60V ±(0.8%+3); 600V/750V ±(1.0%+10)
Resistance: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ ±(0.8%+3); 60MΩ ±(1.2%+30)
Capacitance: 6nF±(4.0%+10); 60nF/600nF/6μF/60μF/600μF/6mF ±(4.0%+5)
Temperature: -20℃~1000℃/-4℉~1832℉ ±(1.0%+3)
Continuity: If the resistance is less than 50Ω, the continuity beeper sounds
Power: 1.5V (AAA) * 2 (not included)
Storage temperature: -10℃~60℃
Working temperature: 0℃~40℃
Size: 139.5x49.5x24.5mm
Weight: 96g
Package Included:
1 x Mini True RMS Multimeter
1 x CAT III 600V Stand Test Leads
1 x Thermocouple
1 x Protect Bag
1 x CAT III 600V Stand Test Leads
1 x Thermocouple
1 x Protect Bag
1 x User Manual
