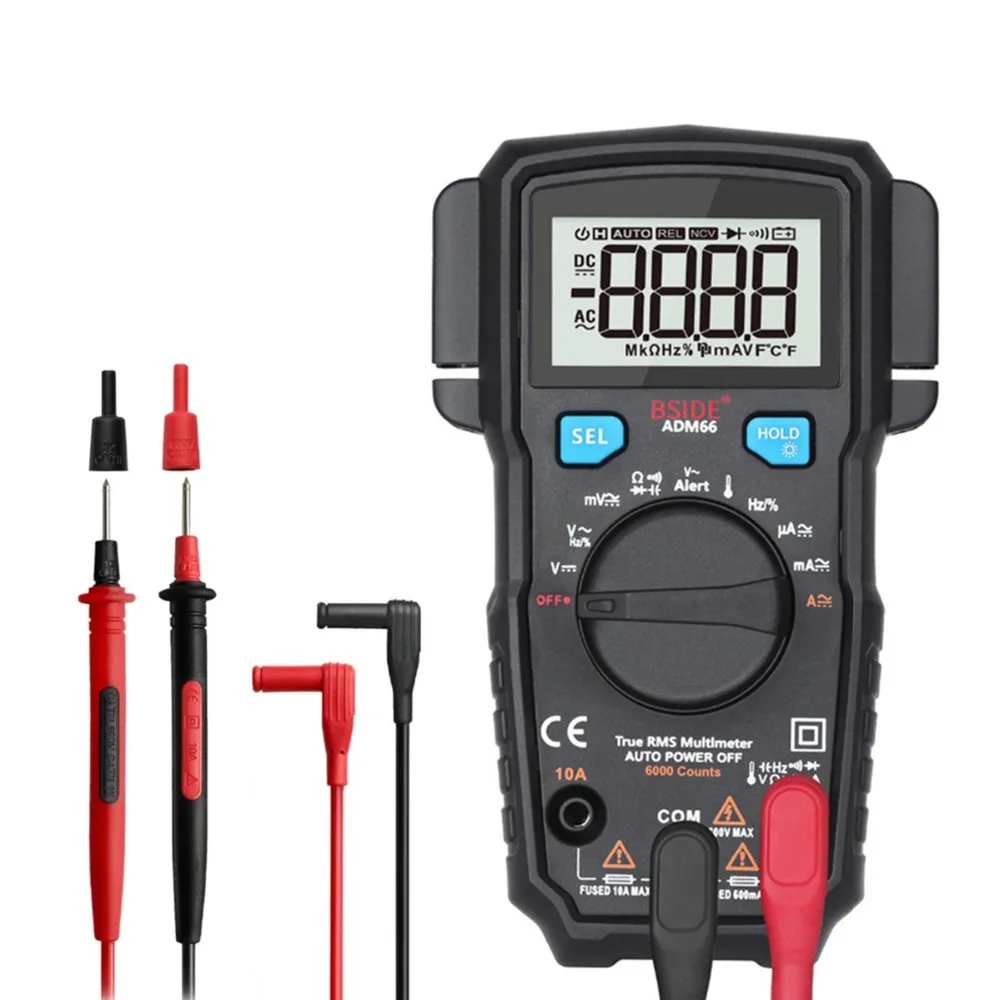

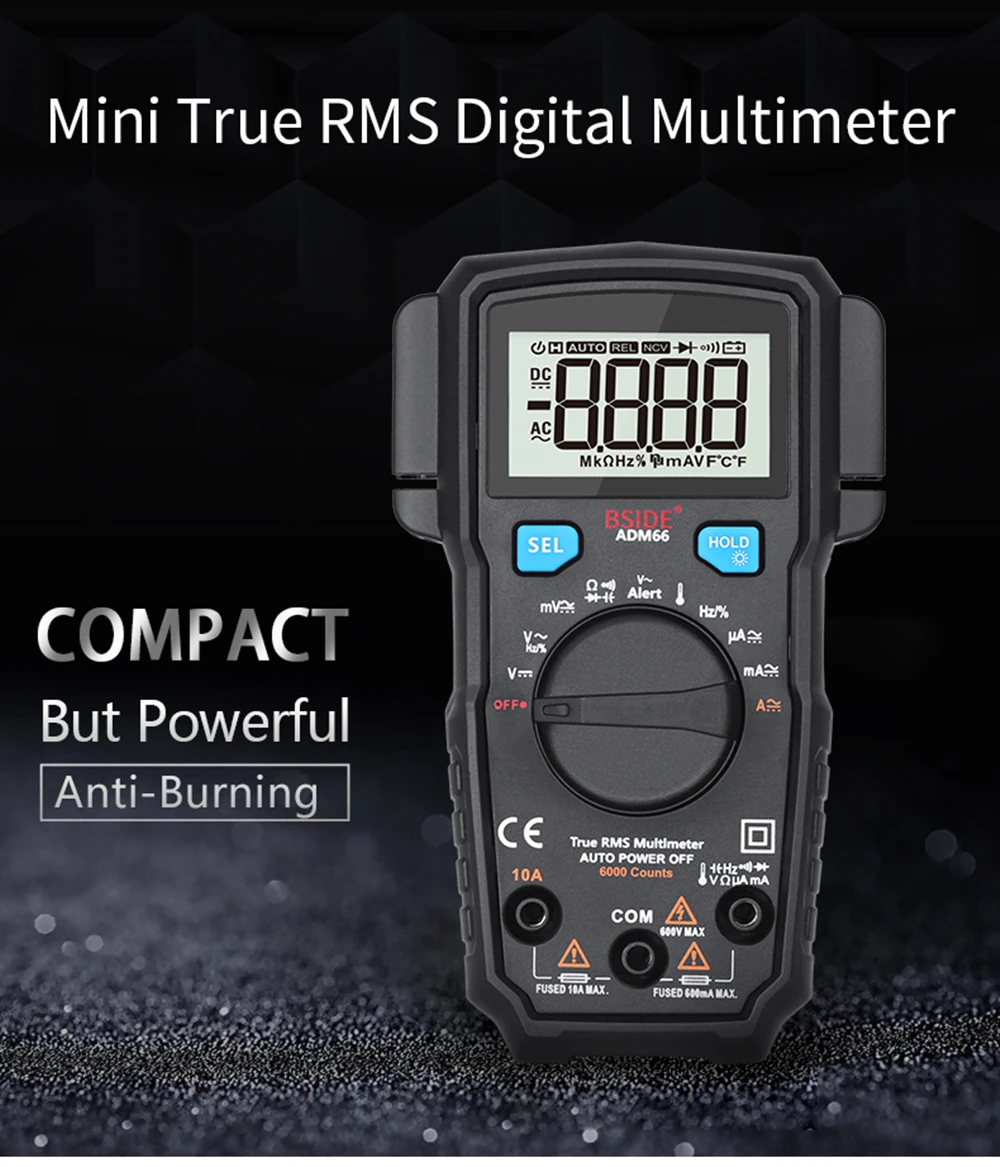

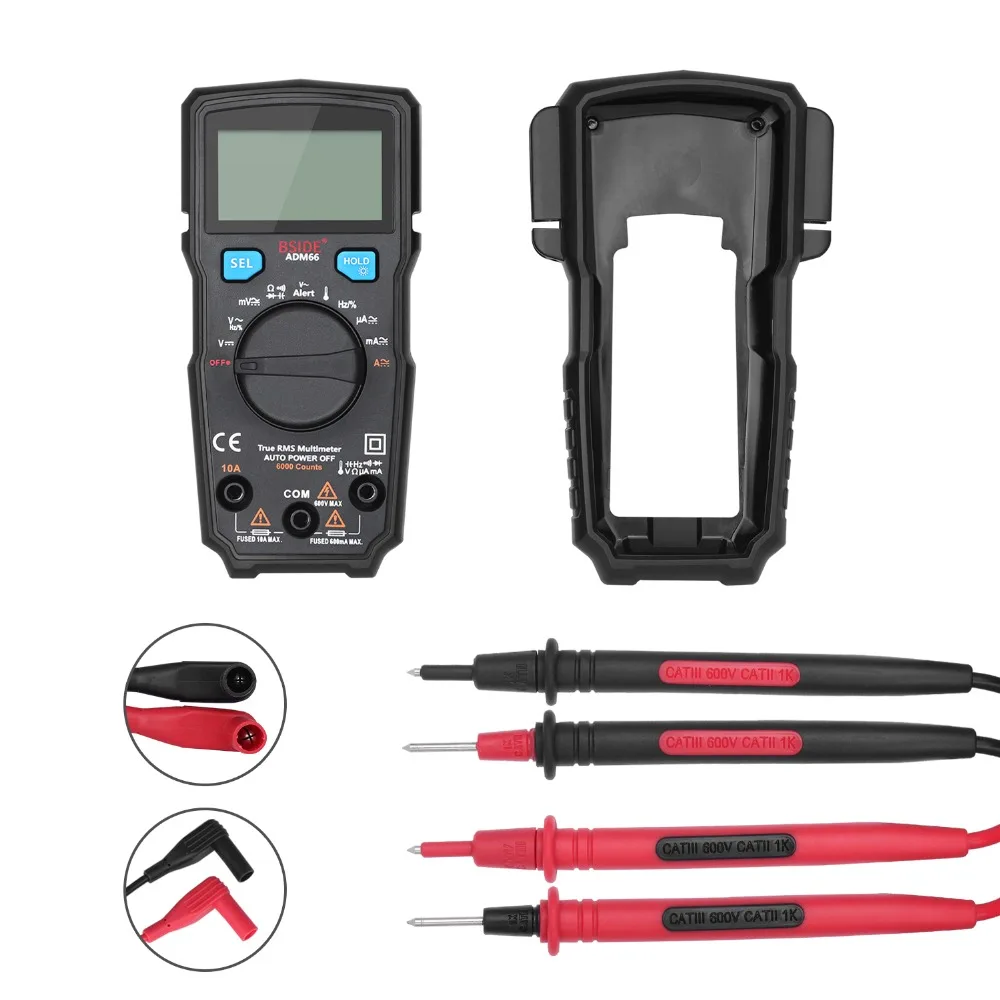

ADM66 NCV Digital Multimeter 6000 Counts Auto Ranging AC/DC Voltage Voltmeter Ammeter Diode Ohm Transistor Tester Large Screen
Description:
Digital TRMS multimeter

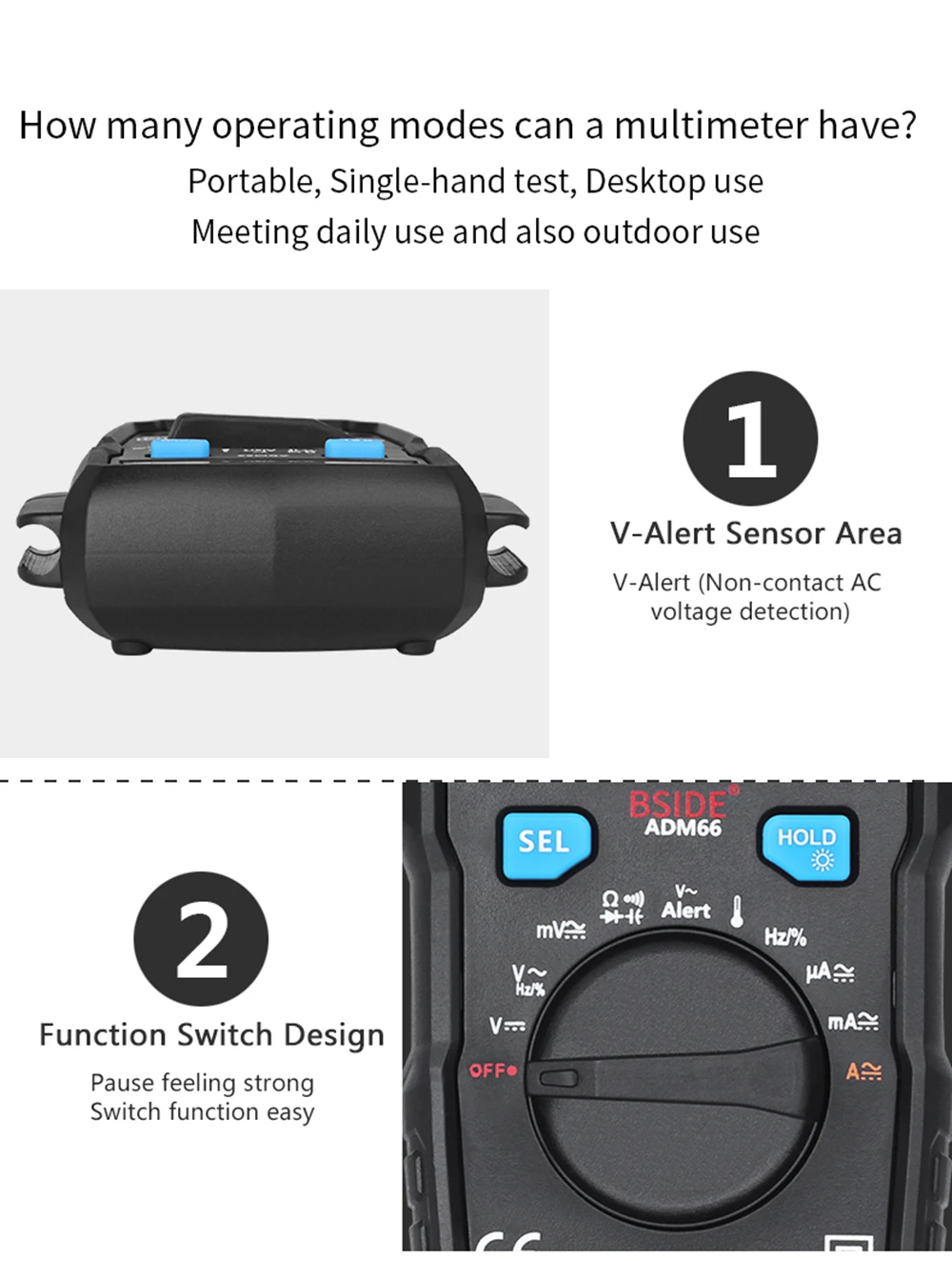

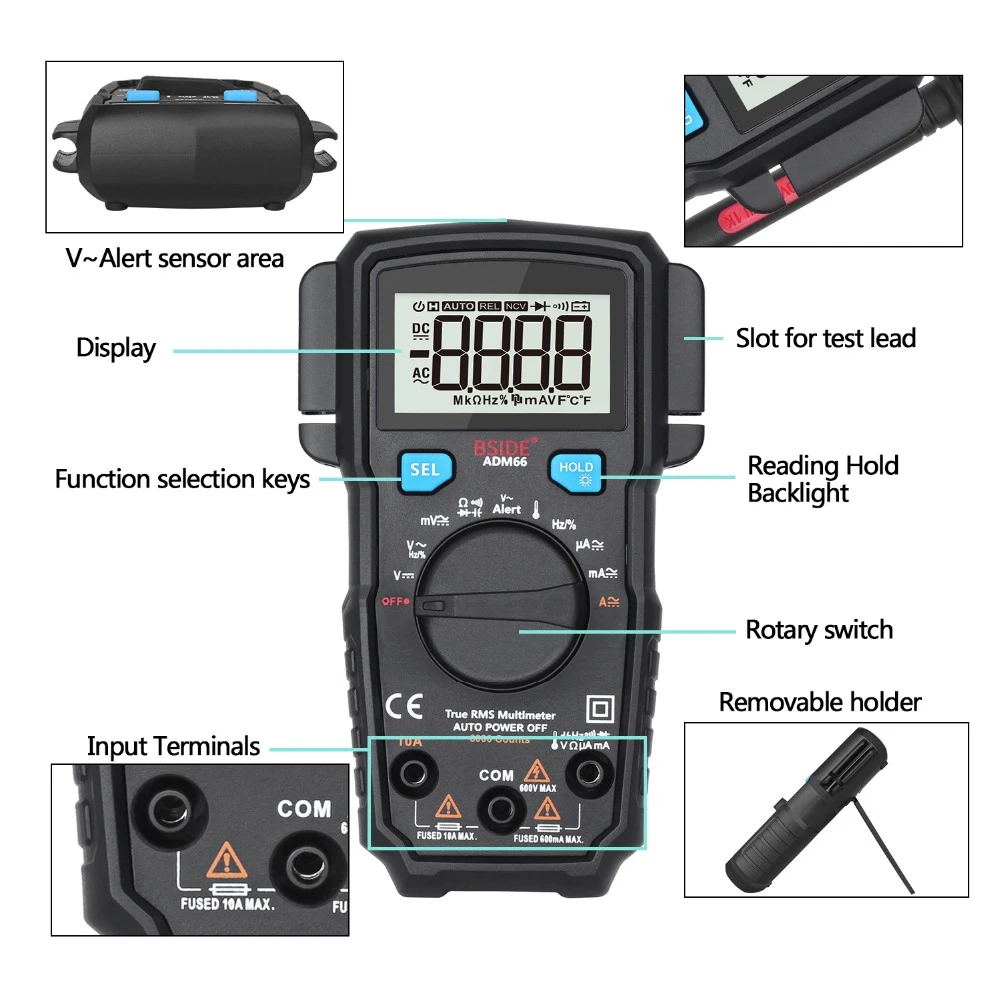

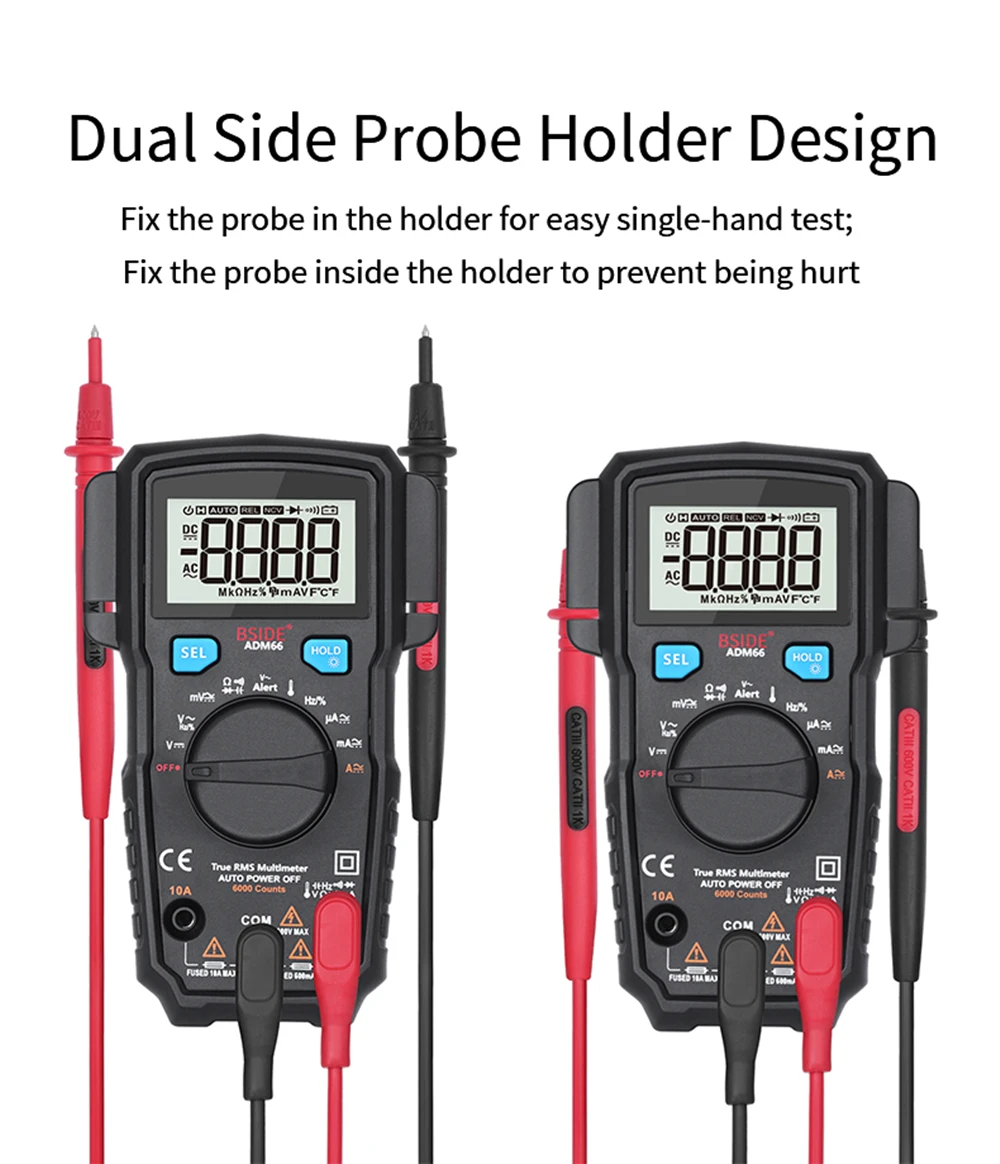

Unique dual test lead slot design means new fixed style, unsheathed-type for handsfree measurement, sheathed-type for safe storage
Measure DC/AC current not only in mA/A mode, but aslo in uA mode

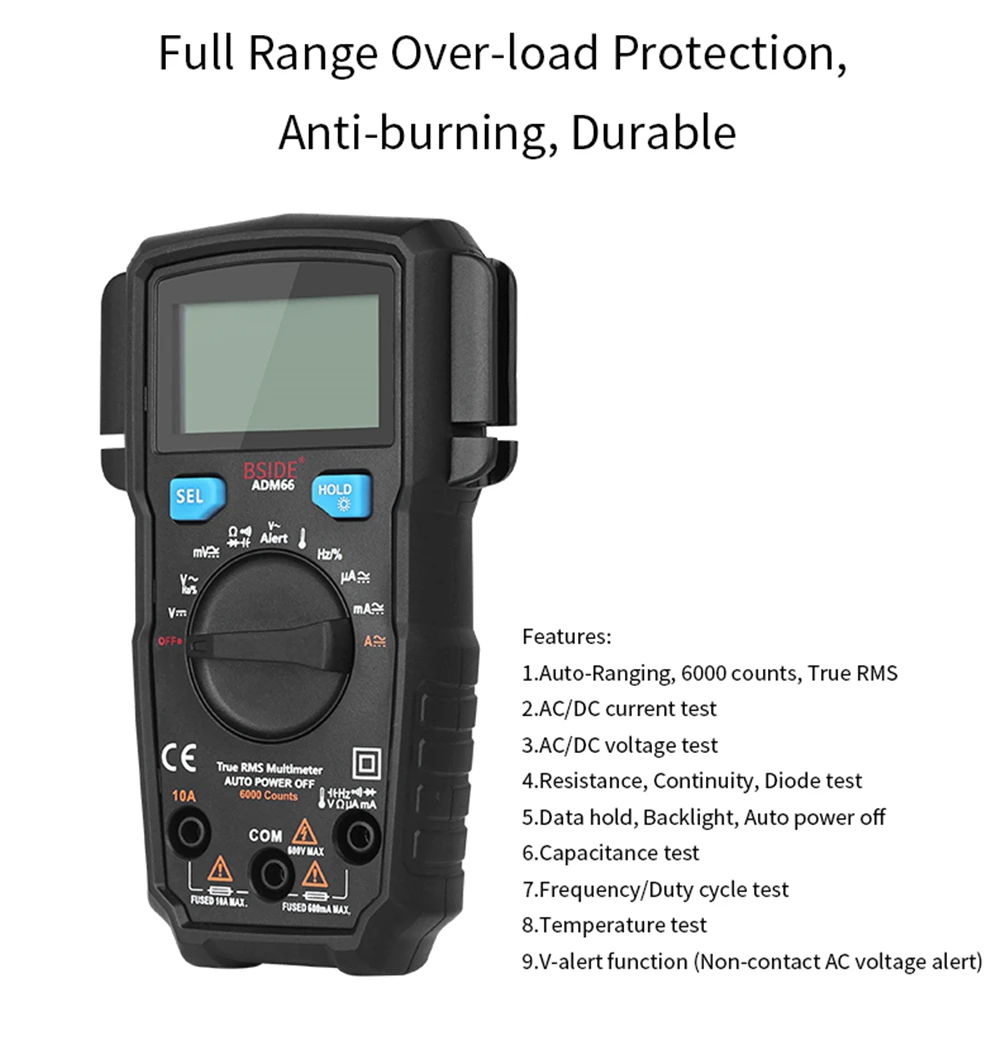

AC/DC voltage, capacitance, frequency, temperature, v-alert, resistance, duty cycle, diode, continuity measurement

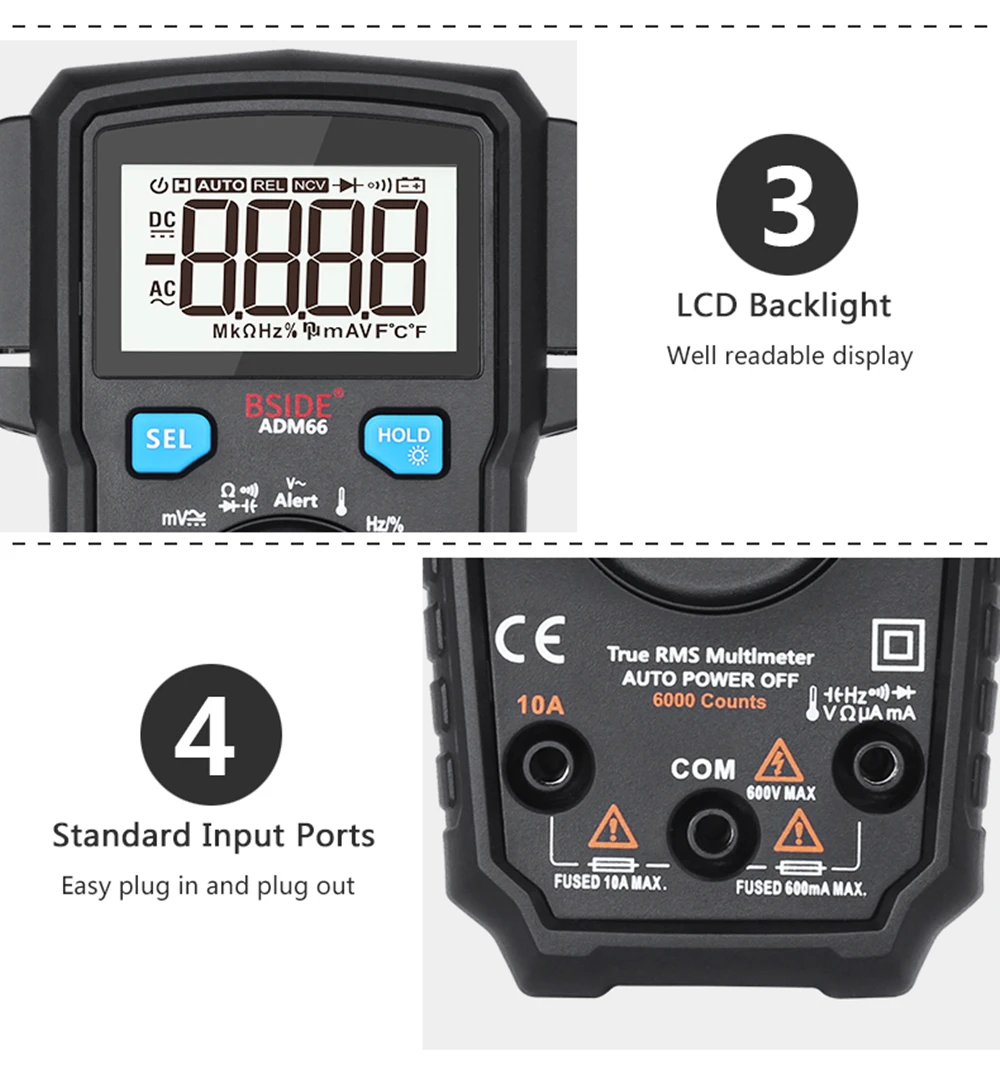

Large LCD with backlight for simple reading
Auto range, data hold, Auto power off, polarity and low battery indication
Widely reserved in schools, automotive maintenance, factories, etc. Ideal for home users, maintenance enthusiasts, electricians and technicians

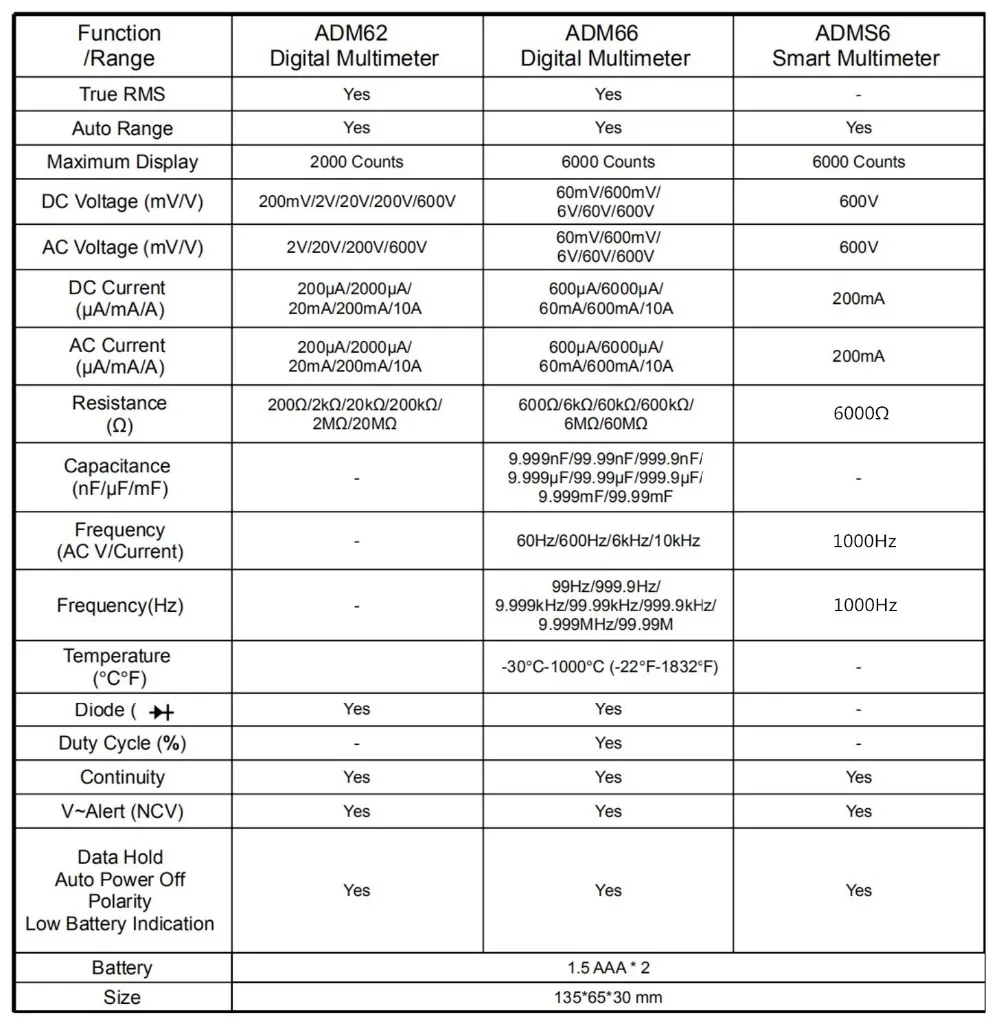

Specifications:
Max Dispaly: 6000 counts
DC Current: 600uA/6000uA/60mA/600mA ±(1.0%+5); 10A ±(2.0%+5)
AC Current: 600uA/6000uA/60mA/600mA ±(1.5%+5); 10A ±(3.0%+5)
DC Voltage: 60mV/600mV ±(1.0%+3); 6V/60V/600V ±(0.5%+5)
AC Voltage: 60mV/600mV ±(1.2%+3); 6V/60V ±(1.2%+5); 600V ±(1.5%+5)
Resistance: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ ±(0.8%+5); 60MΩ ±(1.5%+5)
Capacitance: 9.999nF/99.99nF/999.9nF/9.999uF/99.99uF/999.9uF ±(3.0%+3); 9.999mF/99.99mF ±(4.0%+5)
Frequency(V/Current): 60Hz/600Hz/6kHz/10kHz ±(2.0%+5)
Frequency(Hz): 99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHz/99.99M ±(2.0%+5)
Temperature: -30℃-0℃(-22℉-32℉) ±(5.0%+3); 0℃-400℃(32℉-752℉) ±(1.0%+3); 400℃-1000℃(752℉-1832℉) ±(2.0%+2)

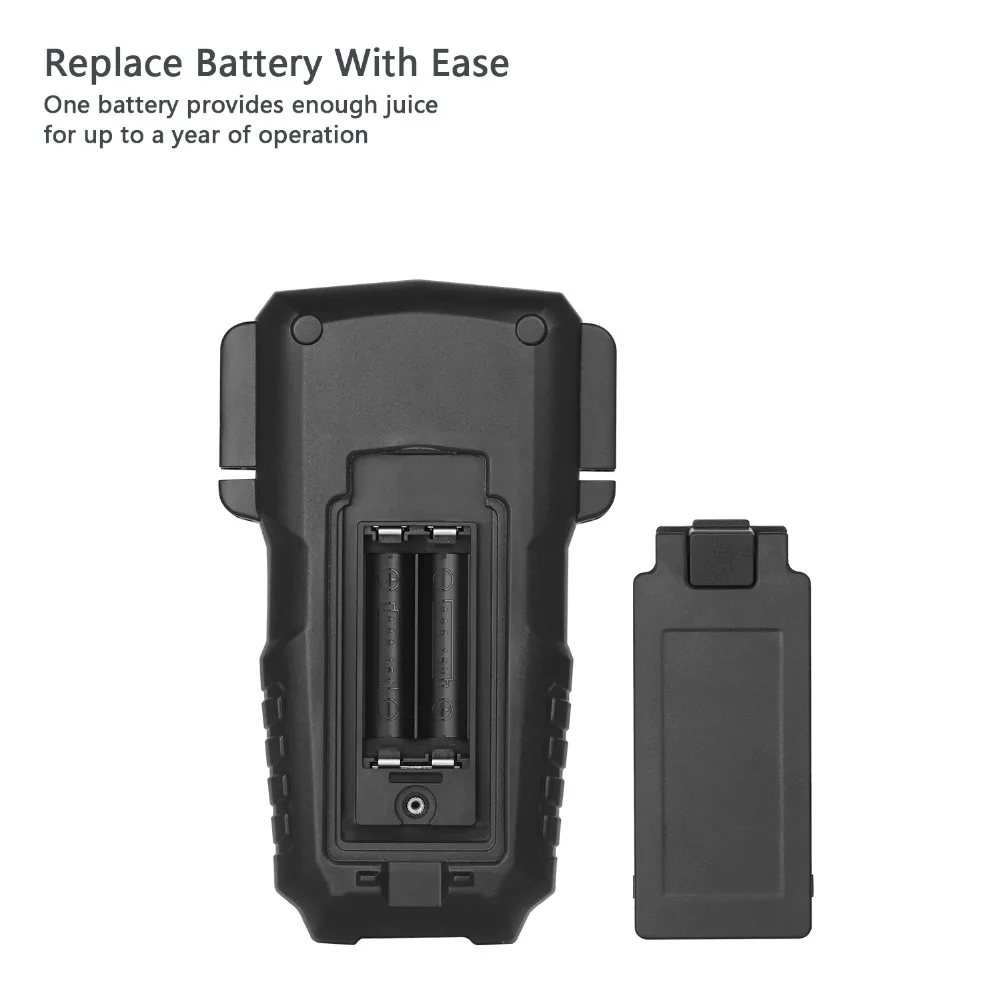

Power: 1.5V (AAA) * 2(Not Included)

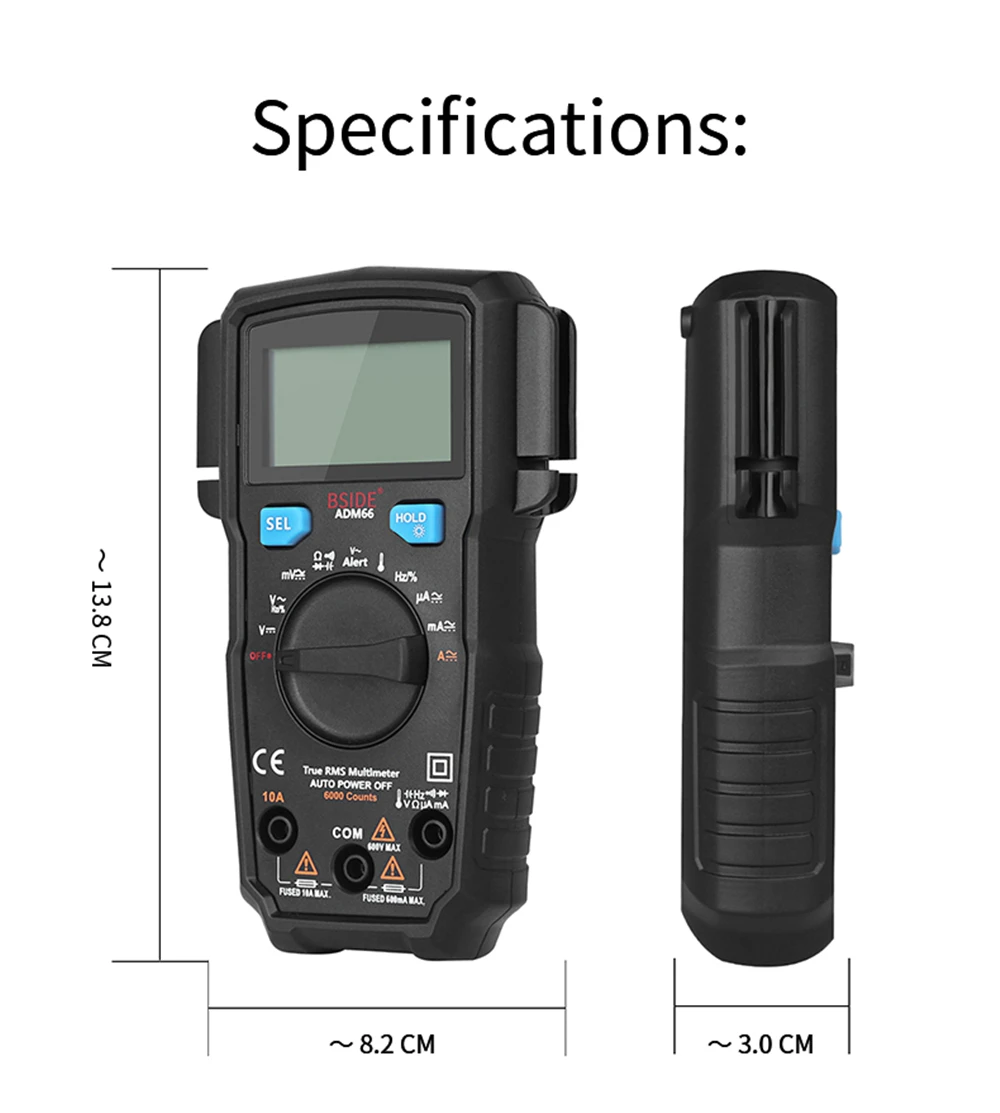

Size: 139*83*36mm
Weight: 160g

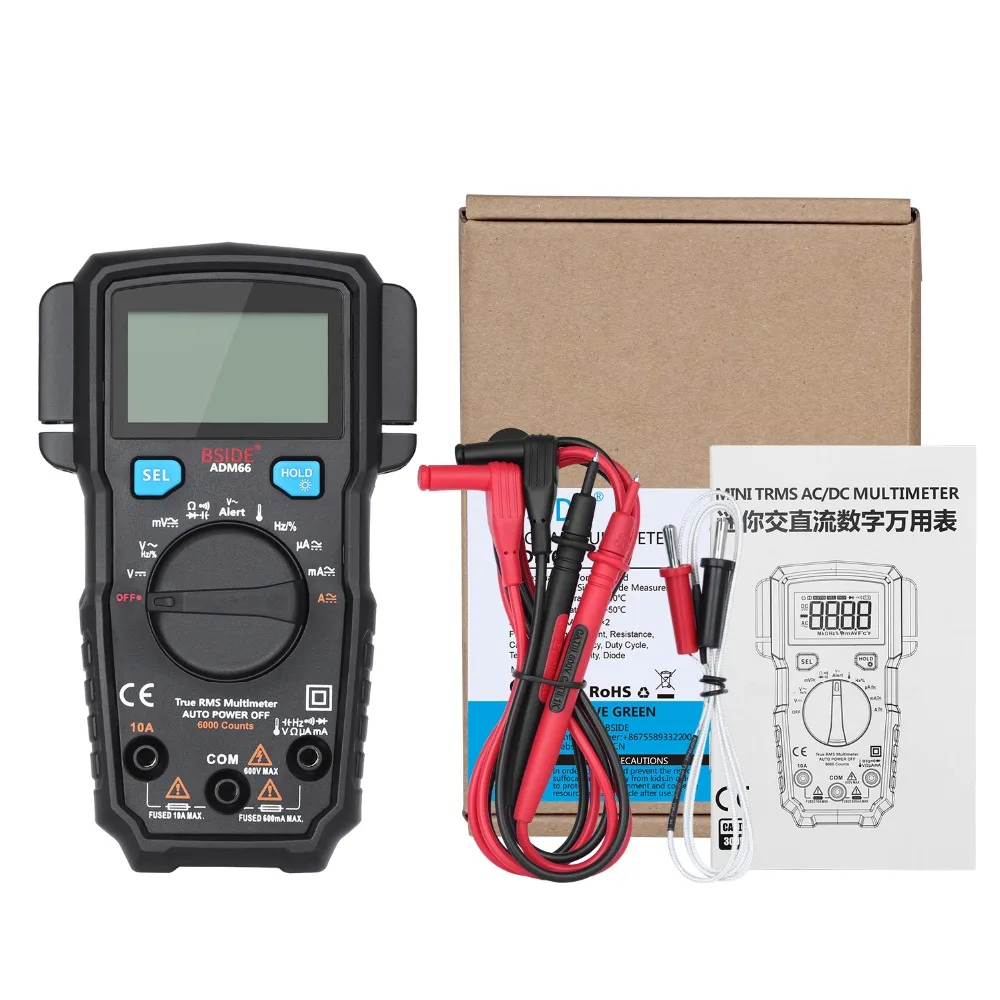

Package Includes:
1 x Digital Multimeter
1 x Test Leads
1 x User Manual
