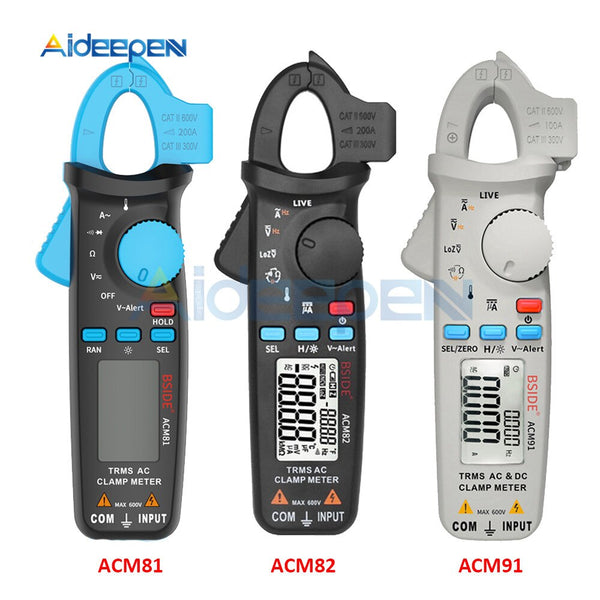

ACM81 82 91 Digital Clamp Meter AC/DC Current 1mA True RMS Auto Range Live Check NCV Temp Frequency Capacitor Tester Multimeter
Description:

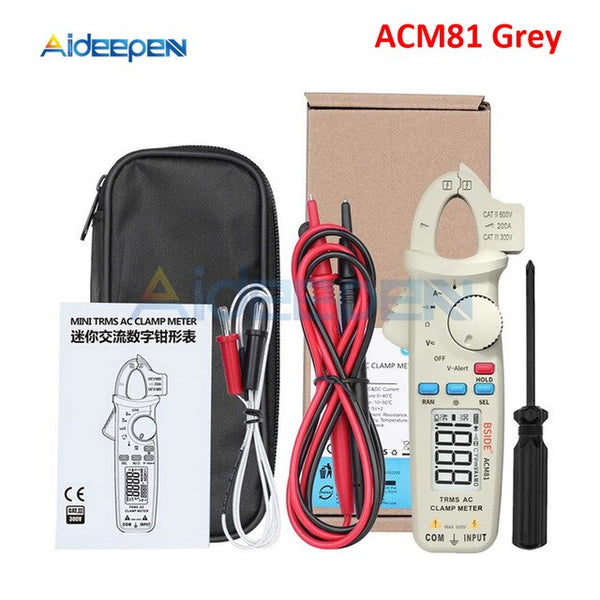

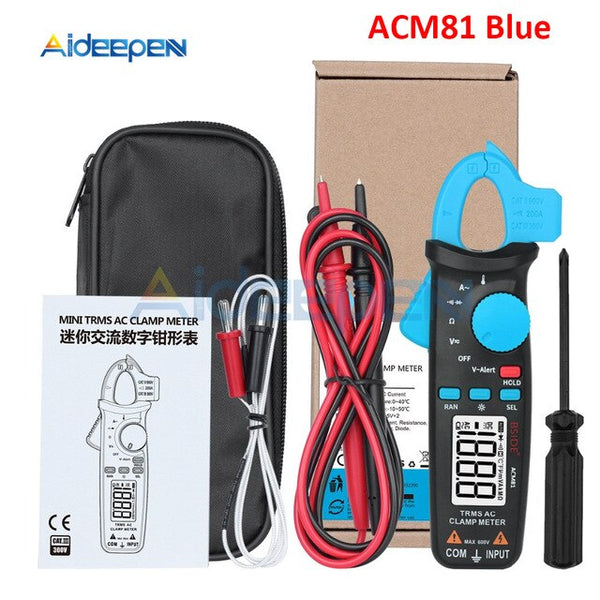

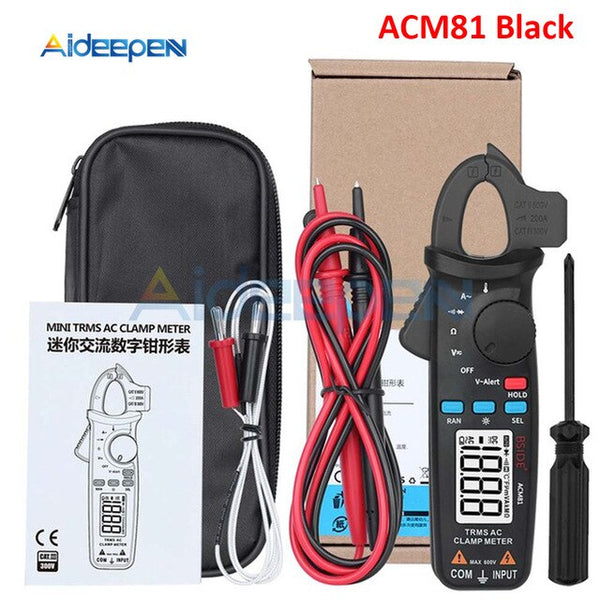

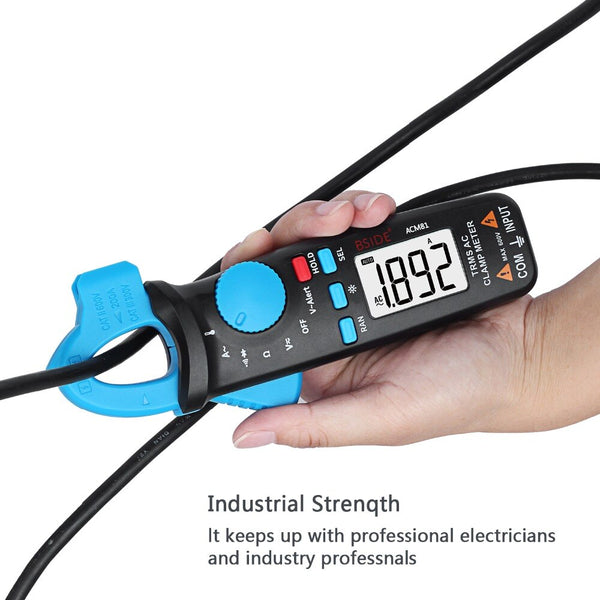

ACM81
- Measure AC current (minimum 1mA by jaws)Measure AC and DC voltage
Measure resistance, continuity and DiodeMeasure temperature
Auto range

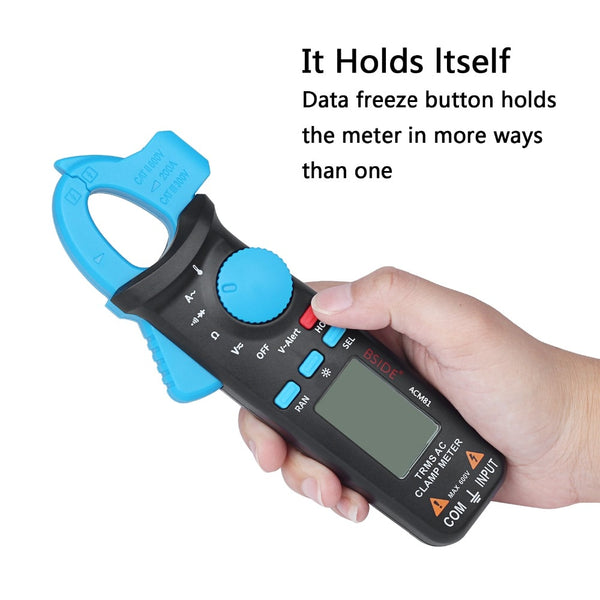

Data hold
Auto power off
Back light
Conform to the IEC-61010-1, IEC-61010-2-030, IEC-61010-2-032, IEC-61010-2-033 standards
Over-voltage protection class CAT III 300V, CAT II 600V, pollution degree II - Specifications:
- Display: 2000 counts
AC current: 2A/20A/200A 0.001A/0.01A/0.1A ±(2.5%+5counts)
DC voltage: 200mV/2V/20V/200V/600V 0.1mV/ 0.001V/0.01V/0.1V/1V ±(1.0%+3counts)AC voltage: 200mV/2V/20V/200V/600V 0.1mV/ 0.001V/0.01V/0.1V/1V ±(1.0%+3counts)
Resistance:
200/2k/20k/200k/2M ohm 0.1/0.001K/0.01K/0.1K/0.001M ohm ±(1.0%+3counts)
20Mohm 0.01Mohm ±(1.2%+20counts)
Buzzer: If the resistance is less than 30Ω, the continuity beeper sounds.Diode: 0.001V Displays the approximate value of the diode forward voltage
Temperature: -20°C~500°C 1°C/2°F (2.0%+2counts)
Jaw Capacity: 20mm
Power: 1.5V (AAA) x 2 (not included)
Size: 179mm x 67mm x 36 mm
Weight: 137g

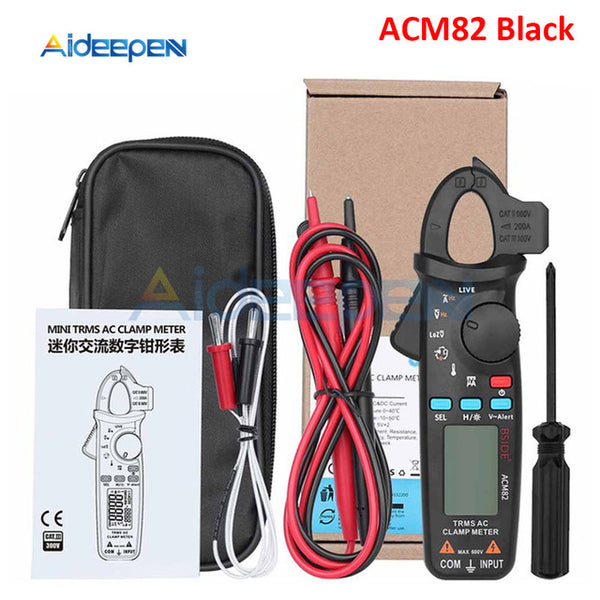

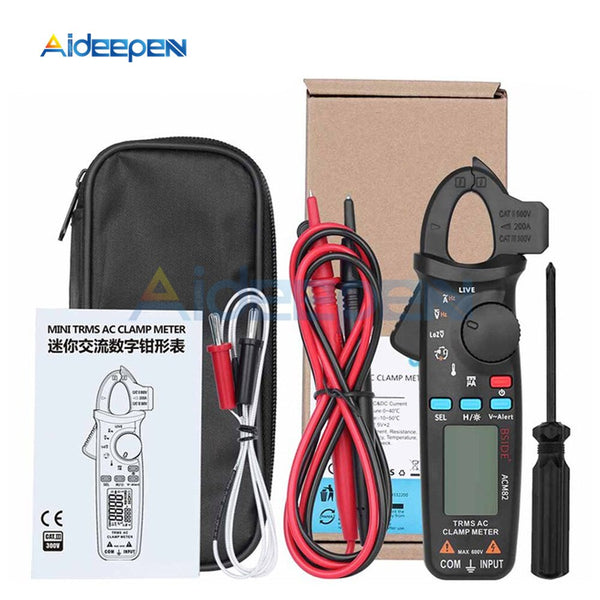

ACM82
Measure AC current (minimum 1mA by jaws)
Measure DC current microamps μA (minumum 0.1μA by terminals)
Measure AC and DC voltage
Measure frequency
Low impedance voltage measurement
Measure resistance, continuity and capacitance
Measure temperature
Live check function
V-alert measurement
Clamp on frequency function
Auto range, Auto power off, data hold, back light
Conform to the IEC-61010-1, IEC-61010-2-030, IEC-61010-2-032, IEC-61010-2-033 standards
Over-voltage protection class CAT III 300V, CAT II 600V, pollution degree II
Specifications:
Display: 6000 counts
AC current: 6A/60A/200A 0.001A/0.01A/0.1A ±(3.0%+10counts)
DC current(μA by terminals): 0-200μA ±(0.8%+5counts)
DC voltage: 6V/60V/600V 0.001V/0.01V/0.1V ±(1.0%+3counts)
AC voltage: 6V/60V/600V 0.001V/0.01V/0.1V ±(1.0%+3counts)
Low impedance LOZ: Max 600V Resolution 0.1V
Resistance:
600Ω/6kΩ/60kΩ/600kΩ/6MΩ 0.1Ω/0.001KΩ/0.01KΩ/0.1KΩ/0.001MΩ ±(1.0%+3counts)
60MΩ 0.01MΩ ±(1.2%+20counts)
Capacitance: 600µF/6000µF 0.1µF/1µF ±(4.0%+3counts)
Frequency: 60Hz/1000Hz 0.1Hz/1Hz ±(1.0%+5counts)
Frequency(by jaws): 60Hz/1000Hz 0.1Hz/1Hz ±(1.0%+5counts)
Buzzer: If the resistance is less than 30Ω, the continuity beeper sounds
Temperature: -20℃~500℃/-4℉~932℉ 1℃/2℉ (2.0%+2counts)
Jaw Capacity: 20mm
Power: 1.5V (AAA) x 2 (not included)
Size: 179mm x 67mm x 36 mm
Weight: 137g

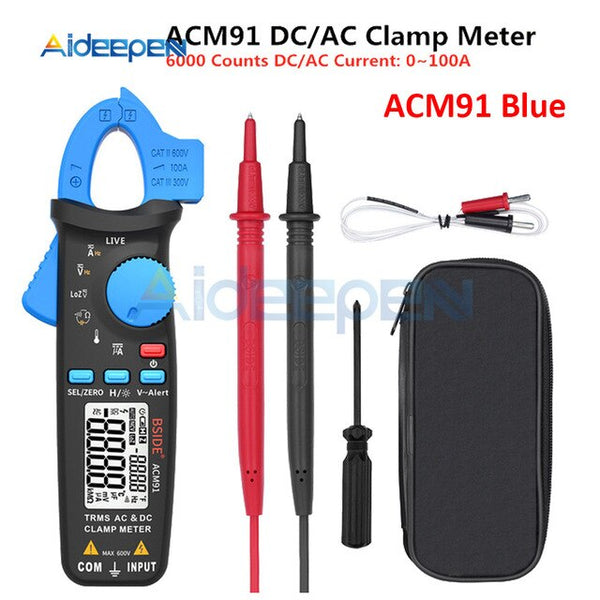

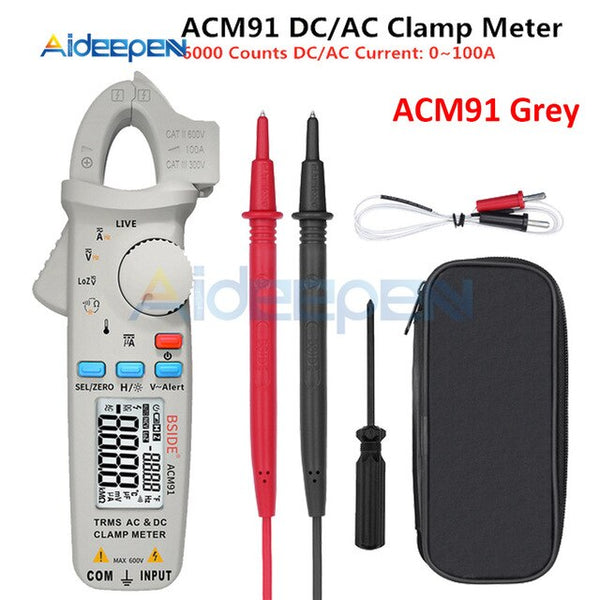

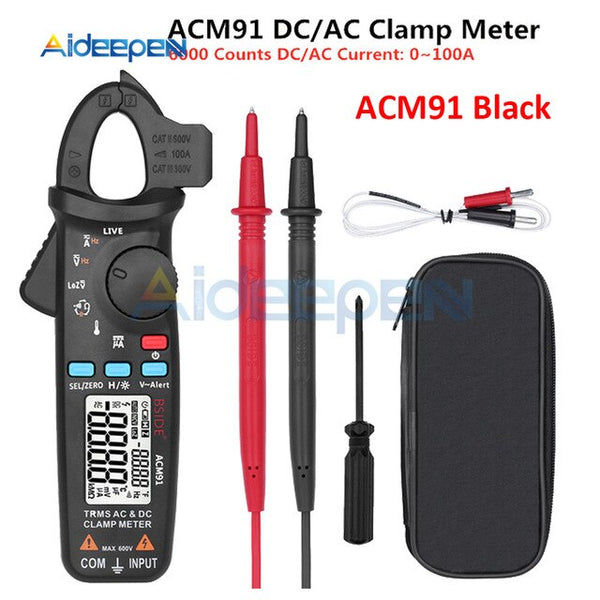

ACM91
- Measure both DC current and AC current (minimum 1mA by jaws)
Measure microamps μA (minimum 0.1μA by terminals)
Measure AC and DC voltage
Measure frequency
Low impedance voltage measurement
Measure resistance, continuity and capacitance
Measure temperature

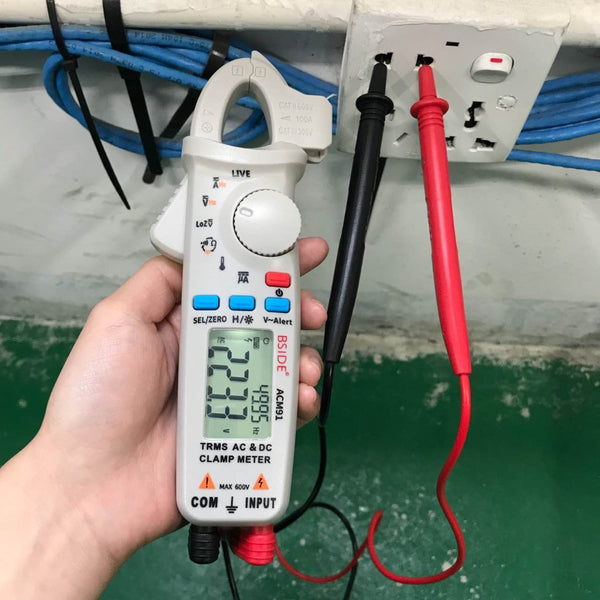

Live check function

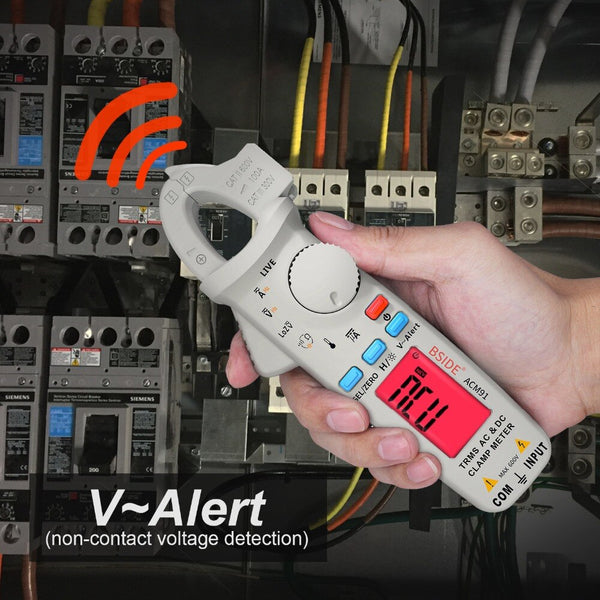

V-alert measurement
Clamp on frequency function
Auto range
Data hold
Auto power off
Back light
Conform to the IEC-61010-1, IEC-61010-2-030, IEC-61010-2-032, IEC-61010-2-033 standards
Over-voltage protection class CAT III 300V, CAT II 600V, pollution degree IISpecifications:Display: 6000 counts
DC current: 6A/60A/100A 0.001A/0.01A/0.1A ±(3.0%+5counts)
DC current(uA):0-200uA 0.1uA ±(0.8%+5counts)
AC current: 6A/60A/100A 0.001A/0.01A/0.1A ±(2.5%+5counts)In 6A range, resolution is 0.001A, the test range is 0.001A~6A.In 60A range, resolution is 0.01A, the test range is 0.01A~60A.In 100A range, resolution is 0.1A, the test range is 0.1A~100A.DC voltage: 6V/60V/600V 0.001V/0.01V/0.1V ±(1.0%+3counts)
AC voltage: 6V/60V/600V 0.001V/0.01V/0.1V ±(1.0%+3counts)
Low impedance LOZ: Max 600V Resolution 0.1V
Resistance:
600/6k/60k/600k/6M ohm 0.1/0.001K/0.01K/0.1K/0.001M ohm ±(1.0%+3counts)
60Mohm 0.01Mohm ±(1.2%+20counts)
Capacitance: 600uF/6000uF 0.1uF/1uF ±(4.0%+3counts)
Frequency: 60Hz/1000Hz 0.1Hz/1Hz ±(1.0%+5counts)
Frequency（by jaws): 60Hz/1000Hz 0.1Hz/1Hz ±(1.0%+5counts)
Buzzer: If the resistance is less than 30Ω, the continuity beeper sounds.
Temperature: -20°C~500°C 1°C/2°F (2.0%+2counts)
Jaw Capacity: 20mm
Power: 1.5V (AAA) x 2 (not included)
Size: 179mm x 67mm x 36 mm
Weight: 137gPackage Includes:1 x Digital Clamp Meter
1 x Test Leads
1 x Thermocouple
1 x User Manual
1 x Carrying Case
