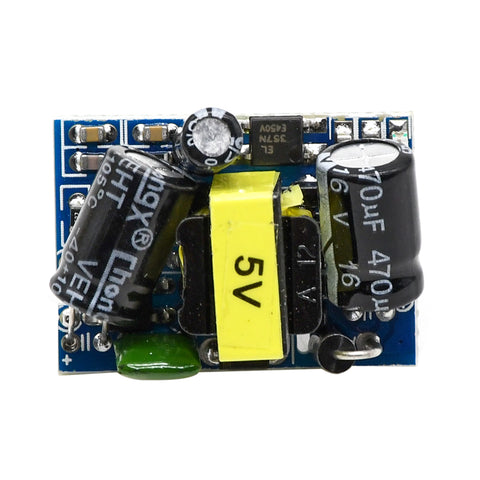

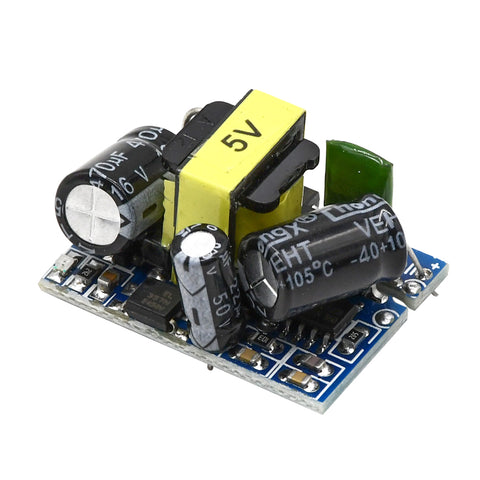

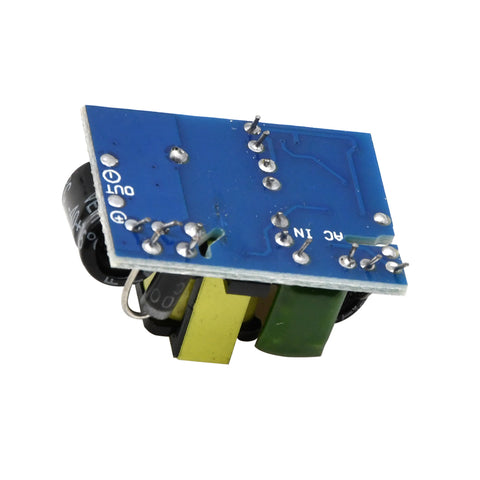

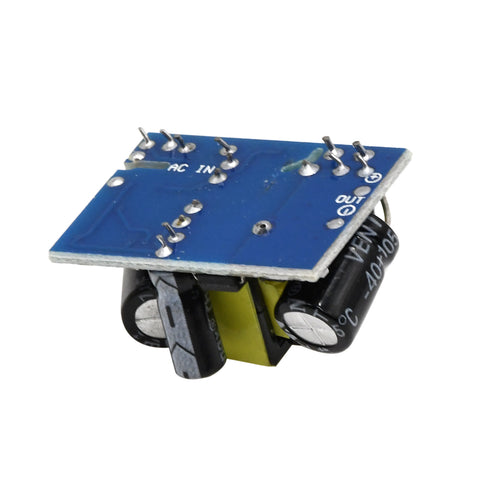

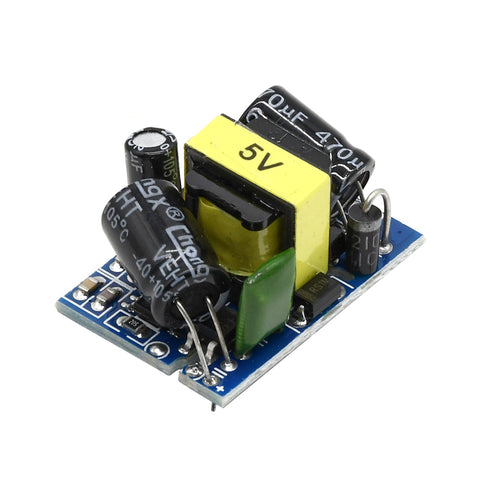

AC DC 5V 700mA Step Down Board Buck Converter 110V 220V to DC 5V Transformer Power Supply Module For Arduino Voltage Isolation

010751

Sale price $0.99 Regular price $1.48

Tax included.


Description:


Step Down Module
Condition: New
With temperature protection, over current protection and short circuit protection, high and low voltage isolation, AC85 - 265 v wide voltage input, ac/dc current , 431 precision voltage stability DC5V output
Input voltage: AC 85 - 265 v 50/60 hz or DC 100 - 370 v
Imput current: 0.0273A(AC110V) 0.014A(AC220V)
Input Inrush Current: 20A
Output voltage: DC 5V (+ / - 0.2 V)
Output current 700 mA
Power 3.5 W
Operating temperature -20-60 degree Celsius
Relative humidity 40-90%RH
Output 5V, min current 0a, max current 700mA, peak current: 800mA, output range: 4.8-5.2v, ripple wave: 60mV
Output power:0-4W(DC current)
Output efficiency: 80%
Switch machine overshoot: MAX 10%
Output voltage rise time: MAX 100MS
Output over voltage: 4.8-5.2V, recovery:Lock, restart after recovery
Output over power protection:YES ,recovery:Lock, restart after recovery
Short-circuit protection: YES, automatic recovery after problem solved
Temperature protection: YES,recovery:Lock, restart after recovery
Overcurrent protection: YES,recovery:Lock, restart after recovery
Size: 3 x 2 x1.8cm


Package Included:



1 x AC-DC 5V 700mA 3.5W Power Supply Buck Converter Step Down Module for Arduino
