Description:
DIY kits 70W SSB linear HF Power Amplifier
●Circuit class AB linear amplifier for SSB AM CW FM power amplifier for low-power radio power connection
●Suitable for FT-817 KX3 other small power stations
Electrical parameters:
1. Power supply voltage: 13.8V
2. Current: 6-10A
3. Maximum input power: 5W
4. Maximum output power: 70W
5. cooled: fan forced cooling
6.Frequency range 3.5--30Mhz (10M - 80M)
WARNING: Output prohibit open, short, prohibit VSWR of 2.0 or more
Note:
1.this is kits, not assembled . without heastink
Package Included:

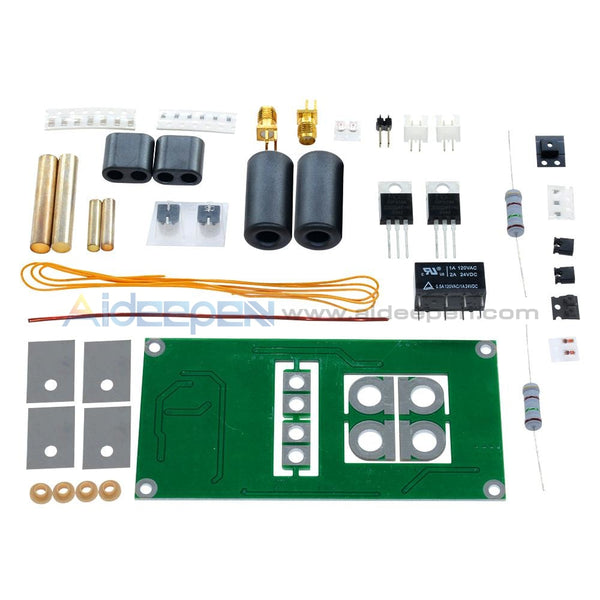

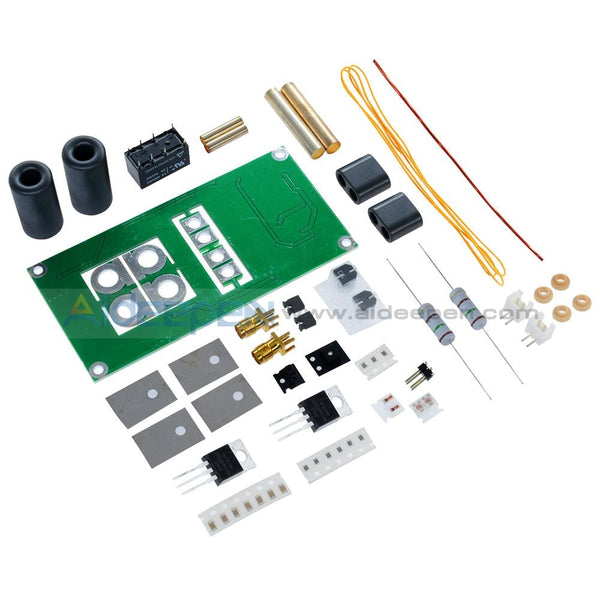

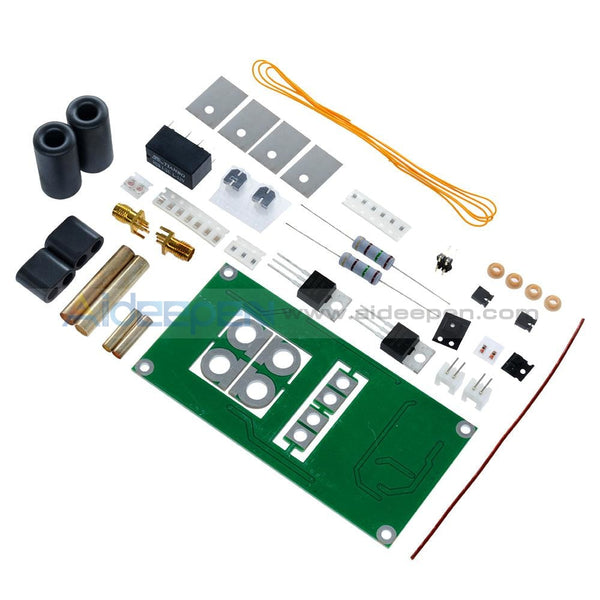

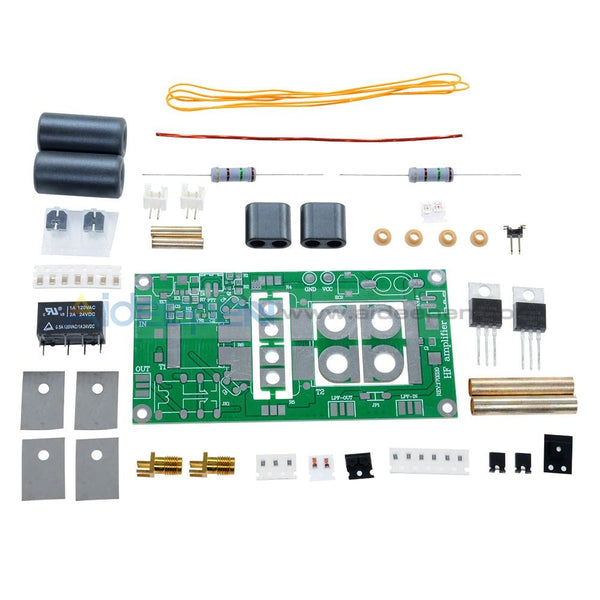

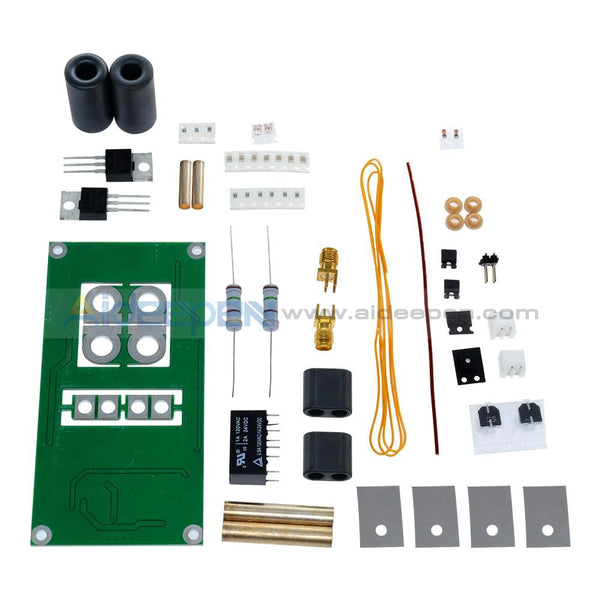

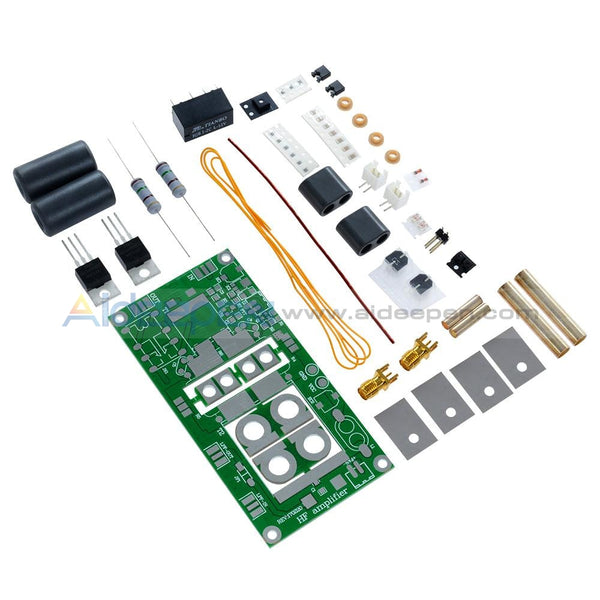

1 x 70W SSB linear HF Power Amplifier DIY Kits
