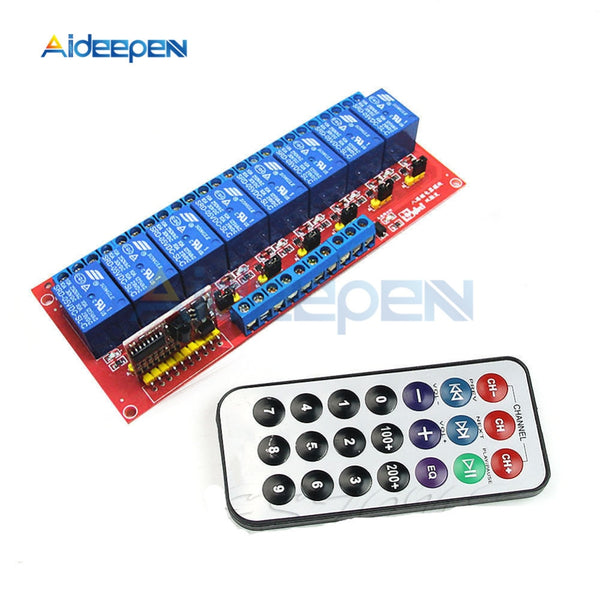

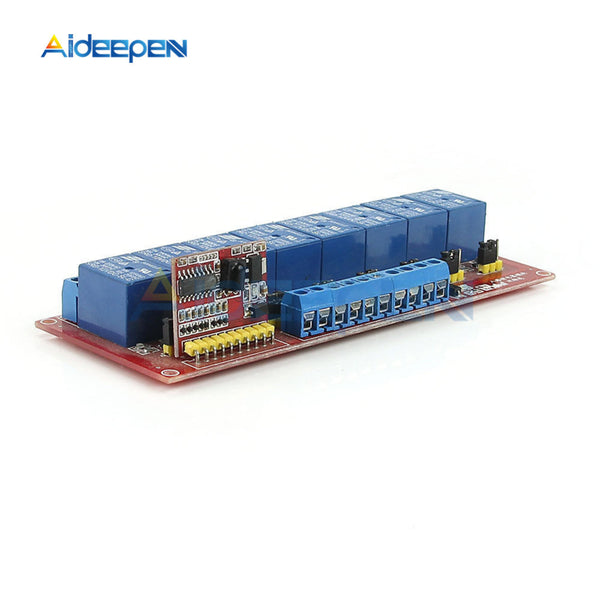

5V 8 Channel Multi function Infrared Remote Control Relay Module Dual Trigger Module Infrared IR Remote Switch 8CH Driving Board

100013

Sale price $10.99 Regular price $12.48

Tax included.

Description:

Dual-trigger design, featuring a special two-way drive IC design, flying away from the world premiere of electronic science and technology;
Strong anti-interference ability, using freewheeling diode protection;
Part of a safe and reliable high current relay contact with double-sided wiring;
5.08mm high quality input and output terminals for easier wiring and PLC control
Input can set high and low trigger control more flexible;
Each relay has a pull indication to see the status of the working relay at a glance;
Each relay output causes two kinds of electric shocks, normally open and normally closed, which are convenient and flexible to use;
With easy installation of fixing screw holes;
100% functional and stability testing is completed;

Specification:

Relay contact capacity: AC250V 10A DC30V 10A;
Power: button battery (not included)
Board size: (L * W * H) 13.50 *5.00 * 2.10 cm / 5.31" * 1.97" * 0.83"
Remote control size: (L * W * H)8.50 * 4.00*0.60 cm / 3.35" * 1.57" * 0.24"


The product line is as follows:

VCC: input power terminal
GND: End of input power supply
CTR1-CTR8 trigger signal input terminal, valid in any way (can be set by jumper)

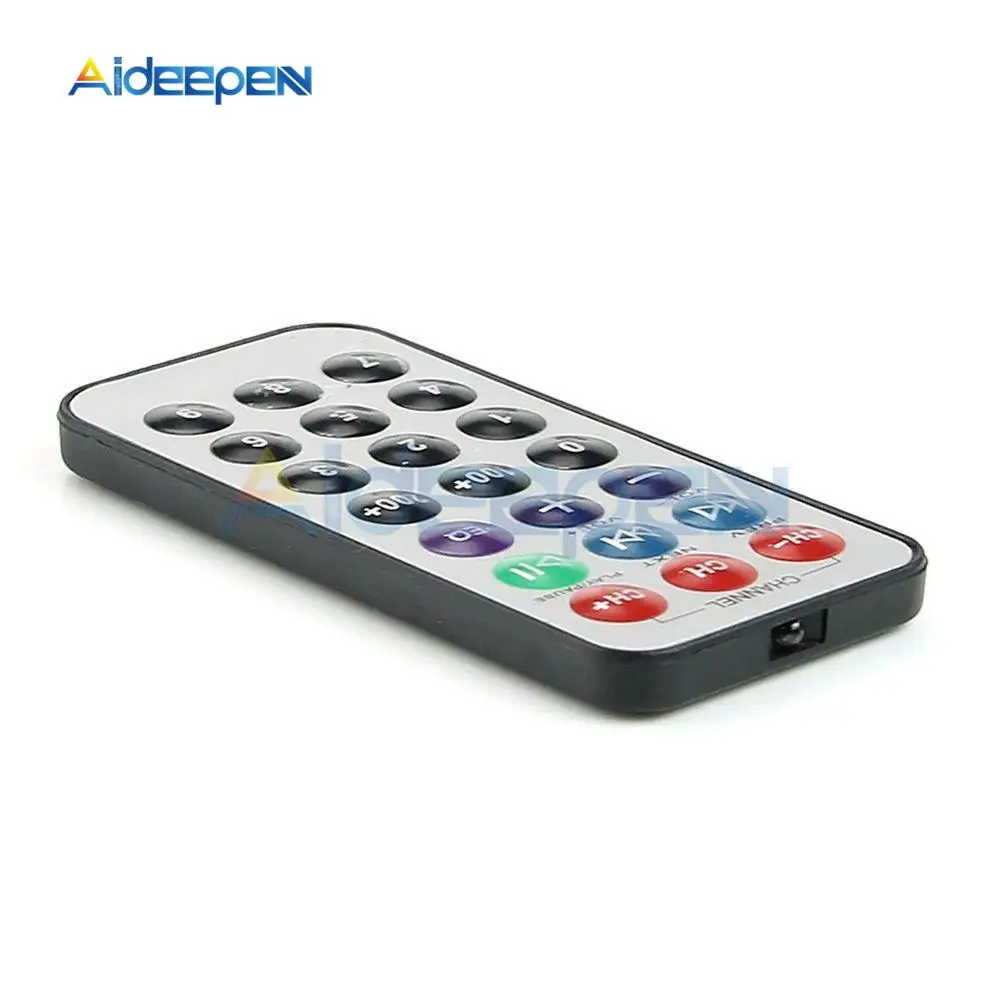

The remote control uses:

Only the numeric keys work, the 1-8 keys correspond to the corresponding relay channels 1-8. After the first relay after pressing starts to work, the disconnect relay is pressed again.
When the 0 button is pressed, it starts to work.
9 After pressing the button, all stop working,

Package Included:

1 x8 Channel Multi-function Infrared Remote Control Relay Module Dual Trigger Module Infrared IR Remote Switch 8CH Driving Board
