Description:
Size: 5.2 x 2.65 x 1.4cm (L x W x H)
Module Properties: non-isolated constant current and voltage module
Rectification: non-synchronous rectification
Input voltage: 8V-36V
Output voltage: 1.25V-32V
Output current: adjustable maximum 5A
Conversion efficiency: 95% (the highest)
Switching frequency: 180KHz
Output ripple: 50mV (max) 20M bandwidth
Load Regulation: +- 0.5%
Voltage Regulation: +- 2.5%
Operating Temperature: -40 degrees Celsius to +85 degrees Celsius
Package Included:

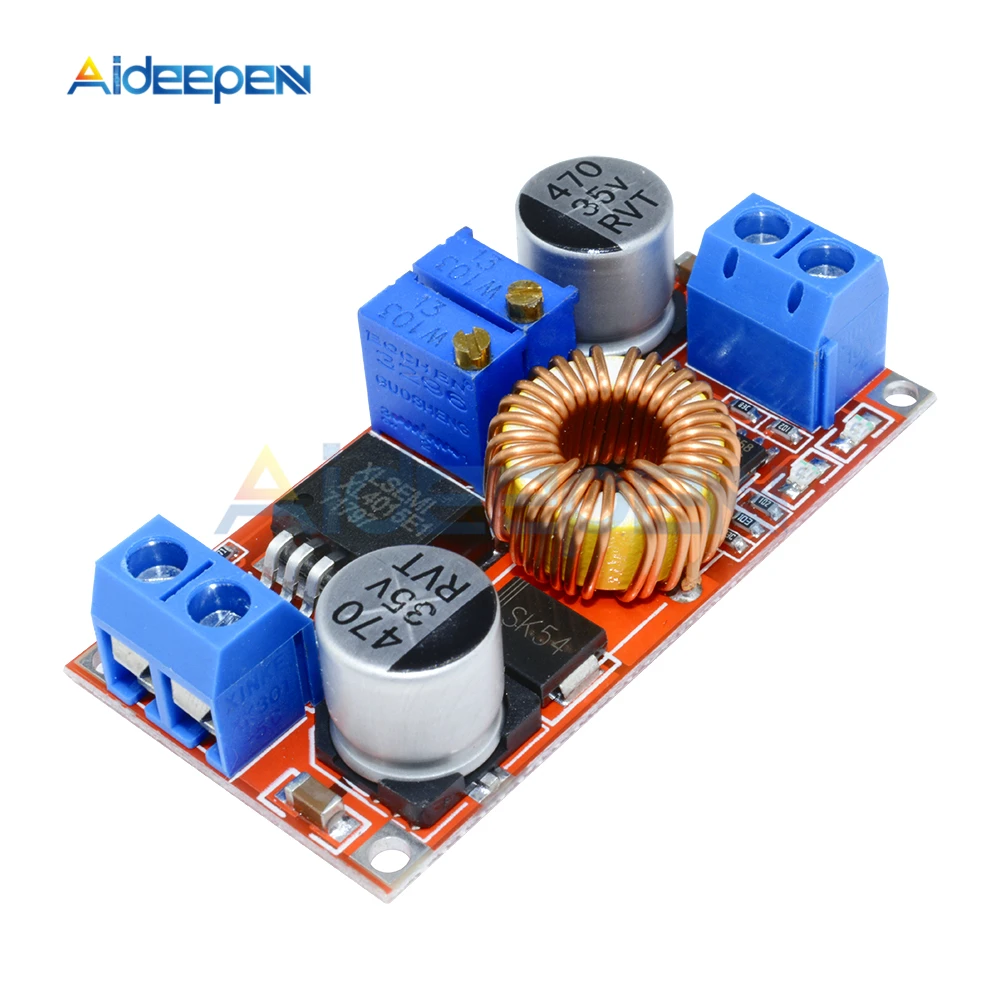

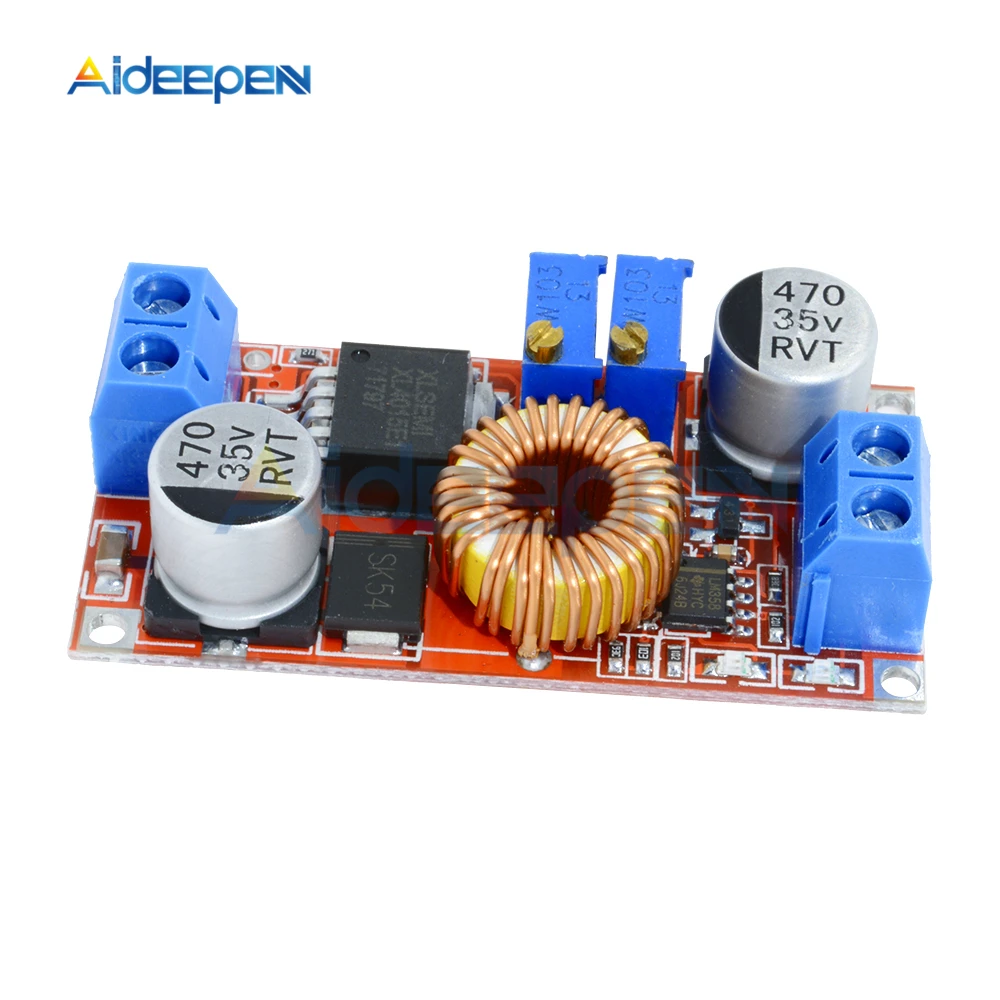

1 x DC to DC CC CV Lithium Battery Step down Charging Board Led Power Converter Charger Step Down Module
