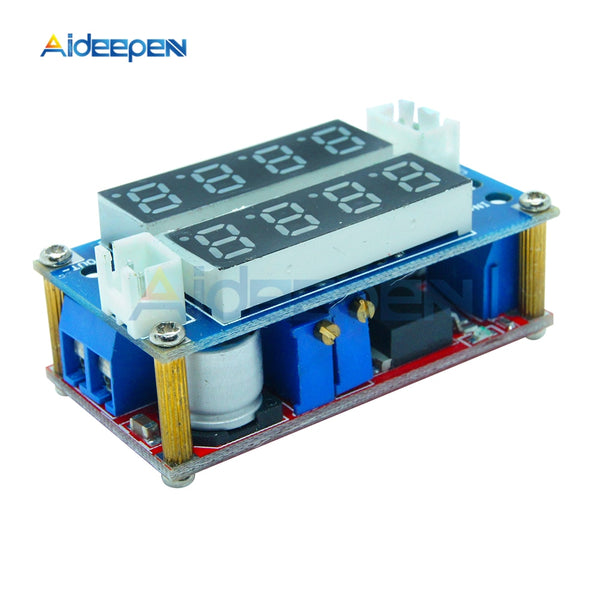

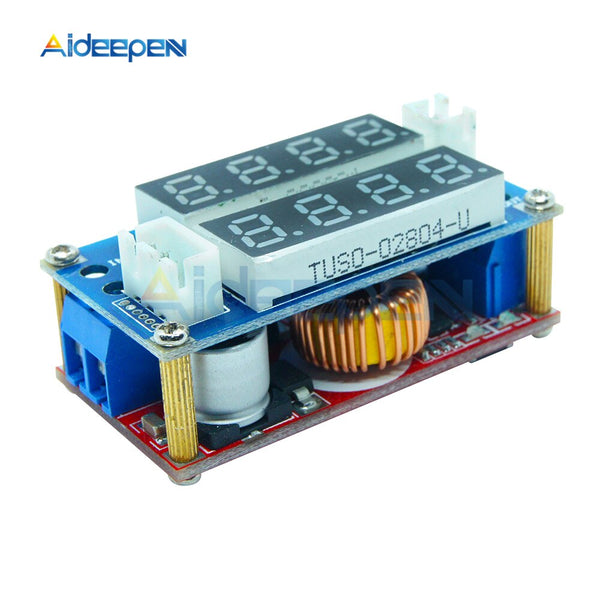

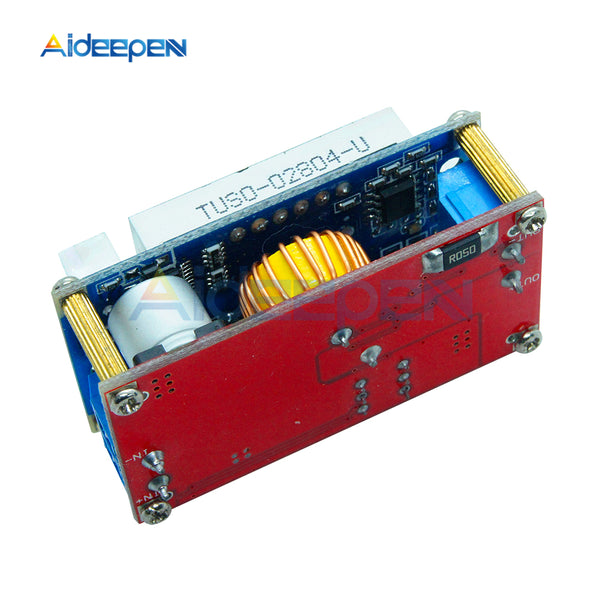

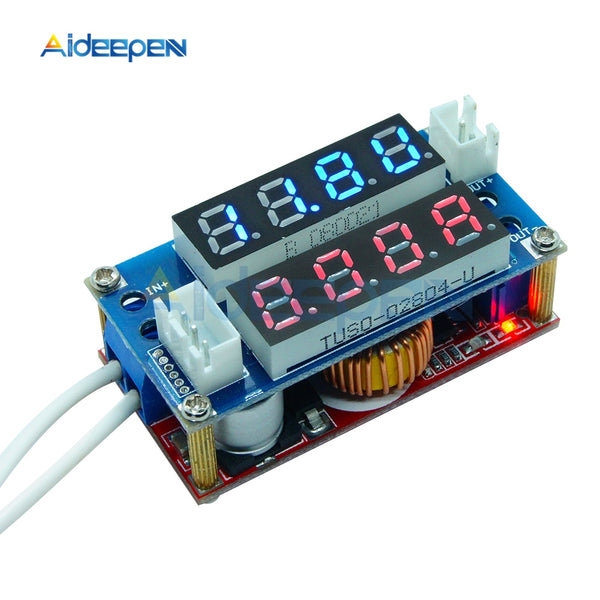

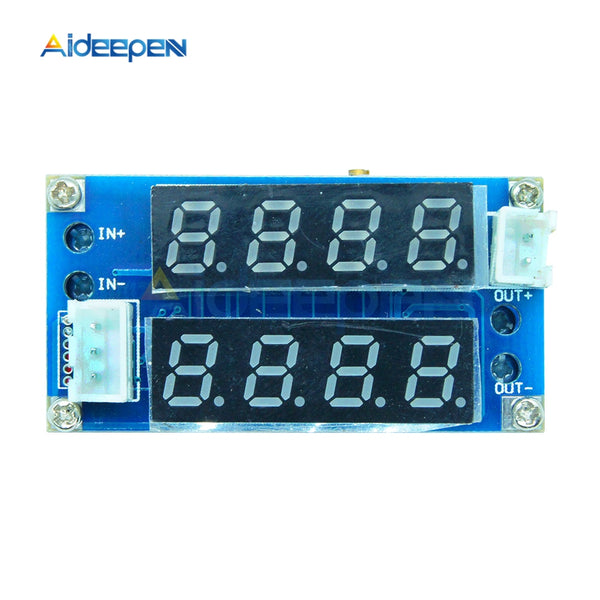

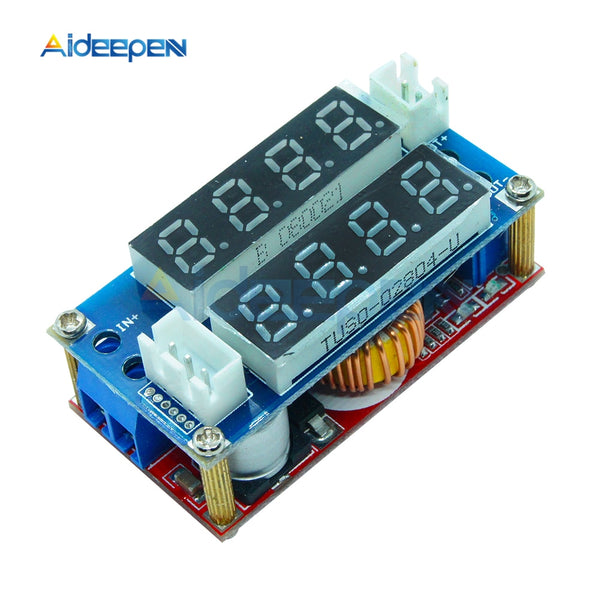

5A Adjustable Power CC/CV Step down Charge Module LED Driver Board Voltmeter Ammeter Constant Current Constant Voltage

010376

Sale price $8.99 Regular price $9.99

Tax included.

Description:

Universal receiver.
100% Brand New
Module Properties: non-isolated constant current and voltage module
Rectification: non-synchronous rectification
Input voltage: 5V-32V
Output voltage: 1.27V-30V
Output current: adjustable maximum 5A
Conversion efficiency: 95% (the highest)
Switching frequency: 300KHz
Output ripple: 50mV (max) 20M bandwidth
Load Regulation: ± 0.5%
Voltage Regulation: ± 2.5%
Operating Temperature: -40°to +85°
Size: 51 * 26.3 * 14 (L * W * H) (mm)
Measurement accuracy: 0.1%
Refresh rate: about 200ms / times
Display: 0.28"digital tube
Current Range: 0A-5A
Voltage range: 5V-30V
Display Color: Red and Blue
Package included:
1 x Constant Current/Voltage LED Driver Step-Down Power Module
