Description:
High voltage level trigger refers to a forward voltage between signal trigger end(IN) and power cathode, is a trigger way of connecting anode of power with trigger end. When there is forward voltage or the voltage reaches to a certain trigger amount at the trigger end, relay is actuated. Low voltage level trigger refers to the voltage between signal trigger end and power cathode is 0 V, or voltage of trigger end is lower than that of power anode, and relay is actuated. Usually connect power cathode with trigger end.
Features:
1. Power supply of module should be direct current, and voltage should be associated to that of relay.
2. The controlled voltage range of relay is AC 24 V to 380 V. Max Current: 8 A.
3. Convenient KF301 green input wiring terminals.
4. Safe KF1000-2P output wiring terminals.
5. 380 V 8 A solid-state relay.
Specifications:
Input Voltage Range: DC 5 V to 12 V
Input Control Signal Voltage:
High and low voltage level can be set (short circuit boards welding on the back plate, the default is low voltage level)
Input Interface:

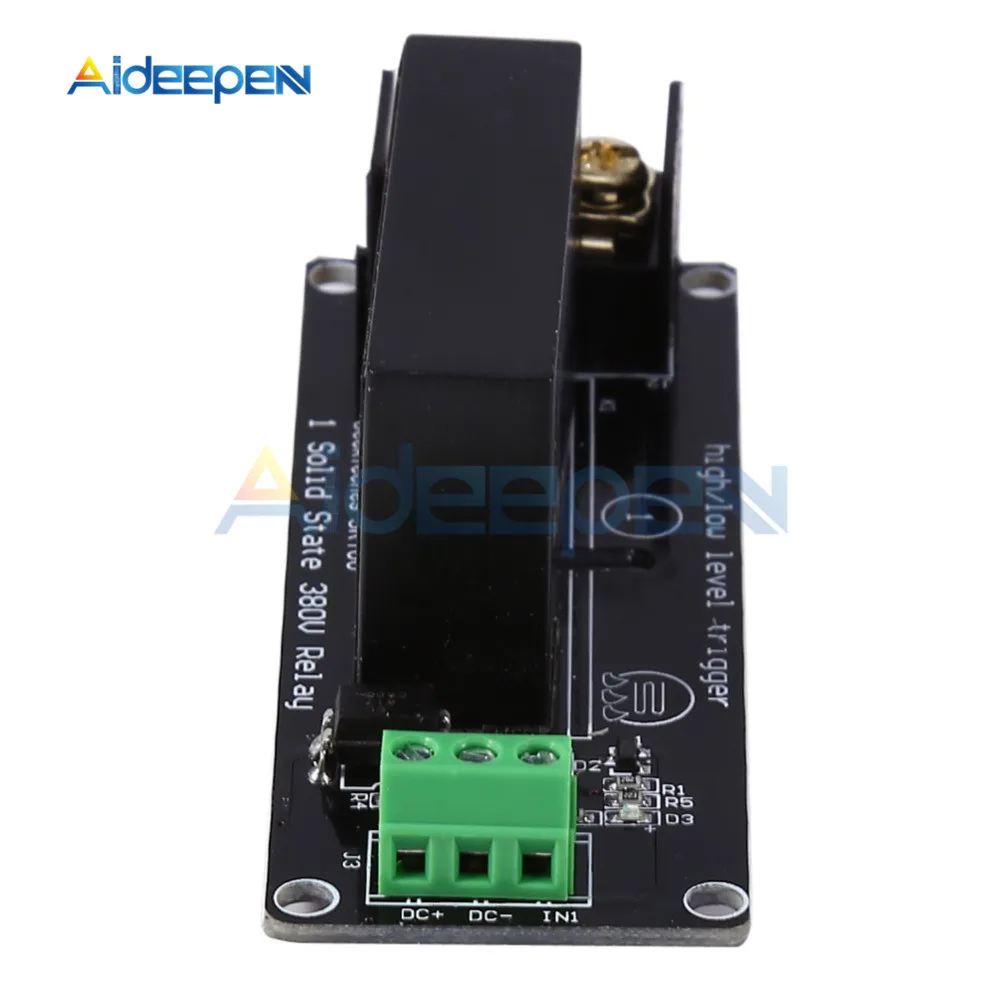

DC+
DC-

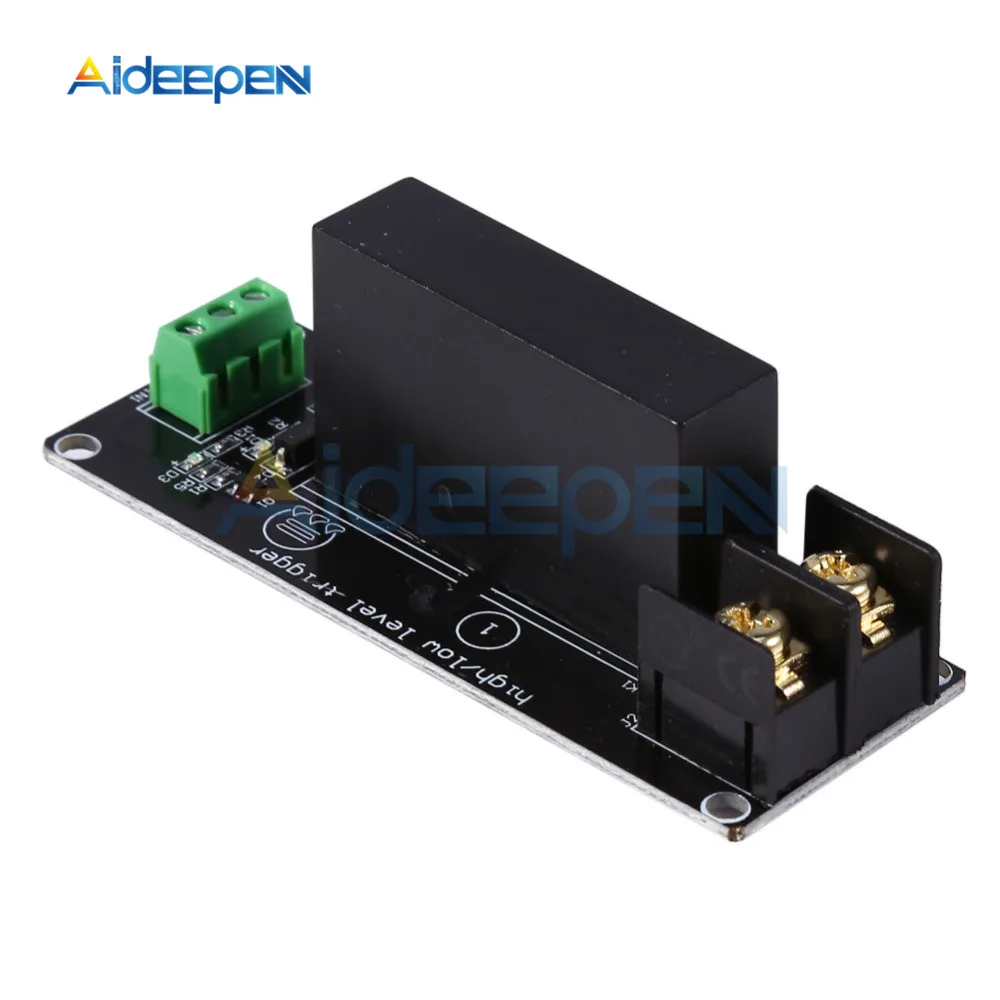

CH1: 1 channel relay module signal triggering end

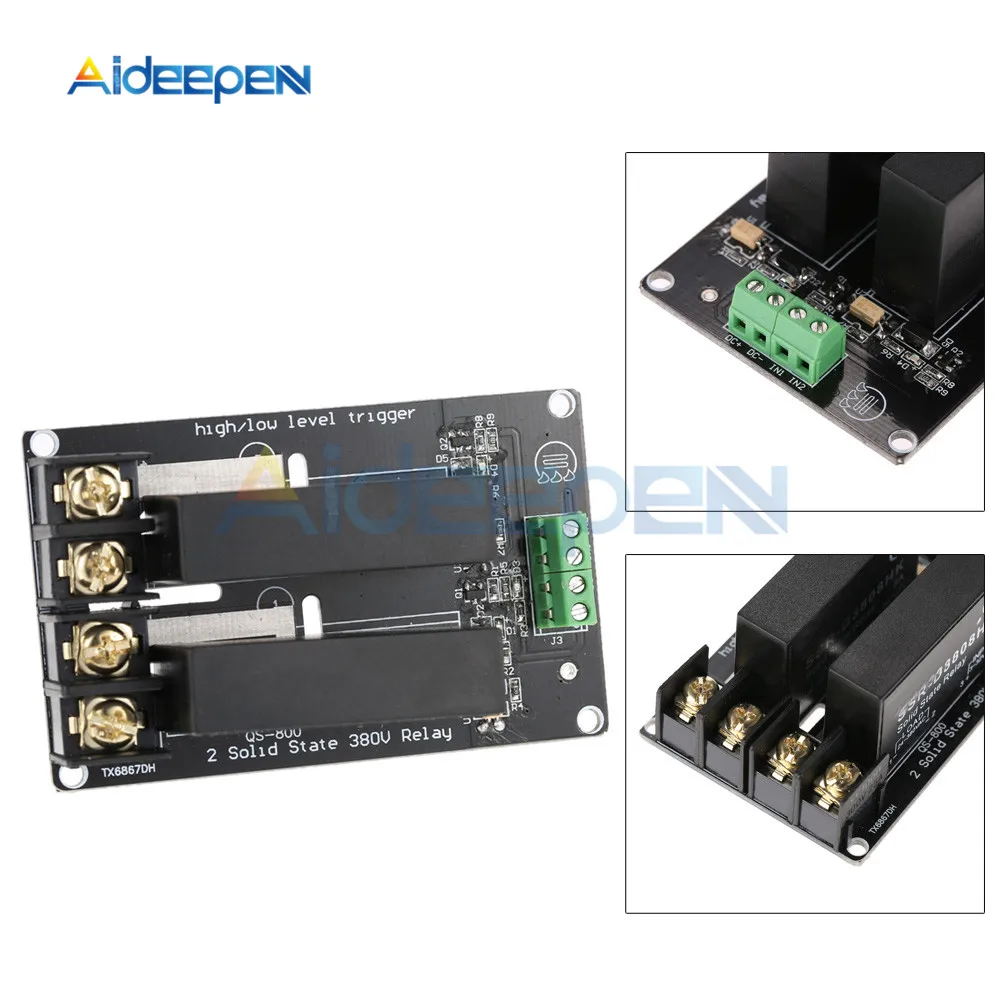

CH2: 2 channel relay module signal triggering end

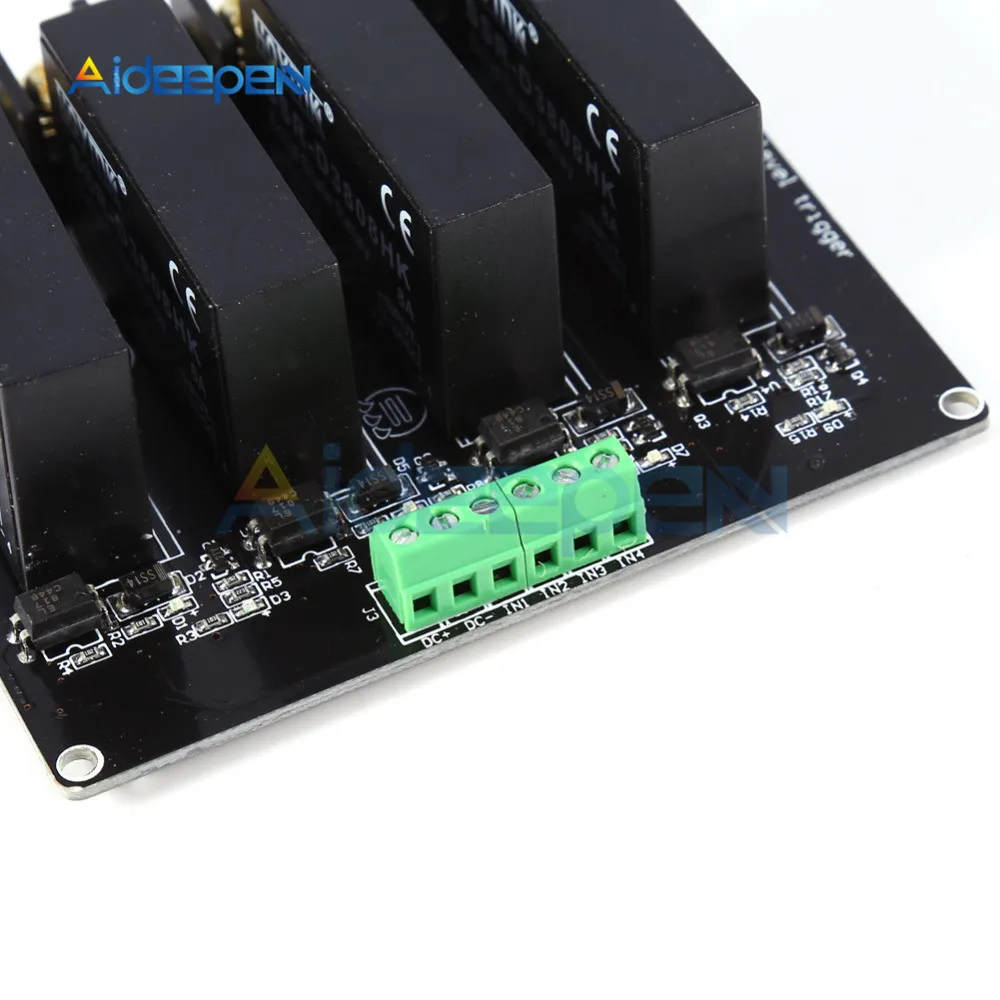

CH4: 4 channel relay module signal triggering end
