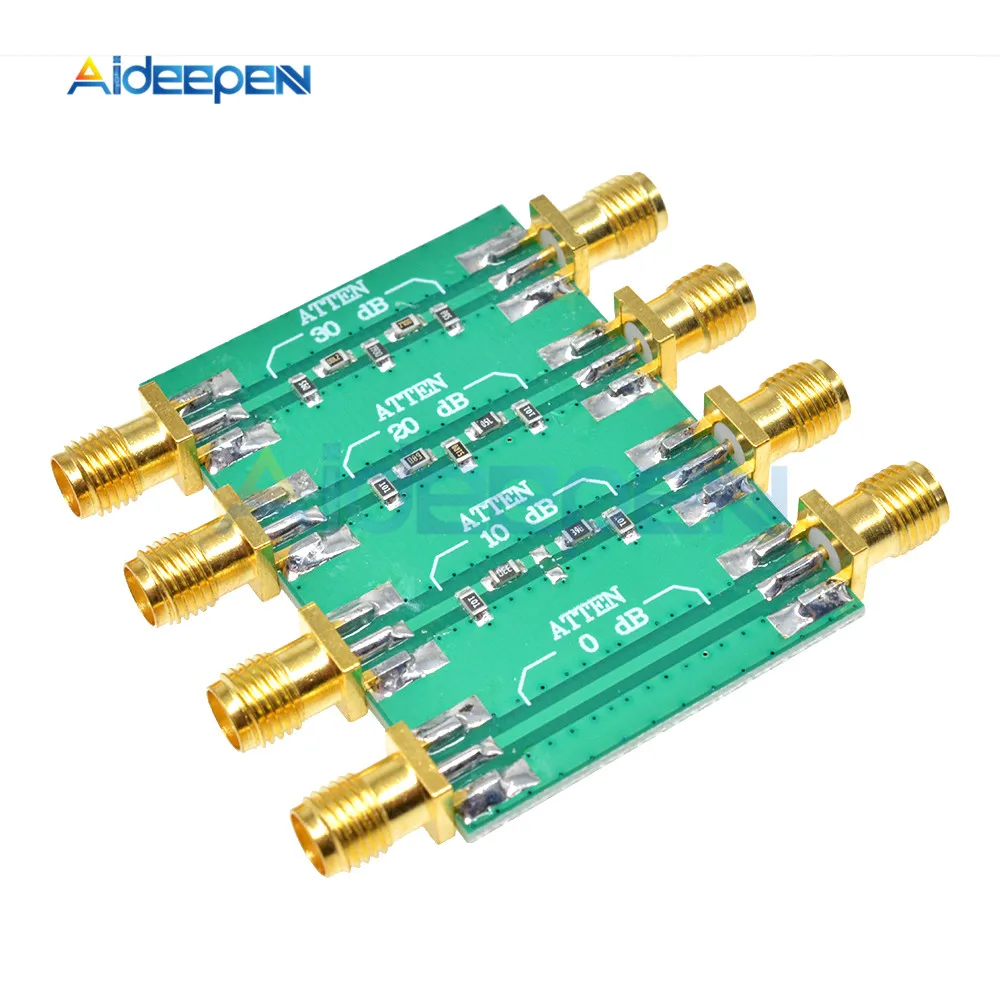

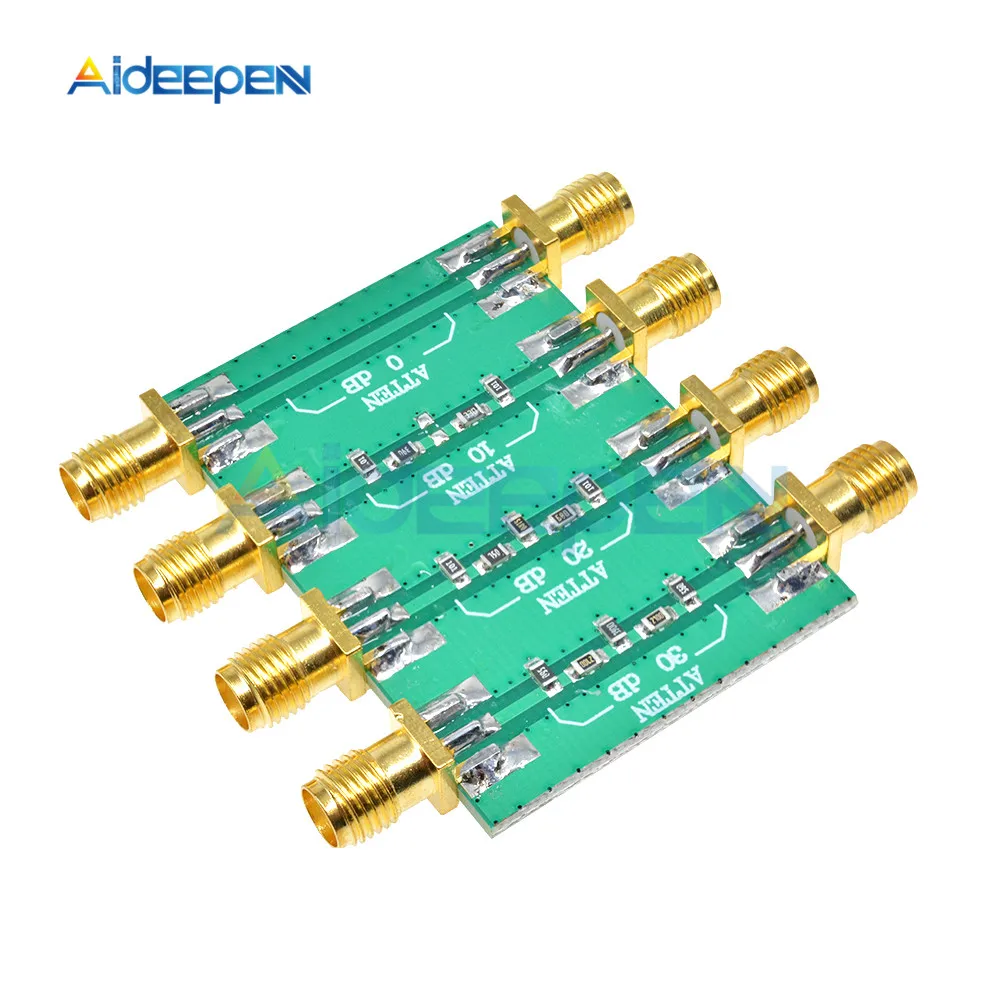

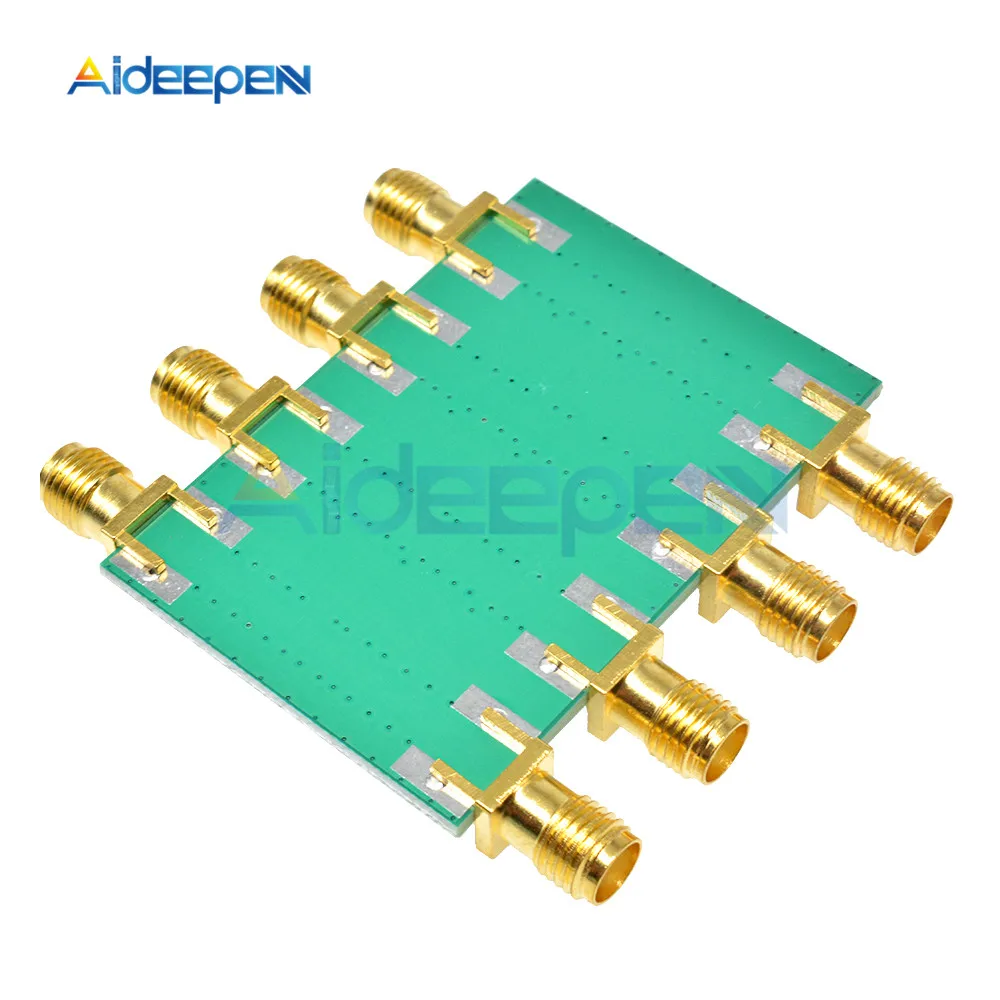

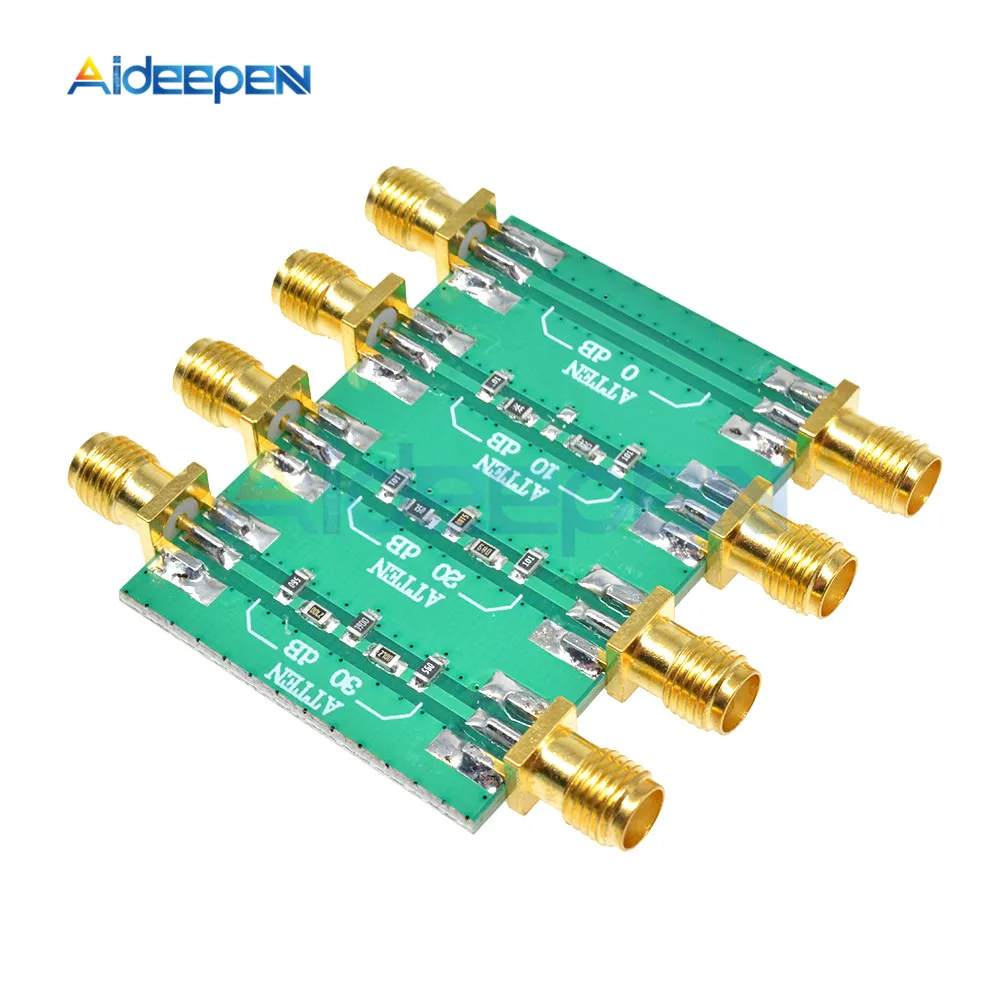

23dBm 200mW DC 4.0GHz RF Fixed Attenuator Module SMA Double Female Head 0dB 10dB 20dB 30dB

Sale price $6.99 Regular price $10.48

Tax included.
不锈钢计时器
23dBm 200mW DC 4.0GHz RF Fixed Attenuator Module SMA Double Female Head 0dB 10dB 20dB 30dB

Description:

Frequency range: DC - 4.0GHz
Maximum power: 23dBm (200mW)
Standing wave ratio: 1.20
System impedance: 50
RF interface: SMA double female head (Outer screw inner hole)
Attenuation:
Direct: 0dB (reference)
Level 1: 10 0.8 dB
Level 2: 20 1.1 dB
Level 3: 30 1.5dB

Package Included:

1 x DC 4.0GHz RF Fixed Attenuator Module
