Description:
Resolution 128*RGB*128
PIN feet :8 pin (SPI serial interface)

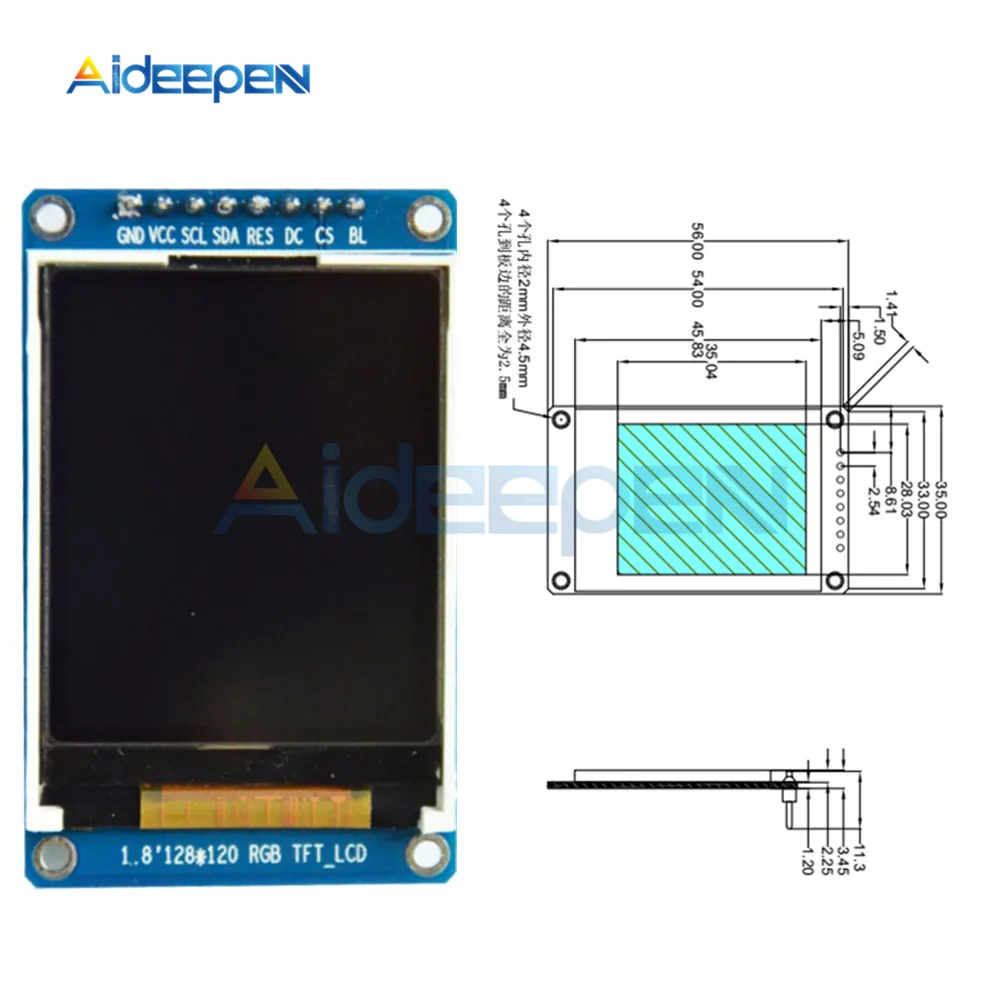

PIN feet spacing:2.54mm
connection mode : Row needles
GND: Grounding power communication system
VCC: power supply
SDA: SPI DATA input
SCL : spi clock signal input
CS: spi chip select signal input
RST: reset
RS: command /data signal input selection
BLK : Backlight control signal inpu
Package Include:

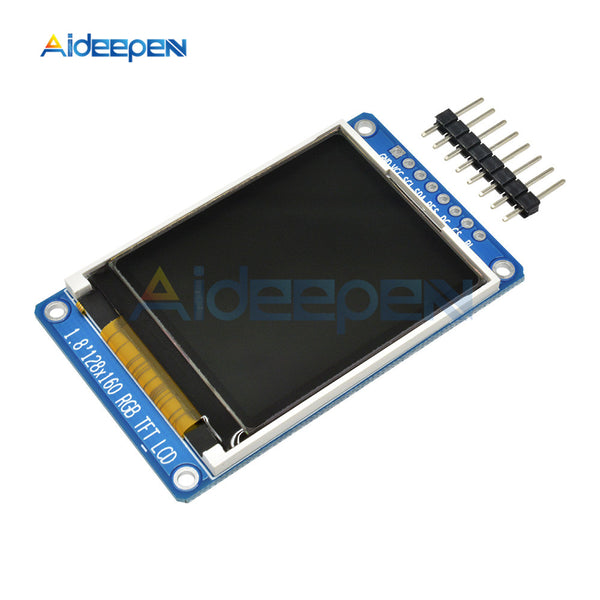

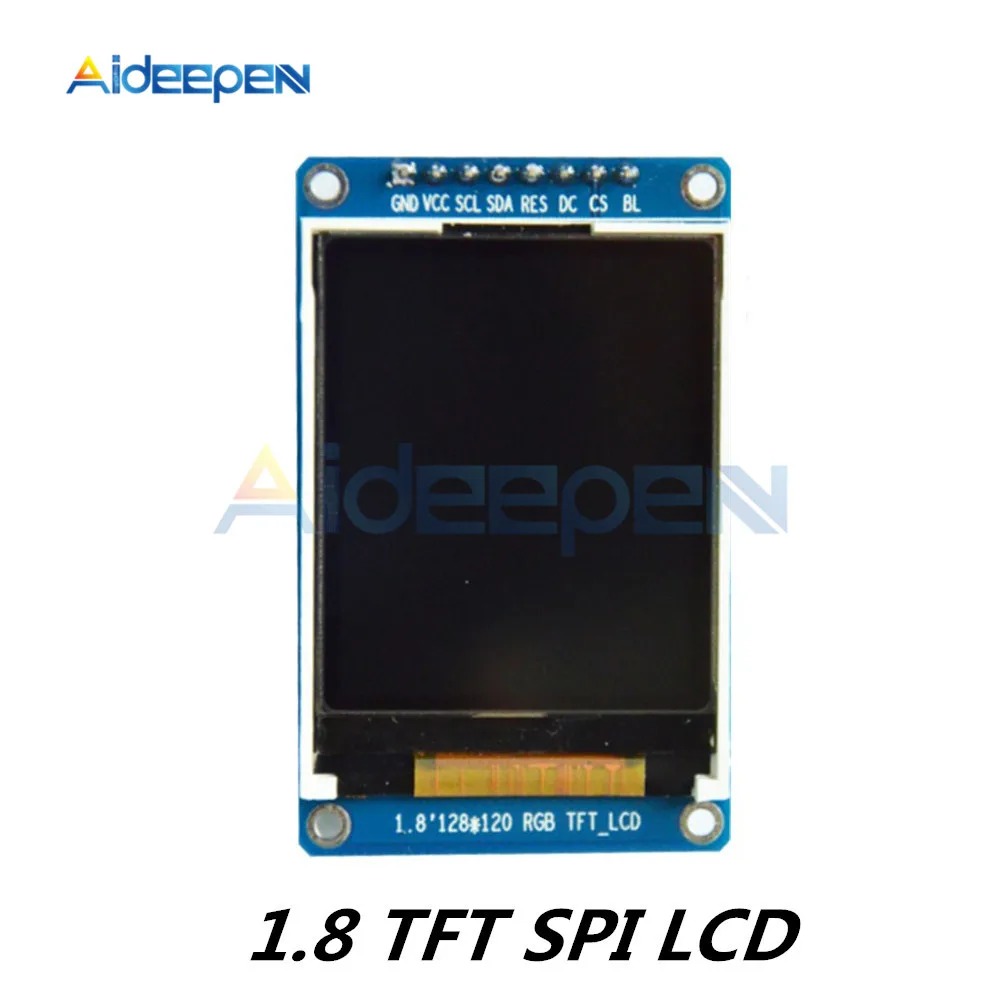

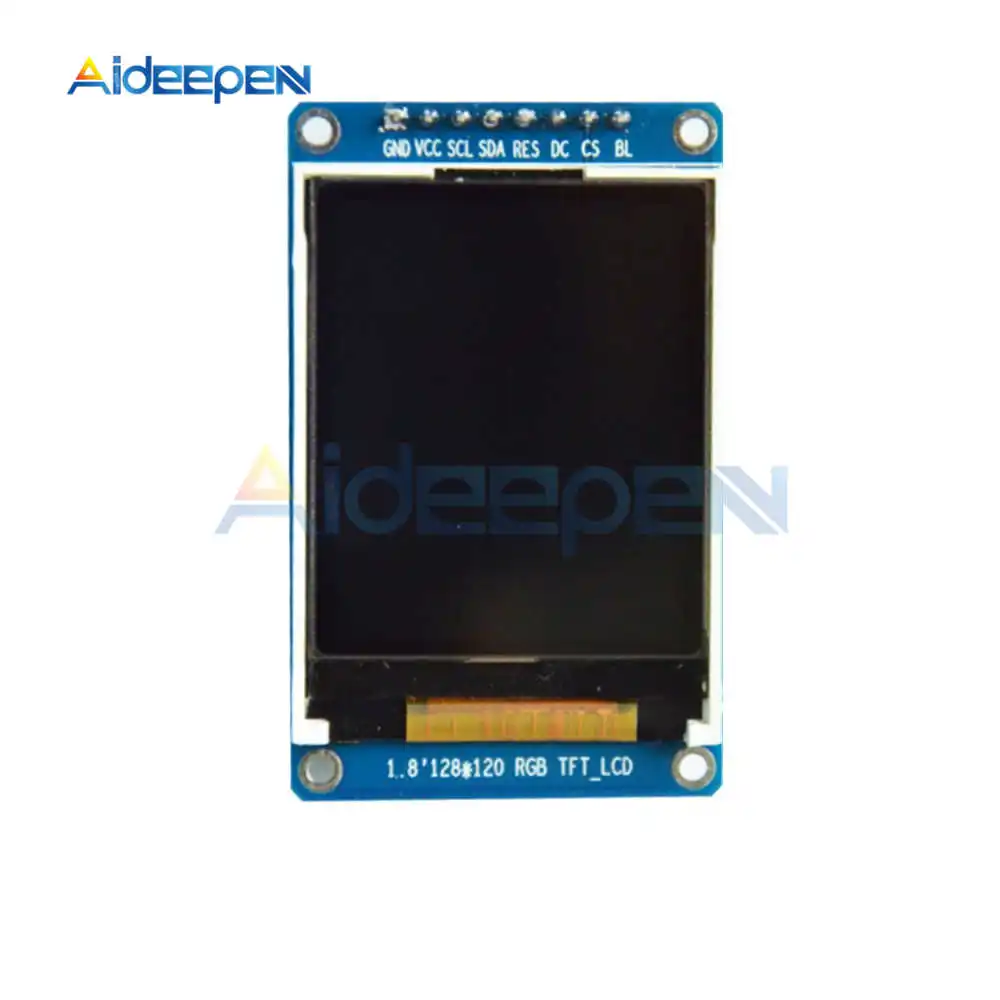

1PC x New Arrival 1.8" Inch Full Color 128x160 128*160 SPI Full Color TFT LCD Display Module Board Replace OLED
